Kawasaki TJ 35 E M - Petrol brush cutter - Blue Bird rod

Questions & Answers (4)
ID: K500182

EAN: 8025518445589

MPN: 875870A-SETTIMI

8,1/10
After-sales assistance & Spare parts
Kawasaki TJ 35 E M - Petrol brush cutter - Blue Bird rod
+400 sold
Free gifts from AgriEuro
Widia discWidia disc
Double tap-and-go headDouble tap-and-go head
Multi-line head and hexagonal lineMulti-line head and hexagonal line
NO. 6 PROTECTION ITEMSNO. 6 PROTECTION ITEMS
Oil and measuring cupOil and measuring cup
Standard support strapStandard support strap
Technical data
Type
Double grip
Motor type
2-stroke
Motor brand
Kawasaki
Motor Model
TJ 35 E
Cubic capacity
34.4 cm³
Nominal power
1.38 HP
Shaft diameter
27 mm
Shaft and bevel gear
Heavy-duty
Weight
6.6 Kg
Manufacturing country
Italy
Product Features
Model
TJ 35 E M
Type
Double grip
Operating mode
Spark ignition
Grip
Standard
Manufacturing country
Italy
Motor data
Motor brand
Kawasaki
Motor Model
TJ 35 E
Motor type
2-stroke
Cubic capacity
34.4 cm³
No. of cylinders
Single-cylinder
Nominal power
1.38 HP
Fuel
Petrol/oil mixture
Engine lubrication system
Direct with petrol/oil mix
Decompression system
Automatic
Tank capacity
0.7 L
Manufacturing country
Japan
Transmission data
Transmission type
Rigid shaft
Shaft diameter
27 mm
Internal shaft
straight
Shaft and bevel gear
Heavy-duty
Manufacturing country
Italy
Equipment
Multifunctional
No
Brush cutter attachment
standard equipment
Chain pruner attachment
on request
Hedge trimmer attachment
on request
Tiller attachment
on request
Anti-vibrating system
Yes
Clutch
Yes
Primer pump
Yes
Electronic ignition (with coil)
yes
Recoil start system (with rope)
Yes
Rubber-coated soft grip
No
Free gifts/extra features
Automatic line head (Tap&Go)
Yes
3-tooth steel blade
Yes
4-tooh steel blade
No
Tungsten blade (cemented carbide teeth)
Yes
Multi-line head
Aluminium
Standard shoulder strap
Yes
Pro double shoulder harness with tight protection
No
56 m hexagonal line (3 mm)
yes
Safety face shield
yes
Safety goggles
Yes
Ear muffs
yes
Safety apron
yes
Headscarf
Yes
Oil bottle
Yes
Rider plate and blade assembly tools
Yes
Plastic blade guard
yes
Fuel can
no
Maintenance tool kit
Yes
Tank for mixture preparation
No
Instructions manual
Yes
Dimensions and logistics
Net weight
6.6 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
32x30x190 cm
Weight including packaging
13 Kg
Assembly time
15 minutes
Out of stock
Free Shipping
€ 485,10
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

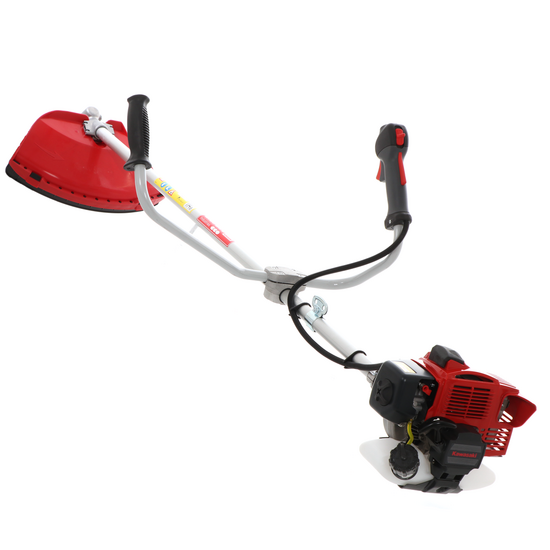

Kawasaki TJ 35 E M Brush Cutter

The brush cutter powered by Kawasaki TJ 35 E M engine is a heavy-duty tool which combines power, efficiency, reliability and versatility at the same time.

This brush cutter is ideal for hard cutting operations such as trimming tall grass and shrubs.

The adjustable handlebar ensures correct movements while working, which help avoiding the typical pains of prolonged work sessions.

Why choose a Kawasaki brush cutter? 2-stroke brush cutters with original Kawasaki engine are the most advanced machines on the market thanks to their absolute efficient in every aspect:

  • High rpm rate
  • Highest power output in its category
  • Renowned Kawasaki reliability
  • Extremely lightweight, only 6.5 kg
  • 30% lower consumption
  • Quick and efficient start
  • Reduced compression at start-up thanks to KAR system
  • Reduced polluting emissions
  • Low noise with the new SQS muffler
  • Extremely durable made in Italy transmission

Kit of work and maintenance attachments included!

The brush cutter is shipped already ASSEMBLED and ready for use (it is only necessary to tighten 4 screws on the stone guard)

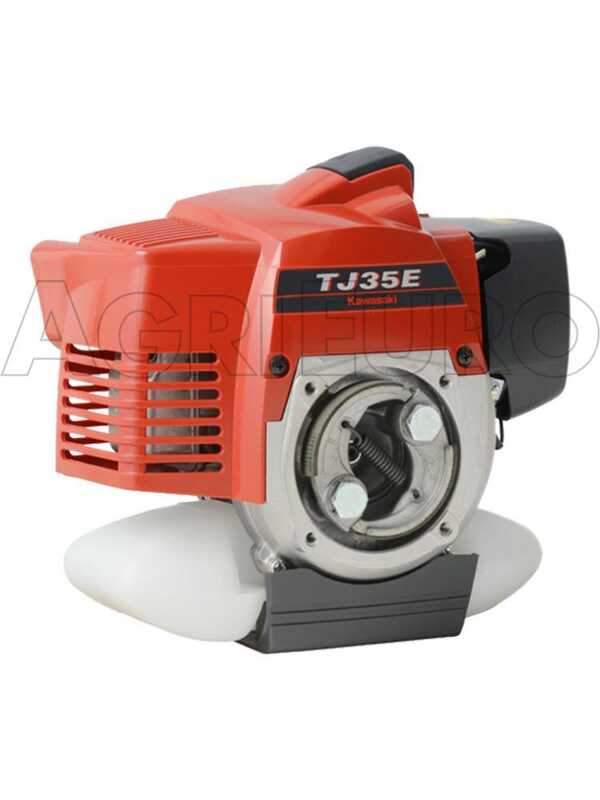

Kawasaki Engine

Kawasaki TJ 35 E is a 34.4 cc, 2-stroke, air-cooled horizontal axis engine. This type of engine is particularly renowned for its excellent power to weight ratio, which makes it particularly suitable for heavy-duty and demanding work sessions.

Equipped with a single cylinder, it develops a maximum power of 1.38 CV at 7000 rpm and a torque of 1.55 Nm at 5000 rpm.

It is equipped with a centrifugal clutch and diaphragm carburetor, and it is very easy to operate thanks to the recoil start with self-recovery, the cold-start primer pump and the air regulation system.

It is also equipped with a lightened piston, dynamically balanced flywheel and a patented Kawasaki layered exhaust system.

The engine is lightweight and is compact in size. Its dry weight is 3.2 kg, its dimensions are 17x26x24 cm.

Equipped with 0.7 L tank, the Kawasaki TJ 35 E engine runs on 2% mixture.

Focus on the access to the spark plug.

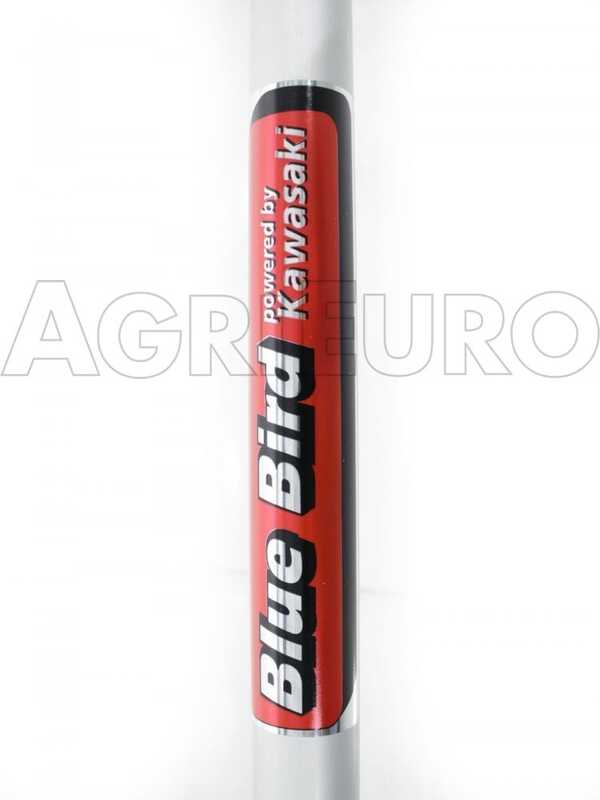

Blue Bird Industries Transmission Shaft

The Blue Bird Industries transmission shaft consists of an aluminium tube with a diameter of 27 mm which contains an 8 mm inner shaft made of high-strength steel.

It is equipped with 6 heavy-duty self-lubricating bushings to ensure long durability even in case of heavy-duty and demanding use.

The materials used for both the shaft and inner shaft are of the highest quality and made in Italy.

Increasingly, brush cutters with Kawasaki engines and Chinese transmission systems are being introduced onto the market. When subjected to normal working stresses, these units deteriorate very quickly due to the low quality, low hardness and low thickness of the material used. In addition, the very high performance of the Kawasaki engine would require a transmission of the same quality to enable the shaft to withstand the high level of power and performance of the engine.

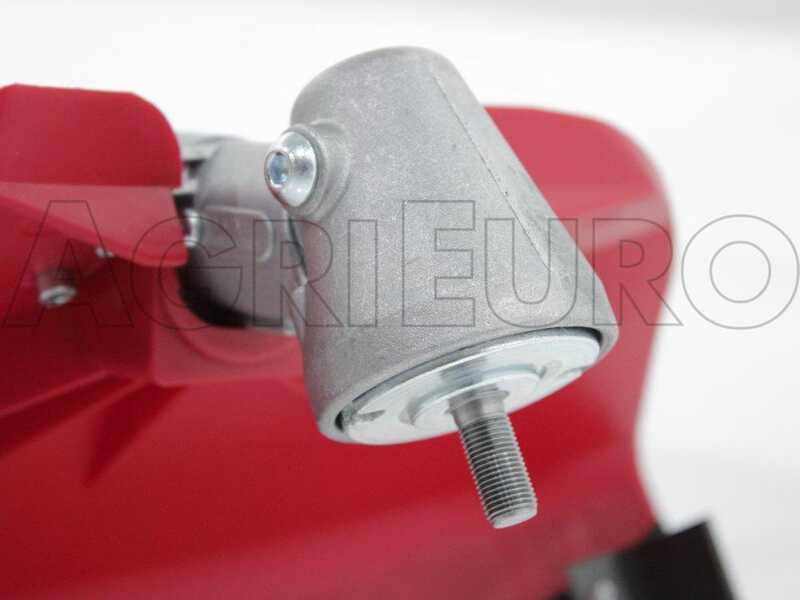

Blue Bird Industries Bevel Gear

The Blue Bird Industries bevel gear is entirely made of light alloy and inside it features 4self-lubricating bearings, 2 for the pinion and 2 for the crown gear. It is the biggest bevel gear of this category, which is also evident from its massive and voluminous size.

The crown gear and pinion are made of high-strength steel of the highest quality, extremely suitable for withstanding mechanical strain.

Furthermore, the crown and pinion are entirely designed and moulded in Italy.

Increasingly, brush cutters with Kawasaki engines and transmission systems with Chinese bevel gear are being introduced onto the market. When subjected to normal working stresses, these units deteriorate very quickly due to the low quality, low hardness and low thickness of the material used. In addition, the very high performance of the Kawasaki engine would require a transmission of the same quality to enable the shaft to withstand the high level of power and performance of the engine.

Focus on the large stone guard with an additional protective band equipped with removable counter blade. It has to be mounted to work with line heads and removed for operating with the discs or any other attachment.

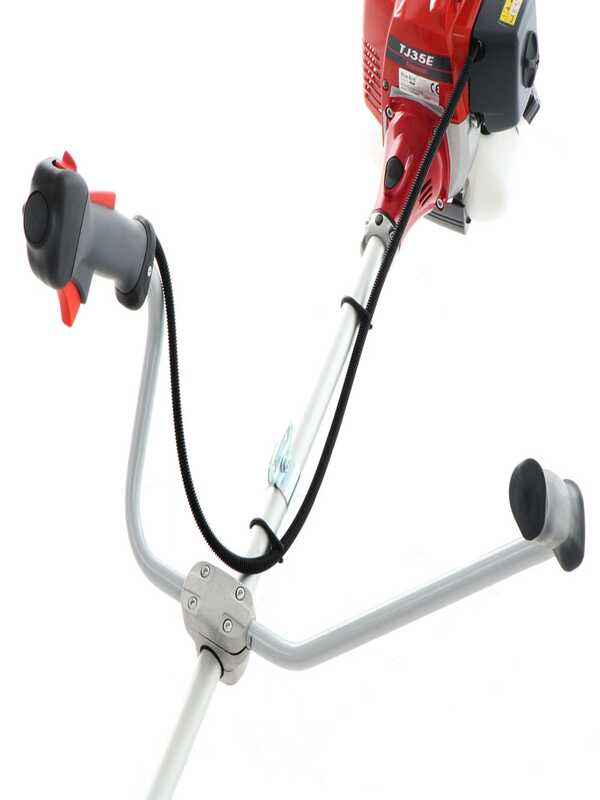

Handle and Controls

TJ 35 E M brush cutter is equipped with an ergonomic anti-vibration handlebar with adjustable tilting: just loosen the 4 screws and adjust it by turning it forwards or backwards.

The handlebar is asymmetrical, the left arm is extended and away from the shaft, while the right arm, the one with the control knob, is closer to the shaft. This configuration allows the operator to maintain a correct position of the arms, not off-centre towards the brush cutter, working in total comfort even for several hours.

Focus on the controls grip, the throttle control, the power switch and the safety switch.

Engine air opening valve

Free items & Standard equipment

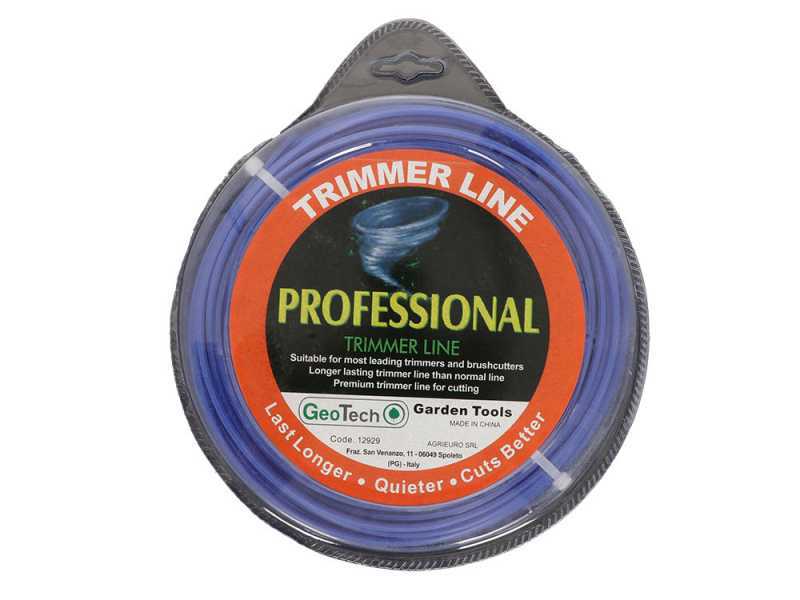

1° GIFT: Professional Hexagonal Line

FREE ITEMS INCLUDED: Professional high-strength hexagonal line, 3 mm diameter, 56 m length

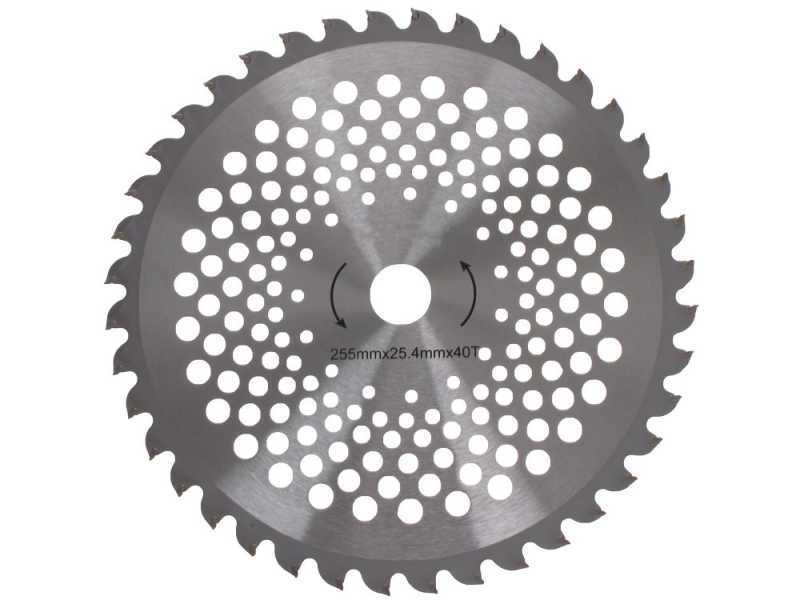

2° GIFT: WIDIA Disc

FREE ITEMS INCLUDED: Brush cutter disc also called WIDIA disc: 255 mm diameter, suitable for clearing work, cutting bushes, brambles, gorse, and many other tasks.

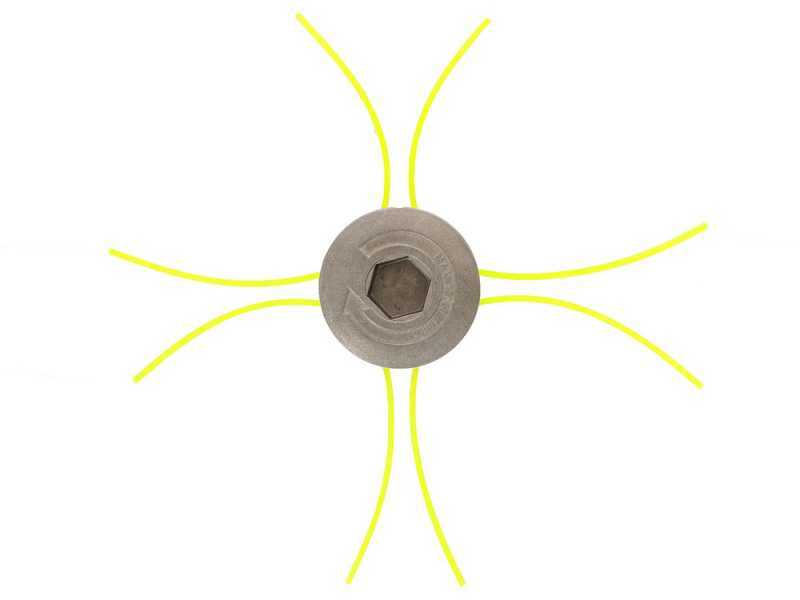

3° GIFT: Professional Brush Cutter Multi-line Head

FREE ITEMS INCLUDED: Professional aluminium multi-line head features a very quick and easy line assembly and replacement system.

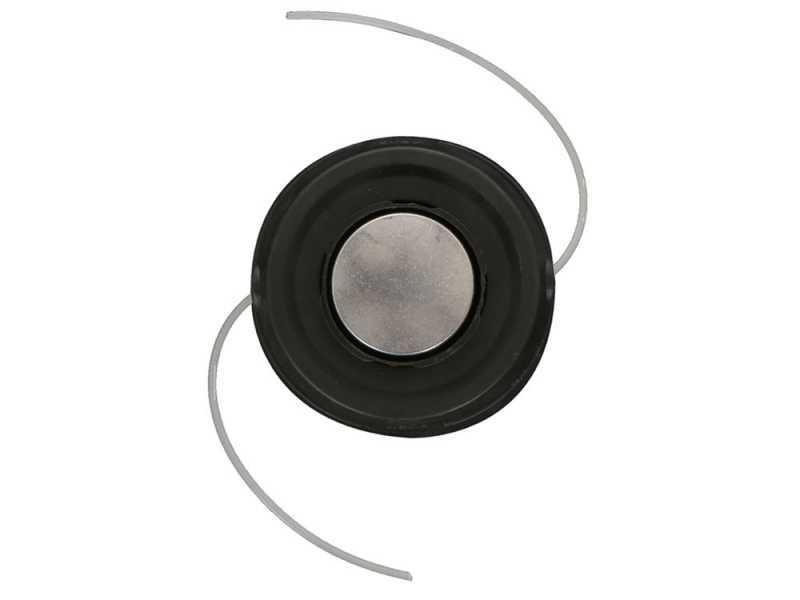

4° GIFT: Professional Tap & Go Head

FREE ITEMS INCLUDED: Professional tap & go head with aluminium knob and quick line engagement system

5° GIFT: Graduated Dispensers 100 ml

FREE ITEMS INCLUDED: Graduated dispensers 100 ml

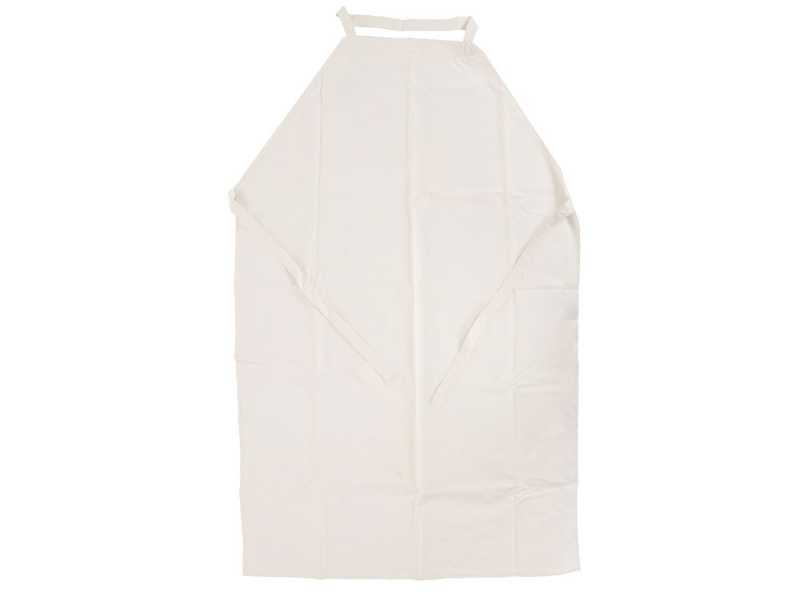

6° GIFT: Heavy Protective Apron

FREE ITEMS INCLUDED: Heavy protective apron, made of ultra-strong non-stick material that is easy to wash. Although heavy, the apron is not approved as accident-prevention.

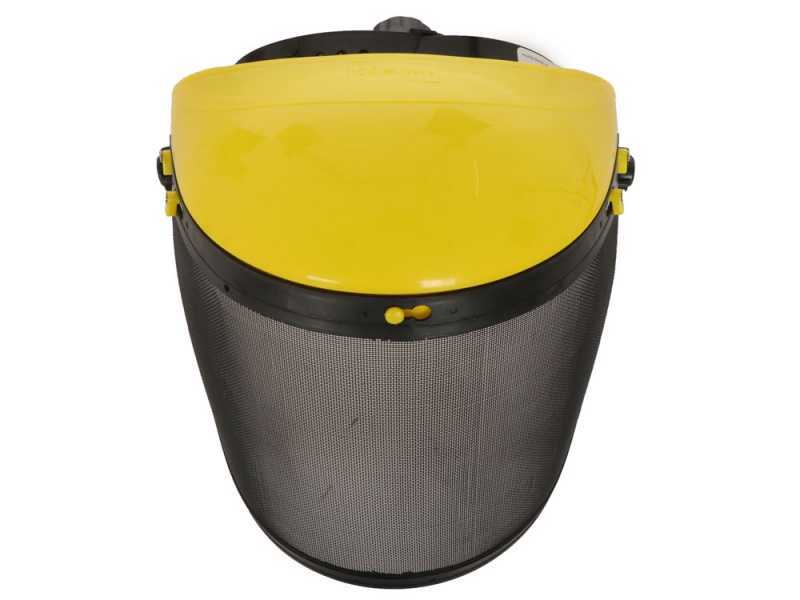

7° GIFT: Professional Protective Mask

FREE ITEMS INCLUDED: Certified professional protective mask in wire mesh for working in complete safety.

8° GIFT: Safety Kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.
Ear protection must be the one recommended for all working conditions. In this case, the earmuffs provided are specifically designed to protect the operator against the noise coming from the machine.

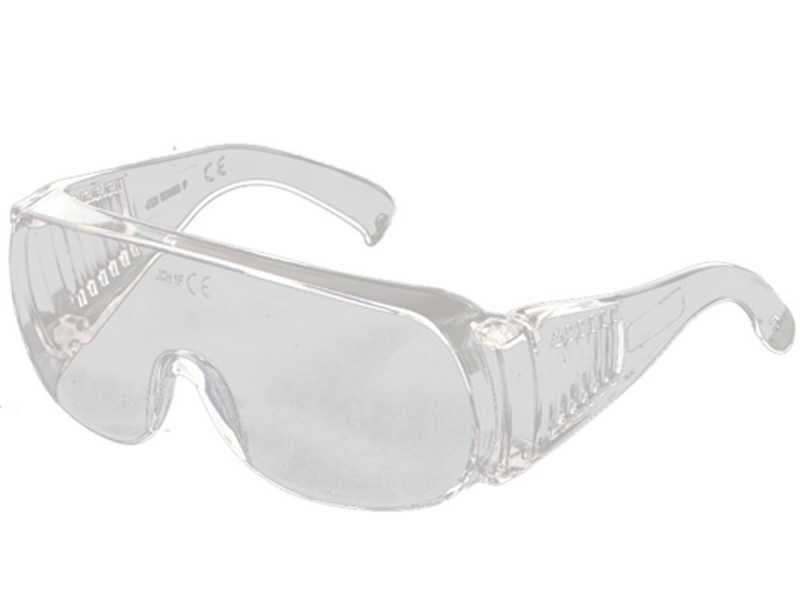

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

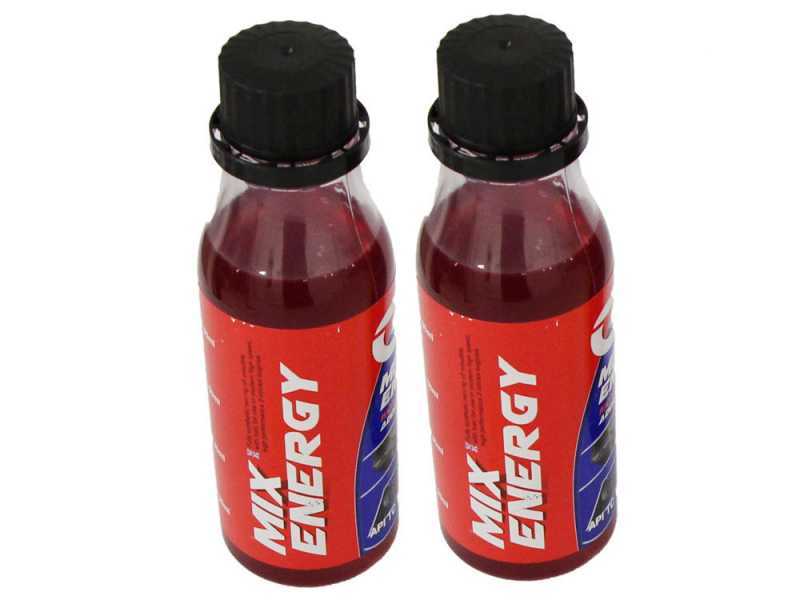

9° GIFT: 100 ml Oil Bottles

2 x 100 ml bottles for two-stroke brush cutters

Free Items Included

Kawasaki TJ 35 E M brush cutter is shipped in its original packaging, together with the instructions manual, assembly tools and attachment kit described in detail below.

Items included:

- Standard support harness

- 3-tooth disc made of high-strength hardened steel with a diameter of 255 mm. It is generally used for mowing very tall, thick and dense grass and for all the operations that are too demanding to carry out with the line head. The 3-tooth blade is sharpened in the direction of rotation.

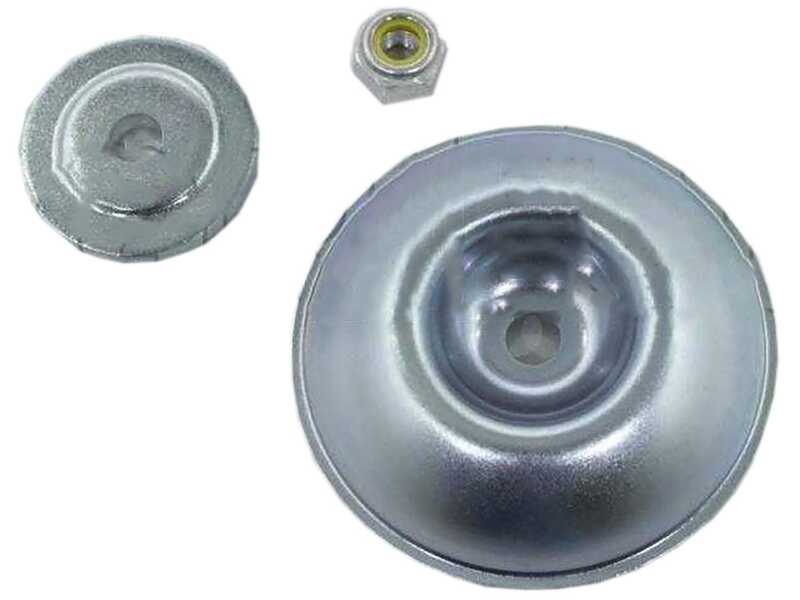

- Rider plate, thrust washer and collar, suitable for any type of disc or line head that you need to attach to your machine.

The brush cutter is shipped already ASSEMBLED and ready for use (it is only necessary to tighten 4 screws on the stone guard)
