Annovi & Reverberi Blue Clean 1003 - Professional Hand-held Cold Water Pressure Washer - 150 Bar - 630 L/h

Questions & Answers (18)
ID: K609049

EAN: 8016287243858

MPN: 24385-V

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi Blue Clean 1003 - Professional Hand-held Cold Water Pressure Washer - 150 Bar - 630 L/h
+200 sold
Free gifts from AgriEuro
15 m purging probe + 4 adapters for high-pressure cleaners15 m purging probe + 4 adapters for high-pressure cleaners
Free water supply connection kitFree water supply connection kit
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 26/06/2026 - 30/06/2026
€ 970,26
Vat included
Available versions
Technical data
Pro Linear Pump
Yes
Pump head material
Brass
Maximum hourly pump flow rate
630 L/h
Max. pressure
150 bar
Engine speed
1450 RPM
Engine
Induction
Operating mode
Single-phase 230 V
Pump brand
Annovi&Reverberi
Pressure regulator
Yes
Wheeled
yes
Type
Trolley
Detergent tank
yes
Self-priming pump
yes
Weight
49.7 Kg
Hose length
10 m
Manufacturing country
Italy
Product Features
Model
AR 1003
Wheeled
yes
Type
Trolley
Operating mode
Single-phase 230 V
Operation mode
Cold water
Detergent delivery
Low-pressure
Manufacturing country
Italy
Motor data
Motor type
Electric single-phase
Engine
Induction
Motor speed
1450 RPM
Max. power absorption
3 Kw
Cooling
With air
Manufacturing country
Italy
Pump data
Pump brand
Annovi & Reverberi
Pump brand
Annovi&Reverberi
Model
HRC
Pump type
Connecting rod-crank
Pro Linear Pump
Yes
Linear Pump
yes
Self-priming pump
yes
No. of pump speeds
1
Pistons material
Ceramic
Pump head material
Brass
Brass pump head
yes
Engine speed
1450 RPM
Max flow rate per minute
10.5 L/min
Maximum hourly pump flow rate
630 L/h
Operating pressure
120 bar
Max. pressure
150 bar
Pressure regulator
Yes
Pressure regulator
yes
Manufacturing country
Italy
Equipment
Integrated detergent tank
Yes
Detergent tank
yes
Detergent dispenser
Yes
External detergent suction hose
Yes
Type of attachment
M22 - Screw
Total Stop
Yes
Rear wheels size
30 cm
Tool holder
Yes
Power cable holder
Yes
Free gifts/extra features
Spray gun
Yes
Heavy-duty spray gun
Yes
Heavy-duty lance
Yes
High-pressure hose for spray gun
10 m
Hose length
10 m
Fixed brush
No
Rotating brush
No
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
67 x 49 x 90 cm
Net weight
49.7 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
73 x 49 x 77 cm
Weight including packaging
55 Kg
Assembly time
5 minutes

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

AR Blue Clean 1003 Pressure Washer

The Annovi & Reverberi AR 1003 is a professional pressure washer designed to offer high, long-lasting performance, thanks to an induction motor and a ceramic three-piston pump with crank-rod system.

The brass head ensures optimal durability, while the 150 bar maximum pressure and 630 litres per hour flow rate combined with 3 kW power make this pressure washer perfect for intensive and frequent cleaning work.

It is ideal for sectors such as construction, automotive, handicraft, car wash and livestock farming, where maximum operational efficiency is required.

One of the most practical features of the AR 1003 is the possibility of adjusting the pressure to the specific needs of the job, while maintaining constant control thanks to the built-in pressure gauge.

It is also equipped with a cleaning agent suction system and a 3-litre tank, ideal for long, uninterrupted cleaning sessions.

The machine is designed to be easily transported thanks to a sturdy steel trolley with rubber wheels, which allow easy handling even on rough surfaces.

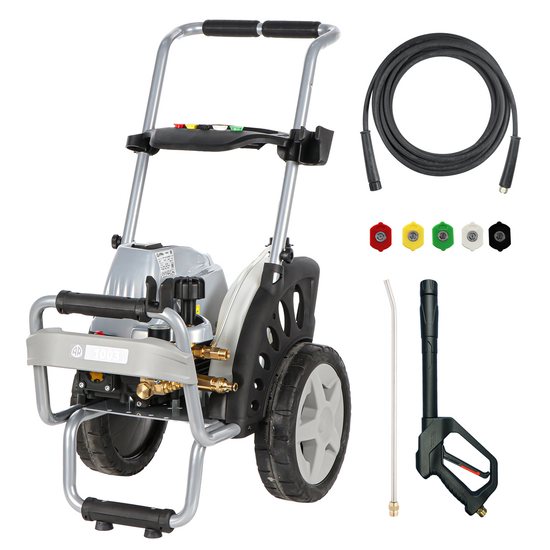

The professional accessories included, such as the 10-metre steel-treated reinforced high-pressure hose, the high-pressure gun with safety lock and metal core, and the 49 cm steel lance extension, are all connected via a threaded brass coupling.

Five different standard nozzles can be fitted to the lance, allowing the angle of the water jet to be adjusted for targeted and precise cleaning.

The pressure washer is also equipped with the ‘’TSS‘’ (Total Stop System), which automatically switches off the engine when the gun lever is released, thus extending the life of the machine and reducing energy use.

A further benefit is the self-priming function (SPF), which allows water to be used directly from tanks or other containers, without the need for a direct connection to the water supply network.

This combination of power, versatility and advanced functionality makes the Annovi & Reverberi AR 1003 a reliable, high-performance solution for all professional cleaning needs.

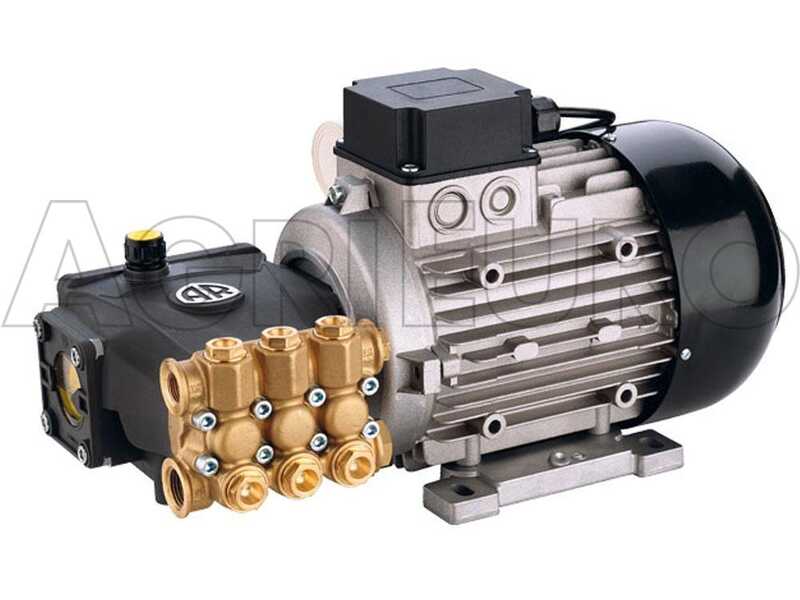

Pump and Engine

The Annovi & Reverberi AR 1003 pressure washer provides high performance with a 150 bar maximum pressure and a 10.5 litre per minute (630 L/h) flow rate, ideal for intensive cleaning work in fields such as construction, automotive and agriculture.

The core of this pressure washer is an HRC 3-piston ceramic pump with a connecting rod-crank system and brass head, which ensures reliability and long service life. The machine is equipped with:

Main features:

  • Automatic safety valve to reset the pressure in the pump.
  • Single-phase electric induction motor with thermal protection, ideal for extended work cycles.
  • Total Stop System (TSS) for energy savings and longer service life.
  • Self-priming function, which allows using water from tanks with no connection to the water supply.
  • Pressure regulation with pressure gauge for precise control.

The Annovi & Reverberi AR 1003 is a versatile and robust professional pressure washer, designed to deliver effective results even in demanding settings.

Main Features

This pressure washer is designed to make every cleaning task simple and intuitive. Thanks to its intuitive controls, even less experienced users can operate it without difficulty.

''TSS'' (Total Stop System)

One of the main advantages of this model is the ‘Total Stop’ system (TSS), which automatically switches the machine off when the water supply button is released, switching it back on as soon as operation is resumed. This system not only prevents the machine from overheating, but also helps to extend the service life of the pump and reduce energy consumption, thus optimising the use of the pressure washer.

Main features:

  • Serviceable water filter: allows easy maintenance and ensures clean water during use.
  • 5-metre power cable: provides more mobility, avoiding the need for additional extensions.
  • Integral 3-litre detergent tank: allows the necessary cleaning agent to be added, with the possibility of adjusting the suction for precise dosing.
  • 10-metre long high-pressure hose : easily reaches even the most distant areas without moving the machine.
  • Side-mounted gun: for convenient storage, always within reach.
  • Organized dashboard: features dedicated spaces to keep interchangeable nozzles available at all times.
  • Ergonomic carrying handle: allows the machine to be moved easily, even over rough surfaces.
  • Professional threaded connection: allows the hose to be connected to the lance safely and quickly, ensuring a comfortable and stable grip.

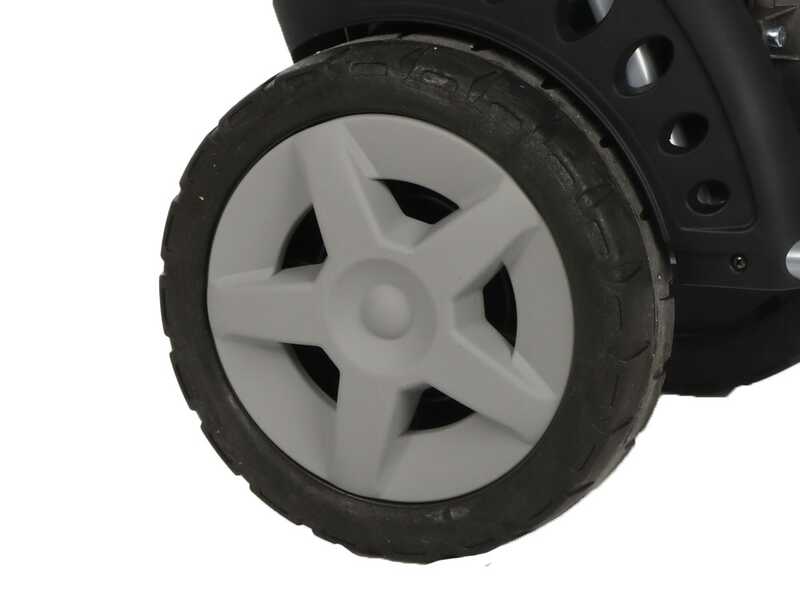

  • 30 cm diameter rubber-coated wheels: ideal for effortless mobility, even on rough or uneven surfaces.

Technical specifications:

  • Maximum pressure: 150 bar
  • Maximum flow rate: 630 litres per hour
  • Power: 3 kW
  • RPM: 1450
  • Power supply: 230 V, 50 Hz
  • Maximum inlet water temperature: 60°C

Thanks to these features, the pressure washer not only ensures high performance, but also offers great user-friendliness. With its mobility-friendly design and technical features that optimise every stage of cleaning, it is the ideal choice for those seeking efficiency and convenience in a single tool.

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with ACQUASTOP (to be applied to the end of the irrigation pipe). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

COMPLIMENTARY: Drain cleaning probe + 4 adaptors

The drain cleaning probe for cold water pressure washer is compatible, thanks to the adapters, with pressure washers by the following brands:

Kärcher Annovi & Reverberi – Black&Decker – Bosch – Stanley - Comet - Interpump - Kranzle - Lavor

15 m rubber hose

This pipe and drain cleaner is perfect for clearing clogged pipes. Its small size and flexibility allows clearing all kinds of pipes and drains very easily, including narrow domestic ones.

Focus on the three rear facing jets that help propel the cleaning probe along drains or pipes as it clears the blockage.

PLEASE MAKE SURE THIS PRODUCT IS COMPATIBLE WITH YOUR PRESSURE WASHER BEFORE PLACING THE ORDER.

WARNING: this accessory was designed exclusively for cold water.

Standard Equipment

The pressure washer is shipped in its original packaging
