Lavor Tucson 1509 GL Electric Pressure Washer - 160 bar max - 1450 RPM - Single-phase 3 Kw

Lavor Tucson 1509 GL Electric Pressure Washer  - 160 bar max - 1450 RPM - Single-phase 3 Kw
Safe shipment: box secured to wooden pallet
Professional axial pump
Pump head material
Brass
Hourly Flow Rate max
540 L/h
Max pressure
160 bar
Pressure Regulator
Yes
Technology
Induction
Operating mode
Single-phase 230 V
Wheeled
Detergent tank capacity
Weight for symbol
36.5 kg
Manufacturing country
Italy
FREE:
Free water supply connection kit
Free protection and storage tarp cover
FREE:
Free water supply connection kit
Free protection and storage tarp cover
€ 786,45
VAT Included
Prompt Delivery
3 items in stock
|
Free Shipping
You should receive it by 04/07/2022
ID: K600826

EAN: 8013298213047

MPN: 8.671.0043

Lavor Tucson 1509 GL Cold Water Pressure Washer

The Lavor Tucson 1509 GL cold water pressure washer is a PROFESSIONAL machine powered by a three-phase electric motor and ideal for frequent use on medium and large-sized surfaces. It allows removing easily even the most stubborn dirt.

The unit features STAINLESS steel suction and output valves and the brand-new Total Stop system that allows stopping the pressure washer once released the trigger, resulting in extreme energy saving and constant high performing levels of the equipment.

Powered by a single-phase 4-pole electric motor with thermal protection, with a rotation speed of 1450 rev/min.

The linear pump unit consists of BRASS head and three high-resistance CERAMIC pistons with integrated bypass valve. It features 160 bar max. pressure and 540 L/h flow rate. The integrated detergent tank features a capacity of 2.8 L.

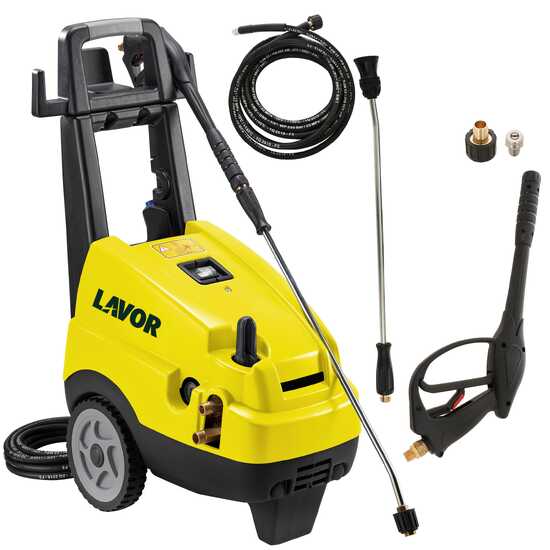

Among the wide range of accessories shipped with the pressure washer:

  • High/Low pressure lance
  • Spray gun
  • Nozzle
  • 8 m high-pressure hose

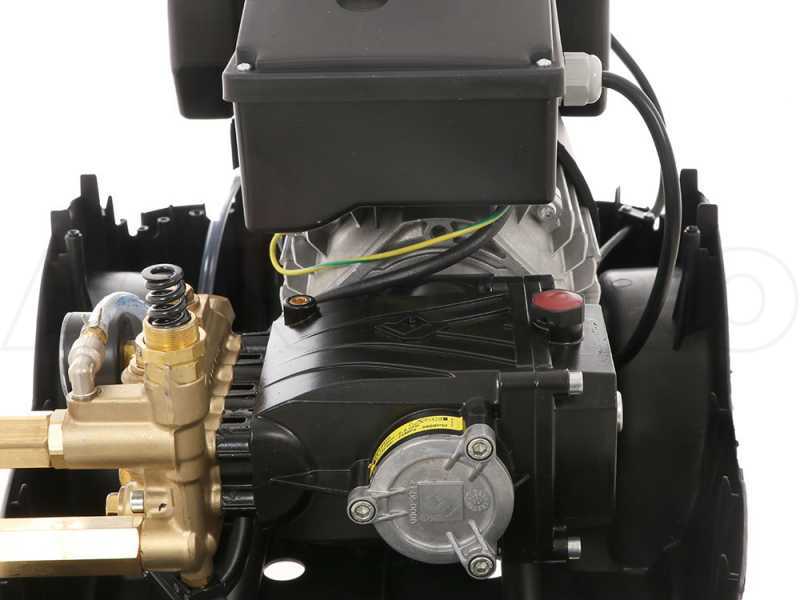

Pump and Motor

Pump unit:
linear
Motor type:
induction
Head:
brass
Pistons:
3 ceramic pistons
Pressure:
160 bar max.
Flow rate:
540 L/h max.
Motor type:
Single-phase electric
Power consumption:
3000 W
Focus on the glycerine-filled pressure gauge

The brass pump with three high-strength ceramic pistons ensures excellent efficiency and durability.

Integrated bypass valve.

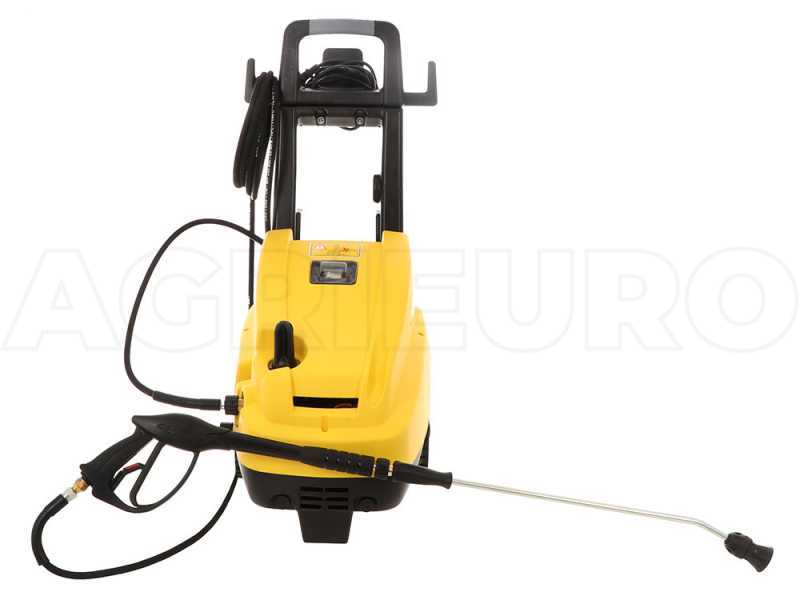

Wide range of accessories

Pressure washer accessories detailed described below:

  • Spray Gun
  • 8 m high-pressure hose and hose reel
  • High/Low pressure lance
  • Nozzle
  • Water connection fitting

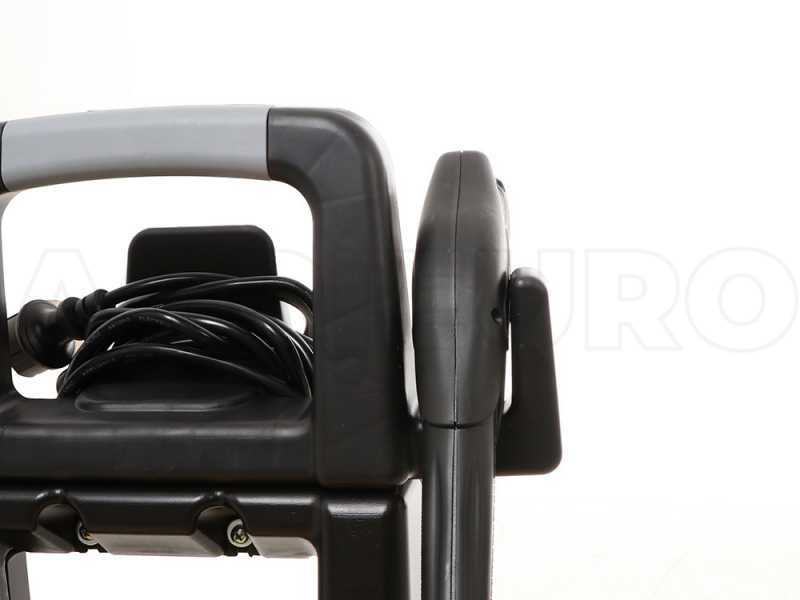

Additional features

Additional features of the pressure washer:

  • Spray gun holder
  • Plastic wheels
  • Lance holder
  • Cable reel
  • Power switch
  • Pressure gauge
  • Hose reel
Assembly tutorial of the Lavor Tucson 1509 GL Electric Cold Water Pressure Washer - Max 160 bar
Product Features
Model:
Tucson 1509 GL
Wheeled:
Typology:
Wheeled
Operating mode:
Single-phase 230 V
Function :
Cold water
Detergent distribution:
Low-pressure
Integrated air compressor:
No
Lavor Washing Level:
6
DTS - double pump and engine:
No
Manufacturing country:
Italy
Motor data
Motor type:
Electric single-phase
Technology:
Induction
Motor Speed (RPM):
1450 RPM
Max power absorption:
3000 Kw
Cooling down:
Air
Pump data
Pump brand:
Lavorwash
Pump type:
Connecting rod-crank
Professional axial pump:
Pistons material:
Ceramic
Pump head material:
Brass
Brass head:
Revolutions per Minute:
1450 RPM
Flow Rate:
7.5 L/min
Max flow Rate:
9 L/min
Hourly Flow Rate max:
540 L/h
Operating Pressure:
150 bar
Max pressure:
160 bar
Pressure Regulator:
Yes
Pressure Regulator:
Equipment
Plug 'n' Clean detergent tank:
No
Detergent tank:
Yes
Detergent tank capacity:
Detergent adjuster:
No
extractable handle:
No
External detergent suction hose:
No
Quick connection:
No
Hose holder:
Yes
Total Stop:
Yes
Easy Start:
No
Tools compartment:
Yes
Power cable holder:
Yes
Free gifts/extra features
Surface Cleaner:
No
Brush:
No
Gun:
Yes
Professional Gun:
No
Adjustable nozzle spray lance:
Yes
Lance with nozzle's quick fixing:
No
Professional lance:
no
Rotating nozzle:
no
Pressure hose:
8 m
Fixed water-brush:
No
Rotating water-brush:
No
Instructions manual:
Yes

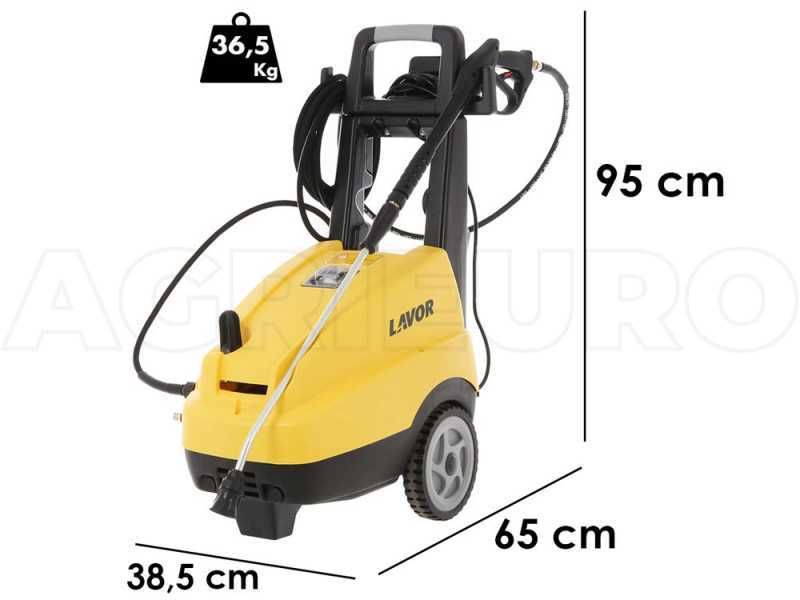

Dimensions and logistics
Product dimensions in cm (L x W x H):
65x38.5x95 cm
Net weight:
36.5 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
71x75.5x41 cm
Gross weight (packaging included) :
38.7 Kg
Assembly time:
15 minutes

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

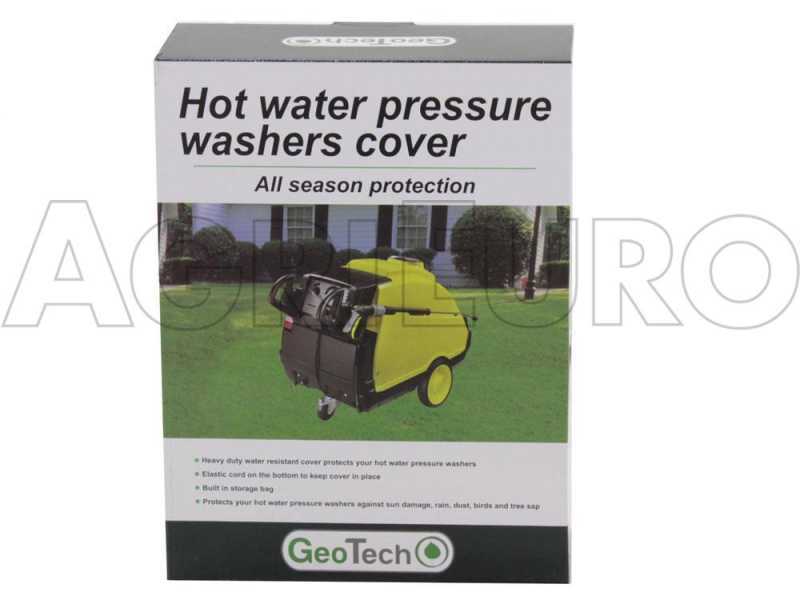

COMPLIMENTARY: large protection and storage cover

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

It is easy to fold and store in its box without taking up space!

(The pictures are for illustrative purposes only)

Free Items Included

The pressure washer is shipped in its original packaging.

COMPLIMENTARY:

  • Turbo lance
  • High/Low pressure lance
  • Spray Gun
  • 8 m high-pressure hose
