Kawasaki TJ 53EZ C COMBI - Backpack Multi-Function Petrol Brushcutter - Blue Bird Shaft

The Kawasaki TJ 53EZ C COMBI backpack multi-function petrol brush cutter with Blue Bird shaft is designed for high-intensity green maintenance tasks, suitable for advanced hobbyists and semi-professional use.

The unit is powered by a powerful 2-stroke Kawasaki TJ 53E engine, with a displacement of 53.2 cc, known for its high power-to-weight ratio and long-term reliability. This engine features KAR (Kawasaki Advanced Recoil) technology, which reduces the effort required for starting.

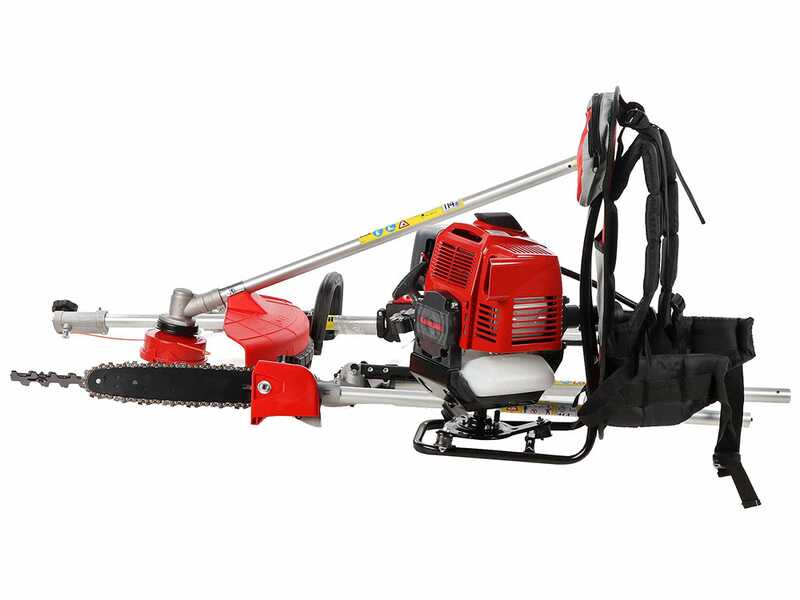

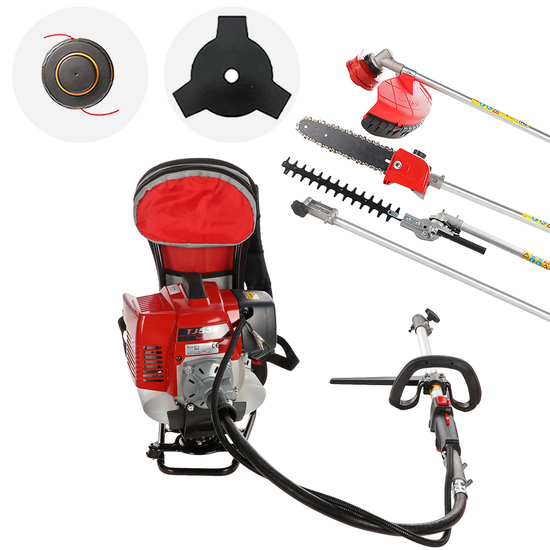

The multi-function system allows for the attachment of three different tools: a chain pruner, an adjustable hedge trimmer blade, and a brushcutter with a tap-and-go head or a three-tooth blade.

• Pruner cutting length: 26cm
• Brush cutter cutting length: 33cm (24.5cm with three-tooth blade)
• Hedge trimmer cutting length: 40cm

The rigid shaft transmission with bevel gear ensures durability and longevity.

The quick coupling system simplifies tool changes without the need for tools. The backpack configuration reduces the load on the operator by evenly distributing the weight across the back and shoulders.

The 75cm extension shaft allows for significant height reach, ideal for pruning and cutting high hedges or shrubs without physical strain.

The design is functional and focused on operational comfort. The ergonomic backpack features padded shoulder straps and a breathable backrest. Controls are centralized on the handle for intuitive management.

The flexible shaft allows for a wide range of movement, even in hard-to-reach areas.

This Kawasaki backpack multi-function brush cutter is suitable for intensive work on large areas, high pruning, hedge trimming, and underbrush cleaning. It stands out for its robustness, engine reliability, and modular accessory configuration.

Among its most distinctive features:

• Kawasaki TJ 53E Engine: 2-stroke 53.2 cc engine with KAR technology for easy starting and high performance even in tough conditions;
• Multi-function system: ability to use pruner, hedge trimmer, and brush cutter with a quick coupling system without tools;
• Backpack configuration: backpack with ergonomic structure, padded shoulder straps, and breathable backrest to reduce fatigue during prolonged use;
• Rigid shaft transmission: reinforced internal shaft with bevel gear to ensure efficiency and durability over time;
• Integrated handle controls: throttle lever, ON/OFF switch, and throttle lock easily accessible with one hand.

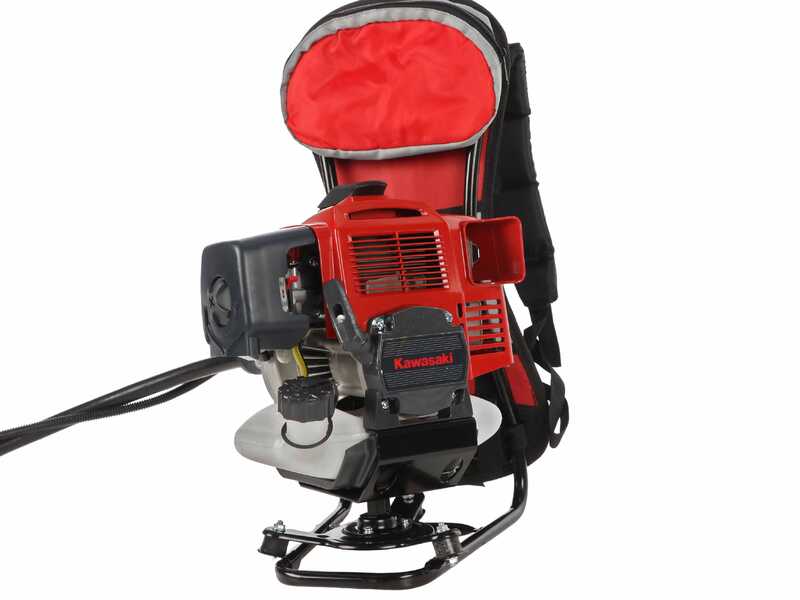

The Kawasaki TJ 53 E engine is a 53.2 cc air-cooled, 2-stroke, horizontal shaft engine. This type of engine is particularly renowned for having the highest power-to-weight ratio in its category, making it particularly suitable for more professional uses.

Equipped with a single cylinder, it can develop a maximum power of 2.68 HP at 8500 rpm, and a torque of 3.00 Nm at 5000 rpm.

It features a centrifugal clutch and a diaphragm carburettor, and starts very easily thanks to the recoil starter with self-recovery and air regulation

It is also equipped with a lightweight piston, dynamically balanced flywheel, and a patented Kawasaki stratified exhaust system.

The weight and dimensions of the engine are very compact, only 4.5 kg dry in just 20x29x27 cm3

Equipped with a 1.1-litre tank, the Kawasaki TJ 53 E engine runs on a fuel mixture.

Detail of the spark plug access

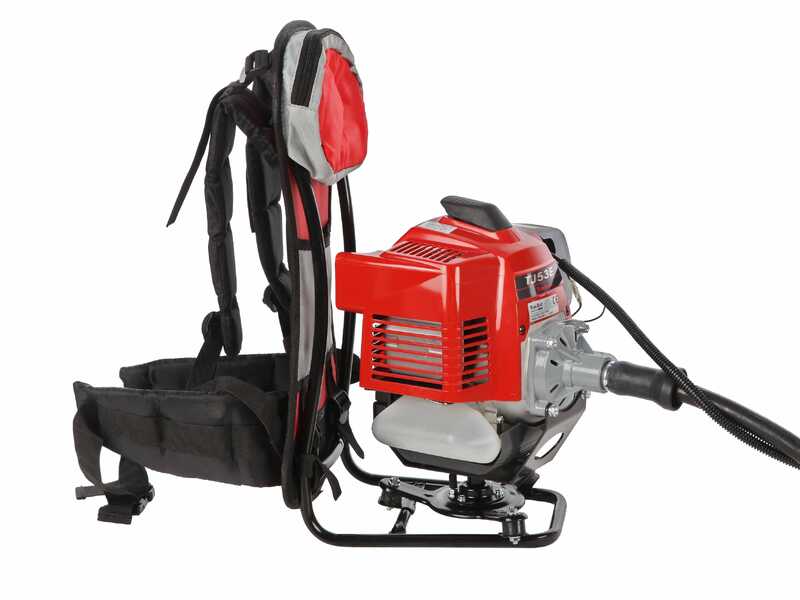

The TJ 53EZ C COMBI backpack brush cutter is equipped with a padded backpack with a high backrest.

The main features of the backpack are:

• high backrest with padded cushions for great comfort
• back protection
• super-comfort wide shoulder straps
• padding with various adjustments
• rotating engine support
• Convenient storage pouch

Detail of the controls, where the throttle adjustment, power button, and safety switch are located.

Detail of the handle on the shaft

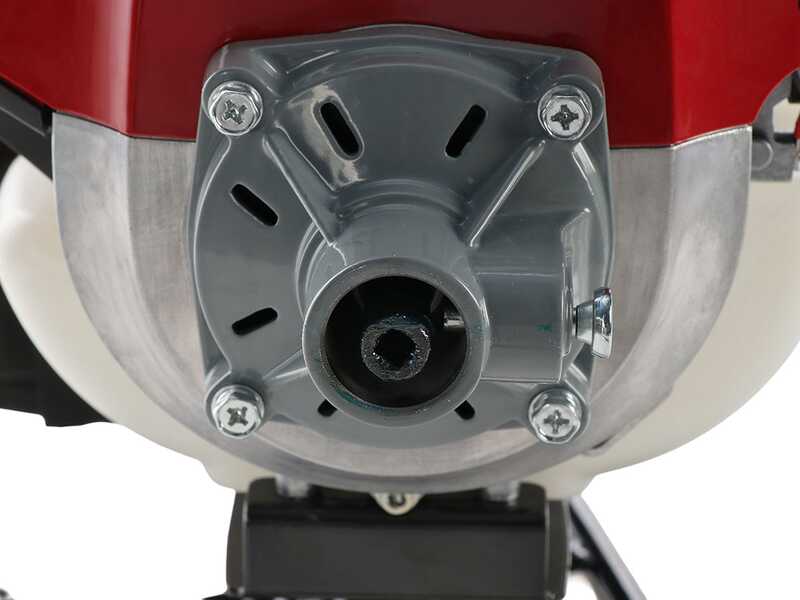

The transmission designed for backpack brush cutters is made up of 2 parts:

1- aluminium tube with a diameter of 26 mm that houses a high-strength steel transmission shaft inside.

2- flexible connector between the engine and shaft that houses a high-strength flexible steel cable inside

It separates into 2 parts in an instant for loading into a car, storing in a garage, etc...

The circular handle offers excellent grip and precise control of the tool, allowing for more accurate finishing work, even in tight spaces. Additionally, it is possible to adjust the handle quickly, adapting it to your height.

The throttle trigger lock prevents accidental machine start-up, ensuring total safety for the user.

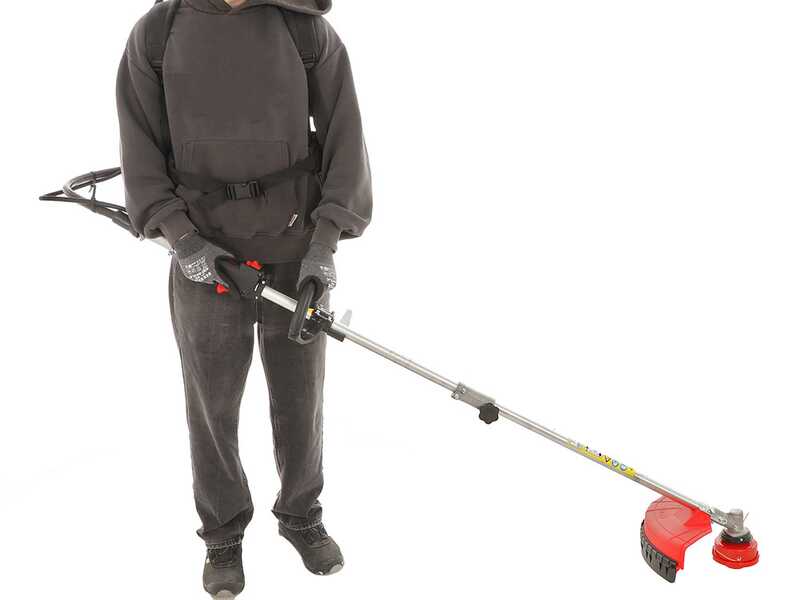

Designed for precise cutting of grass along fences, walls, hedges, and pavements.

This tool is ideal for complex trimming where the lawnmower cannot reach. The lightweight structure, sleek design, and optimal balance allow for easy use in any context, even in hard-to-reach areas.

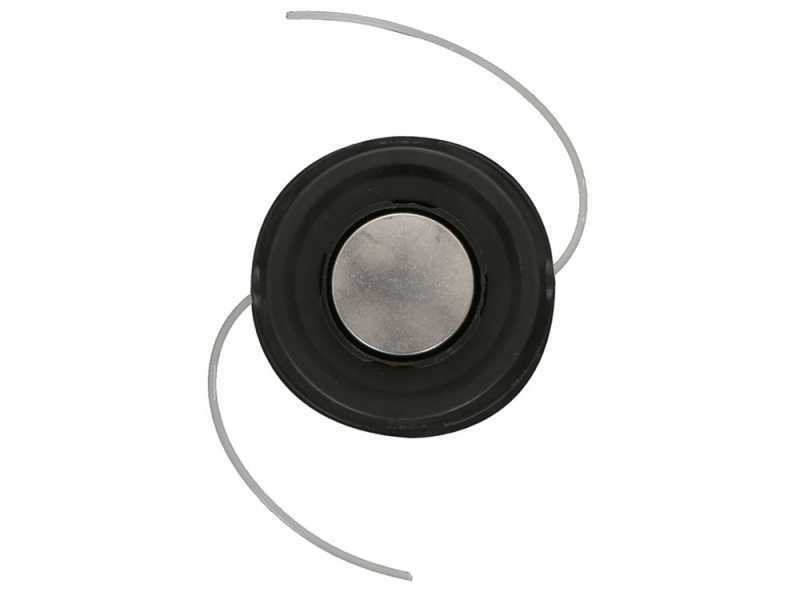

The head is of the "tap'n go" type, with simple keyless opening, facilitating the advancement of the double line.

Pressing it against the ground during rotation, the line advances automatically.

Large-sized debris shield to protect the operator with line cutter for line adjustment

Also equipped with an easy-to-mount three-tooth blade

• Shaft diameter 26 mm
• Cutting system two-line tap & go
• Total length 76 cm
• Usable cut 33cm

• Cut with three-tooth blade 24.5cm
• Brush cutter weight 1.6 kg

Equipped with a double blade of 40 cm with a rotation mechanism that has 14 different positions from 90° to 270° to facilitate all types of hedge cutting.

Allows easy operations on high hedges, green walls, and vegetation close to the ground, offering great precision thanks to the angular blade adjustment. This accessory is ideal for ornamental green care and allows for a correct working posture even in difficult access conditions.

The hedge trimmer with a 26 mm shaft can reach a 1.27 m working height.

Equipped with a protection bar for safe storage and transport.

• Shaft diameter 26 mm
• Blade length 40 cm
• Total length 127 cm
• Hedge trimmer weight 2.10kg

The included pruner is adjustable thanks to the included extension shaft, allowing you to always work in the right position at all heights.

The chain oil tank is mounted on the head, to facilitate direct chain lubrication.

Equipped with a 26 cm bar that easily allows cutting of small diameter branches and small diameter logs.

The pruner has a total length of 105 cm and a reduced weight of only 1.7 kg, features that ensure ease of handling and ergonomic work, even in prolonged operations. It is possible to reach branches up to 2.97 meters high.

• Shaft diameter 26 mm
• Total length 105 cm
• Usable cut 26 cm
• Pruner weight 1.70 kg

The Aluminium Extension is an accessory specifically designed to increase the reach of tools

This extendable element adds 75 cm of length, allowing easy access to high or difficult areas during tree pruning or hedge trimming.

Made of lightweight and durable aluminium, the extension weighs only 0.7 kg, ensuring easy handling and less tiring work.

This accessory is ideal for increasing efficiency in high-altitude pruning work, reducing the need for ladders and improving operational safety.

• Extension shaft length 75cm
• Shaft weight 0.7kg

The extension accessory is compatible and can be used with all other included accessories
