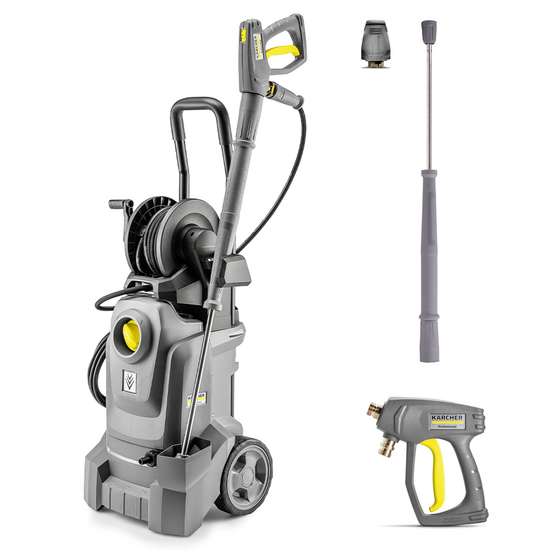

Name: Karcher Pro HD 5/11 EX Plus Classic - Professional Cold Water Pressure Washer - 160 bar max - 500 L/h
Brand: Karcher
SKU: K610154
Price: 772.28 EUR
Availability: InStock

Description

Karcher Pro HD 5/11 EX Plus Classic Pressure Washer

The cold water pressure washer Karcher HD 5/11 EX Plus Classic is a professional machine designed to ensure high performance and reliability over time.

Thanks to its compact structure and large diameter wheeled trolley, this pressure washer is easily transportable even on uneven surfaces. The design is robust and functional, suitable for demanding work environments such as construction sites, workshops, and farms.

The heart of the system consists of a stainless steel axial pump with ceramic coating and a brass head, ensuring long life and reduced wear.

The 2.2 kW electric motor powered by 230 V guarantees a flow rate up to 500 l/h and a maximum pressure of 160 bar. It features an integrated pressure switch for automatic start and stop, reducing energy consumption and component wear.

The pressure washer is equipped with a professional rotating nozzle for removing stubborn dirt, a high-pressure gun with stainless steel valve, and an 8-metre reinforced steel mesh hose.

The 840 mm long lance allows safe operation even in hard-to-reach areas. The EASY!Lock system enables quick and stable accessory connections, speeding up operations.

There are supports for nozzles and lance, cable hooks, and manual hose reel. These elements simplify storage and organization. The start-up is immediate, and operations are intuitive.

Distinctive features:

Pump with stainless steel pistons coated in ceramic: ensures wear resistance and long life even with intensive use.
Brass head: guarantees high robustness and corrosion resistance.
Professional rotating nozzle: ideal for removing encrusted dirt from vehicles, machinery, and pavements.
High-pressure hose with steel reinforcement: offers flexibility and resistance during continuous use.
EASY!Lock system and integrated hose reel: allows quick connections and practical hose rewinding.

Thanks to the combination of quality materials and advanced technical solutions, the high-pressure washer Karcher HD 5/11 EX Plus Classic represents a reliable and durable tool for every professional cleaning need.

Karcher Pro HD 5/11 EX Plus Classic - Professional Cold Water Pressure Washer - 160 bar max - 500 L/h

Pump and Motor

Axial pump with three stainless steel pistons / brass head

An axial pump with brass head for a pressure washer is a fundamental component that plays a crucial role in the water pressurization mechanism.

Here are some advantages of an axial pump with brass head:

Construction and Materials Brass Head: The choice of brass for the pump head is significant. Brass, being corrosion-resistant and relatively soft, ensures a good seal and long life.

Axial Pump: The axial design means that the pump shaft and the fluid movement axis are the same.

Pressure Mechanism Operation: Axial pumps increase water pressure by passing it through a series of pistons that move synchronously with the pump shaft. This movement is generated by the rotation of a shaft directly connected to the pressure washer's motor.

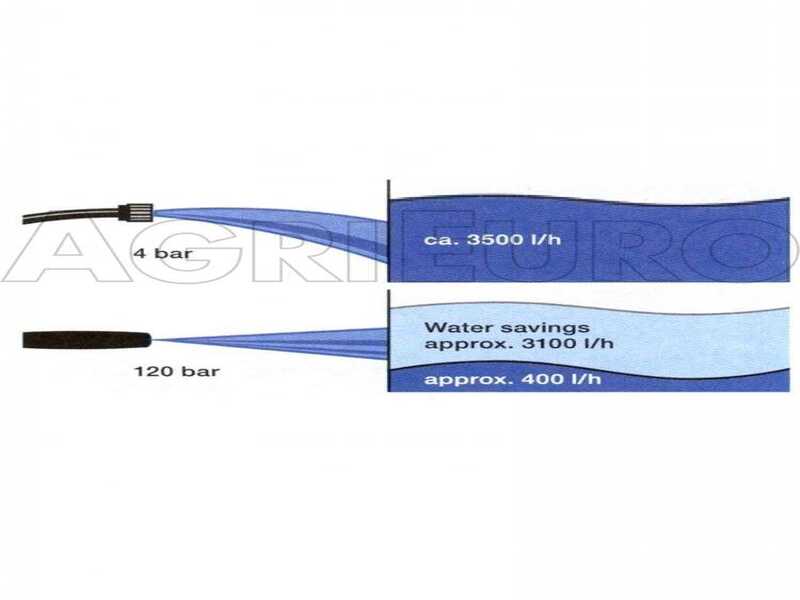

The pressure of a pressure washer is very important. Even more so is the flow rate: very often low-cost products have high pressure but very low flow rate, making these items ineffective. An acceptable minimum flow rate must be at least 350 lt/hour.

Working pressure: 110 bar
Max pressure: 160 bar
Flow rate: 500 l/h
Max inlet temperature: 60°C
Protection grade: IPX5
Single-phase electric motor.
Electric cable: 5m
Motor absorption: 2.2 kW max

Karcher TR 155°C Gun and 840 mm Lance

Karcher TR 155°C Gun and 840 mm Lance for professional and advanced use.

The pressure washer is equipped with a dedicated housing for the gun and lance.

The lance is of professional type with quick coupling equipped with extension and safety.

By exploiting the water back pressure, the operator's effort to keep the gun open is reduced to zero.

Nozzle size: 036

Water supply: 3/4″

Other Features

The automatic pressure relief system effectively protects the hydraulic components, thus ensuring long life and very low repair and maintenance costs.

Durable and resistant EASY!Lock quick couplings. Five times faster than conventional screw couplings.

Main details:

TR 155°C Gun and 840mm Lance
Hose reel with crank
Electric cable support
Simple and intuitive controls
Lance housing
Handle
Transport handle
Nozzle support
Connection to the water network
High-pressure EASY!Lock connection
Integrated filter
Convenient wheels for movement

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

Ø 15 mm yellow hose, 15 m long
Male quick connector for tap connection (size of the standard thread: 3/4“)
Standard female quick connector (to insert the hose into the male quick connector for tap connection)
Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.
Adjustable plastic lance with male quick connector.

It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

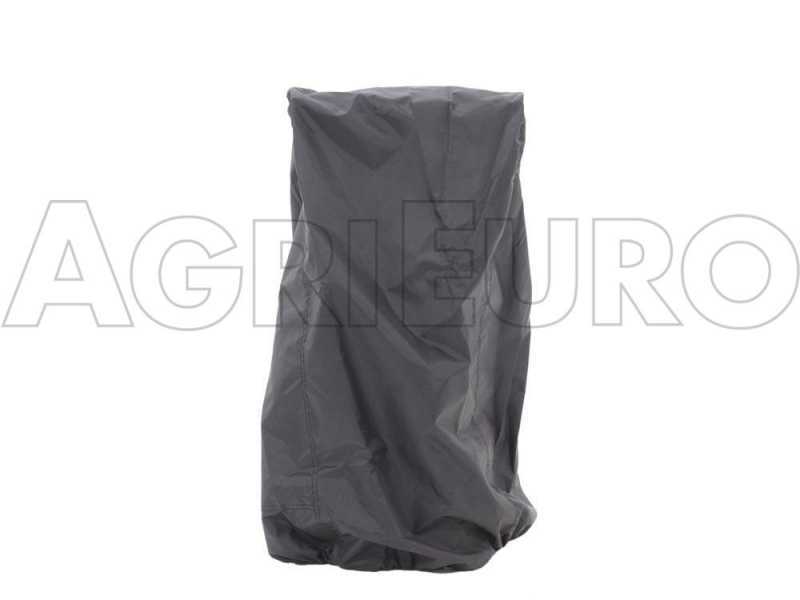

Protection and Storage Cover for Pressure Washers - Size: - Medium

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower border to perfectly fit to the shape of the machine.

Easy to fold and store in its box and space-saving!
