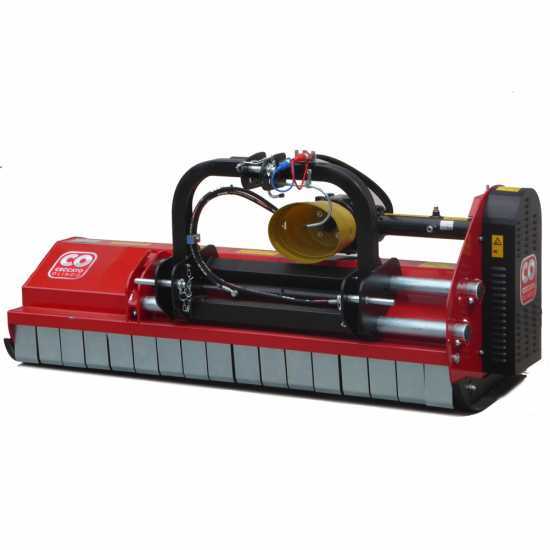

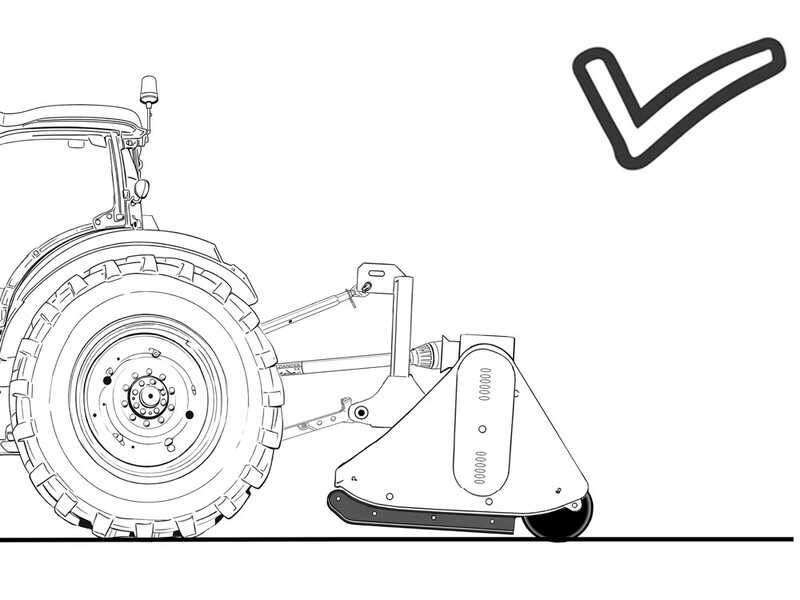

Ceccato Trincione 400 - 4T2000ID - Tractor-mounted Flail Mower - Heavy Series - Hydraulic Shift

Questions & Answers (8)
ID: 102978

EAN: 9999237535069

MPN: 4T2000ID

8,5/10
After-sales assistance & Spare parts
Ceccato Trincione 400 - 4T2000ID - Tractor-mounted Flail Mower - Heavy Series - Hydraulic Shift
+30 sold
Tractor power
From 60 to 70 HP
Sturdiness/Series
Heavy
Weight
520 Kg
Cutting width
200 cm
Shift
Hydraulic
Standard cutting tools
Hammer flails
Double skin frame
Hammer flail weight
1.2 Kg
Manufacturing country
Italy
Product Features
Model:
Trincione 400 - 4T2000ID
Tractor power:
From 60 to 70 HP
Sturdiness/Series:
Heavy
Shift:
Hydraulic
Manual shift:
No
Hydraulic shift:
Yes
Hydraulic shift:
Fixed 3-point hitch:
No
Reversible three-point-hitch:
No
Cardan shaft rotation:
Standard
Manufacturing country:
Italy
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
200 cm
Wood diameter:
Up to 50 mm
No. of blades:
30
Standard cutting tools:
Hammer flails
Hammer flail weight:
1.2 Kg
Hammer flails:
Blades bolt diameter:
14 mm
Cutting width:
200 cm
Equipment
Collection bag:
No
Double skin frame:
Counter-blade:
Single row
Side drive belts:
4
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
No
Cardan shaft:
Optional
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
218x100x88 cm
Net weight:
520 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
218x100x105 cm
Gross weight (packaging included) :
535 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 26/06/2024 - 28/06/2024
Suggested price:
€ 5.061,54
€ 4.302,31
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

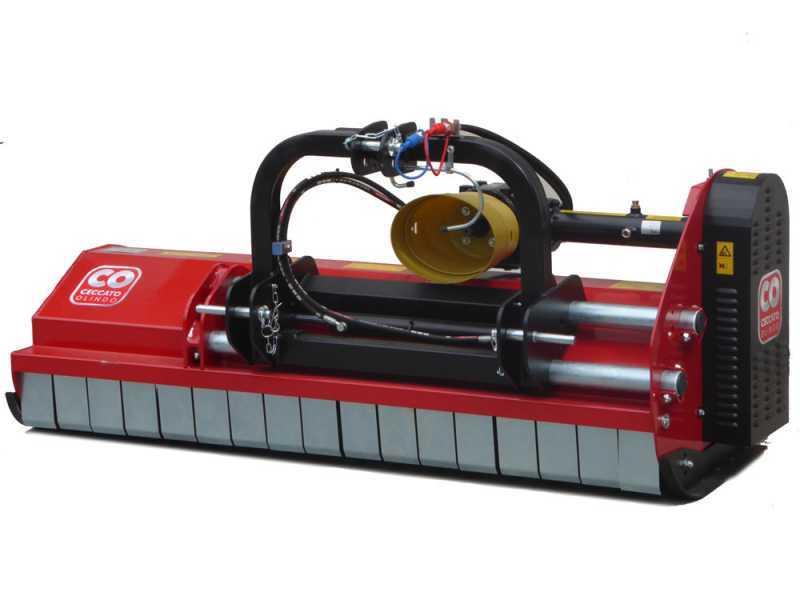

Introduction to the product

The CECCATO TRINCIONE 400 - 4T2000ID flail mower with HYDRAULIC shift is an innovative Italian product provide high performances.

The machine features a very sturdy design thanks to the double deck designed to be shock-resistant over time.

The choice of the first quality components make this machine suitable for different type of operations (grass, pruning, straw, etc.)

It is equipped with 4-belt trasmission and a proper spy-hole to check the oil level on the on the transmission shaft the connects the pulley to the reducer.

TECHNICAL DETAILS (in summary):

  • Real working width: 200 cm
  • Real width occupied (with side skids assembled): 218 cm
  • Weight: 520 kg
  • Rear support roller

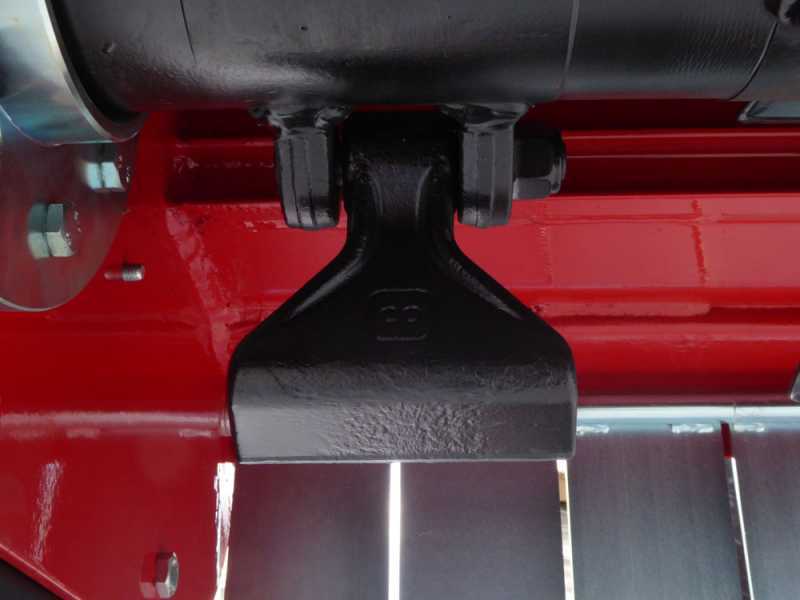

Cutting tools

Nr. of smooth hammer flails on standard equipment: 30

Smooth hammer flails

They are very sturdy hammer flails and of first quality of the brand Olindo Ceccato.

It finely grinds grass and shoots. Thanks to the high engine revolutions per minute (540 rpm) and a high no. of hammer flails it reduces the wave effect of the turf and carries out an excellent grinding operation.

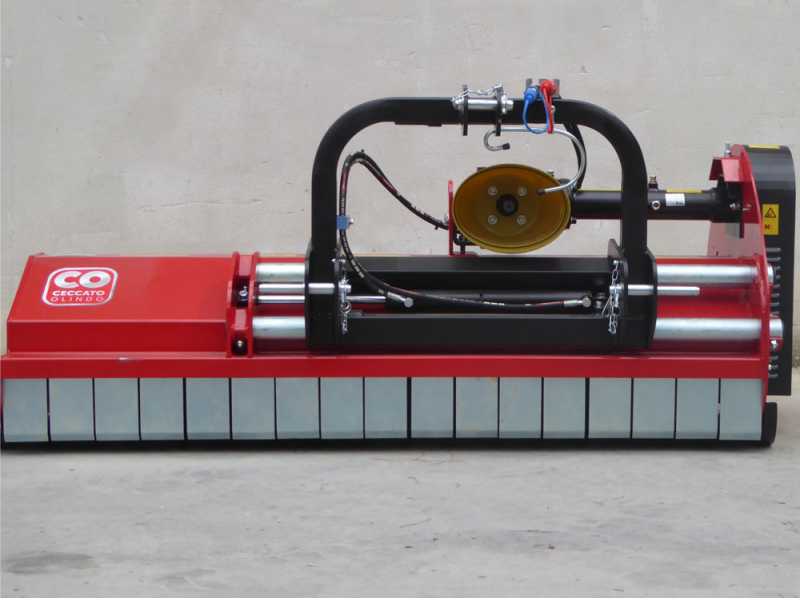

Hydraulic side shift and 3-point linkage

The flail mower is equipped with hydraulic side shift.

The 3-point linkage runs on a sturdy tube that runs along the entire length of the machine.

Focus on the piston that controls the hydraulic shift of the machine.

Universal standard power take-off (1 3/8" Z6).

The connections are of universal type and suitable to all tractors on market.

Sturdy double 3-point linkage.

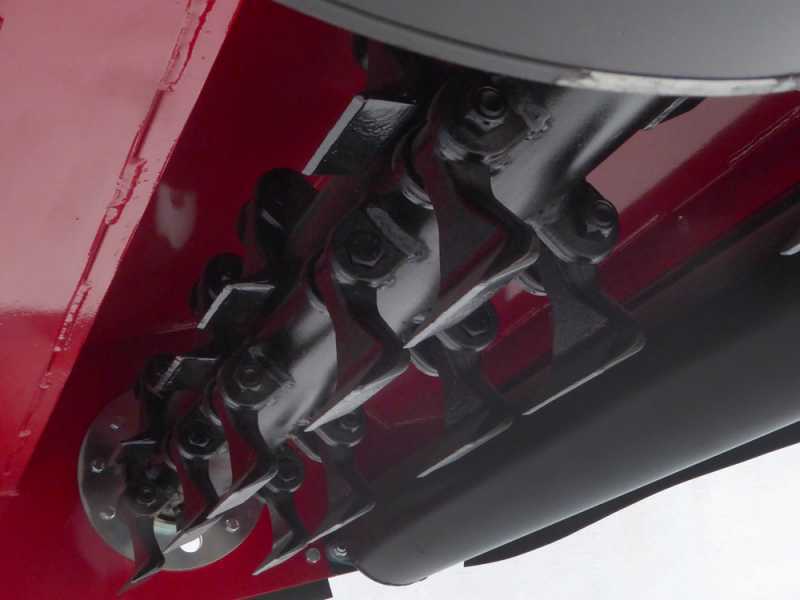

Rotor, reinforced hammer flails supports, side bearings

High thickness rotor with 40 cm diameter It can resist to many years job and accidental hits.

It is electronically balanced.

The rotor is mounted on side steel supports equipped with roller bearings which are 10 times sturdier that normale ball bearings.

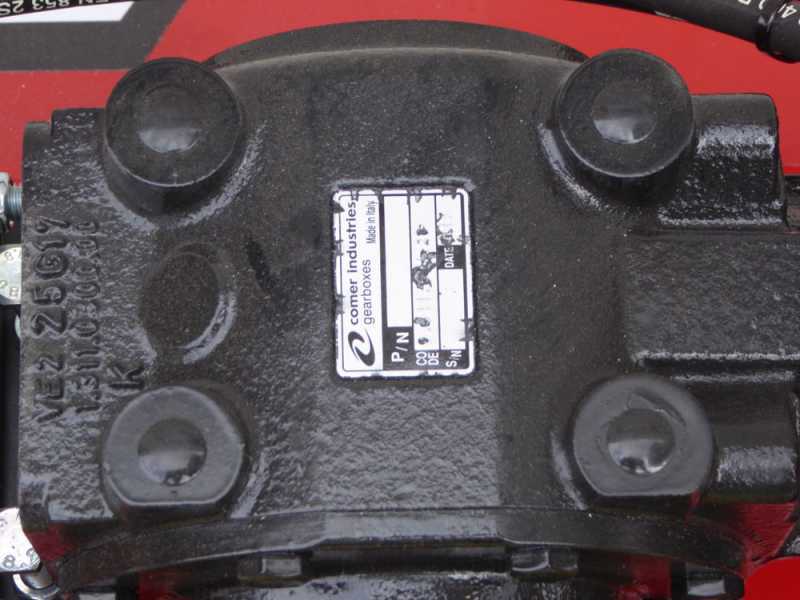

Side belt transmission and reduction gearbox group

Big size oil bath reduction gearbox group. The machine is equipped with the highest-quality gear multipliers Made in Italy. The outer body is moulded, while the inner gear made of tempered steel. It is also equipped with lubricated extension and a useful spy-hole for the oil check.

Big section 4 belts transmission

Belt protection side shield, with optimized dimension: 4 big section belts. This kind of side shield saves room on the product’s total width.

Greaser side transmission particular, easy to access from a dedicated opening

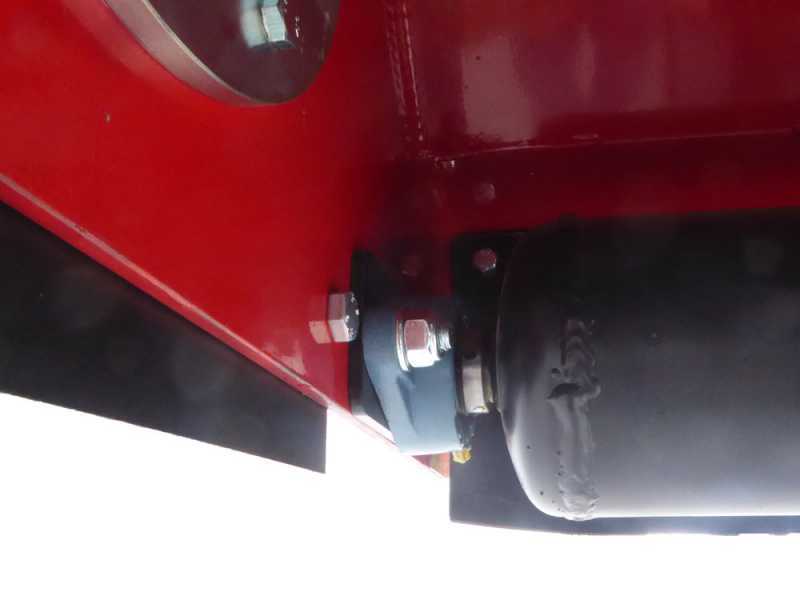

High thickness steel double skin frame with double counter-blades row.

High thickness double skin frame (double shell) (4 + 4 mm).

The two shells are one laying over the other one and this makes the equipment sturdiest than the ones with a standard frame.

This fail mover is indestructible even in hostile conditions.

Resistant even to medium-sized stones, shrubs and the underbrush.

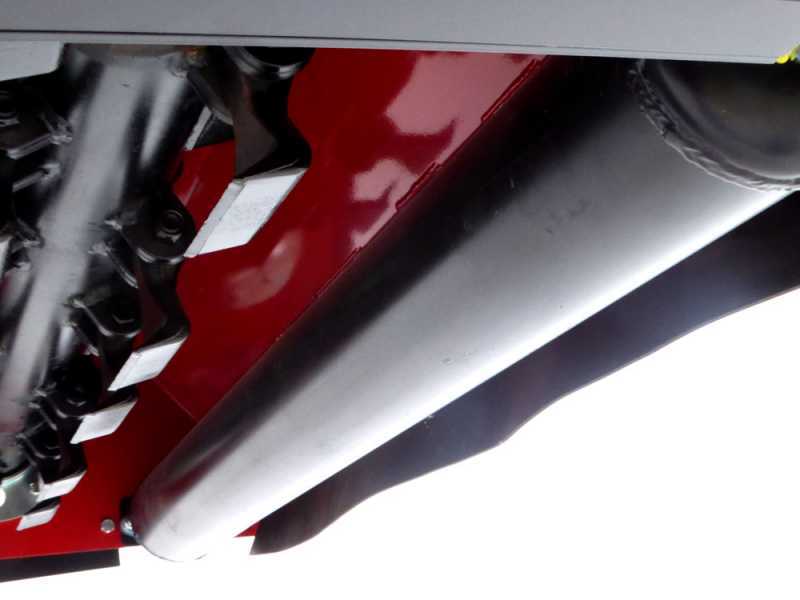

Stabilizer accessories - rear roller and side skids

Rear height adjustable roller exceptional diameter: 140 mm. Without any doubt, the biggest in its category.

Focus on the roller side supporting plate , with holes for the height adjustment.

Focus on the Roller scratching bar , adjustable by means of screws.

Side skids

Free items & Standard equipment

Standard equipment

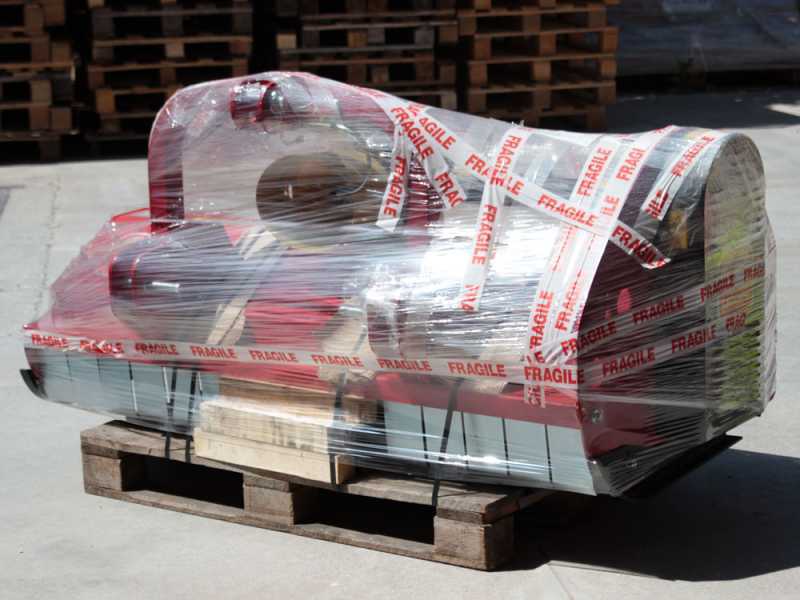

The product is shipped on a 80x120 pallet.

  • side skids
