Description

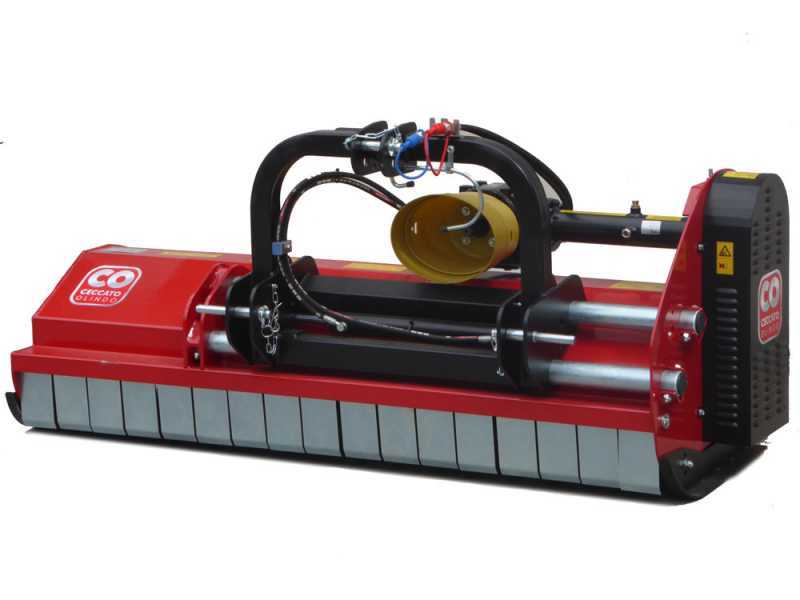

Introduction to the product

The CECCATO TRINCIONE 400 - 4T1600ID flail mower with HYDRAULIC shift is an innovative Italian product provide high performances.

The machine features a very sturdy design thanks to the double deck designed to be shock-resistant over time.

The choice of the first quality components make this machine suitable for different type of operations (grass, pruning, straw, etc.)

It is equipped with 3-belt trasmission and a proper spy-hole to check the oil level on the on the transmission shaft the connects the pulley to the reducer.

TECHNICAL DETAILS (in summary):

Real working width: 160 cm
Real width occupied (with side skids assembled): 179 cm
Weight: 473 kg
Rear support roller

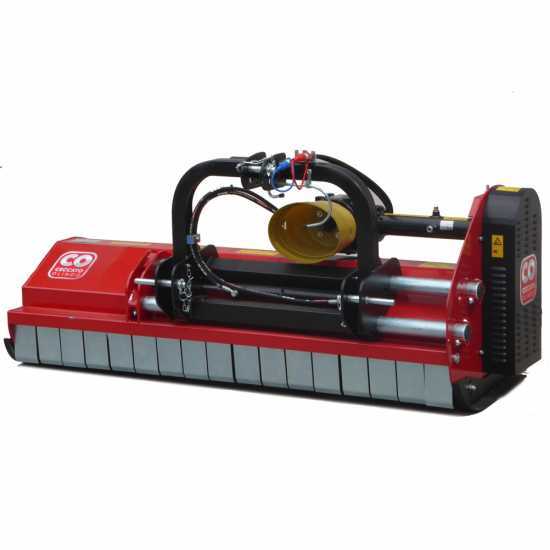

Ceccato Trincione 400 - 4T1600ID - Tractor-mounted Flail Mower - Heavy Series - Hydraulic Shift

Cutting tools

Nr. of smooth hammer flails on standard equipment: 22

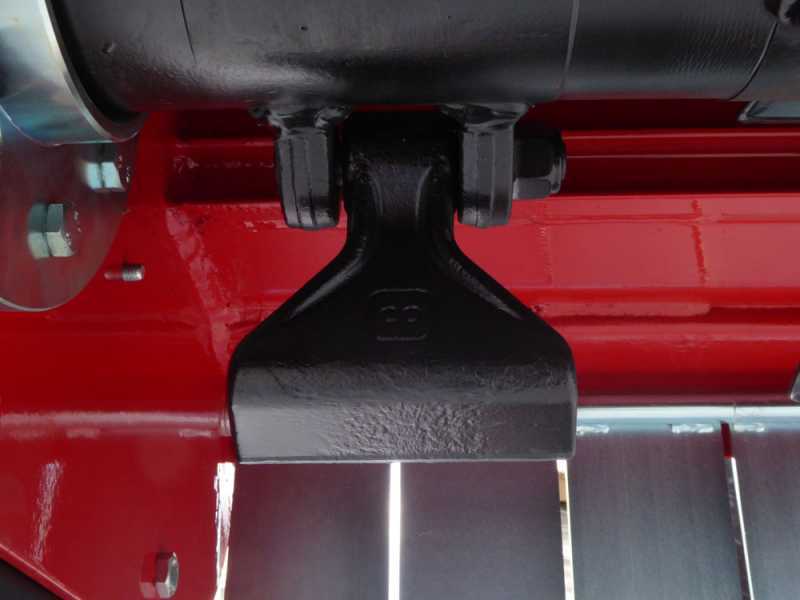

Smooth hammer flails

They are very sturdy hammer flails and of first quality of the brand Olindo Ceccato.

It finely grinds grass and shoots. Thanks to the high engine revolutions per minute (540 rpm) and a high no. of hammer flails it reduces the wave effect of the turf and carries out an excellent grinding operation.

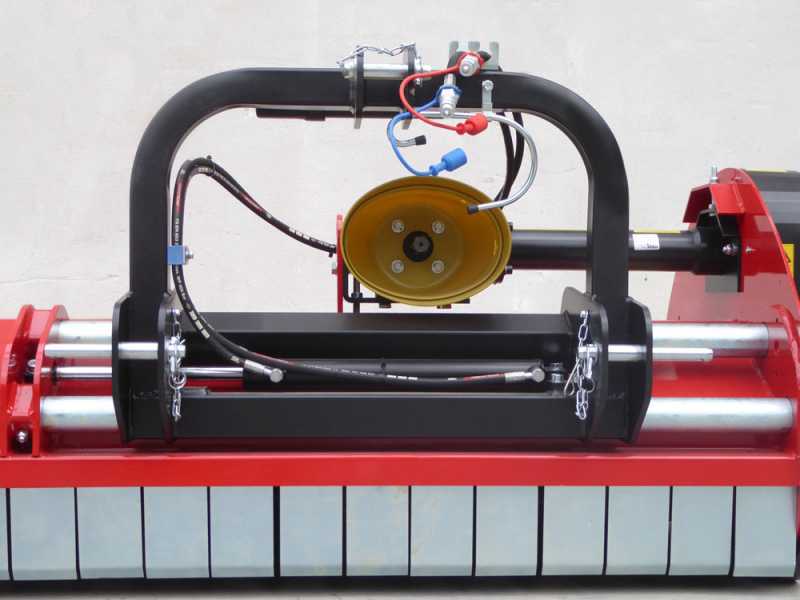

Hydraulic side shift and 3-point linkage

The flail mower is equipped with hydraulic side shift.

The 3-point linkage runs on a sturdy tube that runs along the entire length of the machine.

Focus on the piston that controls the hydraulic shift of the machine.

Universal standard power take-off (1 3/8" Z6).

The connections are of universal type and suitable to all tractors on market.

Sturdy double 3-point linkage.

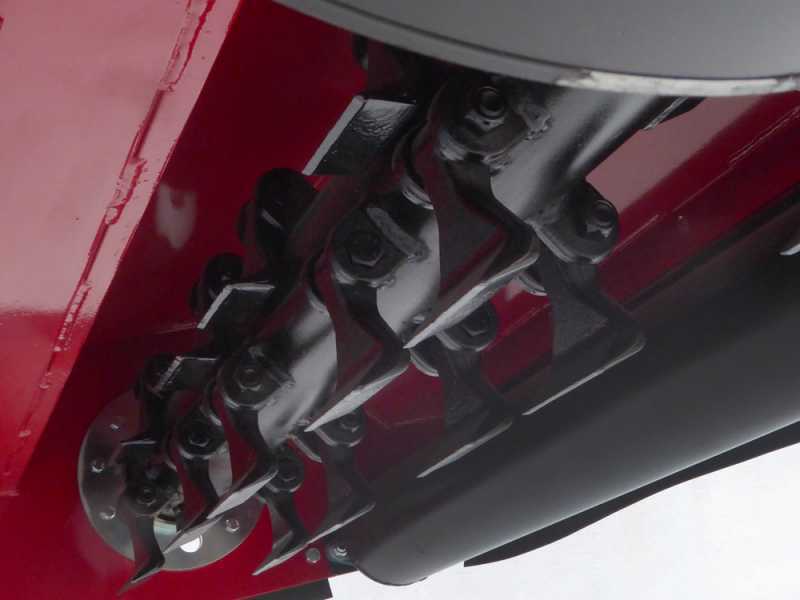

Rotor, reinforced hammer flails supports, side bearings

High thickness rotor with 40 cm diameter It can resist to many years job and accidental hits.

It is electronically balanced.

The rotor is mounted on side steel supports equipped with roller bearings which are 10 times sturdier that normale ball bearings.

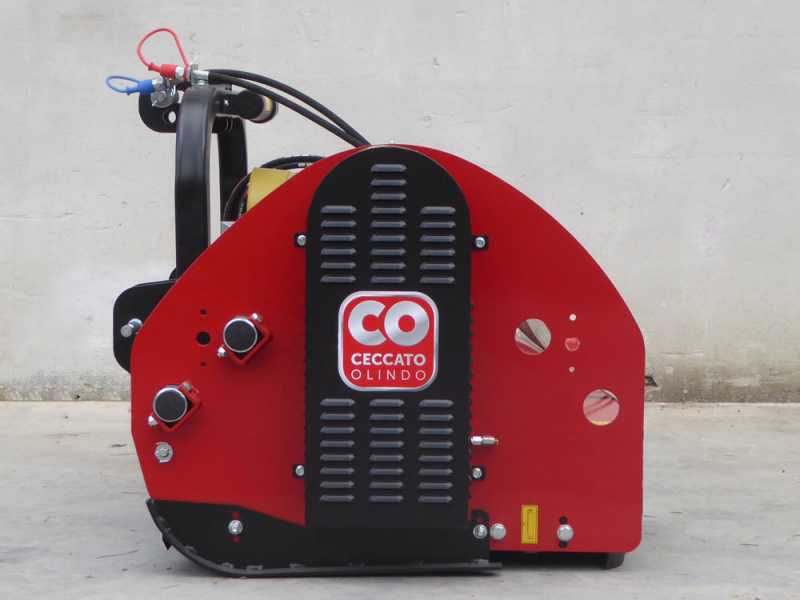

Side belt transmission and reduction gearbox group

Big size oil bath reduction gearbox group. The machine is equipped with the highest-quality gear multipliers Made in Italy. The outer body is moulded, while the inner gear made of tempered steel. It is also equipped with lubricated extension and a useful spy-hole for the oil check.

Big section 3 belts transmission

Belt protection side shield, with optimized dimension: 3 big section belts. This kind of side shield saves room on the product’s total width.

Greaser side transmission particular, easy to access from a dedicated opening

High thickness steel double skin frame with double counter-blades row.

High thickness double skin frame (double shell) (4 + 4 mm).

The two shells are one laying over the other one and this makes the equipment sturdiest than the ones with a standard frame.

This fail mover is indestructible even in hostile conditions.

Resistant even to medium-sized stones, shrubs and the underbrush.

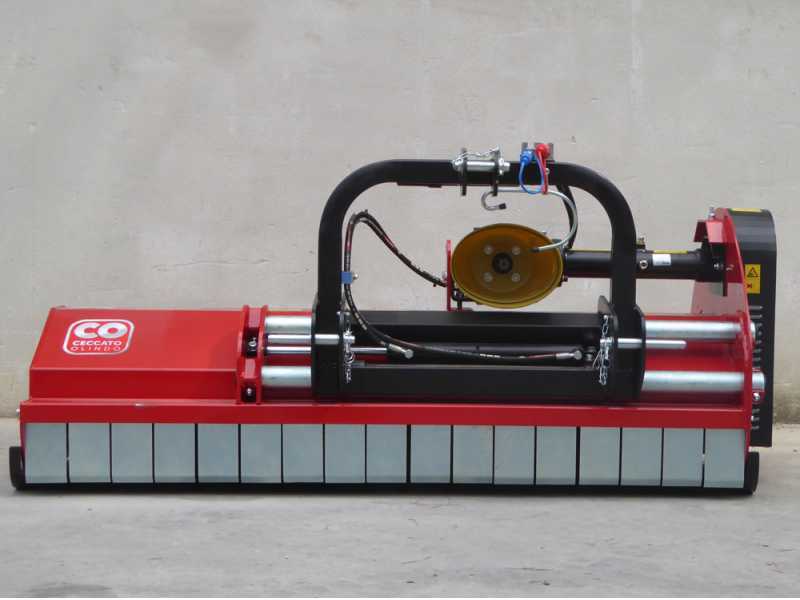

Stabilizer accessories - rear roller and side skids

Rear height adjustable roller exceptional diameter: 140 mm. Without any doubt, the biggest in its category.

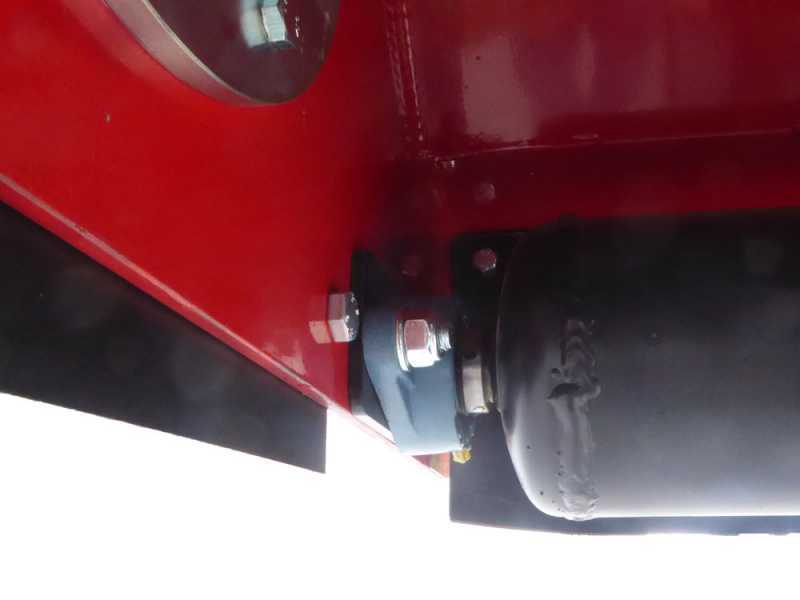

Focus on the roller side supporting plate , with holes for the height adjustment.

Focus on the Roller scratching bar , adjustable by means of screws.

Side skids
