Description

CECCATO TRINCIONE 290 Tractor Flail Mower

The CECCATO TRINCIONE 290 flail mower is an innovative machinery, specifically designed to reach even higher performance compared to the ones expected. The rotor has been upgraded to a helical shape, which means that the machine emits fewer vibrations and less actual noise, making it also more balanced. Thanks to this type of engine, the work on the soil will also be more even.

Provided with a wider side, which is intended to protect and allow quickly discharging the shredded material. This results in faster working operations.

The unit consists of a sturdy 3-point hitch, Italian-manufactured components, the structure is internally realized by the producer and a high-quality multiplier.

Spherical roller bearings, that means 10 times more resistant compared to the standard ball bearings.

Trincione 290 is a gem for those who are looking for the highest-quality product, it was meant to be a Ferrari in its category.

TECHNICAL SPECIFICATIONS (short overview):

Real working width: 120 cm
Real width (side skids already assembled): 133 cm
Weight: 125kg
Rear supporting roller

Ceccato Trincione 290 - Tractor-mounted Flail Mower - 120 cm working width - 20 hammers - Light Series

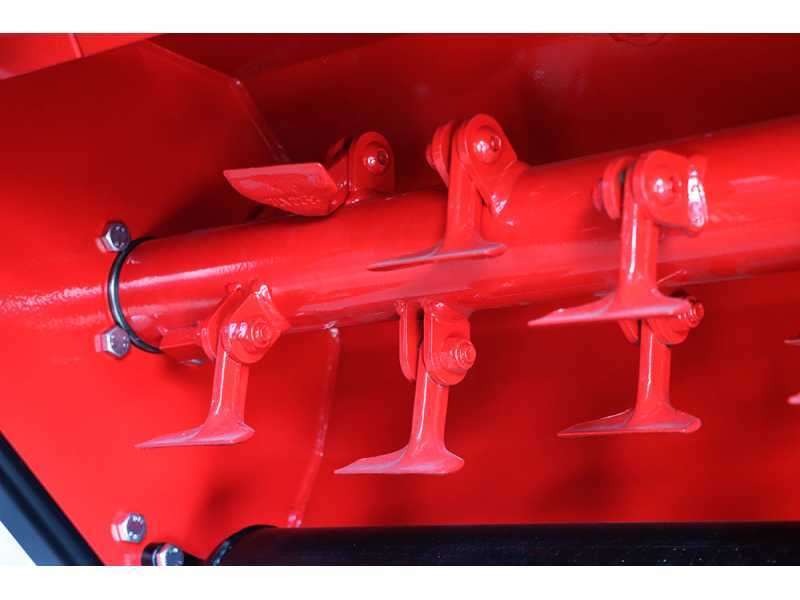

Cutting tools

No. of standard-mounted hammers: 20

The flail mower is provided with top-quality steel hammers, that are all branded Olindo Ceccato.

It is intended to finely shred grass and clippings, while rolling the grass cover and turf simultaneously. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

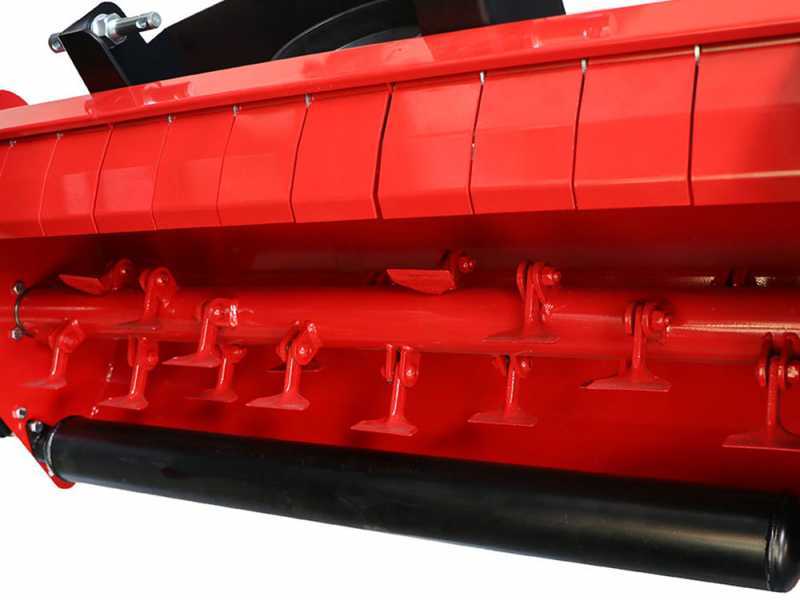

Rotor, reinforced hammer flails supports, side bearings

The rotor has been upgraded to a helical shape. Thanks to this type of engine, the work on the soil will also be more even.

In addition, this means that the machine emits fewer vibrations and less actual noise, making it also more balanced.

Additionally, the rotor is mounted on side steel supporting bars that are provided with spherical roller bearings. These spherical roller bearings are renowned to be 10 times more resistant compared to the standard ball bearings.

The rotor has a high thickness featuring a diameter of 29 cm. This makes it suitable to withstand long years of working operations, keeping its sturdiness against the accidental impacts that may occur.

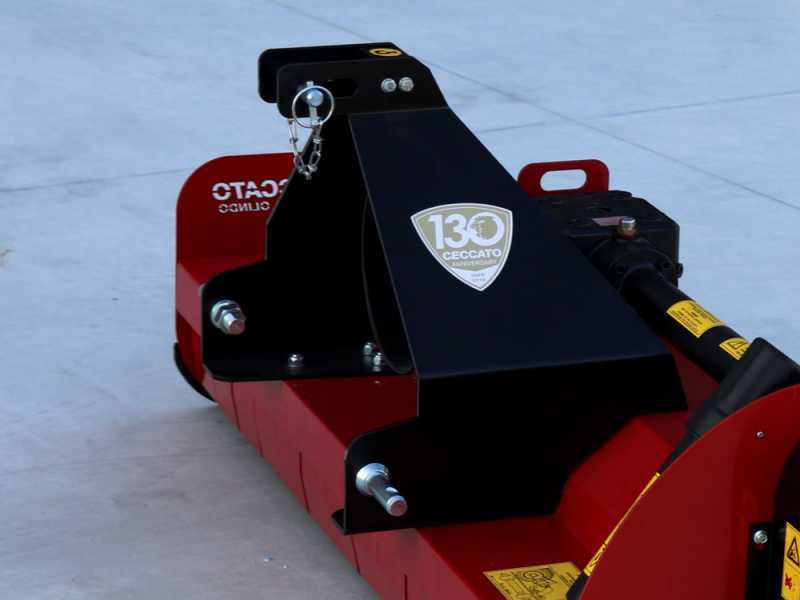

Fixed 3-point linkage

Equipped with standard fixed 3-point linkage. Thus, all the components are strictly Italian.

Focus on the couplings that are closely placed in proximity to the machine body, meaning that they are not protruding.

This allows that the flail mower is positioned in a closer position to the tractor resulting in eliminating the risk of unintentionally launch of direct stones towards the Operator. Additionally and above all, it prevents any issues linked to the possible mower tilting or raising as in this way its weight is balanced with the tractor resting on a much lesser extent on the tractor.

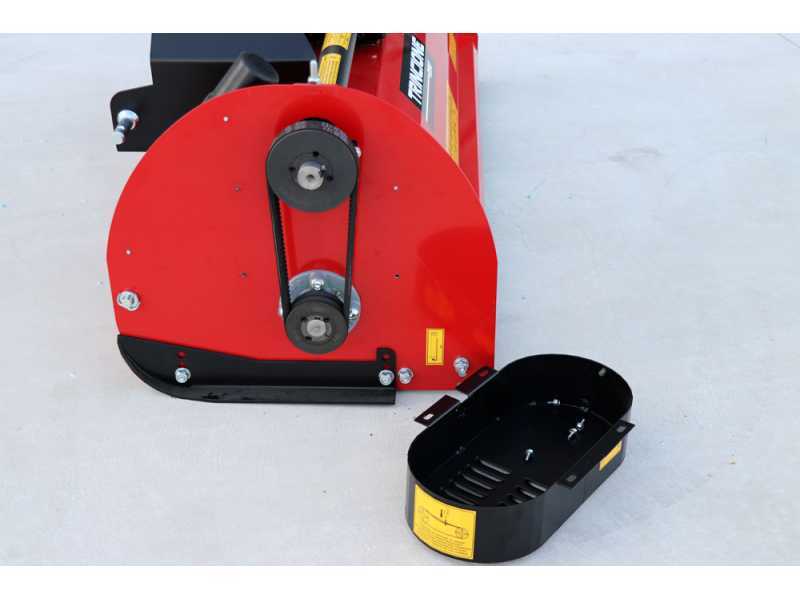

Side belt transmission and geared reducer

Large-sized gear reducer in oil bath

The external housing is made in fusion material while the internal gears are in hardened steel. Thus, this flail mower model is also equipped with lubricated extension with eyelet, which proves to be really useful in order to check the oil level.

Large-section 2-belt side transmission

Side belt cover with optimized dimensions: This specific feature allows the flail mower to require an incredibly reduced space.

Focus on the side transmission greaser, which is comfortably placed in an easy-access position.
