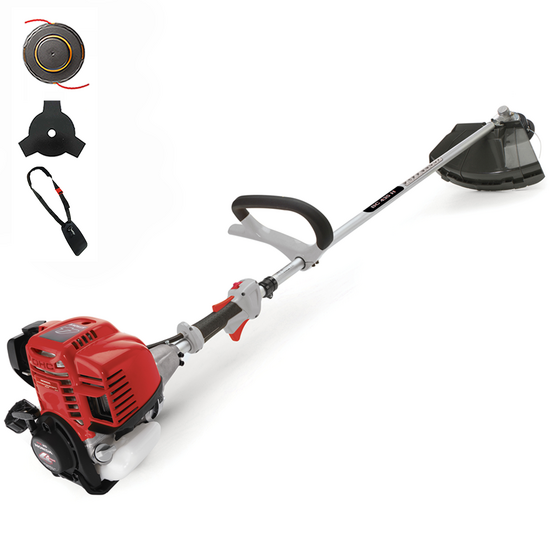

Castelgarden BC 435 H - 4-stroke gasoline brush cutter - Honda GX35 engine

Questions & Answers (1)
ID: K601622

EAN: 8008984840508

MPN: 281320003/21

8,0/10
After-sales assistance & Spare parts
Castelgarden BC 435 H - 4-stroke gasoline brush cutter - Honda GX35 engine
Free gifts from AgriEuro
Professional 56 metre hexagonal wire package.Professional 56 metre hexagonal wire package.
NO. 6 PROTECTION ITEMSNO. 6 PROTECTION ITEMS
Replacement sprak plugReplacement sprak plug
FREE HARNESS AND OILFREE HARNESS AND OIL
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 14/04/2026 - 16/04/2026
€ 513,49
Vat included
Available versions
Technical data
Type
Single grip
Motor type
4-stroke
Motor brand
Honda
Cubic capacity
35.8 cm³
Nominal power
1.3 HP
Shaft diameter
26 mm
Weight
7.8 Kg
Product Features
Model
BC 435 H
Type
Single grip
Operating mode
Spark ignition
Grip
Standard
Manufacturing country
China
Motor data
Motor brand
Honda
Motor type
4-stroke
Cubic capacity
35.8 cm³
No. of cylinders
Single-cylinder
Nominal power
1.3 HP
Fuel
Petrol
Power supply
Overhead camshaft
Engine lubrication system
Oil bath
Decompression system
Automatic
Tank capacity
0.63 L
Oil tank capacity
0.1 L
Noise level
110 dB(A)
Manufacturing country
China
Transmission data
Transmission type
Rigid shaft
Shaft diameter
26 mm
Internal shaft
straight
Shaft and bevel gear
Standard
Equipment
Multifunctional
No
Brush cutter attachment
standard equipment
Anti-vibrating system
Yes
Clutch
Yes
Primer pump
Yes
Electronic ignition (with coil)
yes
Motor safety brake
Yes
Recoil start system (with rope)
Yes
Rubber-coated soft grip
Yes
Free gifts/extra features
Automatic line head (Tap&Go)
Yes
Standard shoulder strap
Yes
Harness with thigh protection
Yes
Safety face shield
yes
Rider plate and blade assembly tools
Yes
Plastic blade guard
yes
Fuel can
no
Maintenance tool kit
Yes
Instructions manual
Yes

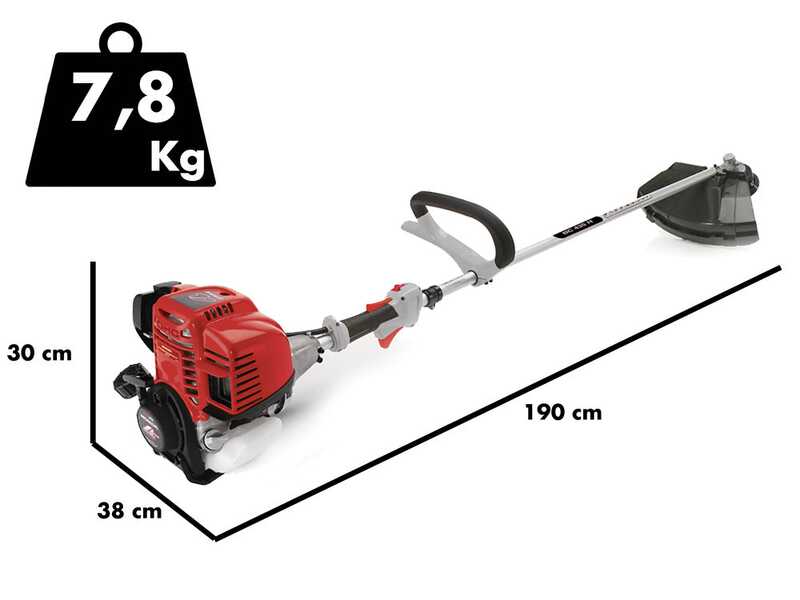

Dimensions and logistics
Product dimensions in cm (L x W x H)
190x38x30 cm
Net weight
7.8 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
190x30x29 cm
Weight including packaging
11.8 Kg
Assembly time
15 minutes
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Castelgarden BC 425 HJ Brush Cutter

The Castelgarden BC 435 H brush cutter is part of the mid-range of the new Castelgarden brush cutters, ideal for those who need a powerful but not too heavy machine.

The aesthetically pleasing and curved design gives the tool a nice look.

The Japanese (Honda) 35 cc 4-stroke engine features the most balanced power-to-weight ratio.

Suitable for mowing and finishing even the most demanding lawns.

All the components of this machine are of high quality, from the Tecomec head and line to the high-performance Honda engine.

Despite the weight of 7.8 kg at full load, the belt with side protection and the comfortable handle avoid fatigue.

This brush cutter is ideal for working in narrow spaces thanks to its single handle and extreme handling.

Why choose a Honda brush cutter? 4-stroke brush cutters are the most advanced machines on the market thanks to their absolute efficiency in every aspect:

  • High rpm rate
  • High power output
  • Renowned Honda reliability
  • Extremely lightweight, only 5.8 kg
  • Powered by petrol, no need to prepare mixture
  • 60% lower consumption than 2-stroke engines
  • 70% less polluting emissions than 2-stroke engines
  • 30% noise reduction compared to 2-stroke models
  • 40% less vibrations than 2-stroke models
  • Quick and efficient start
  • Reduced starting compression
  • Extremely durable made in Italy transmission

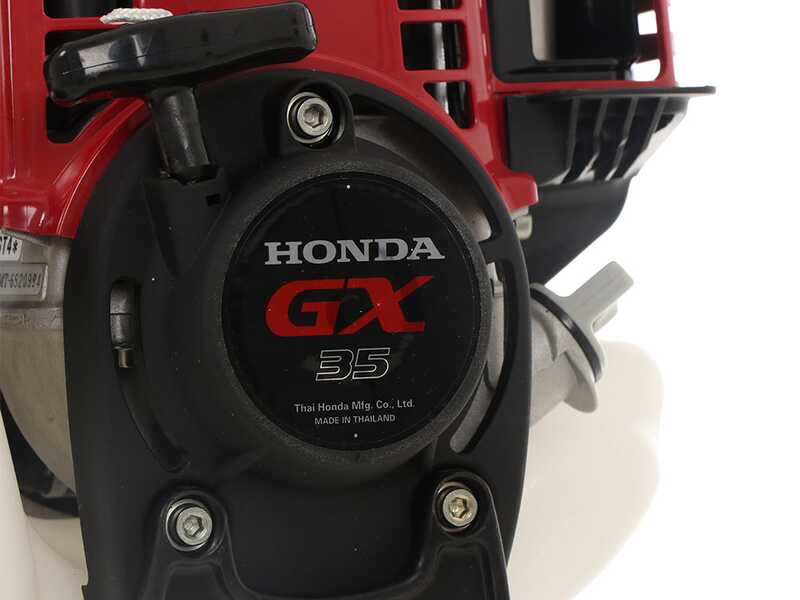

Honda Engine

Brush cutters with HONDA GX35 engine are particularly innovative products thanks to their new 4-stroke engines. Lower consumption, less polluting emissions, less noise and increased comfort thanks to the use of petrol:

  • POLLUTING EMISSIONS: - 60% approx.
  • CONSUMPTION: - 40% approx.
  • NOISE LEVELS: - 30% approx.
  • VIBRATION: - 50% approx.

Moreover, thanks to technological research, Honda invented the first 4-stroke engine which operates at any inclination. This configuration is called "any-side-up".

Honda GX35 is a 35.8 cc, air-cooled, 4-stroke engine. It is equipped with a single cylinder and it develops a maximum power of 1.3 Hp at 7000 rpm, and a torque of 1.6 Nm at 5000 rpm.

The weight and size of the engine are highly reduced, only 3.46 kg dry per 20x23x24 cm³.

Equipped with a 0.63 L fuel tank, the Honda GX35 engine runs on unleaded petrol. Also equipped with a 100 ml oil tank, which feeds the unique lubrication system that Honda has developed for these engines.

No more fuel issues and no need to prepare the mixture or worry about having fresh mixture supplies. Eco-friendly engine: one of the least polluting models of this sector.

Focus on the carburetor and choke lever.

Focus on the left side of the engine where you can access the petrol tank, the air adjustment, the primer for cold start and the engine recoil start system.

Focus on the spark plug

Focus on the air filter

WARNING: the engine does not contain oil (please read the instructions manual before use)

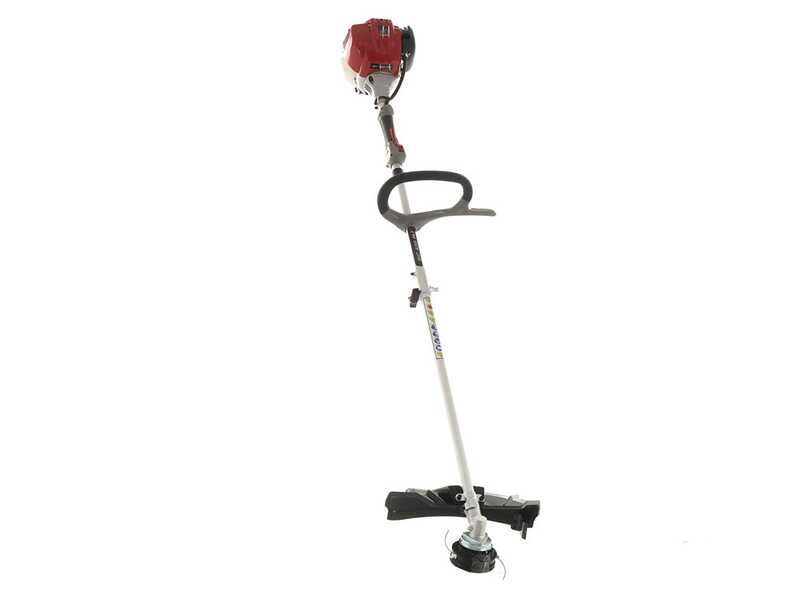

Transmission Shaft and Head

The transmission shaft features a diameter of 26 mm.

You can equip the head with a 2.4 mm line (430 mm max. cutting width)

The alternative is the 3-tooth blade (255 mm max. cutting width), both included.

The stone guard is very resistant and features a line adjustment blade.

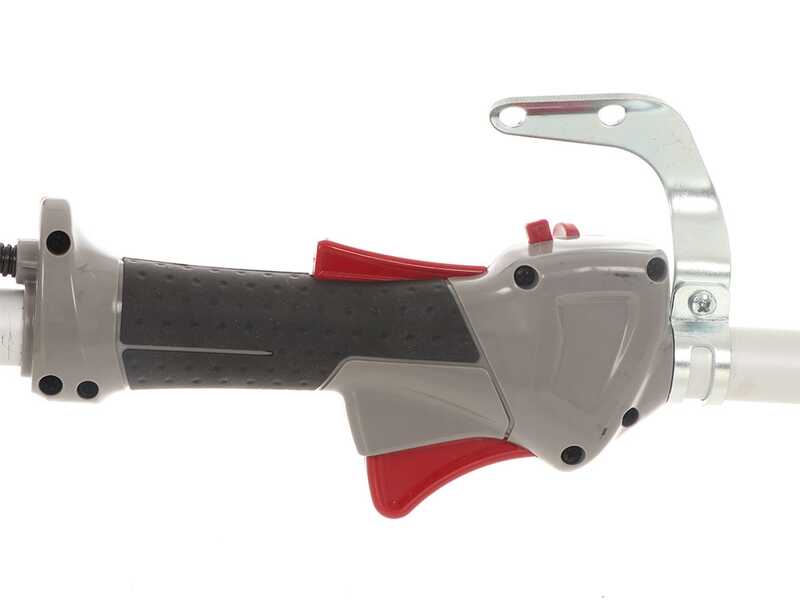

Handle and controls

The controls are very intuitive and easy to use.

In the handle there are also an automatic throttle and an emergency brake, always useful.

Focus on the harness attachment

Free items & Standard equipment

Free Items Included

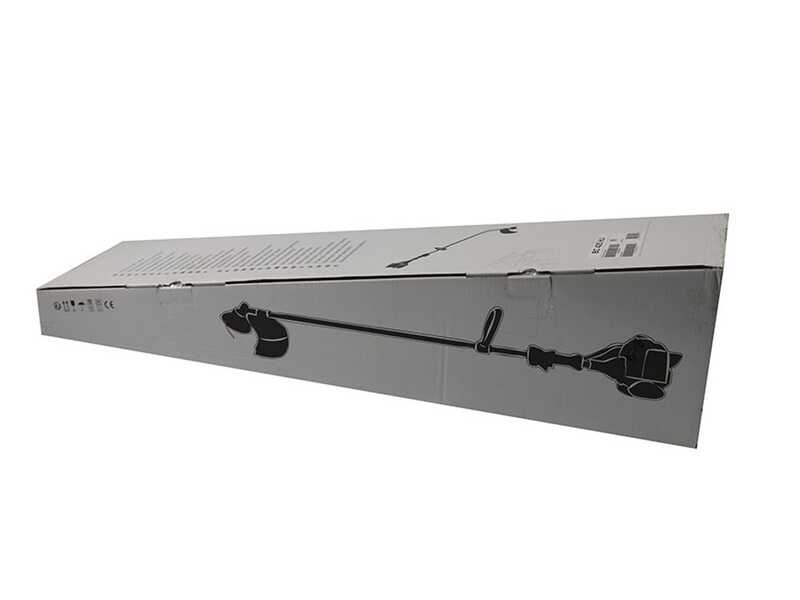

The brush cutter is shipped in its original packaging, complete with:

  1. Instructions manual
  2. Tools for assembly
  3. Tap ’n go line head
  4. 3-tooth blade
  5. Heavy-duty 4-point harness with side protection
