BullMach Era 220 SH - Tractor-mounted flail mower - Heavy series - Hydraulic shift

Questions & Answers (1)
ID: 110887

EAN: 8053435091909

BullMach Era 220 SH - Tractor-mounted flail mower - Heavy series - Hydraulic shift
Tractor power
Over 80 HP
Sturdiness/Series
Heavy
Weight
530 Kg
Cutting width
220 cm
Shift
Hydraulic
Standard cutting tools
Hammer flails
Opening rear flap
Hammer flail weight
1.2 Kg
Cardan shaft
Yes
Double spiral rotor
Product Features
Model:
ERA 220 SH
Tractor power:
Over 80 HP
Sturdiness/Series:
Heavy
Shift:
Hydraulic
Hydraulic shift:
Yes
Hydraulic shift:
Double spiral rotor:
3-point hitch category:
First
Cardan shaft rotation:
Standard
Manufacturing country:
China
Cutting data
Cutting width:
220 cm
No. of blades:
20
Standard cutting tools:
Hammer flails
Hammer flail weight:
1.2 Kg
Hammer flails:
Cutting width:
220 cm
Equipment
Side drive belts:
5
Opening rear flap:
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Net weight:
530 Kg
Original packaging/s dimensions in cm (L x W x H):
250x98x65 cm
Gross weight (packaging included) :
560 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Out of stock
Free Shipping
€ 3.228,71
VAT Included
You're viewing:
Customers also viewed:
Description

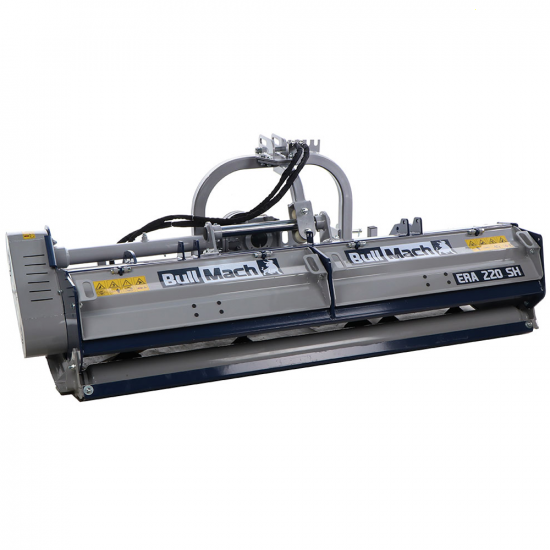

BullMach Era 220 SH Flail Mower

The BullMach ERA 220 SH heavy-duty tractor-mounted flail mower with hydraulic shift is an efficient and powerful machine designed for shredding and cutting large quantities of plant material. Thanks to its hydraulic shift, it can easily cope difficult and uneven terrain.

The CMR gearbox is specially designed to transfer power to the rotating drum of the machine, intended for optimum, quality operation. The CMR gearbox is made of high-quality materials, such as high-strength steel, in order to guarantee the durability and sturdiness required to withstand the load and stresses generated during shredder operation.

The flail mower’s drive is secured by 5 belts, which ensure efficient power transmission from the tractor to the machine.

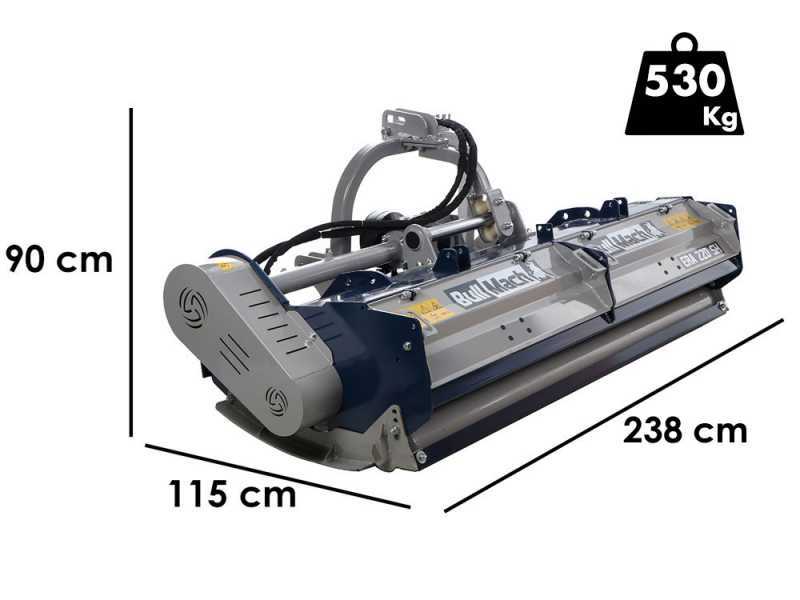

The BullMach ERA 220 SH size are maximised for efficient productivity. Its 220 cm effective working width allows a large area to be covered in a single passage, reducing the time and effort to complete the job. The 238 cm total width takes into account the space required to operate the machine, ensuring adequate manoeuvrability even in difficult to reach areas.

The flail mower is designed to be attached to the tractor through a 1° and 2° category 3-point hitch, thus guaranteeing a stable and safe connection. Its construction is made from 8 mm thick sheet metal, which gives the machine considerable strength and durability.

TECHNICAL DATA (brief overview):

  • Real working width: 220 cm
  • Total width: 238 cm
  • 1° and 2° category 3-point hitch;
  • 5-belt drive transmission
  • Gearbox: CMR (made in Italy)
  • Weight: 530 kg

ON STANDARD EQUIPMENT:

  • Rear supporting roller
  • PTO

Warning: the machine is shipped ready for use with oils at level. Once mounted all the parts check the bolts tightening.
Please carefully read the instructions manual before starting the unit.

Hammer flail cutting system

No. of standard-supplied hammer flails: 20

Weight of a single hammer flail: 1200 g

These hammers are mounted on a sturdy 25 mm diameter hardened steel bolt. (15mm length)

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

The rotating roller on which the hammers are mounted has a diameter of 160mm.

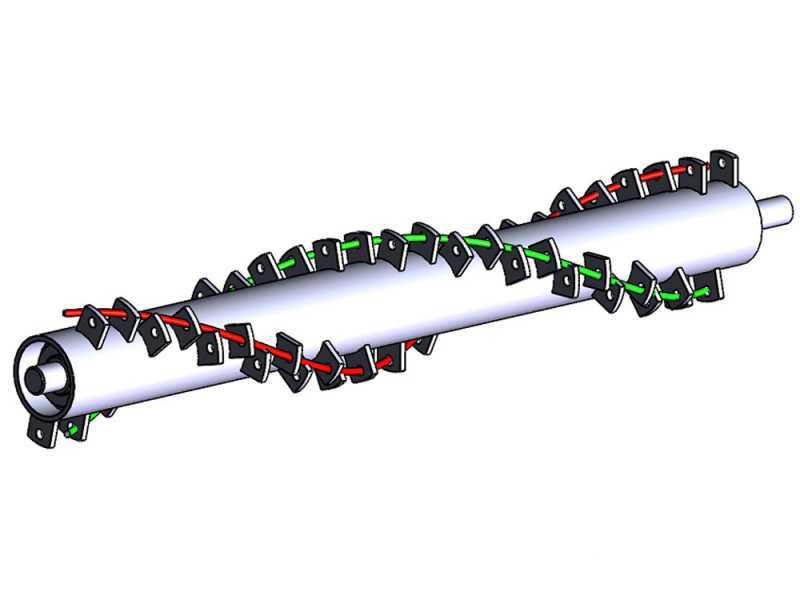

Figurative image of the double-spiral rotor

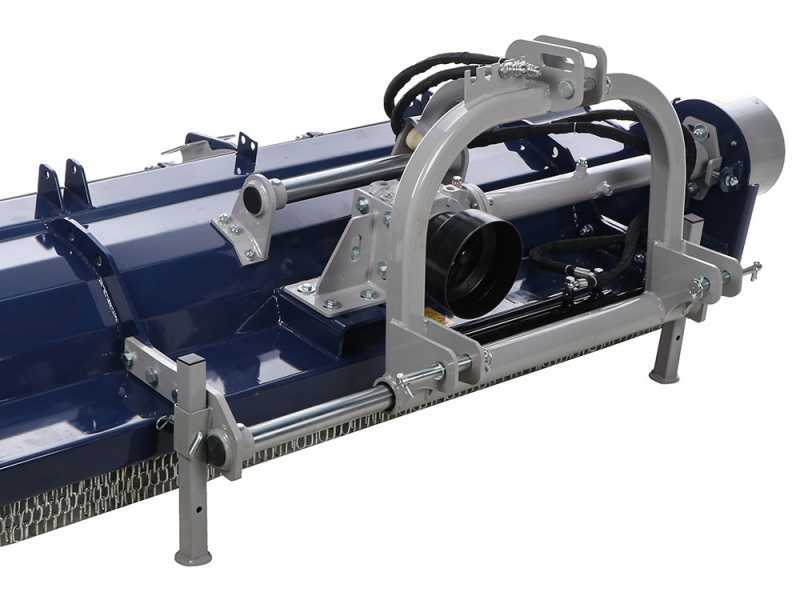

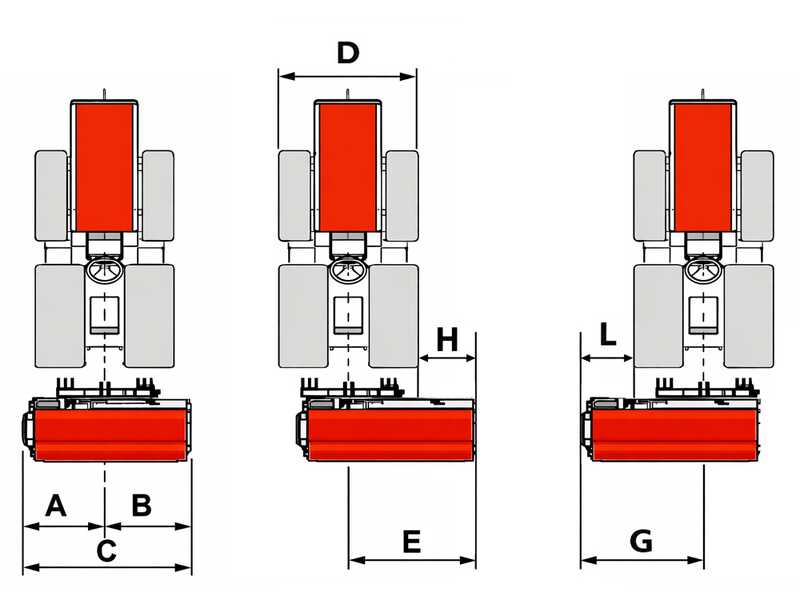

Hydraulic side shift and Tractor 3-point hitch

The flail mower is equipped with hydraulic shift.

The three-point hitch slides from right to left with a hydraulic piston that is mounted in place of the bar for manual movement.

Focus on the piston that controls the hydraulic shift (33.5 cm) of this flail mower.

The supplied hoses have a 1/2" connection.

Universal standard PTO ( 1 3/8" Z6 )

The attachments are of a universal type and adaptable to all tractors on the market; the attachments located on the base are 36 cm above the ground.

Focus on the sturdy 1° and 2° category sturdy 3-point hitch.

The coupling slides on two sturdy tubes with a diameter of 50 mm

Lubricator of the hydraulic 3-point linkage slide.

Pins located at the bottom size: 22/28 mm

Pins located at the top size: 25 mm

Side belt transmission and geared reducer

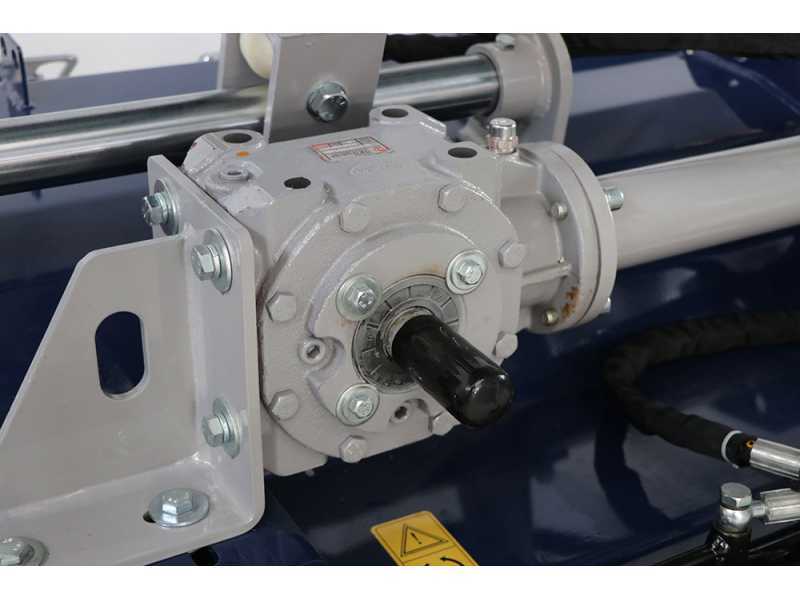

The CMR gearbox is an essential component that transmits power from the tractor engine to the cutting unit of the flail mower itself. It is responsible for adjusting the speed and torque that are transmitted to the cutting unit.

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

5-belt side transmission (most tractor-mounted flail mowers in this weight category are equipped with standard 3-belt transmission)

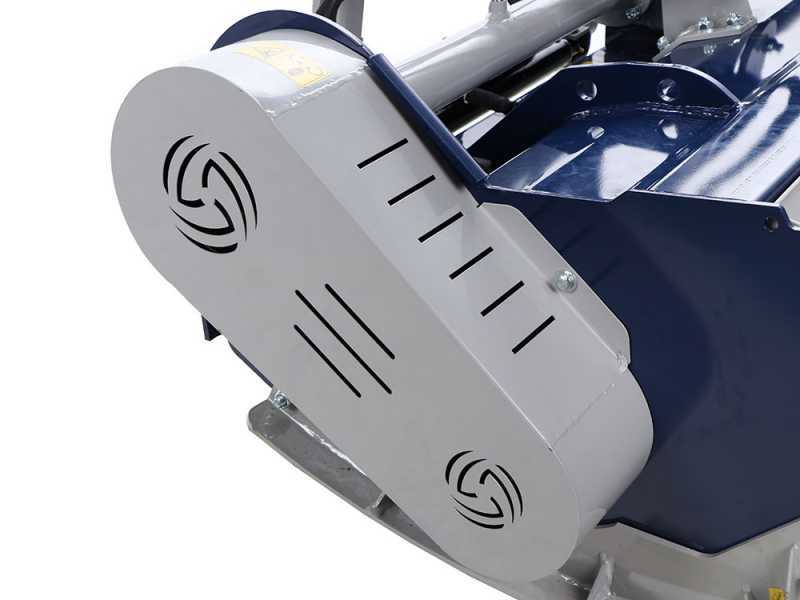

Focus on the side belt protection guard.

Focus on the side grease nipple on the transmission side, located at the rear side of the machine for optimum greasing action.


ATTENTION!

The gearbox of this machine can contain no more than 1.2L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

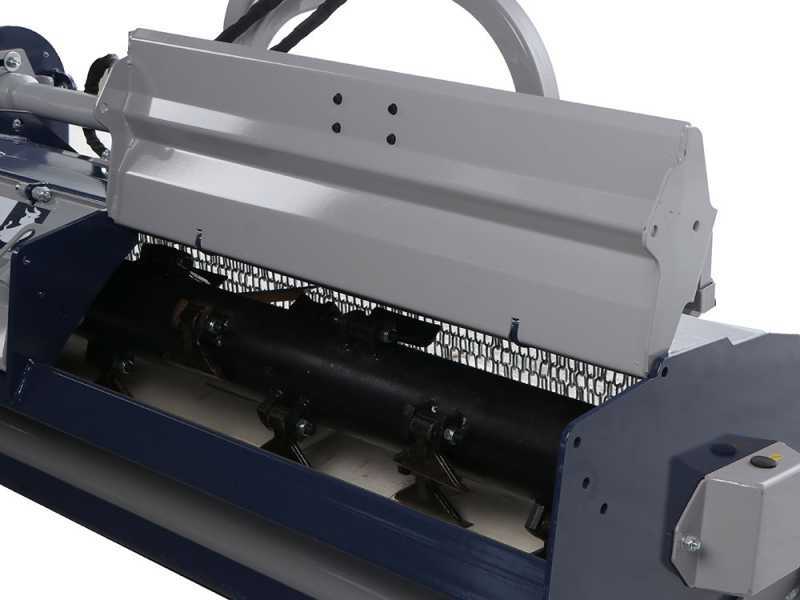

Series of rear brush rakes - collecting rods

A distinctive feature of this flail mower is its rear double adjustable opening.

Not only does it allow the rear exhaust space to be adjusted by means of simple screws, but it also simplifies maintenance by allowing operations in specific areas of the machine.

Doors can be opened or closed by simply using bolts.

Rotor and side bearings

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

The rotor with hammers features a 160 mm diameter.

Rotor grease cover.

Generously large rear roller bearing with 4 fixing points.

The hammers ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Universal standard PTO ( 1 3/8" Z6 )

Focus on the sturdy 3-point hitch

Supporting attachments - Rear roller and side skids

Height-adjustable rear supporting roller with a 140mm diameter provided on standard equipment.

Focus on the roller fixing bearing.

Focus on the roller grease gun, with holes for height adjustment. It is height-adjustable in 4 different positions.

Standard side support skids, also adjustable in two different positions.

Sturdy set of front protection slaps made of shaped steel.

Support roller protection bar.

Free items & Standard equipment

Free items included

The flail mower is shipped partially assembled on pallet (you’ll only have to assemble the 3-point hitch and a few other small components)

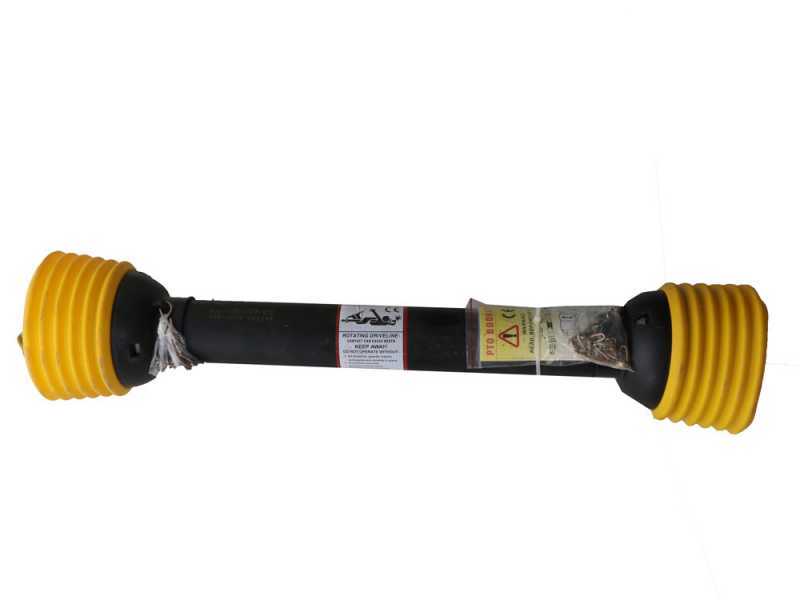

Cardan shaft included in the package.

Cardan shaft category 05B.

Cardan shaft length 100 cm.

Instructions and assembly manual included in the package.
