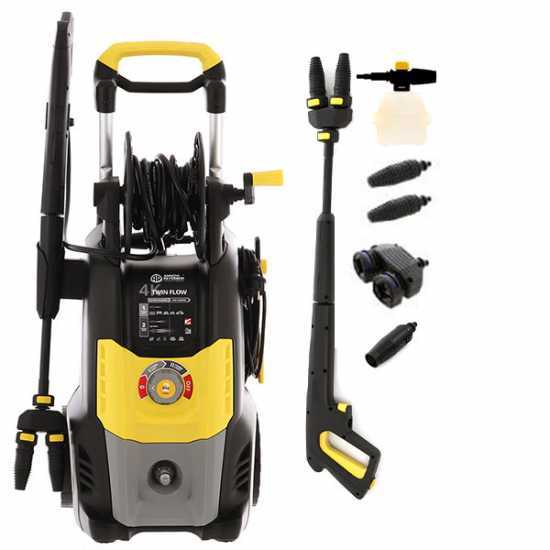

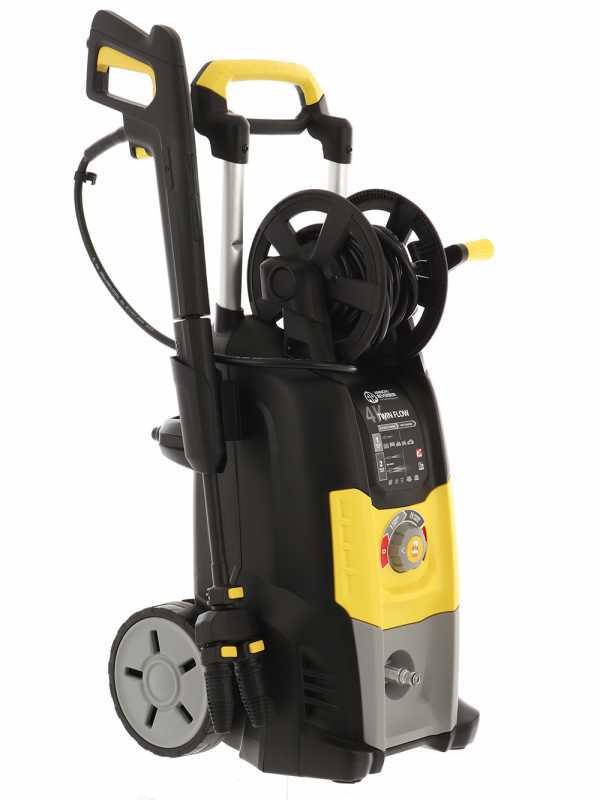

Annovi & Reverberi Twin Flow 4.0 Classic Yellow Pressure Washer, 150 bar max, 13.5 L/min flow rate

Questions & Answers (2)
ID: K605083

EAN: 8016287148238

MPN: 14823

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi Twin Flow 4.0 Classic Yellow Pressure Washer, 150 bar max, 13.5 L/min flow rate
FREE
Suede clothSuede cloth
Protection and storage tarp coverProtection and storage tarp cover
Double axial pump
Pump head material
Aluminium
Max. flow rate per hour
810 L/h
Max. pressure
150 bar
Engine
brushes
Operating mode
Single-phase 230 V
DTS - double pump and engine
Yes
Double electric motor
Yes
Wheeled
Hose reel
Rotating nozzle
Nozzle only
Foam lance
Yes
Self-priming pump
Weight
16.7 Kg
No. 2 speed levels
Product Features
Model:
Classic Yellow Twin Flow 4.0
Wheeled:
Type:
Wheeled
No. 2 speed levels:
Operating mode:
Single-phase 230 V
Operation mode:
Cold water
Detergent delivery:
With kit
DTS - double pump and engine:
Yes
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Double electric motor:
Yes
Engine:
brushes
Motor speed:
2800 RPM
Max. power absorption:
2.5 Kw
Cooling:
With air
Pump data
Pump brand:
Annovi & Reverberi
Pump type:
Inline-three cylinders
Double axial pump:
Self-priming pump:
No. of pump speeds:
1
Pistons material:
Steel
Pump head material:
Aluminium
Aluminium pump head:
Flow rate:
8 L/min
Max flow rate per minute:
13.5 L/min
Max. flow rate per hour:
810 L/h
Operating pressure:
110 bar
Max. pressure:
150 bar
Equipment
Integrated detergent tank:
Yes
Foam lance:
Yes
Detergent dispenser:
Yes
Extractable handle:
Yes
Type of attachment:
Quick coupling
Hose reel:
Total Stop:
Yes
Tool holder:
Yes
Power cable holder:
Yes
Free gifts/extra features
Spray gun:
Yes
Lance with adjustable nozzle:
Yes
Quick-connect nozzle lance:
Yes
Rotating nozzle:
Nozzle only
Rotating nozzle:
Hose length:
8 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
38 x 41 x 76 cm
Net weight:
16.7 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
40 x 43 x 78 cm
Gross weight (packaging included) :
25 Kg
Assembly time:
5 minutes
Prompt Delivery
53 items in stock
Free Shipping
Estimated delivery: 12/12/2024 - 17/12/2024
€ 268,51
VAT Included

Available versions
You're viewing:
Customers also viewed:
Description

Blue Clean AR DTS 4.0 Twin Flow Pressure Washer

AR DTS 4.0 Twin Flow cold water pressure washer is a single-phase electric machine on trolley, part of 4.0 Series by Annovi Reverberi.

This pressure washer is unique thanks to two A&R patents:

  • DTS Dualtech Tecnology System
    : it consists of a double pump and a single-phase electric double motor. The electric motors can be started singularly or simultaneously, doubling the power and flow rate of the machine.
  • The TWIN NOZZLE splitter allows you to use two nozzles at the same time to clean larger areas and save up to 70% time.
  • Adjustable nozzle, it can be used with the detergent tank

Automatic safety valve with pressure reset on the pump head. The motors are equipped with thermal protection: maximum efficiency and durability.
The pressure washer also features the TSS system: Total Stop System, the machine switches off automatically when you stop working

Thanks to DTS, this machine can adjust the performance of the machine through the use of 2 power units.

FLOW RATE: 810 L/h (13.5 L/m MAX.), among the highest on the market
(flow rate is the most important technical data of a pressure washer, even more than pressure, as it shows the real power of the machine).

HIGH OPERATING PRESSURE: 150 bar, among the highest of its category.

MOTORS: 2.5 kw single-phase electric (220 V)

This pressure washer comes complete with hose reel with 8 m hose. The hose reel is not wheeled and features a convenient handle.
Wide range of accessories.

Unlike many “single-use” items available on the market at very low price, Annovi Reverberi pressure washers come with:

  • technical support availability
  • spare parts availability
  • long-lasting product
  • high performance

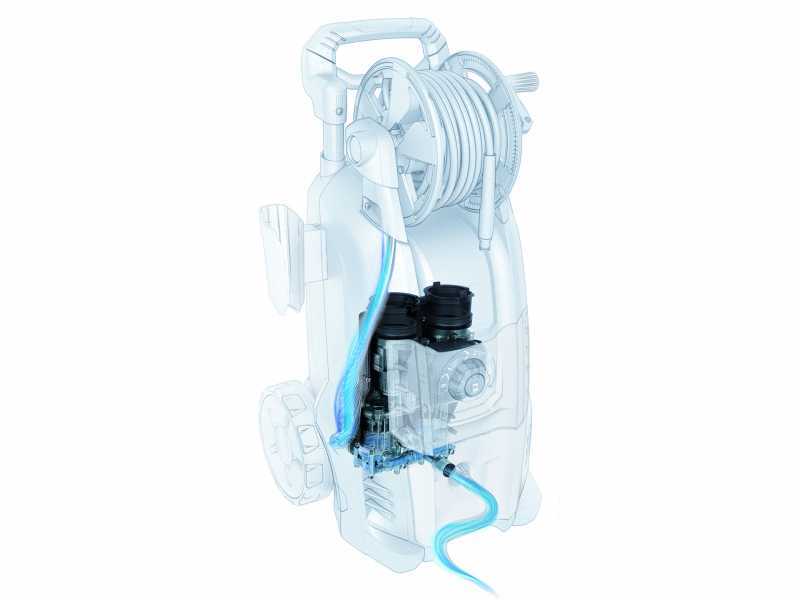

DTS Pumps and Motors

Pressure: 150 bar max.

Flow rate: 13.5 L/min (810 L/h)

Power: 2.5 kw

AR DTS 4.0 Twin Flow pressure washer is the only one with a double motor and double pump with 3 axial pistons driven by the swashplate, made of hardened stainless steel. Automatic safety valve with pressure reset on the pump head.

  • Hardened stainless steel pistons
  • Automatic safety valve with pressure reset on the pump head.
  • Remote total stop system of the pressure washer.
  • Motor thermal protection
  • 8 m high-pressure hose with hose reel

Pressure is fundamental for pressure washers. Flow rate is even more important: affordable machines may often feature high-pressure but very short flow rate, resulting in inefficient products. The minimum flow rate must be at least 350 L/h.

The 2.5 KW two electric single-phase motors with thermal protection ensure top-quality performance.
5 m power cable.

Dualtech System Technology

DTS is a new patented technology by A&R, which allows adjusting the pressure washer performance through the use of two pumps.

Thanks to this device, the performance of the machine will be greatly improved compared to a regular single-pump pressure washer.

Models with this feature include:

  • Regular Cleaning: it is the normal cleaning mode using only one motor.
  • Heavy – Duty Cleaning: the mode that enables maximum performance. This option will increase both the flow rate and the range (up to 5 m), allowing to easily remove the most stubborn dirt from large areas.

Main Features

User-friendly controls
double-speed selector

“TSS" (Total Stop System)
When you release the water delivery button, the machine automatically shuts down, starting again when you continue working. Main advantages:

  • it prevents overheating
  • makes the pump more durable
  • reduces consumption

- Remote total stop system of the pressure washer.

- Automatic safety valve with pressure reset on the pump head.

Easy access to the water filter

The machine is powered by two 2.5 KW single-phase electric motors with thermal protection.
5 m power cable.

Wide range of accessories:

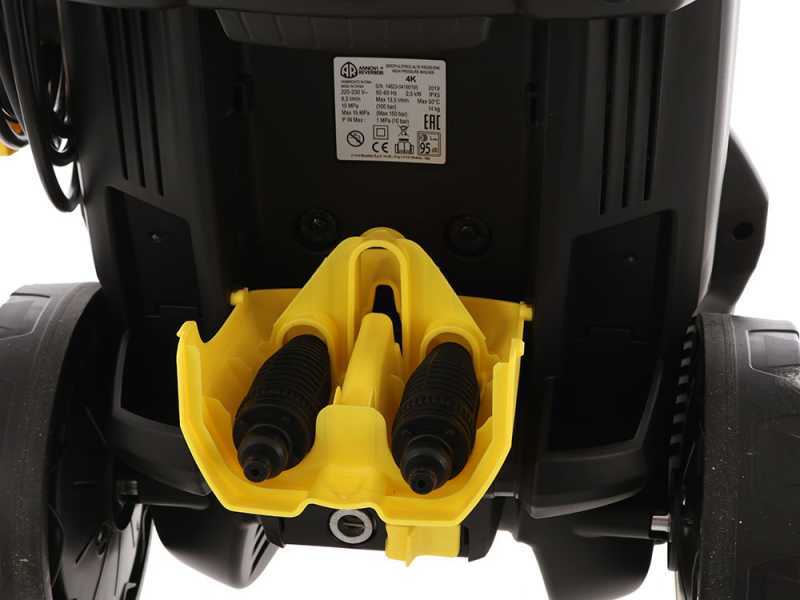

  • The spray gun, lance and the head adjustable in 5 positions are placed on the side and the rear part of the machine.
  • Ergonomic carrying handle with integrated hose reel
  • Focus on the hose reel equipped with practical and comfortable handle.
  • Focus on the easy-to-check water filter
  • Large rubber wheels
  • Foam lance for detergent
  • Tool compartment
  • Power cable holder

AgriEuro Special Edition Assembly and Equipment

This pressure washer is shipped in its original packaging, already assembled and ready for use. You only have to mount the lance holder, which only takes a few simple steps.

Items included:

  • Rotating nozzle

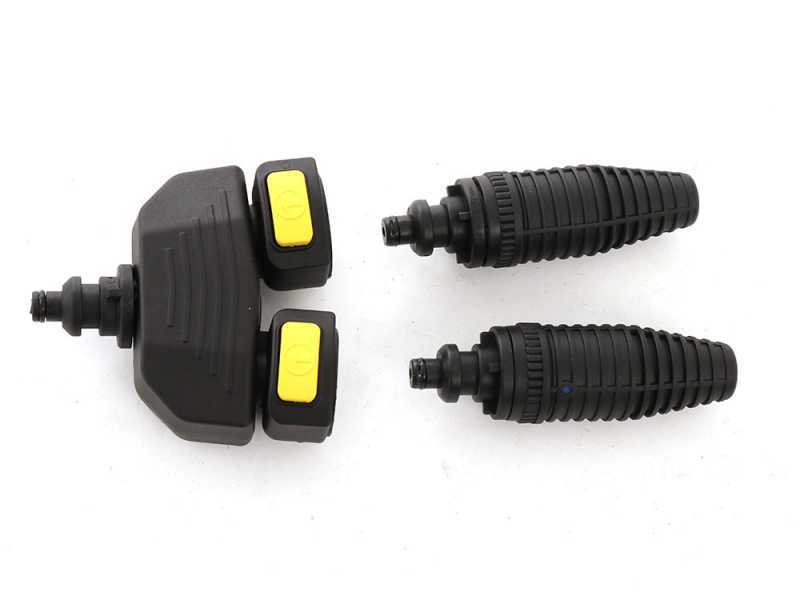

  • Nozzle splitter, it drastically reduces cleaning time
  • 8 m high-pressure hose
  • High-pressure gun with lance equipped with click-fast system for quick connection of the high-pressure hose.
  • Water inlet hose adapter with filter
  • Cleanser foam lance kit
  • 5 m power cable
  • Adjustable nozzle
Free items & Standard equipment

Protection and Storage Cover for Pressure Washers - Size: - Medium

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower border to perfectly fit to the shape of the machine.

Easy to fold and store in its box and space-saving!

FOR FREE: suede cloth

Soft suede cloth

  • Quick and easy absorption of any liquid, suitable for preventing limescale
  • Machine washable and reusable
  • No abrasion, so no marks or scratches
  • Leaves no residue

Length: 39 cm

Width: 29 cm

Free Items Included

The pressure washer is shipped in its original packaging complete with instructions manual.

Items included:

  • Rotating nozzle
  • Nozzle splitter
  • 8 m high-pressure hose and hose reel
  • High-pressure gun with lance
  • Foam lance
  • 5 m power cable
