Annovi & Reverberi - Blue Clean 787 - Cold water high pressure washer - 180 bar - 900 l/h

Add a question
ID: K608555

EAN: 8016287223201

MPN: 22320-V

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi - Blue Clean 787 - Cold water high pressure washer - 180 bar - 900 l/h
FREE
Free water supply connection kitFree water supply connection kit
15 m purging probe + 4 adapters for high-pressure cleaners15 m purging probe + 4 adapters for high-pressure cleaners
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
900 L/h
Max. pressure
180 bar
Engine speed
1450 RPM
Body material
ABS
Engine
Induction
Operating mode
Three-phase 400 V
Pressure regulator
Yes
Wheeled
Detergent tank
Self-priming pump
Weight
43 Kg
Manufacturing country
Italy
Product Features
Model:
Blue clean 787
Wheeled:
Body material:
ABS
Type:
Wheeled
Operating mode:
Three-phase 400 V
Operating mode:
Electric 400V
Operation mode:
Cold water
Detergent delivery:
With kit
Manufacturing country:
Italy
Motor data
Motor brand:
Annovi & Reverberi
Motor type:
Electric single-phase
Engine:
Induction
Max. power absorption:
5 Kw
Cooling:
With air
Pump data
Pump brand:
Annovi & Reverberi
Pump type:
Connecting rod-crank
Heavy-duty linear pump:
Self-priming pump:
No. of pump speeds:
1
Pistons material:
Ceramic-coated steel
Pump head material:
Brass
Brass pump head:
Engine speed:
1450 RPM
Flow rate:
15 L/min
Max flow rate per minute:
15 L/min
Max. flow rate per hour:
900 L/h
Operating pressure:
150 bar
Max. pressure:
180 bar
Pressure regulator:
Yes
Pressure regulator:
Safety valve:
Yes
Equipment
Integrated detergent tank:
Yes
Detergent tank:
Detergent dispenser:
Yes
Extractable handle:
Yes
Type of attachment:
M22 - Screw
On wheeled frame (with wheels and handles):
Yes
Total Stop:
Yes
Tool holder:
Yes
Power cable holder:
Yes
Free gifts/extra features
Spray gun:
Yes
Lance with adjustable nozzle:
Yes
Heavy-duty lance:
Yes
Hose length:
10 m
Instructions manual:
Yes
Dimensions and logistics

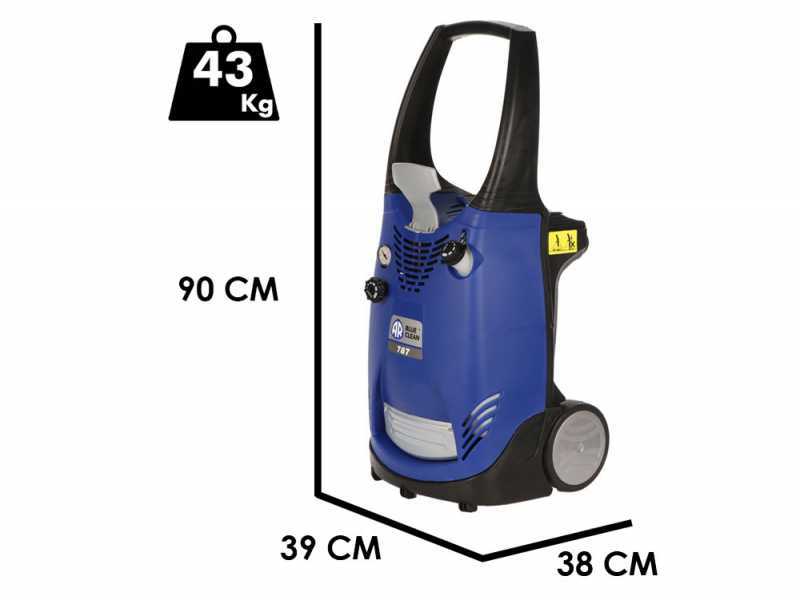

Product dimensions in cm (L x W x H):
39x38x90 cm
Net weight:
43 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80x40x58 cm
Gross weight (packaging included) :
53 Kg
Assembly time:
5 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 26/02/2025 - 28/02/2025
€ 1.038,90
Vat included

Available versions
You're viewing:
Customers also viewed:
Description

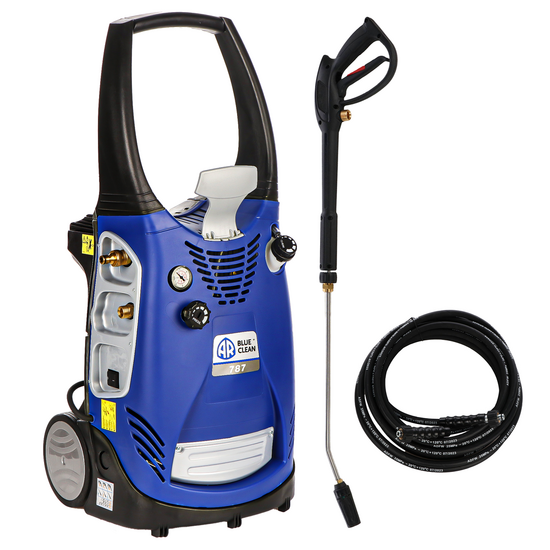

Blue Clean 787 Pressure Washer

The Blue Clean 787 high-pressure washer, part number 22320-V, is a cleaning device designed to deliver high performance through a series of advanced components and features.

One of its main strengths is the integrated detergent tank, which allows detergents to be added directly into the water stream, improving cleaning effectiveness.

The integrated accessory holder ensures that all necessary tools are always at hand, while the rubber wheels guarantee good grip and easy manoeuvring, even on uneven surfaces.

The ergonomic handle is designed to provide maximum comfort during use, reducing operator fatigue.

The machine can reach a maximum pressure of 180 bar (2610 psi) and a water flow of 900 litres per hour (238 gallons per hour).

The motor, with a power output of 5 kW, runs at 1450 rpm and requires a three-phase 400V power supply with a frequency of 50 Hz.

Weighing a total of 43 kg, the pressure washer is mounted on a two-wheel trolley with handle, making it easy to transport.

The ceramic three-piston pump, which uses a connecting rod-crank system, ensures durability and reliability.

It is equipped with an automatic safety valve that interrupts the pressure in the pump head to prevent damage.

The three-phase electric motor includes thermal protection to prevent overheating and ensure a long service life.

The pressure of the machine can be adjusted to suit different cleaning needs, and a pressure gauge allows the pressure to be monitored during use.

In addition, the detergent suction system is integrated and adjustable, allowing you to control the amount of detergent used.

In summary, the high pressure washer model 787, part number 22320-V, is a robust and versatile solution for professional cleaning needs, combining power, efficiency and user-friendliness.

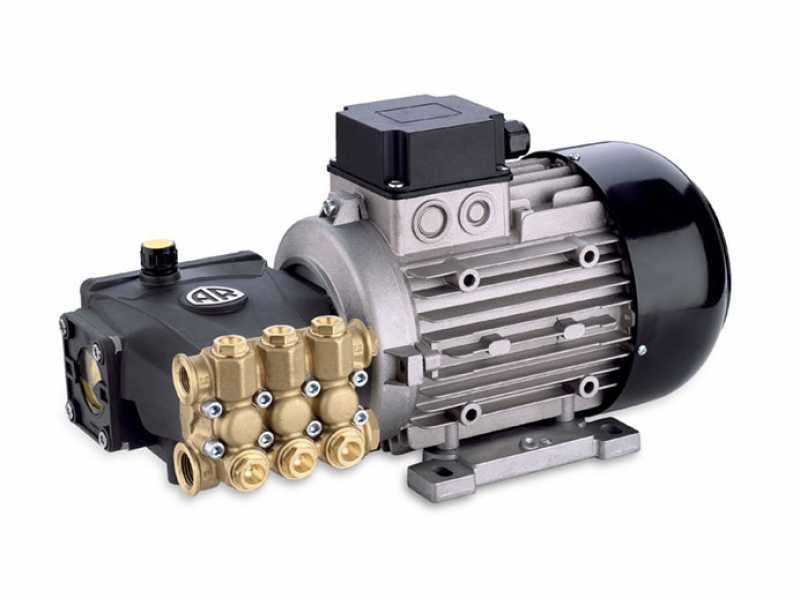

Pump and motor

The high-pressure washer model 787is equipped with a high-quality three-phase electric motor and an advanced pump, designed to deliver exceptional performance and durability.

Engine

The three-phase electric motor is one of the key elements that gives the pressure washer its extraordinary power and reliability. With a power output of 5 kW, this motor has a rotation speed of 1450 rpm, thus ensuring a constant and powerful water flow. It operates with a three-phase power supply of 400V and 50 Hz, making it suitable for industrial and professional applications where high performance is required. A crucial aspect of the motor is the integrated thermal protection, which prevents overheating during prolonged use. This feature is essential to keep the engine in optimum condition and extend its life, while ensuring operator safety.

Pump

The pressure washer's pump is another key component that contributes to its excellent performance. This is a 3-piston ceramic pump, model HRS, which uses a connecting rod-crank system. This system is renowned for its mechanical efficiency and durability, offering a constant and powerful water thrust. Ceramic pistons, unlike steel ones, are extremely resistant to wear and corrosion, which means the pump requires less maintenance and has a longer service life.

In addition, the pump is equipped with an automatic safety (TSS) valve that resets the pressure in the pump head to zero when not in use. This function is essential to prevent damage to the pump and increase safety during operation. The safety valve ensures that the pressure is kept at a safe level, thus protecting both the machine and the user.

Pump and Motor Performance

  • High Power and Speed:: The 5 kW , 1450 rpm motor guarantees constant and powerful performance. This allows the pressure washer to tackle even the most difficult cleaning tasks with ease.
  • Mechanical Efficiency: The ceramic three-piston pump with connecting rod-crank system maximises operating efficiency. This advanced design ensures that the motor's energy is optimally utilised, improving the overall performance of the pressure washer.
  • Durability: Ceramic pistons and thermal motor protection ensure a long service life and reliable operation. Ceramic, being an extremely durable material, significantly reduces wear and the need for frequent replacement.
  • Safety: The automatic safety valve helps prevent damage to the pump and increases the overall safety of the unit. This feature protects the internal hydraulic system from excessive pressure, ensuring safe operation even under heavy loads.
  • Reduced maintenance: Thanks to its durable materials and advanced design, the pressure washer requires less maintenance than conventional models. High-quality components reduce the frequency of maintenance work, allowing more continuous use and fewer interruptions.

In summary, the Model 787high-pressure washer, part number 22320-V, combines a powerful motor and robust pump to provide exceptional performance, durability and safety, making it ideal for professional and industrial applications.

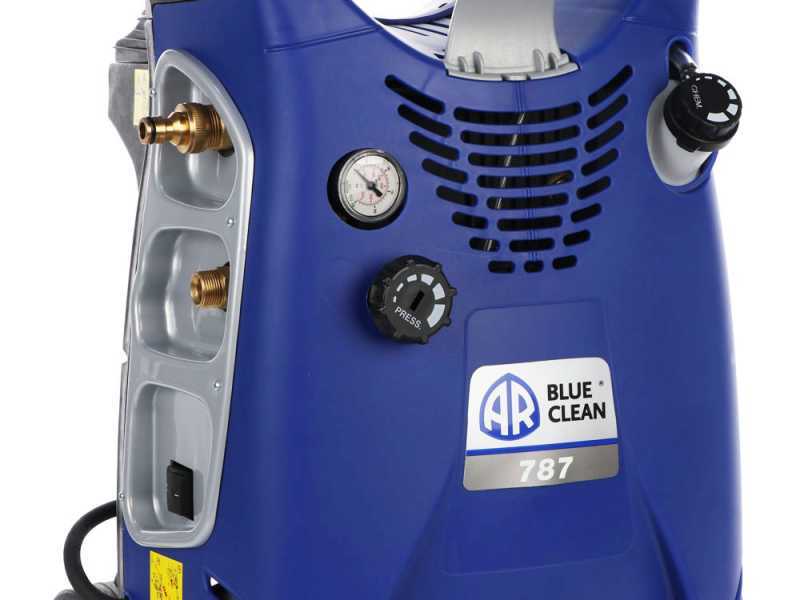

Main features

The high-pressure washer model 787, part number 22320-V, has a powerful motor and a robust pump designed to withstand heavy-duty use.
It includes an integrated detergent tank, rubber wheels for better manoeuvrability and an ergonomic handle for comfortable use.
The machine is equipped with an automatic safety valve, a pressure gauge and advanced pressure regulation and detergent suction systems.
  • Maximum pressure: 180 bar (2610 psi)
  • Water flow rate: 900 litres per hour (238 gallons per hour)
  • Motor power: 5 kW
  • Motor Speed: 1450 rpm
  • Power supply: Three-phase, 400V, 50 Hz
  • Weight: 43 kg
  • Detergent tank: 2 L capacity
  • Two-Wheel Trolley: Complete with handle for easy transport
  • Ceramic Three-Piston Pump: With connecting rod-crank system
  • Automatic Safety Valve: With pressure reset in the pump head
  • Three-phase electric motor: With thermal protection (single-phase for model 780)
  • Pressure Regulation
  • Pressure gauge. To monitor pressure during use
  • Integrated detergent suction: Adjustable to control the amount of detergent used
  • IPX5 certification: Protected against water jets from all directions
  • Thermal Resistance: Designed to withstand temperatures up to 160°C (140°F)
  • Rubber wheels: For better grip and manoeuvrability
  • Ergonomic handle: For comfortable use

These features make the high-pressure washer model 787 an ideal choice for professional applications requiring power, efficiency and durability.

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

COMPLIMENTARY: Hose Probe Flusher + 4 adaptors

The hose probe flusher for cold water pressure washer is compatible, thanks to the adapters, with pressure washers by the following brands:

Kärcher Annovi & Reverberi – Black&Decker – Bosch – Stanley - Comet - Interpump - Kranzle - Lavor

15 m rubber hose

This pipe and drain cleaner is perfect for clearing clogged pipes. Its small size and flexibility allows clearing all kinds of pipes and drains very easily, including narrow domestic ones.

Focus on the three rear facing jets that help propel the cleaning probe along drains or pipes as it clears the blockage.

PLEASE MAKE SURE THIS PRODUCT IS COMPATIBLE WITH YOUR PRESSURE WASHER BEFORE PLACING THE ORDER.

WARNING: this accessory was designed exclusively for cold water.

Free items included

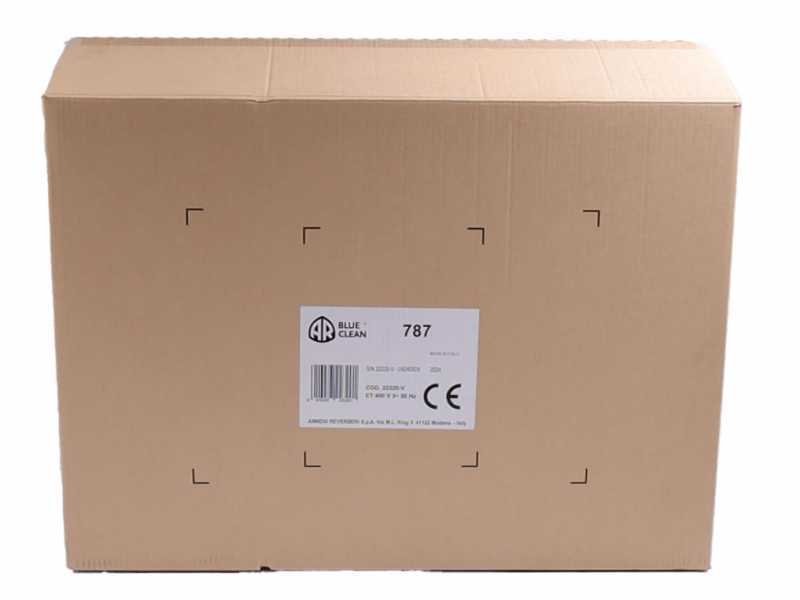

The high pressure washer come into its original packaging complete with Instructions manual.

Supplied:

  • Adjustable nozzle
  • 10 m high pressure hose
