Annovi & Reverberi Blue Clean 614K - Cold water high pressure washer - 160 bar max - Capacity 8.5 Lt/min

Questions & Answers (2)
ID: K608701

EAN: 8016287139786

MPN: 13978

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi Blue Clean 614K - Cold water high pressure washer - 160 bar max - Capacity 8.5 Lt/min
FREE
Free water supply connection kitFree water supply connection kit
Sandblaster lanceSandblaster lance
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
510 L/h
Flow rate
8.5 L/min
Max. pressure
160 bar
Engine speed
2800 RPM
Engine
Induction
Nominal power (W)
2900 W
Operating mode
Single-phase 230 V
Pressure regulator
Yes
Wheeled
Type
Trolley
Self-priming pump
Manufacturing country
Italy
Product Features
Model:
Blue Clean 614K
Wheeled:
Type:
Trolley
Operating mode:
Single-phase 230 V
Operation mode:
Cold water
Flow rate:
8.5 L/min
Detergent delivery:
Low-pressure
Manufacturing country:
Italy
Motor data
Motor brand:
Annovi Reverberi
Motor type:
Electric single-phase
Engine:
Induction
Nominal power (W):
2900 W
Motor speed:
2800 RPM
Cooling:
With air
Manufacturing country:
Italy
Pump data
Pump brand:
Annovi & Reverberi
Model:
HPV
Pump type:
Connecting rod-crank
Heavy-duty linear pump:
Self-priming pump:
No. of pump speeds:
1
Pistons material:
Ceramic
Pump head material:
Brass
Brass pump head:
Engine speed:
2800 RPM
Max flow rate per minute:
8.5 L/min
Max. flow rate per hour:
510 L/h
Max. pressure:
160 bar
Pressure regulator:
Yes
Pressure regulator:
Manufacturing country:
Italy
Equipment
External detergent suction hose:
Yes
Type of attachment:
M22 - Screw
Hose holder:
Yes
Total Stop:
Yes
Tool holder:
Yes
Power cable holder:
Yes
Free gifts/extra features
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Lance with adjustable nozzle:
Yes
Heavy-duty lance:
Yes
Hose length:
10 m
Instructions manual:
Yes

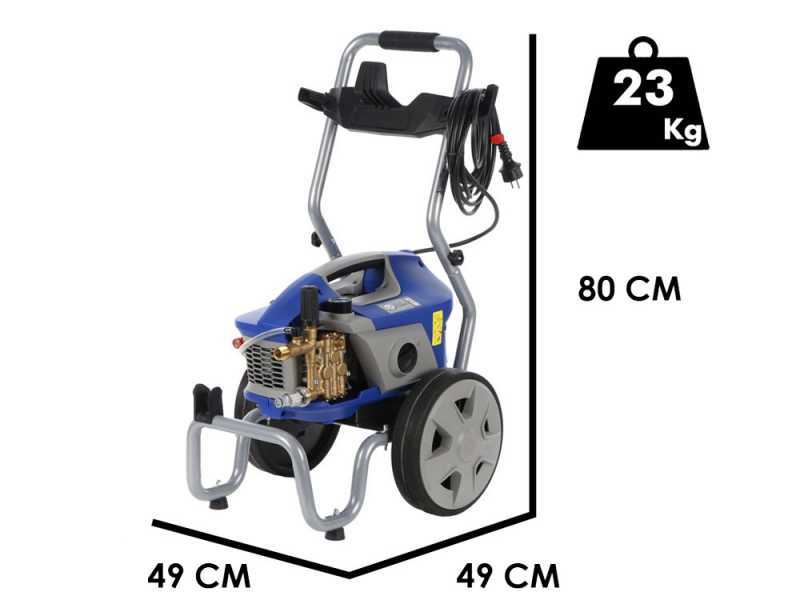

Dimensions and logistics
Product dimensions in cm (L x W x H):
45x45x80 cm
Net weight:
23 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
49x50x60 cm
Gross weight (packaging included) :
29.2 Kg
Assembly time:
5 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 26/02/2025 - 28/02/2025
€ 663,26
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

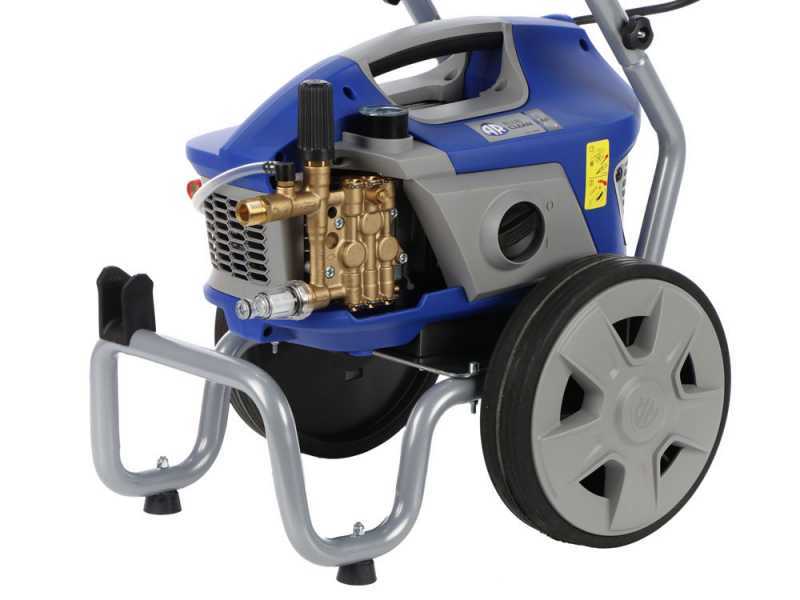

Annovi & Reverberi Blue Clean 614K - Cold water pressure washer

AR Blue Clean 614K is the walk-behind cold pressure washer manufactured by Annovi Reverberi, completely Made in Italy, perfect for both professional use and for experienced and demanding hobbyists.

Thanks to its exceptional water flow rate of 510 l/h and 160 bar pressure (adjustable with the pressure regulator), the AR Blue Clean 614K cleans the toughest and most stubborn dirt quickly and thoroughly over large areas, guaranteeing extended work sessions.

For this reason, it is also suitable for professional contexts such as construction,agriculture, animal husbandry and handicrafts.

Top-quality materials, such as the brass pump head, testify that this is a superior product.

It is equipped with a quiet, durable and reliable induction motor, a 3-piston ceramic pump with a crank-rod system and the Total Stop System that automatically switches the pressure washer off when the gun lever is released.

The professional accessories included are a 10-metre hose and a high-pressure gun with safety catch and metal core, to which the adjustable spray lance can be connected.

By rotating the head of the latter, it is possible to obtain a more or less wide jet, thus more concentrated and effective in removing stubborn dirt or more gentle.

The detergent is automatically sucked in via the suction hose from an external container.

TheAR Blue Clean 614K is amultifunctional pressure washer that can be used in 3 different ways: as a portable pressure washer; quickly attached to the supplied two-wheel trolley ; and as a stationary wash station, by hanging it on the wall using the hose reel mounting kit, which can be purchased separately.

If it cannot be connected to the water supply, water can be drawn from storage containers thanks to the self-priming function.

Easy access to the hydraulic parts makes servicing the 614K very simple; the instruction manual in the package lists the service centres in the area.

The warranty is two years from the date of purchase.

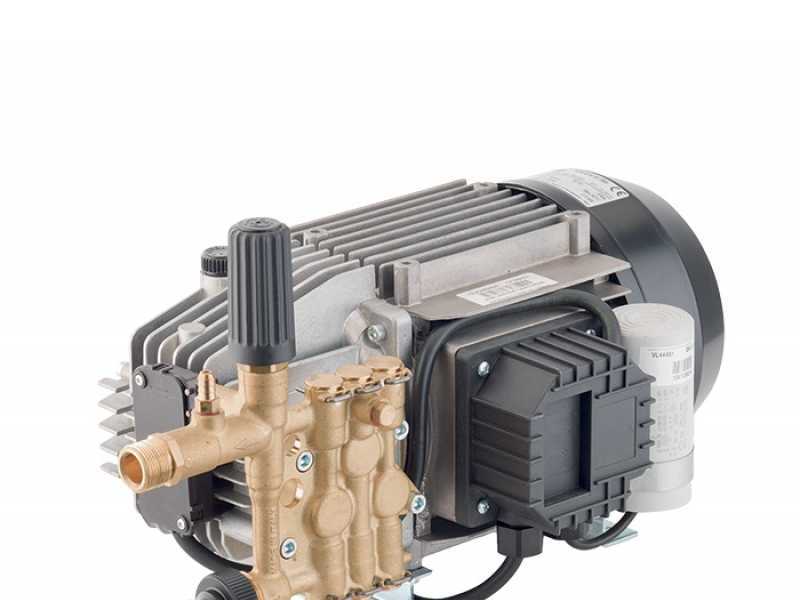

Pump and motor

The HPV-O is a 3-piston pump in hardened stainless steel with ceramic coating, equipped with a connecting rod-crank system and a robust brass head, ideal for professional applications requiring reliability and high performance.

This pump is equipped with an automatic safety valve that guarantees zero pressure in the pump head, increasing safety and prolonging the life of the device.

The single-phase electric induction motor, integrated with a thermal protector, ensures smooth and continuous operation, even under the most demanding conditions. In addition, the total stop system allows the pressure washer to be switched off remotely, improving efficiency and convenience of use.

The HPV-O also has a self-priming tank water suctionfunction, allowing it to be used even in the absence of a direct connection to the water mains, thus ensuring maximum versatility.

Choose HPV-O for a professional, safe and uncompromising cleaning experience.

Main features

  • Code: 13978
  • Model: 614 K
  • EAN code: 8016287139786
  • Maximum pressure: 160 bar
  • Maximum capacity: 510 l/h
  • Power: 2.9 kW
  • Revolutions per minute: 2800 rpm
  • Power supply: 220-240 V
  • Frequency: 50 Hz
  • Maximum inlet water temperature: 50°C

The AR Blue Clean 614 K high-pressure washer offers outstanding performance for thorough cleaning, both in the professional sector and for demanding hobbyists.

With a maximum pressure of 160 bar and a flow rate of 510 l/h, it guarantees efficiency and speed.

Its 2.9 kW power and 2800 rpm ensure powerful and constant operation.

Suitable for use with domestic power supply, operating at 220-240 V and 50 Hz.

In addition, it is designed to handle incoming water up to a maximum temperature of 50°C, expanding the possibilities of use.

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

Sand blasting lance FREE!

Thanks to a series of adaptors, this cold water pressure washer sandblaster lance is compatible with all the current pressure washers you can currently find on the market by:

Kärcher

Annovi & Reverberi – Black&Decker – Bosch – Stanley

Comet - Interpump - Kranzle

Lavor

This sandblaster lance is equipped with a professional ceramic nozzle.

3 metre rubber hose

PLEASE MAKE SURE THIS PRODUCT IS COMPATIBLE WITH YOUR PRESSURE WASHER BEFORE PLACING THE ORDER

WARNING: this accessory was designed exclusively for cold water

Free items

The pressure washer is shipped in its original box

Multilingual instructions

  • High pressure gun

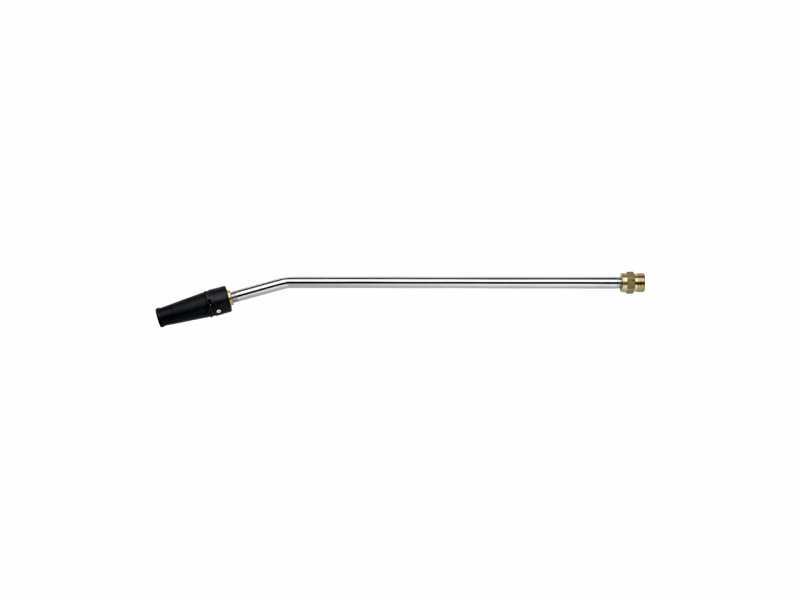

  • Lance with adjustable jet
  • High pressure hose
  • Water connection kit with filter
