Annovi & Reverberi Blue Clean 613K - Cold water high pressure washer - 150 bar max - Capacity 8.3 Lt/min

Questions & Answers (4)
ID: K608710

EAN: 8016287139762

MPN: 13976

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi Blue Clean 613K - Cold water high pressure washer - 150 bar max - Capacity 8.3 Lt/min
+300 sold
FREE
Free water supply connection kitFree water supply connection kit
15 m purging probe + 4 adapters for high-pressure cleaners15 m purging probe + 4 adapters for high-pressure cleaners
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
500 L/h
Flow rate
8.3 L/min
Max. pressure
150 bar
Engine speed
2800 RPM
Engine
Induction
Nominal power (W)
2500 W
Operating mode
Single-phase 230 V
Pressure regulator
Yes
Wheeled
Type
Trolley
Self-priming pump
Manufacturing country
Italy
Product Features
Model:
Blue Clean 613K
Wheeled:
Type:
Trolley
Operating mode:
Single-phase 230 V
Operation mode:
Cold water
Flow rate:
8.3 L/min
Detergent delivery:
Low-pressure
Manufacturing country:
Italy
Motor data
Motor brand:
Annovi Reverberi
Motor type:
Electric single-phase
Engine:
Induction
Nominal power (W):
2500 W
Motor speed:
2800 RPM
Cooling:
With air
Manufacturing country:
Italy
Pump data
Pump brand:
Annovi & Reverberi
Model:
HPV
Pump type:
Connecting rod-crank
Heavy-duty linear pump:
Self-priming pump:
No. of pump speeds:
1
Pistons material:
Ceramic
Pump head material:
Brass
Brass pump head:
Engine speed:
2800 RPM
Max flow rate per minute:
8.3 L/min
Max. flow rate per hour:
500 L/h
Operating pressure:
125 bar
Max. pressure:
150 bar
Pressure regulator:
Yes
Pressure regulator:
Manufacturing country:
Italy
Equipment
External detergent suction hose:
Yes
Type of attachment:
M22 - Screw
Hose holder:
Yes
Total Stop:
Yes
Power cable holder:
Yes
Free gifts/extra features
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Lance with adjustable nozzle:
Yes
Heavy-duty lance:
Yes
Hose length:
10 m
Instructions manual:
Yes
Dimensions and logistics

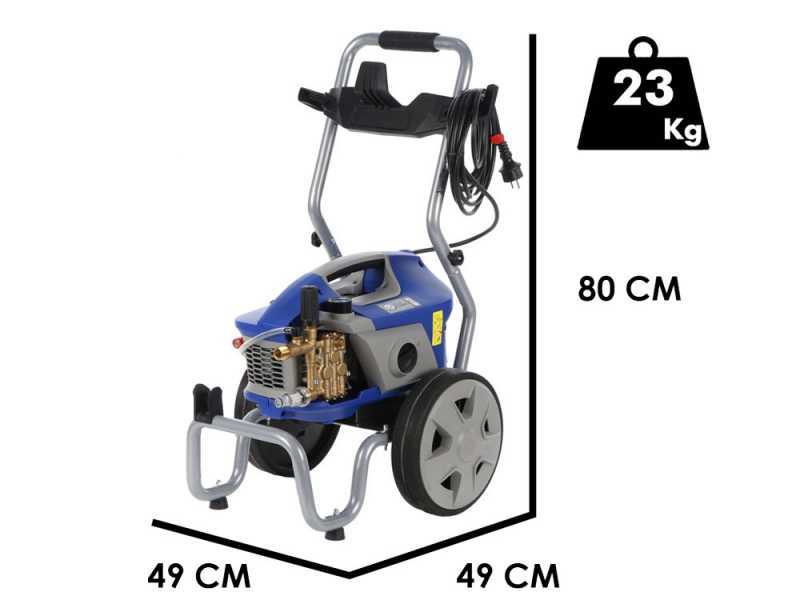

Product dimensions in cm (L x W x H):
45x45x80 cm
Net weight:
23 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
49x50x60 cm
Gross weight (packaging included) :
29.2 Kg
Assembly time:
5 minutes
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 26/02/2025 - 28/02/2025
€ 618,23
Vat included

Available versions
You're viewing:
Customers also viewed:
Description

Annovi & Reverberi Blue Clean 613K - Cold water pressure washer

AR Blue Clean 613K is the Annovi Reverberi walk-behind cold pressure washer, entirely Made in Italy, ideal for professional use or for expert and demanding hobbyists.

The exceptional water flow rate (500 l/h), combined with a pressure of 150 bar (variable with the pressure regulator), allows the most difficult and stubborn dirt on large areas to be cleaned thoroughly, quickly and for prolonged sessions.

For this reason, it can also be used in professional contexts such as construction, agriculture, animal husbandry and handicrafts.

The high quality materials with which it is constructed, such as the brass pump head, confirm that it is a superior product.

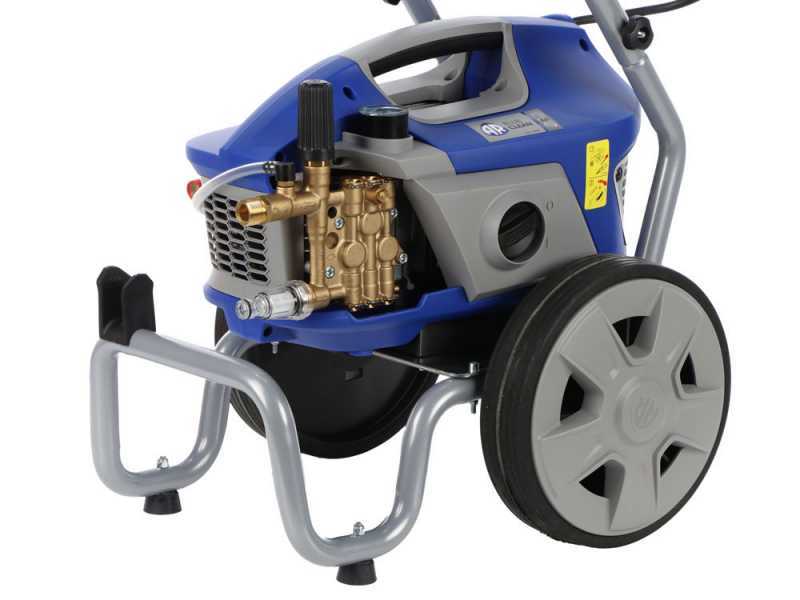

The 613K is equipped with a quiet, durable and reliable induction motor, a ceramic 3-piston pump with crank-rod system and the Total Stop System, which causes the pressure washer to automatically switch off when the gun lever is released.

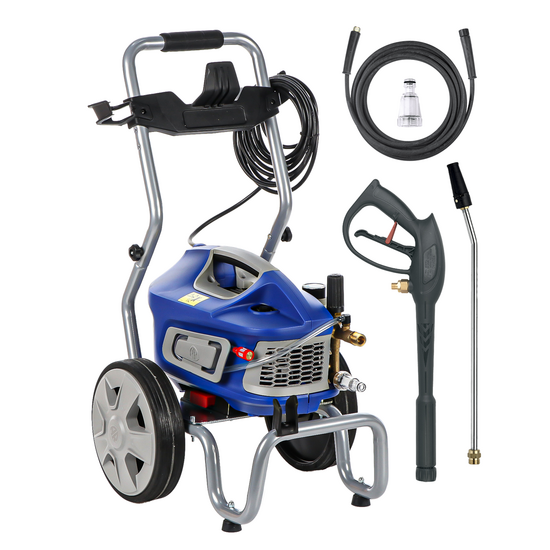

The professional accessories included in the package are a 10-metre armoured hose and a high-pressure gun with safety catch and metal core, to which the adjustable spray lance must be connected.

By rotating the head of the latter, it is possible to obtain a more or less wide jet, therefore more concentrated and effective in removing stubborn or more delicate dirt.

The detergent is automatically sucked in via the suction hose from an external container.

The 613K is a multifunctional pressure washer in that it can be used in three different ways: on its own as a portable pressure washer, it can be quickly attached to the supplied two-wheel trolley, or it can be used as a stationary wash station by hanging it on the wall using the hose reel mounting kit, which can be purchased separately. In the event that it cannot be connected to the water supply, water can be drawn from storage containers, thanks to the self-priming function.

Easy access to the hydraulic parts makes servicing the 613K very simple; however, the instruction manual in the box indicates the service centres in the area. The warranty is two years from the date of purchase.

Pump and motor

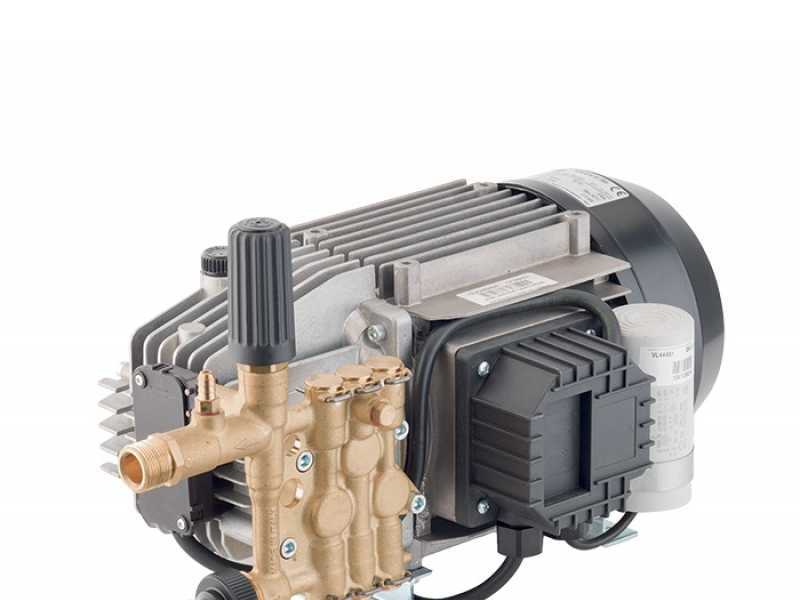

The HPV-O is a 3-piston pump in hardened stainless steel with ceramic coating, equipped with a connecting rod-crank system and a robust brass head, ideal for professional applications requiring reliability and high performance.

This pump is equipped with an automatic safety valve that guarantees zero pressure in the pump head, increasing safety and prolonging the life of the device.

The single-phase electric induction motor, integrated with a thermal protector, ensures smooth and continuous operation, even under the most demanding conditions. In addition, the total stop system allows the pressure washer to be switched off remotely, improving efficiency and convenience of use.

The HPV-O also has a self-priming tank water suction function, allowing it to be used even in the absence of a direct connection to the water mains, thus ensuring maximum versatility.

Choose HPV-O for a professional, safe and uncompromising cleaning experience.

Main features

  • Code:13976
  • Model: 613K
  • EAN code: 8016287139762
  • Maximum pressure: 150 bar
  • Maximum flow rate: 500 l/h
  • Power: 2.5 kW
  • RPM: 2800 rpm
  • Power supply: 220-240 V
  • Frequency: 50 Hz
  • Maximum inlet water temperature: 60°C

The AR Blue Clean 613 K high-pressure washer offers outstanding performance for thorough cleaning, both for professional use and for demanding hobbyists. With a maximum pressure of 150 bar and a flow rate of 500 l/h, it guarantees efficiency and speed. Its 2.5 kW power and 2800 rpm ensure powerful and constant operation. Suitable for use with domestic power supply, operating at 220-240 V and 50 Hz. In addition, it is designed to handle incoming water up to a maximum temperature of 60°C, expanding the possibilities of use.

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

COMPLIMENTARY: Hose Probe Flusher + 4 adaptors

The hose probe flusher for cold water pressure washer is compatible, thanks to the adapters, with pressure washers by the following brands:

Kärcher Annovi & Reverberi – Black&Decker – Bosch – Stanley - Comet - Interpump - Kranzle - Lavor

15 m rubber hose

This pipe and drain cleaner is perfect for clearing clogged pipes. Its small size and flexibility allows clearing all kinds of pipes and drains very easily, including narrow domestic ones.

Focus on the three rear facing jets that help propel the cleaning probe along drains or pipes as it clears the blockage.

PLEASE MAKE SURE THIS PRODUCT IS COMPATIBLE WITH YOUR PRESSURE WASHER BEFORE PLACING THE ORDER.

WARNING: this accessory was designed exclusively for cold water.

Free items provided on standard equipment

The pressure washer is shipped in its original packaging

Multilingual Instructions

  • High pressure gun

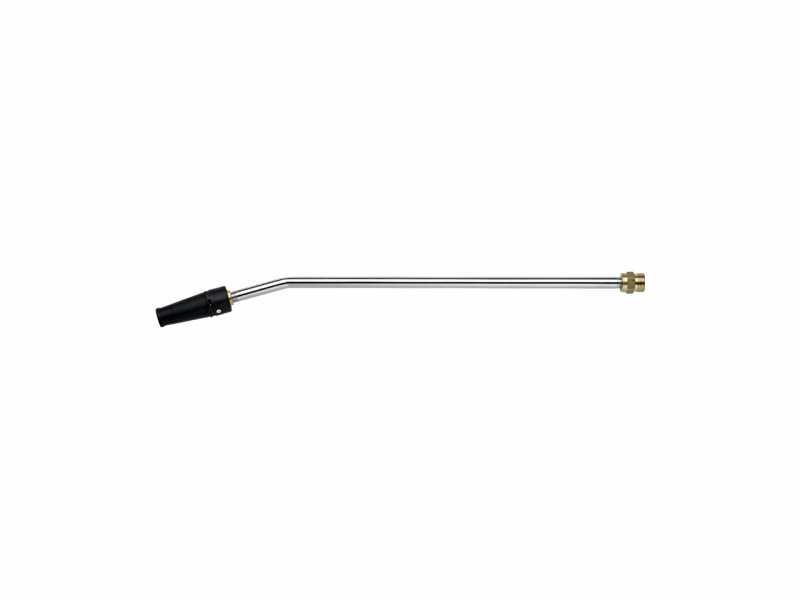

  • Lance with adjustable jet
  • High pressure hose
  • Water connection kit with filter
