Annovi & Reverberi Blue Clean 1003K - Cold water high pressure washer - 150 bar max 630 l/h

Add a question
ID: K608716

EAN: 8016287255431

MPN: 25543-V

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi Blue Clean 1003K - Cold water high pressure washer - 150 bar max 630 l/h
FREE
Free water supply connection kitFree water supply connection kit
Suede clothSuede cloth
Protection and storage tarp coverProtection and storage tarp cover
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
630 L/h
Max. pressure
150 bar
Engine
Induction - 4 poles
Operating mode
Single-phase 230 V
Pressure regulator
Yes
Wheeled
Type
Trolley
Self-priming pump
Weight
35.6 Kg
Manufacturing country
Italy
Product Features
Model:
AR 1003K
Wheeled:
Type:
Trolley
Operating mode:
Single-phase 230 V
Operation mode:
Cold water
Detergent delivery:
Low-pressure
Manufacturing country:
Italy
Motor data
Motor type:
Electric single-phase
Engine:
Induction - 4 poles
Motor speed:
1450 RPM
Max. power absorption:
3 Kw
Cooling:
With air
Manufacturing country:
Italy
Pump data
Pump brand:
Annovi & Reverberi
Model:
RC 10.12 N
Pump type:
Connecting rod-crank
Heavy-duty linear pump:
Self-priming pump:
No. of pump speeds:
1
Pistons material:
Ceramic
Pump head material:
Brass
Brass pump head:
Max flow rate per minute:
10.5 L/min
Max. flow rate per hour:
630 L/h
Operating pressure:
120 bar
Max. pressure:
150 bar
Pressure regulator:
Yes
Pressure regulator:
Nominal power:
3000 W
Manufacturing country:
Italy
Equipment
External detergent suction hose:
Yes
Type of attachment:
M22 - Screw
On wheeled frame (with wheels and handles):
Yes
Hose holder:
Yes
Total Stop:
Yes
Rear wheels size:
300 mm
Tool holder:
Yes
Free gifts/extra features
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Lance with adjustable nozzle:
Yes
Heavy-duty lance:
Yes
Hose length:
10 m
Instructions manual:
Yes
Dimensions and logistics

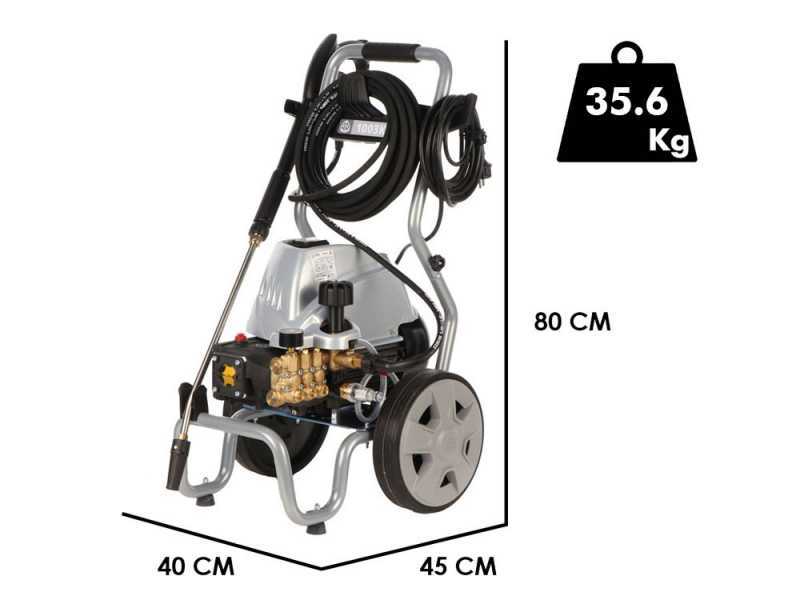

Product dimensions in cm (L x W x H):
40X45X80 cm
Net weight:
35.6 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
50x50x61 cm
Gross weight (packaging included) :
42.2 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 24/02/2025 - 26/02/2025
€ 896,81
Vat included

Available versions
You're viewing:
Customers also viewed:
Description

Annovi & reverberi Blue clean 1003k high-pressure washer

The Annovi Reverberi AR 1003 K pressure washer is a high-quality professional machine designed for intensive use.

With its single-phase electric induction motor operating at 1450 rpm, this high-pressure washer offers reliability and long service life.

The pump with connecting rod-crank system and brass head guarantees a maximum pressure of 150 bar and a flow rate of 630 litres per hour.

It includes a robust two-wheel trolley, a swivel handle and the Total Stop system, which automatically stops the motor to improve energy efficiency and safety.

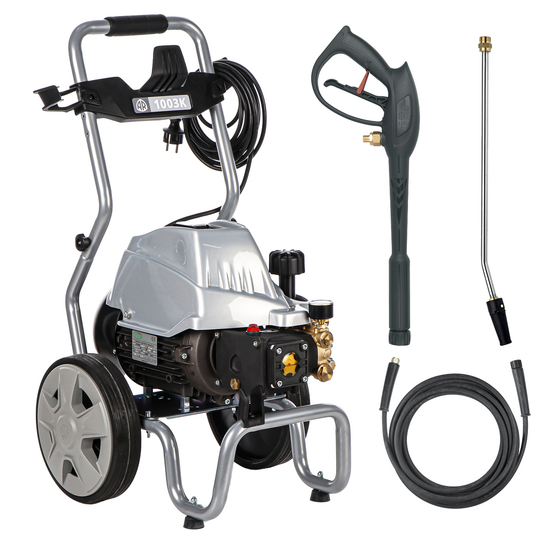

Supplied accessories include a lance, gun and high-pressure hose, making the pressure washer versatile and ready for multiple applications.

The main technical features include a 3 kW motor, a ceramic three-piston pump and a brass head.

These specifications make the AR 1003 K an excellent solution for cleaning large surfaces, vehicles, agricultural equipment, floors and facades.

With its excellent performance and high-quality results, the AR 1003 K is the ideal choice for professionals who need reliable and powerful equipment.

The solid construction and high-quality materials ensure a long service life, while the ergonomic design and sturdy wheels facilitate handling on any surface.

This high-pressure washer is designed to reduce working time and improve efficiency, making cleaning tasks easier and faster.

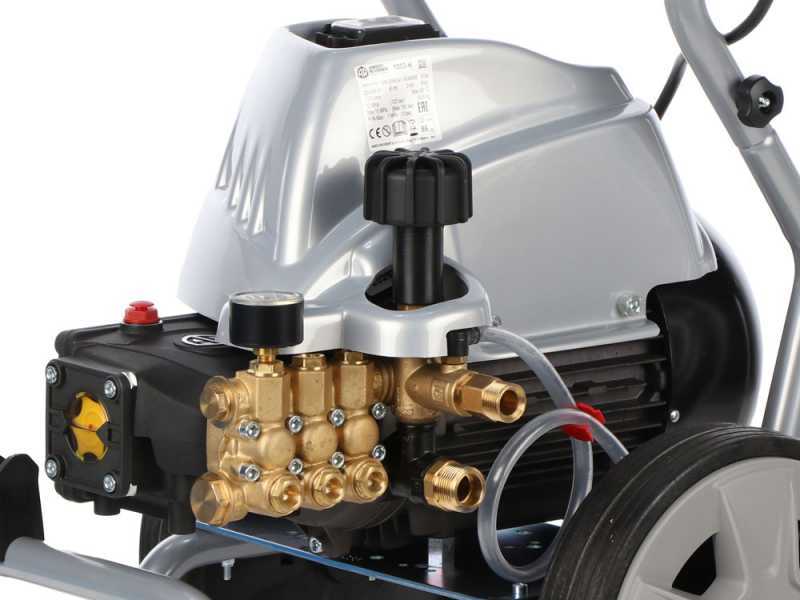

Pump and motor

The professional pressure washer in question is equipped with a highly efficient pump and electric motor designed to ensure exceptional performance and reliability over time.

The electric motor has a power of 3 kW and runs at 1,200 rpm.

This motor is capable of operating at a frequency of 50 Hz, supported by a supply voltage of 230 volts.

The motor is also rated IP54, which means it is protected against dust and splash water, making it ideal for harsh working environments.

The high-pressure washer's pump has a capacity of 10.5 litres per minute, which allows large areas to be covered efficiently. The operating pressure of the pump is 120 bar, which guarantees deep and effective cleaning of the most stubborn surfaces.

The maximum pressure the pump can reach is 150 bar, offering an additional margin of power for more demanding situations.

This combination of motor and pump makes the pressure washer an indispensable tool for professional applications where robustness and reliability are paramount.

The machine's power and capacity allow it to easily tackle a wide range of tasks, from cleaning vehicles and machinery to removing dirt and debris from hard surfaces such as industrial floors and building facades.

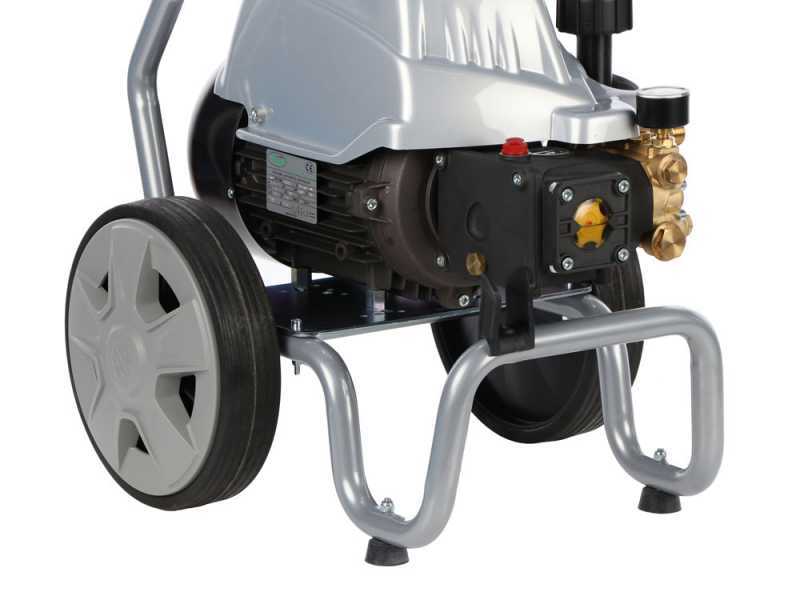

Main features

“TSS" (Total Stop System)
When the water supply button is released, the machine switches off automatically, switching on again when the user resumes work. Here below the main advantages:

  • It prevents the pressure washer from overheating
  • Extend the durability of the pump
  • Reduction of the consumptions

Technical data:

  • Range: 630 L/h
  • Operating pressure: 120 bar
  • Maximum pressure: 150 bar
  • Power kW: 3
  • Maximum water temperature IN: 60°
  • Voltage: 230v
Free items & Standard equipment

Complimentary

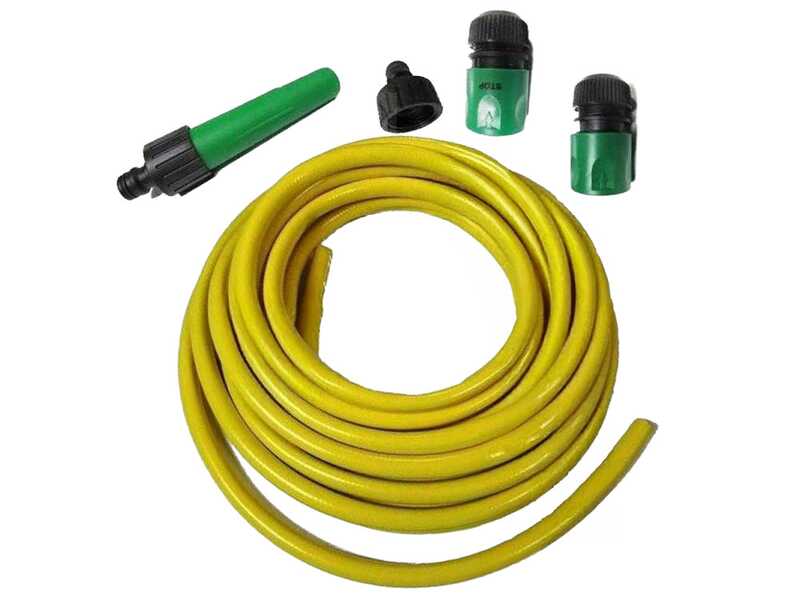

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

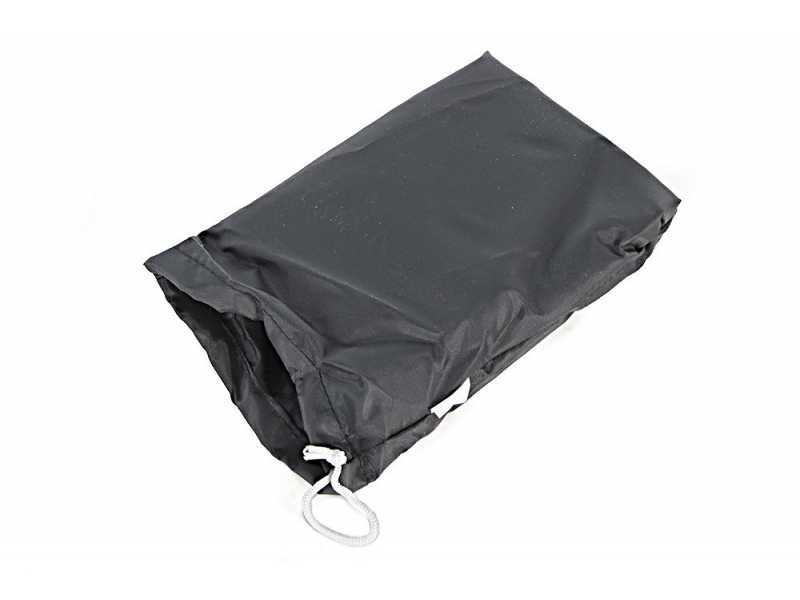

COMPLIMENTARY: Heavy-duty cover cloth for storage

Perfect for protecting your equipment when stored.


This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

It is suitable for small-sized machinery.

Easy to fold and store inside its packaging as it takes up very little space!

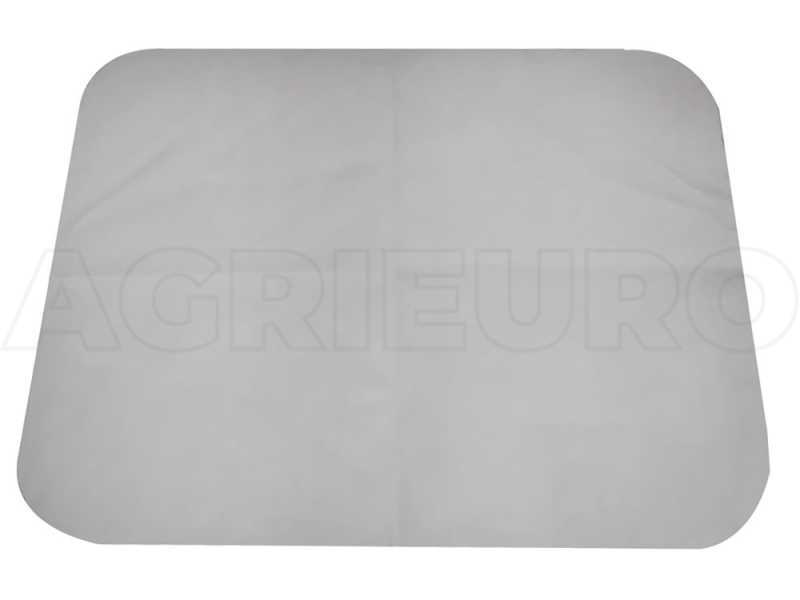

FOR FREE: suede cloth

Soft suede cloth

  • Quick and easy absorption of any liquid, suitable for preventing limescale
  • Machine washable and reusable
  • No abrasion, so no marks or scratches
  • Leaves no residue

Length: 39 cm

Width: 29 cm

Free items provided on standard equipment

The pressure washer is shipped in its original packaging

Multilingual Instructions

  • High pressure gun

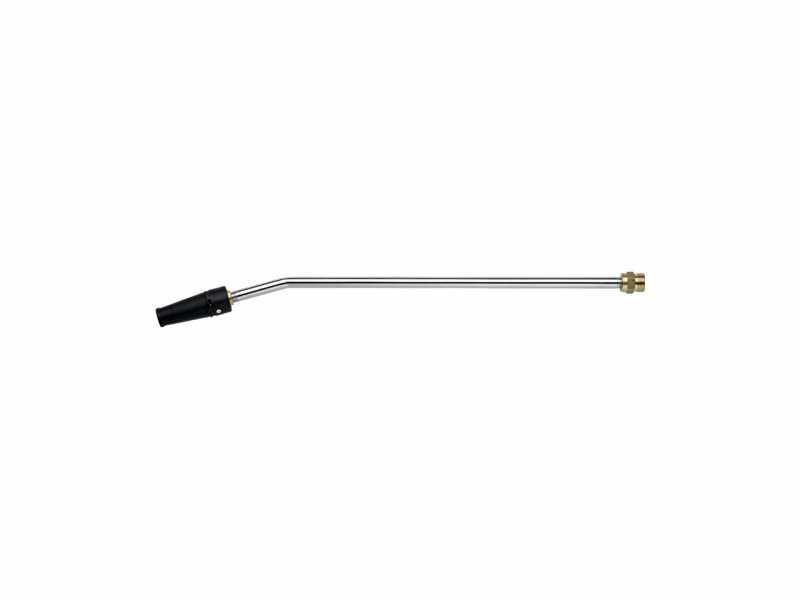

  • Lance with adjustable jet
  • High pressure hose
  • Water connection kit with filter
