Annovi & Reverberi Blue Clean 1003 - Professional Hand-held Cold Water Pressure Washer - 150 Bar - 630 L/h

Questions & Answers (6)
ID: K502453

EAN: 8016287243858

MPN: 24385-V

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi Blue Clean 1003 - Professional Hand-held Cold Water Pressure Washer - 150 Bar - 630 L/h
Special offer
+200 sold
Free gifts from AgriEuro
Free water supply connection kitFree water supply connection kit
Protection and storage tarp coverProtection and storage tarp cover
Suede clothSuede cloth
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
630 L/h
Max. pressure
150 bar
Engine speed
1450 RPM
Engine
Induction
Operating mode
Single-phase 230 V
Pump brand
Annovi&Reverberi
Pressure regulator
Yes
Wheeled
Type
Trolley
Detergent tank
Self-priming pump
Weight
49.7 Kg
Manufacturing country
Italy
Product Features
Model:
AR 1003
Wheeled:
Type:
Trolley
Operating mode:
Single-phase 230 V
Operation mode:
Cold water
Detergent delivery:
Low-pressure
Manufacturing country:
Italy
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Motor speed:
1450 RPM
Max. power absorption:
3 Kw
Cooling:
With air
Manufacturing country:
Italy
Pump data
Pump brand:
Annovi & Reverberi
Pump brand:
Annovi&Reverberi
Model:
HRC
Pump type:
Connecting rod-crank
Heavy-duty linear pump:
Self-priming pump:
No. of pump speeds:
1
Pistons material:
Ceramic
Pump head material:
Brass
Brass pump head:
Engine speed:
1450 RPM
Max flow rate per minute:
10.5 L/min
Max. flow rate per hour:
630 L/h
Operating pressure:
120 bar
Max. pressure:
150 bar
Pressure regulator:
Yes
Pressure regulator:
Manufacturing country:
Italy
Equipment
Integrated detergent tank:
Yes
Detergent tank:
Detergent dispenser:
Yes
External detergent suction hose:
Yes
Type of attachment:
M22 - Screw
Total Stop:
Yes
Rear wheels size:
30 cm
Tool holder:
Yes
Power cable holder:
Yes
Free gifts/extra features
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Heavy-duty lance:
Yes
Hose length:
10 m
Fixed brush:
No
Rotating brush:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
67 x 49 x 90 cm
Net weight:
49.7 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
73 x 49 x 77 cm
Weight including packaging:
55 Kg
Assembly time:
5 minutes
Prompt Delivery
14 items in stock
Free Shipping
Estimated delivery: 18/06/2025 - 20/06/2025
Lowest price:
€ 952,57
-5 %
€ 905,27
Vat included

Available versions
You're viewing:
Customers also viewed:
Description

AR Blue Clean 1003 Pressure Washer

The Annovi & Reverberi AR 1003 is a professional pressure washer designed to offer high, long-lasting performance, thanks to an induction motor and a ceramic three-piston pump with crank-rod system.

The brass head ensures optimal durability, while the 150 bar maximum pressure and 630 litres per hour flow rate combined with 3 kW power make this pressure washer perfect for intensive and frequent cleaning work.

It is ideal for sectors such as construction, automotive, handicraft, car wash and livestock farming, where maximum operational efficiency is required.

One of the most practical features of the AR 1003 is the possibility of adjusting the pressure to the specific needs of the job, while maintaining constant control thanks to the built-in pressure gauge.

It is also equipped with a cleaning agent suction system and a 3-litre tank, ideal for long, uninterrupted cleaning sessions.

The machine is designed to be easily transported thanks to a sturdy steel trolley with rubber wheels, which allow easy handling even on rough surfaces.

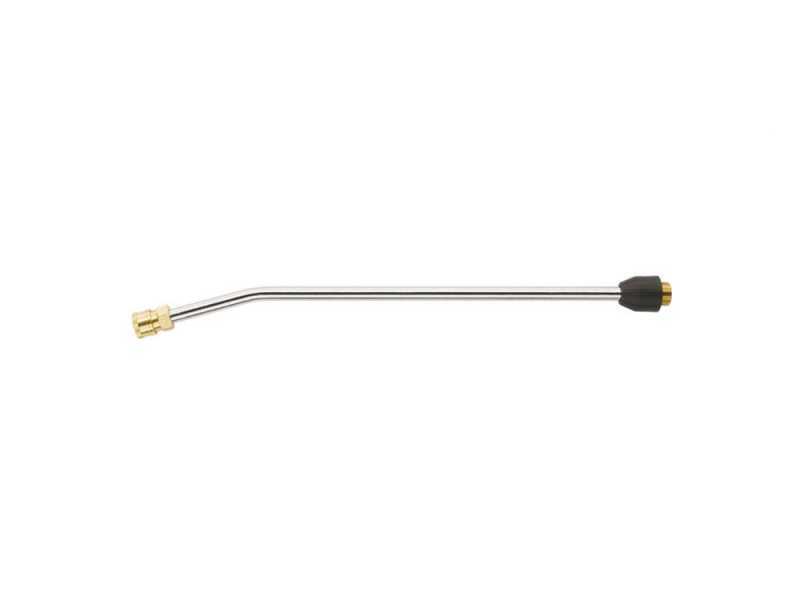

The professional accessories included, such as the 10-metre steel-treated reinforced high-pressure hose, the high-pressure gun with safety lock and metal core, and the 49 cm steel lance extension, are all connected via a threaded brass coupling.

Five different standard nozzles can be fitted to the lance, allowing the angle of the water jet to be adjusted for targeted and precise cleaning.

The pressure washer is also equipped with the ''TSS'' (Total Stop System), which automatically switches off the engine when the gun lever is released, thus extending the life of the machine and reducing energy use.

A further benefit is the self-priming function (SPF), which allows water to be used directly from tanks or other containers, without the need for a direct connection to the water supply network.

This combination of power, versatility and advanced functionality makes the Annovi & Reverberi AR 1003 a reliable, high-performance solution for all professional cleaning needs.

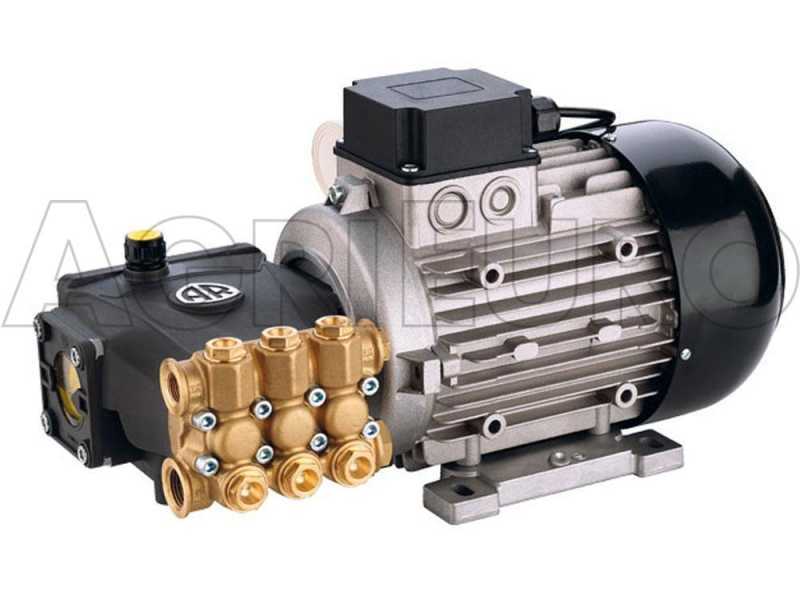

Pump and Engine

The Annovi & Reverberi AR 1003 pressure washer provides high performance with a 150 bar maximum pressure and a 10.5 litre per minute (630 L/h) flow rate, ideal for intensive cleaning work in fields such as construction, automotive and agriculture.

The core of this pressure washer is an HRC 3-piston ceramic pump with a connecting rod-crank system and brass head, which ensures reliability and long service life. The machine is equipped with:

Main features:

  • Automatic safety valve to reset the pressure in the pump.
  • Single-phase electric induction motor with thermal protection, ideal for extended work cycles.
  • Total Stop System (TSS) for energy savings and longer service life.
  • Self-priming function, which allows using water from tanks with no connection to the water supply.
  • Pressure regulation with pressure gauge for precise control.

The Annovi & Reverberi AR 1003 is a versatile and robust professional pressure washer, designed to deliver effective results even in demanding settings.

Main Features

This pressure washer is designed to make every cleaning task simple and intuitive. Thanks to its intuitive controls, even less experienced users can operate it without difficulty.

''TSS'' (Total Stop System)

One of the main advantages of this model is the ‘Total Stop’ system (TSS), which automatically switches the machine off when the water supply button is released, switching it back on as soon as operation is resumed. This system not only prevents the machine from overheating, but also helps to extend the service life of the pump and reduce energy consumption, thus optimising the use of the pressure washer.

Main features:

  • Serviceable water filter: allows easy maintenance and ensures clean water during use.
  • 5-metre power cable: provides more mobility, avoiding the need for additional extensions.
  • Integral 3-litre detergent tank: allows the necessary cleaning agent to be added, with the possibility of adjusting the suction for precise dosing.
  • 10-metre long high-pressure hose : easily reaches even the most distant areas without moving the machine.
  • Side-mounted gun: for convenient storage, always within reach.
  • Organized dashboard: features dedicated spaces to keep interchangeable nozzles available at all times.
  • Ergonomic carrying handle: allows the machine to be moved easily, even over rough surfaces.
  • Professional threaded connection: allows the hose to be connected to the lance safely and quickly, ensuring a comfortable and stable grip.

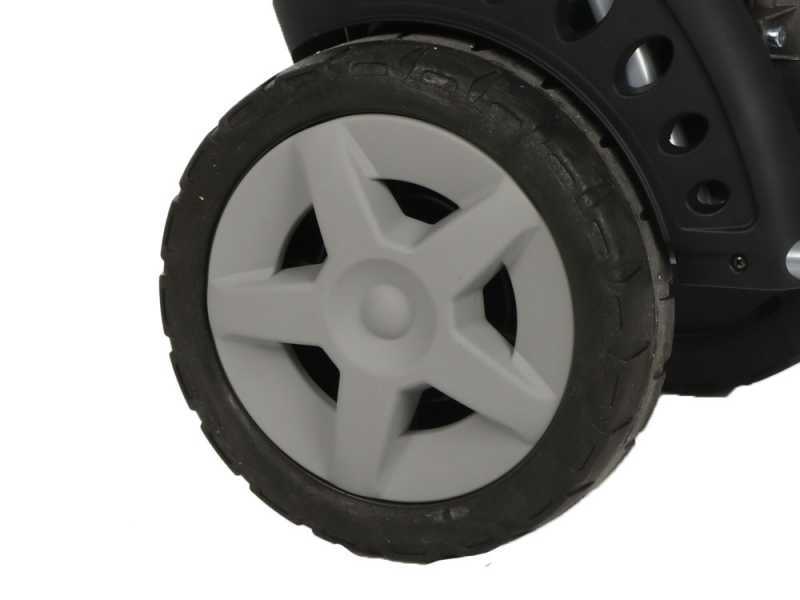

  • 30 cm diameter rubber-coated wheels: ideal for effortless mobility, even on rough or uneven surfaces.

Technical specifications:

  • Maximum pressure: 150 bar
  • Maximum flow rate: 630 litres per hour
  • Power: 3 kW
  • RPM: 1450
  • Power supply: 230 V, 50 Hz
  • Maximum inlet water temperature: 60°C

Thanks to these features, the pressure washer not only ensures high performance, but also offers great user-friendliness. With its mobility-friendly design and technical features that optimise every stage of cleaning, it is the ideal choice for those seeking efficiency and convenience in a single tool.

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

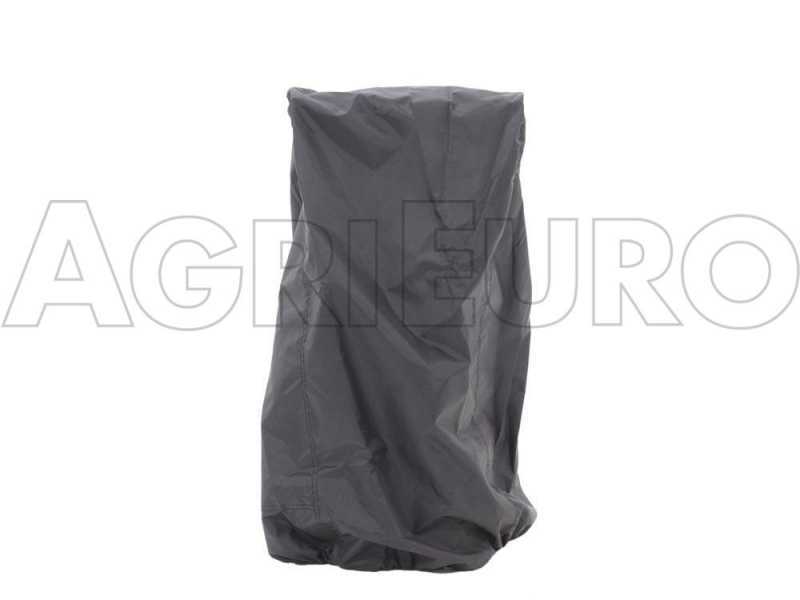

Protection and Storage Cover for Pressure Washers - Size: - Medium

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower border to perfectly fit to the shape of the machine.

Easy to fold and store in its box and space-saving!

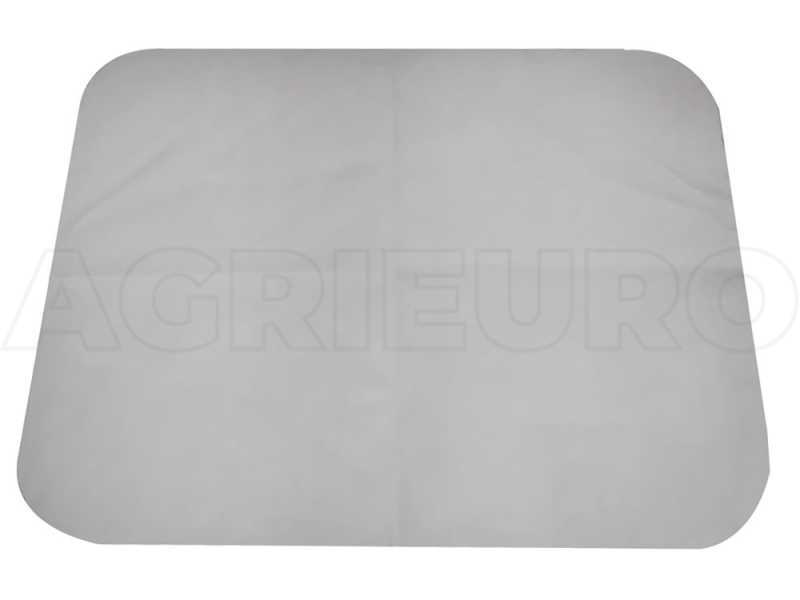

FOR FREE: suede cloth

Soft suede cloth

  • Quick and easy absorption of any liquid, suitable for preventing limescale
  • Machine washable and reusable
  • No abrasion, so no marks or scratches
  • Leaves no residue

Length: 39 cm

Width: 29 cm

Standard Equipment

The pressure washer is shipped in its original packaging
