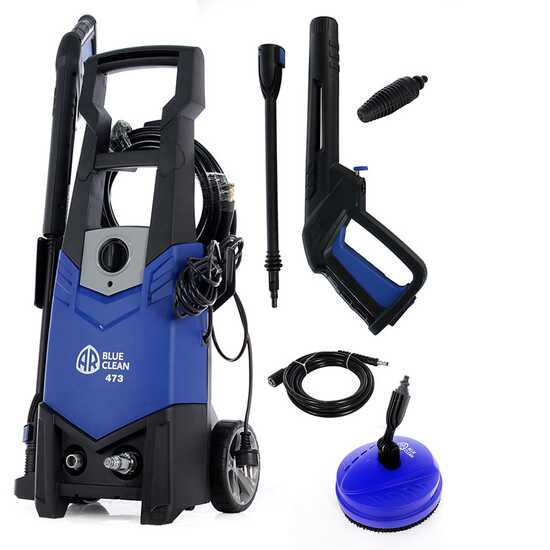

Annovi & Reverberi AR 473 Cold Water Pressure Washer + surface cleaning Kit - Max 160 bar

Add a question
ID: K604920

EAN: 8016287146371

MPN: 14637

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi AR 473 Cold Water Pressure Washer + surface cleaning Kit - Max 160 bar
FREE
Sandblaster lanceSandblaster lance
Free water supply connection kitFree water supply connection kit
Axial pump
Pump head material
Aluminium
Max. flow rate per hour
480 L/h
Max. pressure
160 bar
Engine
brushes
Operating mode
Single-phase 230 V
Wheeled
Rotating nozzle
Nozzle only
Detergent tank
Self-priming pump
Weight
8.7 Kg
Product Features
Model:
AR 473
Wheeled:
Type:
Wheeled
Operating mode:
Single-phase 230 V
Operation mode:
Cold water
Detergent delivery:
Low-pressure
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
brushes
Motor speed:
3400 RPM
Max. power absorption:
2 Kw
Cooling:
With air
Pump data
Pump brand:
Annovi & Reverberi
Pump type:
3 axial cylinders
Axial pump:
Self-priming pump:
No. of pump speeds:
1
Pistons material:
Steel
Pump head material:
Aluminium
Aluminium pump head:
Flow rate:
5.5 L/min
Max flow rate per minute:
8 L/min
Max. flow rate per hour:
480 L/h
Operating pressure:
120 bar
Max. pressure:
160 bar
Equipment
Integrated detergent tank:
Yes
Detergent tank:
Type of attachment:
Quick coupling
Hose holder:
Yes
Total Stop:
Yes
Tool holder:
Yes
Power cable holder:
Yes
Free gifts/extra features
Floor cleaner:
Yes
Spray gun:
Yes
Lance with adjustable nozzle:
Yes
Quick-connect nozzle lance:
Yes
Rotating nozzle:
Nozzle only
Rotating nozzle:
Hose length:
8 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
32 x 28 x 77 cm
Net weight:
8.7 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
32 x 49 x 58 cm
Gross weight (packaging included) :
10.5 Kg
Assembly time:
5 minutes
Prompt Delivery
20 items in stock
Free Shipping
Estimated delivery: 23/09/2024 - 25/09/2024
€ 196,07
VAT Included
AgriEuro Special EditionAgriEuro Special Edition
Available versions
You're viewing:
Customers also viewed:
Description

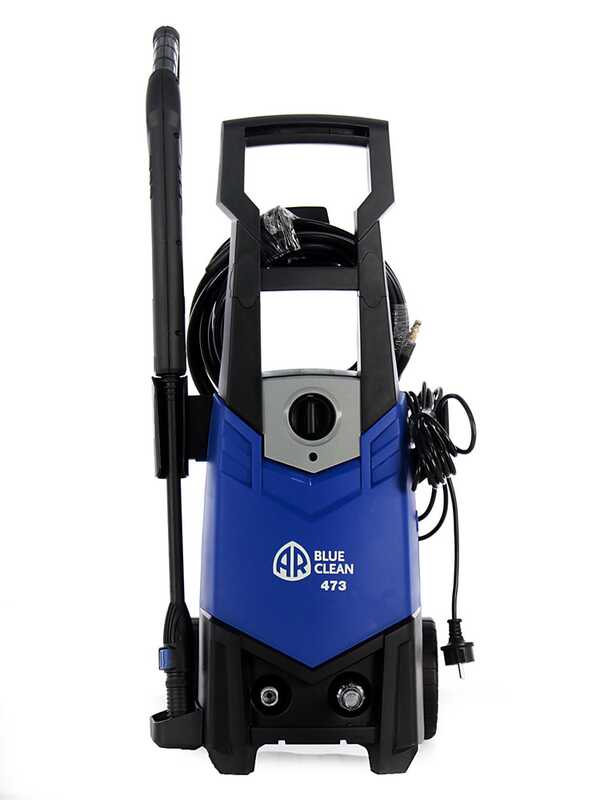

AR Blue Clean AR 473 pressure washer

The AR Blue Clean AR 473 cold water pressure washer is renowned as a single-phase electric pressure washer belonging to the Series 4 of the Annovi Reverberi line.

User-friendly and comfortable unit, ideal for home use. This pressure washer stands out for its ease of use and allows an easy transport thanks to the integrated wheels, large handle and the 8.7 Kg reduced weight. The AR 473 is a high-performing unit. Thus, thanks to its vertical design and compartments located on the machine body designed to store the accessories and the power cable that are supplied with the pressure washer, it does not require large space.

The machine consists of 3 axial pistons with aluminium head, the pistons are made of hardened stainless steel. Automatic safety valve with pressure reset located on the pump head.

Provided with Total Stop System, the machine automatically turns off when the Operator stops using the pressure washer.

Powerful efficient electric motor provided with thermal protection.
It also features an integrated cleanser tank 1 L (integrated cleaser suction.)

Unlike many of the “single-use” items available on the market at very low price, choosing an Annovi Reverberi pressure washer you will have:

  • Original spare parts availability
  • Long-lasting product
  • High performance

OPTIMAL FLOW RATE: 480 L/h (MAX 8 L/min), among the highest on the market (the flow rate is the most important technical data of a pressure washer, even before the pressure, as it identifies the real power of the unit).

HIGH OPERATING PRESSURE: 160 bar, among the highest pressure levels of the category.

MOTOR: Single-phase electric (220 V) from 2 kW

It offers a wide range of accessories consisting of: gun with protection cover, lance, adjusting nozzle, rotating nozzle, 8 m water output hose and brush kit large surfaces.

Pump and motor

Pressure: Max 160 bar

Flow rate: 8 L/min (480 L/h)

Power: 2 kW

The AR 473 pressure washer consists of 3 axial pistons, which are managed by the swivelling plate, tempered STAINLESS steel pistons. Automatic safety valve with pressure reset located on the pump head.

  • Tempered stainless steel pistons
  • Automatic safety valve with pressure reset located on the pump head.
  • Remote total stop system of the pressure washer.
  • Motor thermal protection
  • 8 m High pressure hose with hose reel

The pressure represents a fundamental data while dealing with this category of machinery. An additional and more important technical specification is represented by the flow rate: the cheapest items may often feature a high pressure, but a very short flow rate resulting in inefficient units. The minimum flow rate must be at least 350 L/H.

Main features

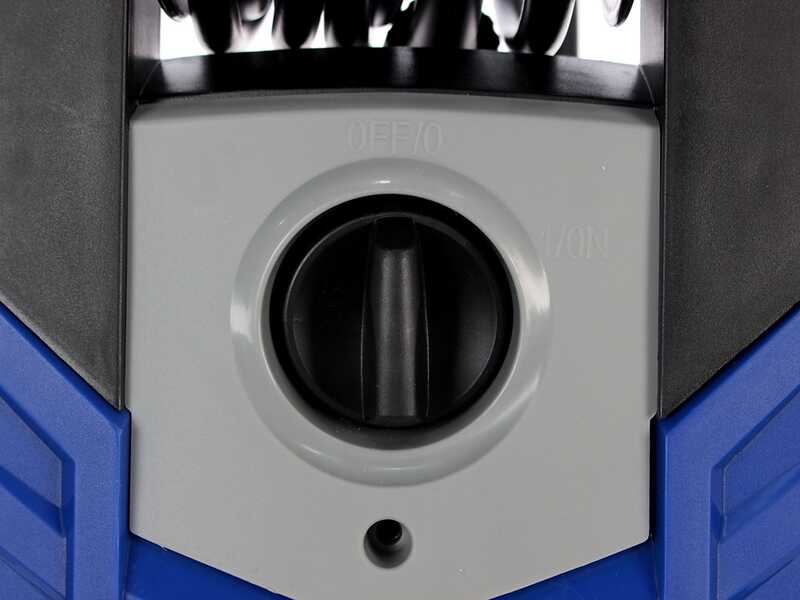

User-friendly controls

“TSS" (Total Stop) System:
when you release the water output button the machine automatically shuts down and it will be operated again when the Operator will re-use the unit. Here below the main advantages:

  • It prevents the pressure washer from overheating
  • Extend the durability of the pump
  • Reduction of the consumptions

Pressure washer provided with remote total stop system.

The electric motor is provided with thermal protection that ensures higher efficiency and durability.

Automatic safety valve with pressure reset located on the pump head.

Easy access to the water filter and 5 m power cable.

  • Wide range of accessories provided on standard equipment:
  • The spray gun, the lance and the adjustable head are located on the rear side of the machine.
  • Ergonomic handle for easy transport
  • Focus on the output hose housing

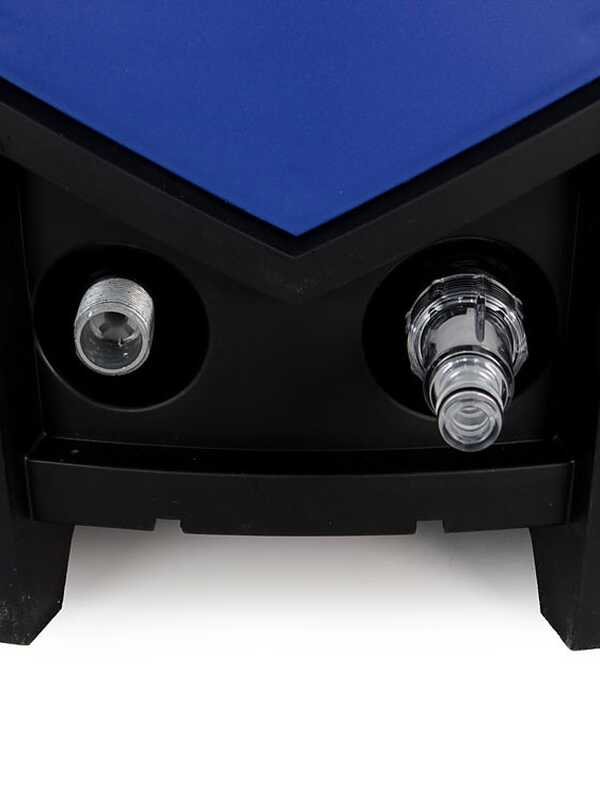

  • External hose joint with water filter
  • Wheels: 11 cm diameter
  • Integrated cleanser tank
  • Accessory holder
  • Power cable holder

Assembly and standard-supplied equipment

The pressure washer comes already assembled and ready for use in its original packaging. The Operator will just need to assemble the handle, the wheels and the accessory compartment. Etremely easy assembly operations.

Free items included:

  • Rotating nozzle
  • Adjustable nozzle
  • High pressure hose: 8 m

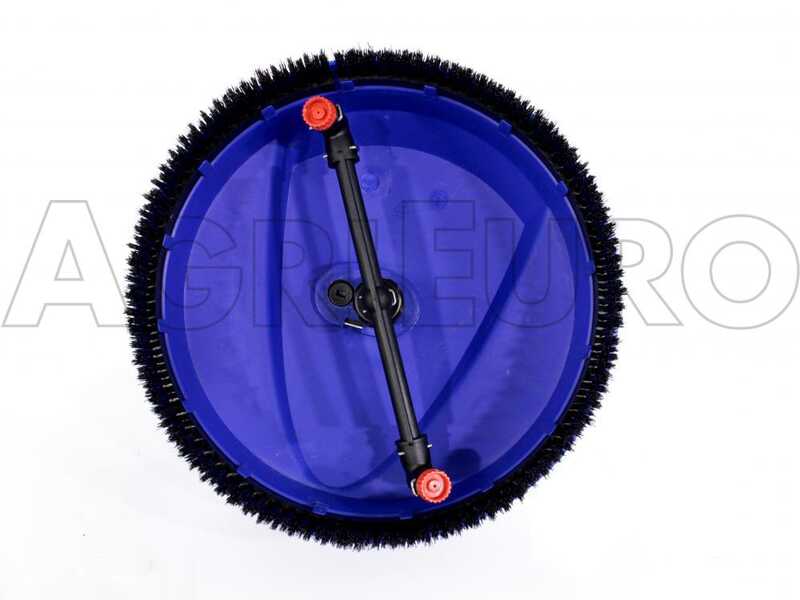

  • Brush kit for large surfaces
  • High pressure gun with lance provided with click-fast system for the high-pressure hose quick coupling.
  • Standard-supplied adapter for water inlet hose with filter
  • Power cable: 5 m
Free items & Standard equipment

Complimentary

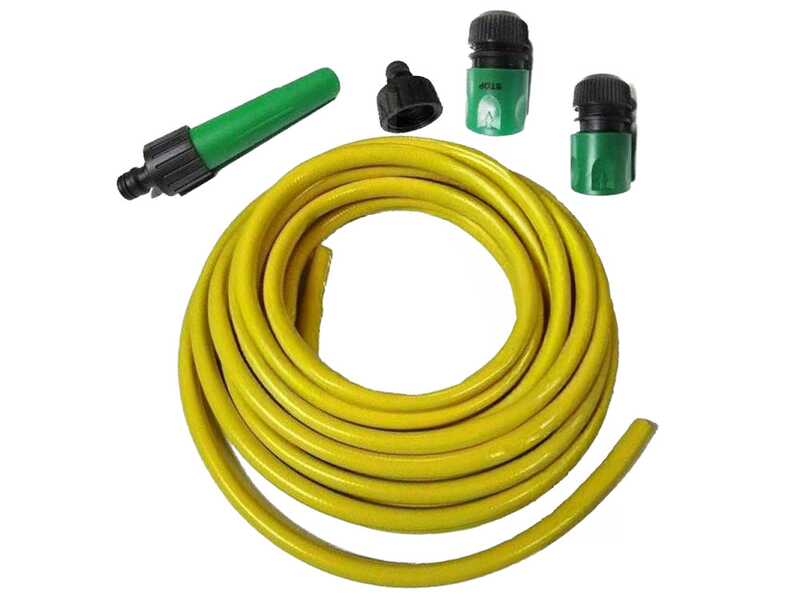

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

FOR FREE: chamois leather cloth

Soft chamois leather cloth

  • Quick and easy absorption of any liquid, suitable for preventing limescale
  • Machine washable and reusable
  • No abrasion, so no marks or scratches
  • Leaves no residue

Length: 39 cm

Width: 29 cm

Free items provided on standard equipment

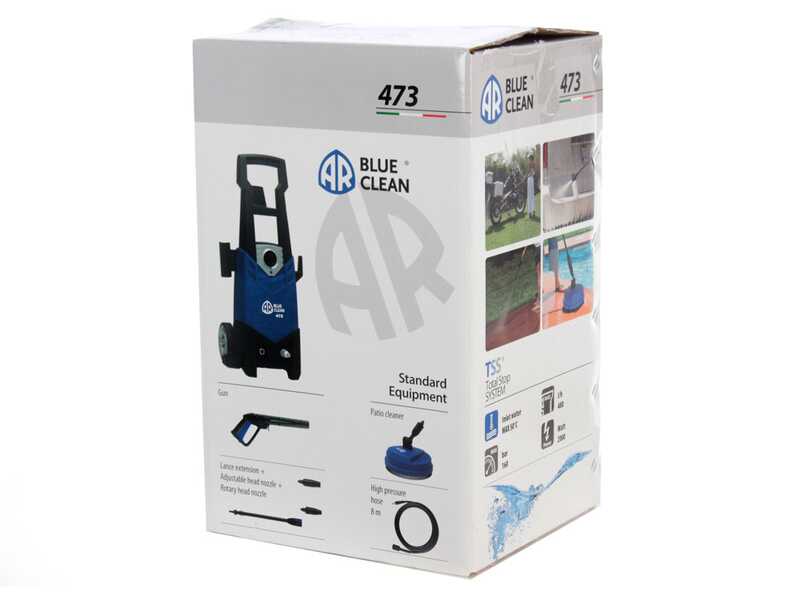

The high pressure washer comes in its original packaging complete with Instructions Manual.

Free items included:

  • Rotating nozzle
  • Adjustable nozzle
  • High pressure hose: 8 m
  • Brush kit for large surfaces
  • High Pressure Gun with lance
  • Integrated cleanser tank
  • Power cable: 5 m
