Annovi & Reverberi AR 143 Pressure Washer - Lightweight & easy to transport - 120 bar max.

Questions & Answers (1)
ID: K604803

EAN: 8016278136909

MPN: 13690

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi AR 143 Pressure Washer - Lightweight & easy to transport - 120 bar max.
+400 sold
FREE
Sandblaster lanceSandblaster lance
Free water supply connection kitFree water supply connection kit
Axial pump
Pump head material
Aluminium
Max. flow rate per hour
390 L/h
Max. pressure
120 bar
Engine
brushes
Operating mode
Single-phase 230 V
Wheeled
Rotating nozzle
Nozzle only
Foam lance
Yes
Self-priming pump
Weight
5 Kg
Product Features
Model:
AR 143
Wheeled:
Type:
Wheeled
Operating mode:
Single-phase 230 V
Operation mode:
Cold water
Detergent delivery:
With kit
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
brushes
Motor speed:
3400 RPM
Max. power absorption:
1.5 Kw
Cooling:
With air
Pump data
Pump brand:
Annovi & Reverberi
Pump type:
3 axial cylinders
Axial pump:
Self-priming pump:
No. of pump speeds:
1
Pistons material:
Steel
Pump head material:
Aluminium
Aluminium pump head:
Flow rate:
5 L/min
Max flow rate per minute:
6.5 L/min
Max. flow rate per hour:
390 L/h
Operating pressure:
80 bar
Max. pressure:
120 bar
Equipment
Integrated detergent tank:
Yes
Foam lance:
Yes
Type of attachment:
M22 - Screw
Hose holder:
Yes
Total Stop:
Yes
Rear wheels size:
120 mm
Tool holder:
Yes
Power cable holder:
Yes
Free gifts/extra features
Spray gun:
Yes
Lance with adjustable nozzle:
Yes
Quick-connect nozzle lance:
Yes
Rotating nozzle:
Nozzle only
Rotating nozzle:
Hose length:
5 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
28 x 24 x 65 cm
Net weight:
5 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
30 x 24 x 47 cm
Gross weight (packaging included) :
6 Kg
Assembly time:
5 minutes
Prompt Delivery
12 items in stock
Free Shipping
Estimated delivery: 20/09/2024 - 24/09/2024
€ 166,60
VAT Included

Available versions
You're viewing:
Customers also viewed:
Description

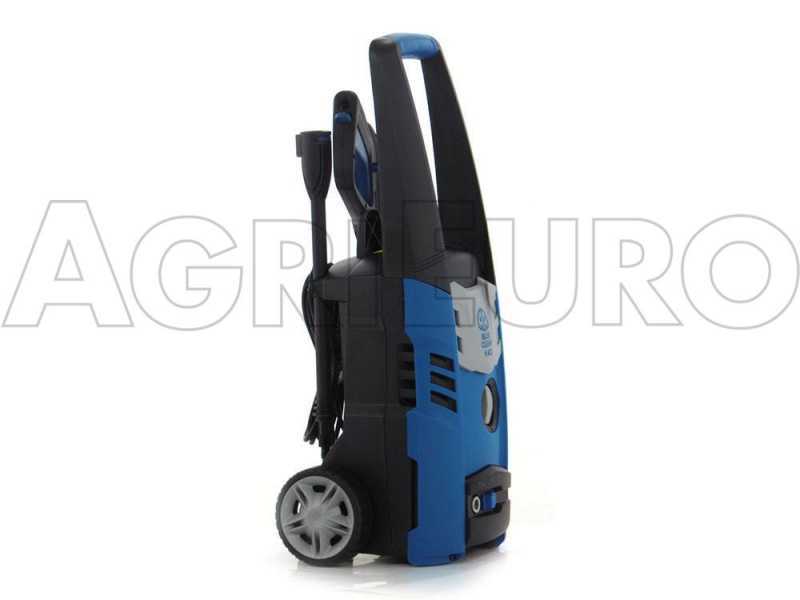

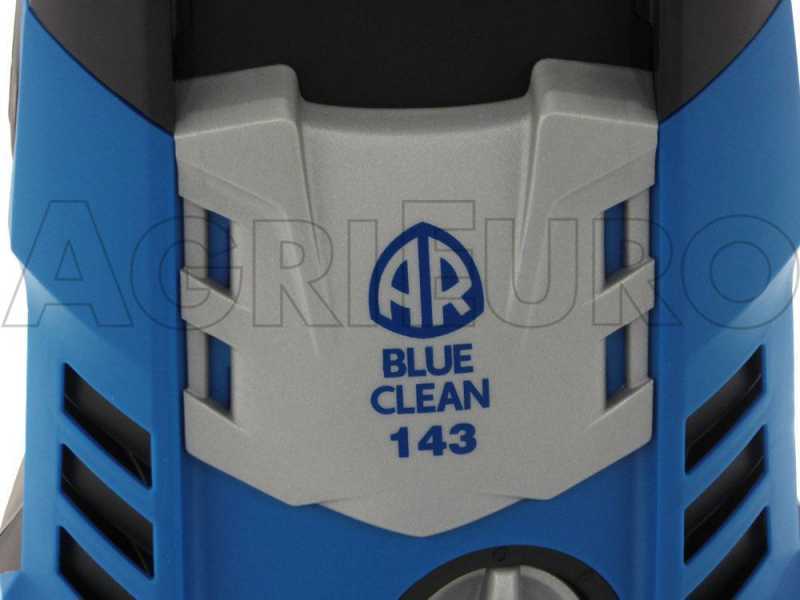

AR Blue Clean AR 143 Pressure Washer

AR Blue Clean AR 143 cold water pressure washer is the smallest model of wheeled pressure washers by Annovi Reverberi.

Very comfortable and small in size, it is ideal for transport. This is thanks to the 12 cm diameter wheels, the large handle and the reduced weight of 5 Kg. AR 143 can be stored in very small spaces.

High performance despite its small size: ideal for cleaning garden furniture, tools, bikes, patios and for other applications.

Reliable products

Unlike many “single-use” items available on the market at very low price, Annovi Reverberi pressure washers come with:

  • technical support availability
  • spare parts availability
  • long-lasting product
  • high performance

Pump and Motor

Pressure: 120 bar max.

Flow rate: 6.5 L/min (390 L/h)

AR 143 pressure washer consists of 3-axial pistons driven by the swashplate and aluminium head.

  • Hardened stainless steel pistons
  • Automatic safety valve with pressure reset on the pump head.
  • Remote total stop system of the pressure washer.
  • Motor thermal protection
  • Click-fast device, which allows the quick release of the hose and the gun.

Pressure is fundamental for pressure washers. Flow rate is even more important: affordable machines may often feature high-pressure but very short flow rate, resulting in inefficient products. The minimum flow rate must be at least 350 L/h.

Main Features

User-friendly controls

“TSS" (Total Stop System)
When you release the water delivery button, the machine automatically shuts down, starting again when you continue working. Main advantages:

  • it prevents overheating
  • makes the pump more durable
  • reduces consumption

Easy access to the water filter and 5 m power cable.

The spray gun the lance and the adjustable head are located on the side and the rear side of the machine.

Carrying handle

Click-fast Hitch to easily connect the hose to the lance

External hose connection with accessible water filter

12 cm diameter wheels

Assembly and Equipment

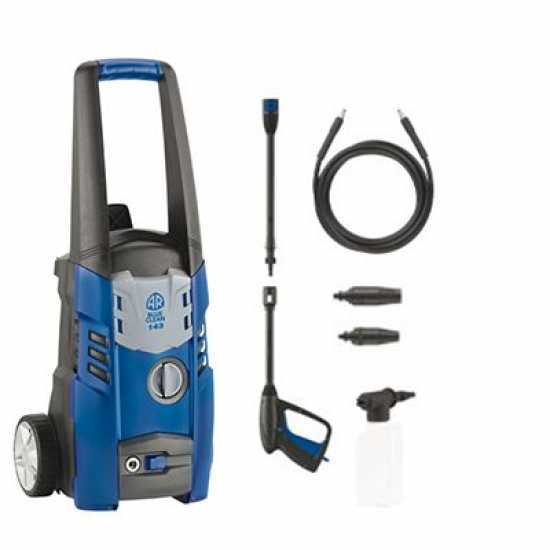

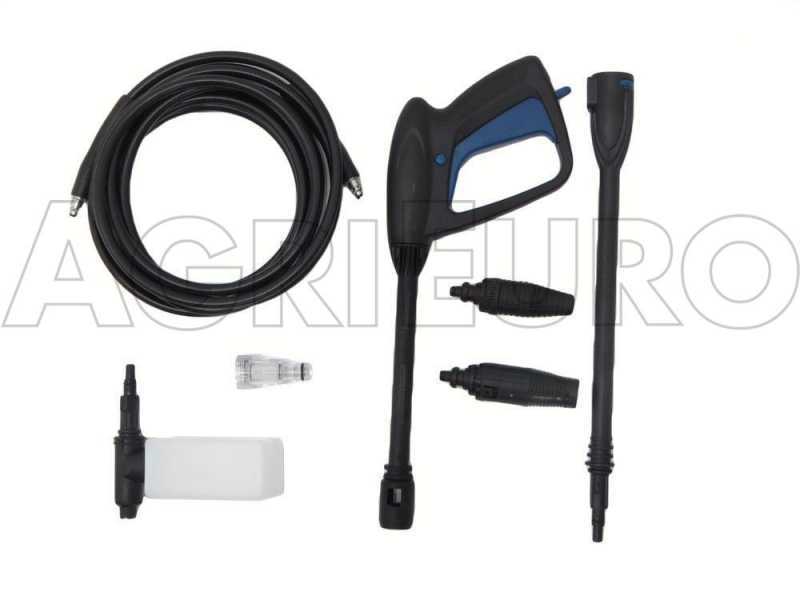

Free items included

  • High-pressure gun
  • 5 m high-pressure hose
  • Dirt blaster nozzle
  • Rotating nozzle
  • Foam kit with tank
Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

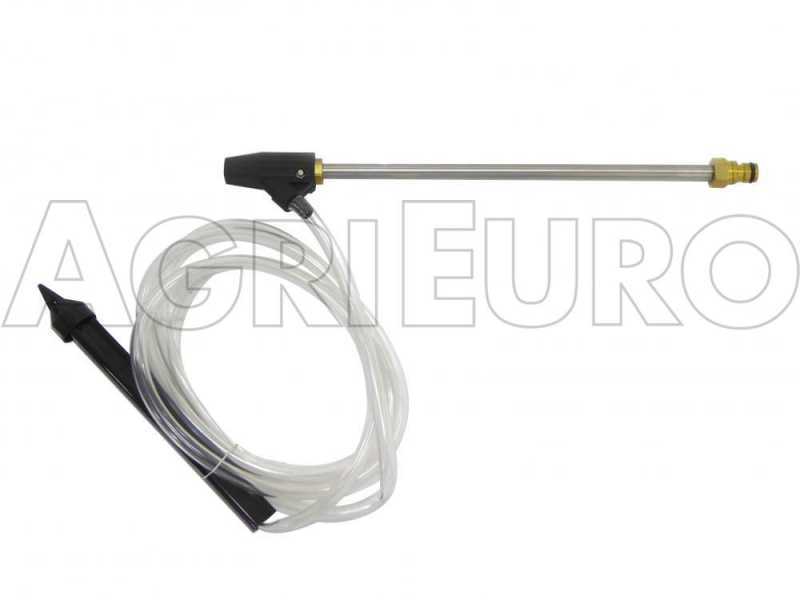

Sand blasting lance FREE!

Thanks to a series of adaptors, this cold water pressure washer sandblaster lance is compatible with all the current pressure washers you can currently find on the market by:

Karcher

Annovi & Reverberi – Black&Decker – Bosch – Stanley

Comet - Interpump - Kranzle

Lavor

This sandblaster lance is equipped with a professional ceramic nozzle.

3 metre rubber hose

PLEASE MAKE SURE THIS PRODUCT IS COMPATIBLE WITH YOUR PRESSURE WASHER BEFORE PLACING THE ORDER

WARNING: this accessory was designed exclusively for cold water

Free Items Included

The pressure washer is shipped in its original packaging

Multilingual instructions

  • High-pressure gun with adjustable nozzle.
  • 5 m high-pressure hose
  • Foam kit with tank
  • Rotating head
