Annovi & Reverberi AR 1007-N- Professional Three-Phase - Max 230 bar - 900 lt/h

Questions & Answers (3)
ID: K608881

EAN: 8016287154772

MPN: 15477-V

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi AR 1007-N- Professional Three-Phase - Max 230 bar - 900 lt/h
+50 sold
FREE
Gral detergent bottleGral detergent bottle
For Free: Oil & Smog Clean detergent bottleFor Free: Oil & Smog Clean detergent bottle
Mold & Moss Clean detergent bottleMold & Moss Clean detergent bottle
Free water supply connection kitFree water supply connection kit
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
900 L/h
Max. pressure
230 bar
Engine
Induction - 4 poles
Delayed Total Stop
Yes
Nominal power (W)
7400 W
Operating mode
Three-phase 400 V
Pressure regulator
Yes
Wheeled
Type
Trolley
Detergent tank
Self-priming pump
Weight
54.8 Kg
Manufacturing country
Italy
Product Features
Model:
AR 1007-N
Wheeled:
Type:
Trolley
Operating mode:
Three-phase 400 V
Operation mode:
Cold water
Detergent delivery:
Low-pressure
Manufacturing country:
Italy
Motor data
Motor type:
Electric three-phase
Engine:
Induction - 4 poles
Nominal power (W):
7400 W
Motor speed:
1450 RPM
Max. power absorption:
7.4 Kw
Cooling:
With air
Manufacturing country:
Italy
Pump data
Pump brand:
Annovi & Reverberi
Model:
HRR
Pump type:
Connecting rod-crank
Heavy-duty linear pump:
Self-priming pump:
No. of pump speeds:
1
Pistons material:
Ceramic
Pump head material:
Brass
Brass pump head:
Max flow rate per minute:
15 L/min
Max. flow rate per hour:
900 L/h
Operating pressure:
230 bar
Max. pressure:
230 bar
Pressure regulator:
Yes
Pressure regulator:
Manufacturing country:
Italy
Equipment
Integrated detergent tank:
Yes
Detergent tank:
Detergent dispenser:
Yes
Type of attachment:
M22 - Screw
On wheeled frame (with wheels and handles):
Yes
Hose holder:
Yes
Total Stop:
Yes
Delayed Total Stop:
Yes
Rear wheels size:
300 mm
Tool holder:
Yes
Free gifts/extra features
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Lance with adjustable nozzle:
Yes
Quick-connect nozzle lance:
Yes
Heavy-duty lance:
Yes
Hose length:
10 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
67x49x90 cm
Net weight:
54.8 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
73x49x77 cm
Gross weight (packaging included) :
70 Kg
Assembly time:
5 minutes
Prompt Delivery
19 items in stock
Free Shipping
Estimated delivery: 27/02/2025 - 03/03/2025
€ 1.274,74
Vat included

Available versions
You're viewing:
Customers also viewed:
Description

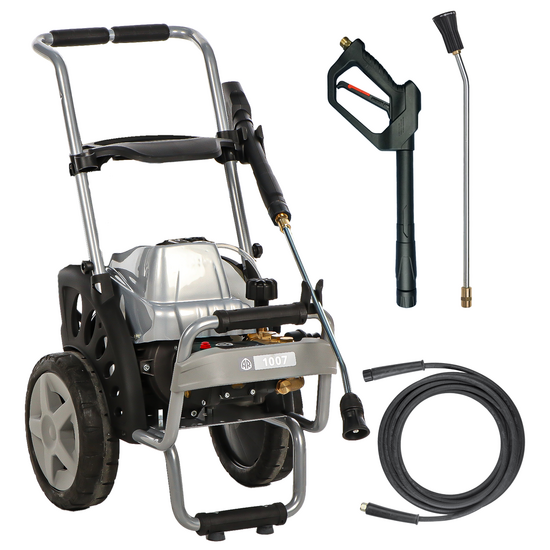

AR 1007-N Pressure Washer

The Blue Clean AR 1007-N three-phase trolley-mounted cold pressure washer, with pressure regulator and integrated detergent tank, is the top of the Annovi Reverberi Professional Series 10 range.

This machine, designed and built entirely in Italy, stands out for its reliability and the use of high quality materials that guarantee a long service life and excellent performance.

The AR 1007-N is designed to offer not only high performance but also ease of use.

Its compact size is made even more evident by the ability to close the handle, minimizing space and making storage easier.

In addition, the machine is equipped with hooks and compartments integrated into the body, specially designed to organise all included accessories in an orderly manner.

The performance of AR 1007-N are of a highly professional level, making it the ideal tool for any kind of professional use.

The power and efficiency of this high-pressure washer guarantee high-quality results, thanks also to its maximum pressure of 230 bar.

Choosing an Annovi Reverberi high-pressure cleaner means opting for a reliable and durable product, supported by a network of service centres throughout the territory and the availability of spare parts.

Unlike low-end products, which are often considered ‘disposable’, the AR 1007-N is a safe investment for those looking for high performance and durability.

Pump unit and Engine

Pressure: 230 bar max.

Outstanding flow rate: 15 Lt/min (900 Lt/h)

The AR 1007-N pressure washer features a heavy-duty HRR 3-piston ceramic pump with connecting rod-crank system and brass head. The outstanding quality of the materials and the technical and manufacturing details make it a reliable and particularly high-performance instrument.

  • Ceramic pistons
  • Automatic by-pass valve with pressure reset located on the pump head.
  • Pressure regulation with a pressure gauge in a glycerin bath
  • Three-phase electric induction motor with thermal protection.
  • Focus on the large motor cooling fan that prevents overheating even with very long cleaning cycles.
  • Focus on the oil pump level indicator
  • Pump oil measurement rod

The three-phase electric induction engine can work uninterruptedly for hours without a break. The induction engine ensures high-reliability as it isn’t provided with wear-and-tear components such as graphite brushes. The induction engine also endure excellently with the peaks and overload phases that are typical of the start/stop of pressure washers.

The pressure is very important. An additional and more important technical specification is represented by the flow rate: the cheapest items may often feature a high pressure, but a very short flow rate, resulting in inefficient units. The minimum flow rate must be at least 350 L/H.

Main features

Simple and intuitive ignition controls

“TSS" (Total Stop System)
When the water supply button is released, the machine switches off automatically, switching on again when the user resumes work. Here below the main advantages:

  • It prevents the pressure washer from overheating
  • Extend the durability of the pump
  • Reduction of the consumptions

Easy access to the water filter and 5 m power cable.

  • Built-in 3 L detergent tank
  • Detergent suction adjustment
  • High pressure hose: 10 m
  • The gun is lodged at the side of the machine
  • Transport handle
  • Professional threaded hose connection to the lance and handle detail
  • Large rubber wheels 30 cm diameter

Simple and convenient, this pressure washer is equipped with large wheels that allow easy movement even in difficult conditions.

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

FOR FREE: AgriEuro Detergents Kit for Outdoor Cleaning - 3 Bottles 1 L

This AgriEuro Outdoor Detergents set includes three different 1 L bottles with different features that are essential for the cleaning of outdoor areas.

The set includes:

  • Gral: Gentle, highly effective antistatic cleaner for removing streaks and greasy dirt deposits from various types of surfaces: glass, ceramics, metal, lacquered wood, leather, plastic, etc.
  • Oil & Smog Clean: This alkaline detergent was designed for degreasing equipment, machinery, concrete and tiles effectively.
  • Recommended for removing smog from the front of houses, outdoor staircases and sidewalks.
  • Mold & Moss Clean: This chlorine acid detergent was designed to clean and sanitise at the same time. This product is essential when it comes to removing mold and moss from dark areas and environments where humidity is high. Particularly suitable for removing bad odours. Its high sanitising efficiency eliminates bacteria which cause unpleasant odour through fermentation.

Free gifts / Extra features

The pressure washer is shipped in its original packaging

Multilingual Instructions

  • High pressure gun with lance
  • 10 m high pressure hose
  • Water connection kit with filter
