Description

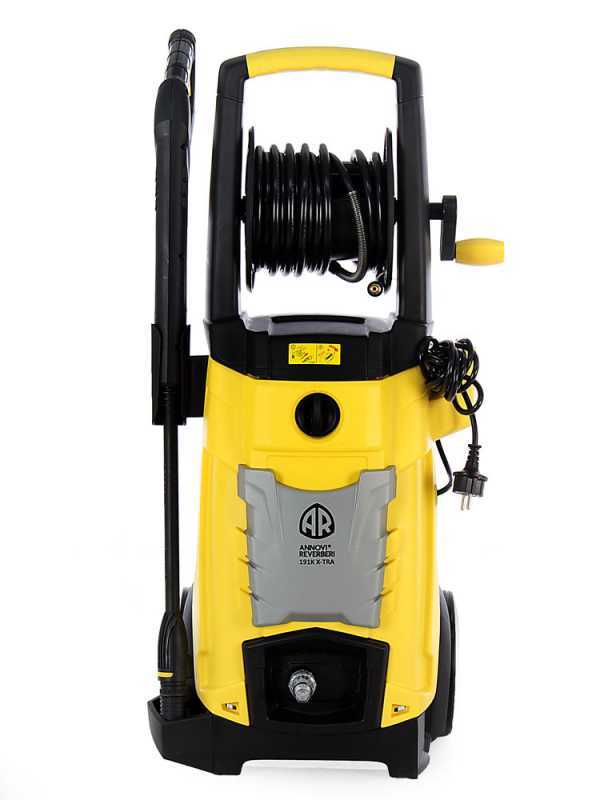

AR Classic Yellow 191K X-TRA pressure cleaner

The Annovi & Reverberi 191K X-TRA cold water pressure washer is an electric single-phase pressure washer on cart that belongs to the series Classic Yellow with built-in hose reel with 6 mt hose. The hose reel is provided with comfortable handle.

It is handy and powerful and comfortable to move around thanks to its wheels with 18 cm diameter and big handle. The AR 191K X-TRA can be stored in a small place thanks to its vertical structure, the hooks and compartments in the machine body where to place the accessories provided. This machine provides high performances and is ideal for the washing of garden furniture, working equipments, bikes, patios and more.

It mounts a 3 axial piston pump with aluminium head while pistons are made of tempered stainless steel. It also fits an automatic safety valve with pressure reset in the pump head. It fits a single-phase electric engine with thermal protection: maximum efficiency and durability. The motor ensures low consumptions with a lower rpm with respect to the traditional electric engines in the pressure washers.

It si equipped with Total Stop System: total stop of the pressure washer at distance.

The engine is powerful and efficient, with thermal protection.

It features a 1,4 L built-in detergent tank (built-in detergent suction)

Differently from other "disposable" products in market at very low prices, the advantages of purchasing an Annovi&Reverberi are:

local assistance centres
spare parts available
long lifetime of the product
high performances

EXCELLENT FLOW RATE: 450 L/H (max 7.5 L/min) among the highest on the market (the flow rate is the most important data of the pressure washer since it identifies the actual power of the machine, even before the pressure data).

HIGH OPERATING PRESSURE: 140 bar, among the highest of its category.

ENGINE: electric, single-phase (220 V), 2 kW

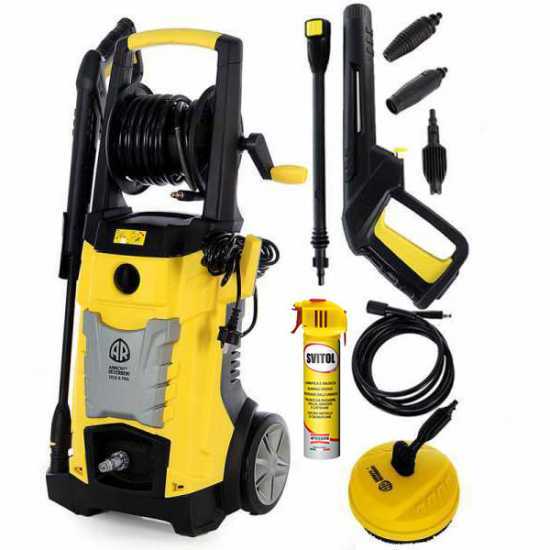

Wide range of accessories composed of: gun, extension gun, adjustable nozzle, rotating nozzle, 6 m delivery hose and kit for large surfaces (mini patio)

Annovi & Reverberi 191K X-TRA cold water pressure washer - max 140 bar, 7,5 L/min flow rate

Pump and motor

Operating pressure: Max 140 bar

Flow rate: max 7.5 L/min (450 L/hour)

Power: 2 kW

The pressure washer mounts a pump with 3 axial pistons operated with swinging disc and pistons made of tempered stainless steel. Automatic safety valve with pressure reset on the pump head. TSS and self priming.

Pistons made of tempered stainless steel.
Automatic safety valve with pressure reset on the pump head.
Total stop system at distance of the pressure washer.
Thermical protection of the engine.
Focus on the hose reel with 6 m delivery hose

The pressure of the pressure washer is very important. But the flow rate is even more important: often, cheap products have a high pressure but a very low flow rate, thus they are actually inefficient. A flow rate should be at least of 350 L/h.

Main features

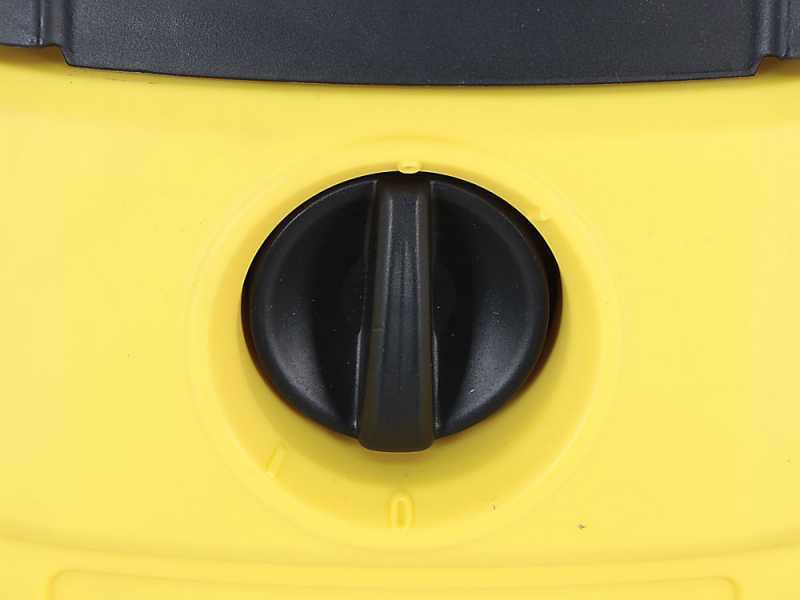

Easy user-friendly controls

“Total stop” system:
When released the water spraying button is off, machinery immediately switches off, switching on again when the user starts again the job. The advantages are:

Over heating prevention;
Pump life lengthening;
Consumption reducing.

This pressure washer is equipped with total stop system at distance.

The engine features an overheating protection that ensures more efficiency and durability. They also ensure lower consumption with respect to the electric engines.

It also features an automatic safety valve with pressure reset on the pump head.

Easy access to the water filter and 5 m power cable.

Wide range of accessories
The gun, lance and adjustable head have to be found aside and in the rear part of the machine

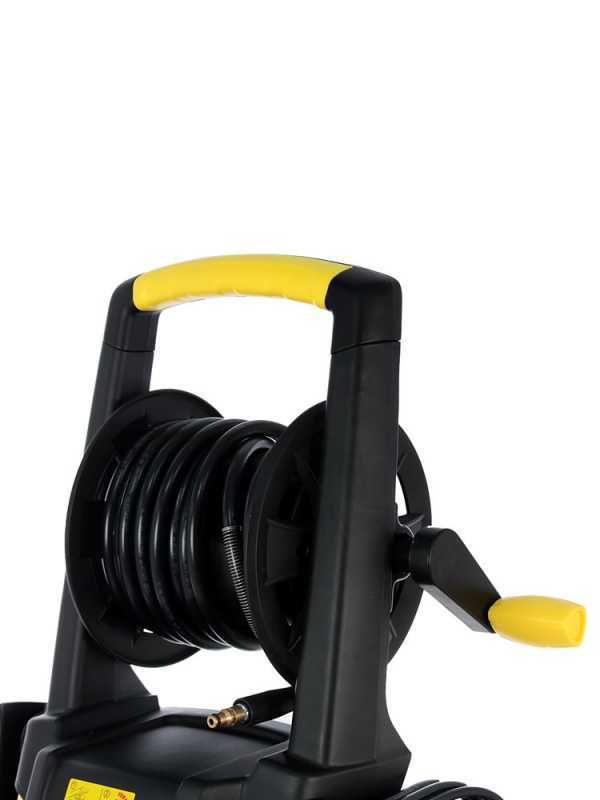

Detail of the hose reel with 6 m delivery hose and comfortable handle
Transport handle
Water filter with easy acces
Wheels: 18 cm diameter
1.4 L built-in detergent tank
Accessory compartment
Electric cable compartment

Assembly and equipment

The pressure washer comes already assembled and ready for use in its original packaging. Handle has to be assembled in a few steps.

Items provided on standard kit:

Rotating nozzle
Adjustable nozzle
Detergent kit
6 m high pressure hose on hose reel
Brush kit for large surfaces

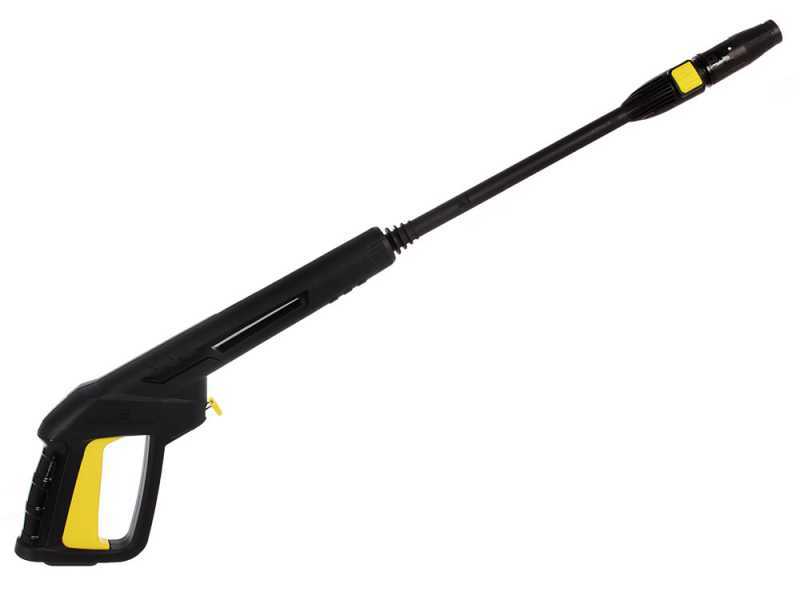

High pressure gun with lance with click-fast for quick connection of high pressure hose
Adapter of water inlet pipe with filter
5 m power cable

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

Ø 15 mm yellow hose, 15 m long
Male quick connector for tap connection (size of the standard thread: 3/4“)
Standard female quick connector (to insert the hose into the male quick connector for tap connection)
Female quick connector with ACQUASTOP (to be applied to the end of the irrigation pipe). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.
Adjustable plastic lance with male quick connector.

It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.
