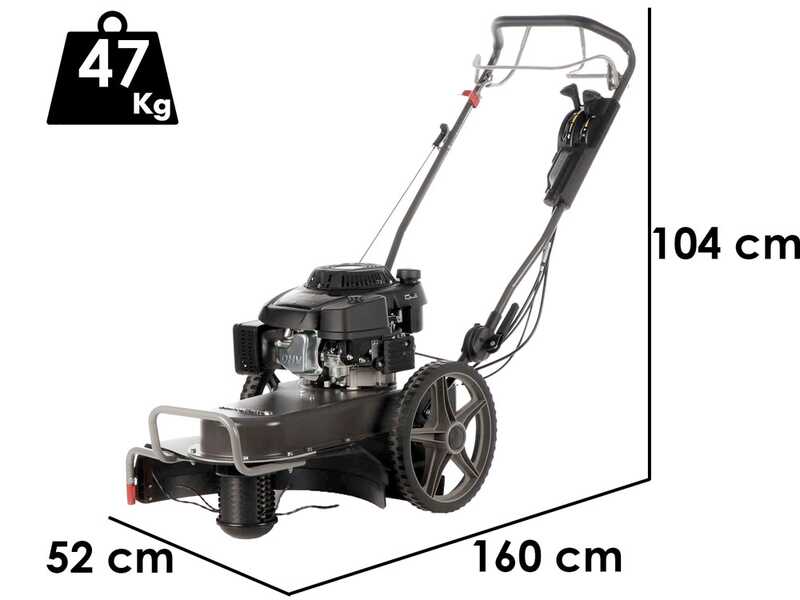

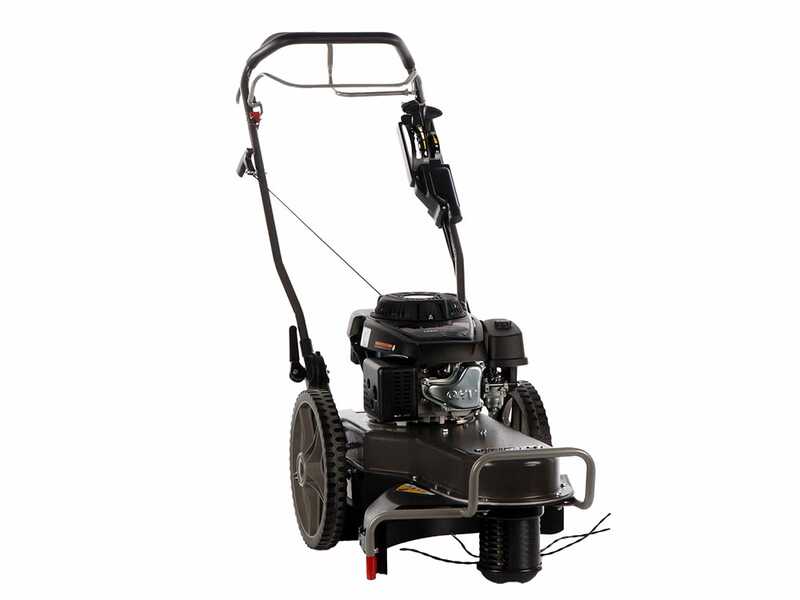

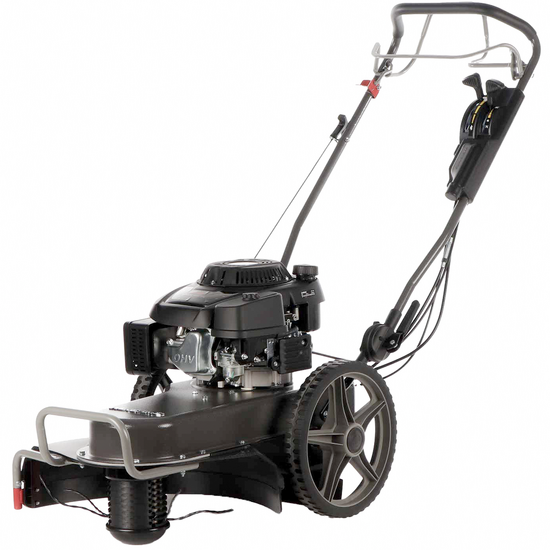

Weibang WBLT567SC - Petrol Wheeled Brush Cutter - 4 strokes - Self-propelled

The Weibang WBLT567SC self-propelled 4-stroke petrol wheeled brush cutter is a powerful and versatile tool, ideal for both professional and hobby use

Designed to easily tackle even the most difficult green areas, this model combines robustness and user-friendliness.

The distinctive feature of the Weibang WBLT567SC brush cutter is its gearbox drive, which allows the speed to be adjusted according to soil and work requirements.

This system offers superior control during operation, improving efficiency and reducing operator fatigue.

The cutting height can be adjusted to 8 settings, raging from 51 to 137 mm, to better suit different turf conditions.

The nylon cutting unit guarantees excellent precision and cutting efficiency even with dense vegetation.

This material was selected for its strength and ability to cope with intensive work without deteriorating rapidly.

The main advantages of the Weibang WBLT567SC wheeled brush cutter include:

• 4-stroke petrol engine: offers power and reliability while reducing both emissions and fuel consumption compared to 2-stroke models.
• Self-propelled drive with gearbox: allows speed adjustment for optimal control.
• Adjustable cutting height: 8 settings ranging from 51 to 137 mm to adapt to different needs.
• Nylon cutting unit: guarantees a precise and long-lasting cut.
• Sturdiness and durability: built with high quality materials to withstand intensive use.

The Weibang WBLT567SC brush cutter stands out for its advanced technology and user-friendliness, making it an excellent choice for those seeking high performance and long-term reliability.

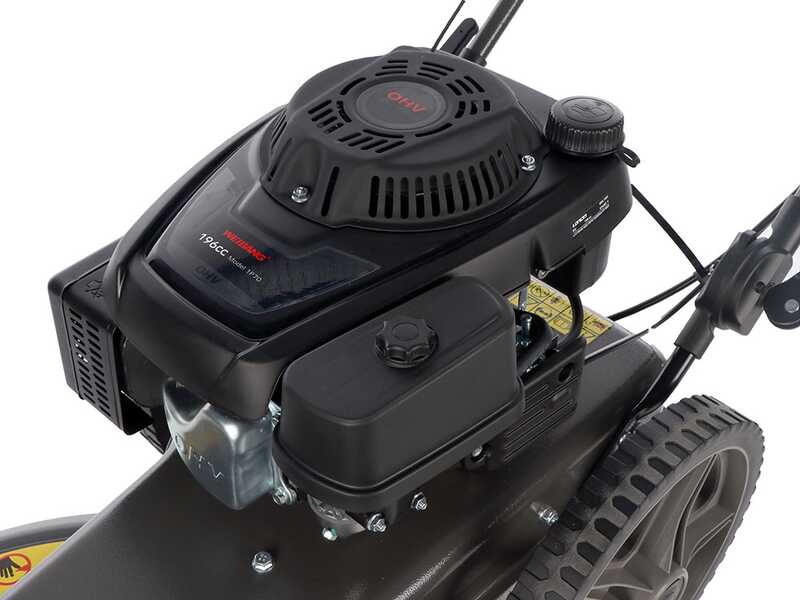

The 1P70FC is a 4-stroke, air-cooled petrol engine with an aluminium cylinder.

It is a powerful engine with a displacement of 196 cc.

WARNING!

The engine is SUPPLIED WITHOUT OIL.
Read the instruction manual carefully before start-up.

Air filter detail

Spark plug detail

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition officially used until a few years ago by all well-known engine manufacturers.

* This figure is the one most widely used and publicised in the main sales channels, even if it is a higher figure than the actual power of the engine.

Rated power: 4.15 HP (at a speed of 3600 rpm)
Corresponds to the real power expressed at the drive shaft. This is the figure listed as official in the engine manufacturer's instruction manual or technical data.

*This figure my vary for the same engine model based on the engine speed that the manufacturer decides to have the engine applied.

The machine is also equipped with an upper air intake, which is excellent in dusty conditions

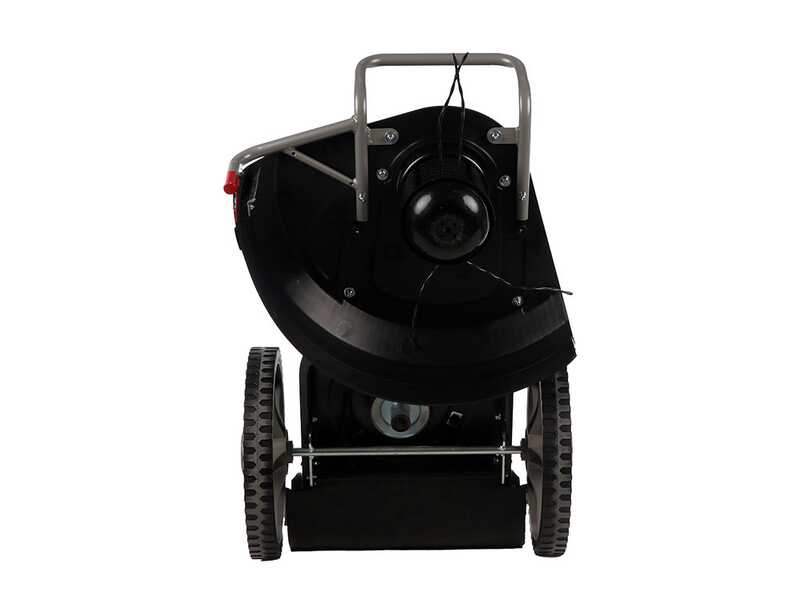

The Weibang WBLT567SC petrol wheeled brush cutter stands out for its belt drive.

This feature protects the engine from shocks and rocks, increasing the durability of the device.

The belt drive also acts as a clutch, precisely because it can slip out in case of shocks, thus preventing damage to the engine.

The line head is fitted on a sturdy steel shaft, providing strength and durability even under extreme stress.

The high-strength Nylon line head guarantees its ability to withstand the strongest shocks.

Thanks to the staggered lines, the brush cutter can easily cut through various types of weeds, even very large ones, with very little effort.

The main features of the Weibang WBLT567SC's line head and belt drive include:

• Belt drive: It protects the engine from shocks and rocks, extending the service life of the device.
• Gearbox: It allows the speed to be adjusted for optimal control.
• Aluminium line head: Durable and resistant, ideal for intensive use.
• Steel shaft: Robust and reliable.
• Staggered lines: They simplify the trimming of large weeds with little effort.
• Easy line replacement: It allows quick replacement in seconds.
• Mechanical disc brake: The head stops almost instantly when the lever is released, ensuring the highest standard of safety.

The cutting device features a working width of 56 cm, allowing large areas to be covered quickly, detail of the blade.

The cutting height is adjustable from 51 to 137 mm, offering versatility for a variety of soil types and cutting conditions.

The gearbox allows the speed of the brush cutter to be regulated, offering optimal control in different working situations and adapting to ground conditions.

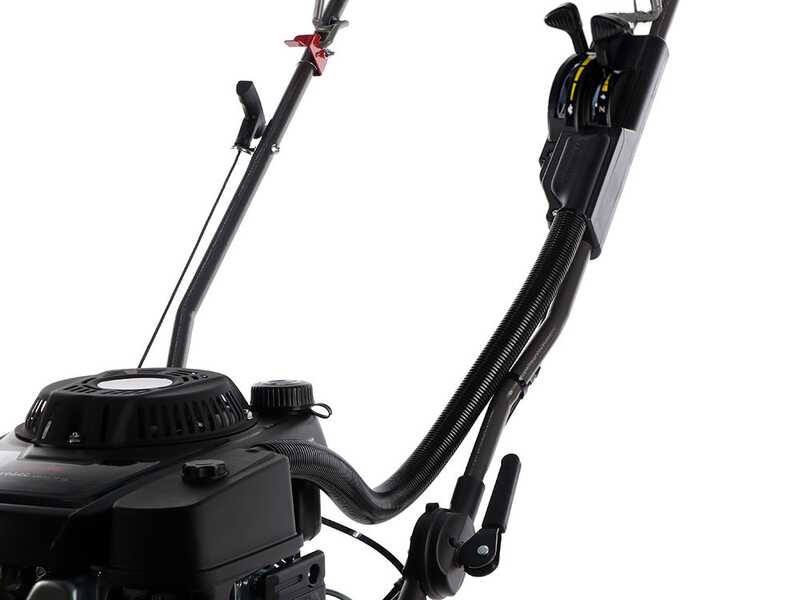

The controls are located in the handlebars.

Said handlebar can be closed or folded down using the specific knob at the bottom.

Throttle handle

Next to the throttle is the gear lever, which is used to select the most suitable gear according to the type of work.

The handle is rubberized for optimal working comfort.

Line head switch-on and switch-off lever.
This innovative machine allows the line head to be activated only where the work is to be done, and then deactivated whenever necessary.

The rear lever activates the drive.

The body of the Weibang WBLT567SC petrol wheeled brush cutter is entirely made of steel, giving the device great resistance to accidental impacts or contacts with small stones and obstacles during mowing.

The large rubber-coated wheels ensure excellent manoeuvrability on different types of ground.

These wheels provide stability and effortless mobility, making the brush cutter suitable for both professional and domestic use.

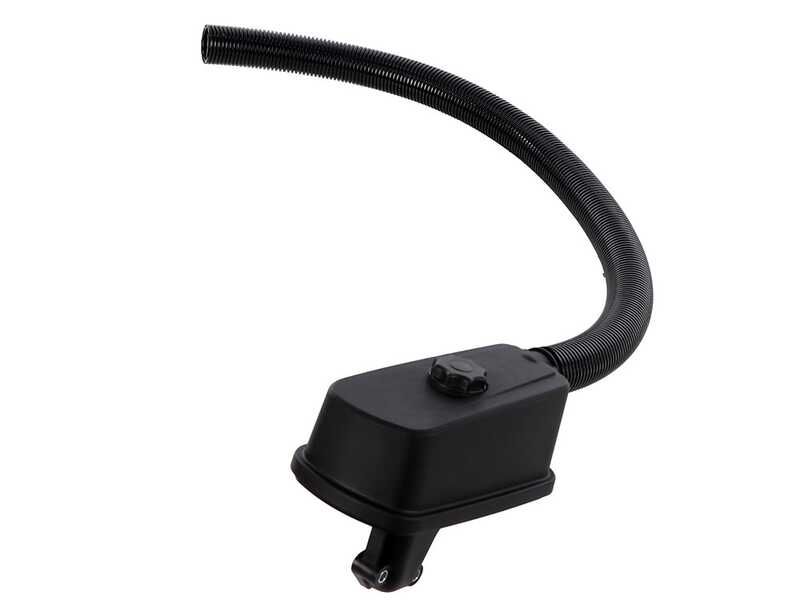

Additionally, the brush cutter is equipped with a high air intake with sponge filter, which improves engine efficiency even in dusty working conditions.

This feature ensures a longer service life for the engine, protecting it from dust and debris.

The high air intake helps keep the engine well ventilated, preventing overheating and improving the overall performance of the brush cutter.

This technical detail is crucial for users operating in demanding environments, where dust can be a significant problem.

The Weibang WBLT567SC petrol wheeled brush cutter combines robustness, efficiency and user-friendliness, thus making it an excellent choice for those looking for a durable, high-performance tool.
