Sbaraglia Spray 600L - Tank unit for tractor spraying - AR713 pump

Add a question
ID: 114527

EAN: 8050246351093

MPN: A5030

7,3/10
After-sales assistance & Spare parts
Sbaraglia Spray 600L - Tank unit for tractor spraying - AR713 pump
Special offer
Tank capacity
600 l
Pressure regulator
Yes
Pump brand
Annovi&Reverberi
Flow rate
76 L/min
Max. operating pressure
40 bar
Tool boom
In steel
Hand washing tank
Yes
Manufacturing country
Italy
Product Features
Model:
Spray 600L
Type:
For spraying treatments
Operating mode:
Tractor-mounted
Flow rate:
76 L/min
Max. operating pressure:
40 bar
Tank capacity:
600 l
Tank capacity:
600 L
Fixed 3-point hitch:
Yes
Manufacturing country:
Italy
Pump data
Pump brand:
Annovi Reverberi
Pump brand:
Annovi&Reverberi
Model:
AR 713
Pump type:
three-diaphragm
Flow rate:
76 L/min
Operating pressure:
40 bar
Pressure regulator:
Yes
Manufacturing country:
Italy
Equipment
Tool boom:
In steel
Distributor:
Standard
Hand washing tank:
Yes
Removable cartridge filter:
Yes
Free gifts/extra features
Instructions manual:
Yes

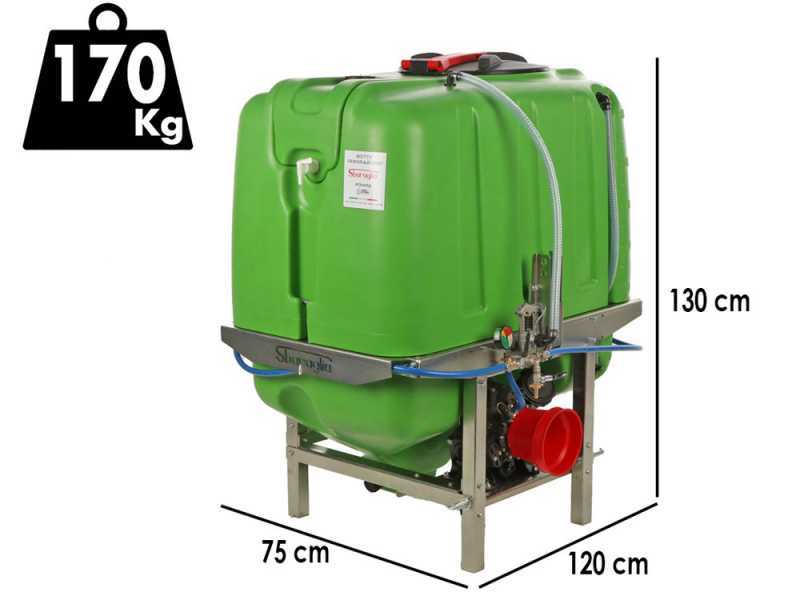

Dimensions and logistics
Product dimensions in cm (L x W x H):
120x75x130 cm
Net weight:
170 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
142x111x125 cm
Gross weight (packaging included) :
170 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
5 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
Lowest price:
€ 2.201,36
-10 %
€ 1.981,22
Vat included
You're viewing:
Customers also viewed:
Description

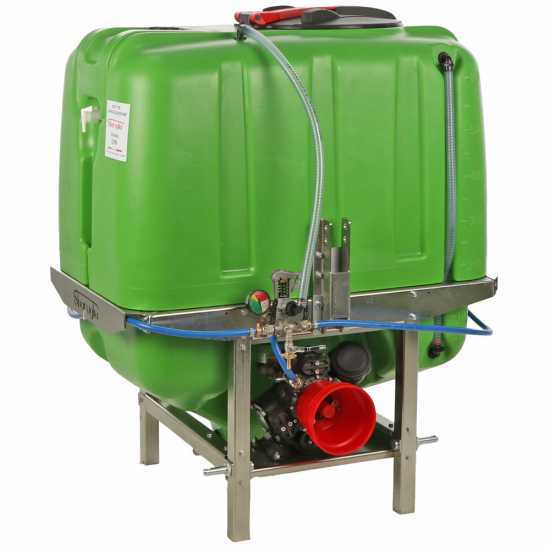

Tank unit for tractor spraying Sbaraglia Spray 600L

The Sbaraglia Spray tractor sprayer is a solution for irrigation and phytosanitary treatment in medium-sized orchards, olive groves and vineyards.

This spraying unit is equipped with an Annovi Reverberi AR713 pump with 3 semi-hydraulic diaphragms, providing high pressure for even distribution of plant protection products. The Annovi Reverberi GI 40 control unit provides precise and reliable control during use, facilitating spraying operations.

The rotationally-moulded polyethylene tank offers excellent resistance to chemicals and adverse environmental conditions. The integrated hand-washing tank provides additional convenience and safety for the operator.

The cold-dip galvanised , moulded kit-assembled frame guarantees superior robustness and durability, making the Sbaraglia Spray tank a reliable choice for agricultural professionals.

Connection to the tractor is via a 3-point hitch, ensuring universal compatibility and easy installation. This model is particularly suitable for farmers who need a high-performance, durable piece of equipment capable of operating in high pressure conditions for optimal distribution of plant protection products.

Distinctive features:

  • Annovi Reverberi AR713 pump: 3 semi-hydraulic high-pressure membranes.
  • Annovi Reverberi GI40 drive unit: Precise and reliable control.
  • Polyethylene tank: Rotational moulding, chemical and environmental resistance.
  • Hand-washing tank: Integrated for added convenience and safety.
  • Cold galvanised frame: Robust and durable.
  • 3-point attachment: Easy connection to the tractor.

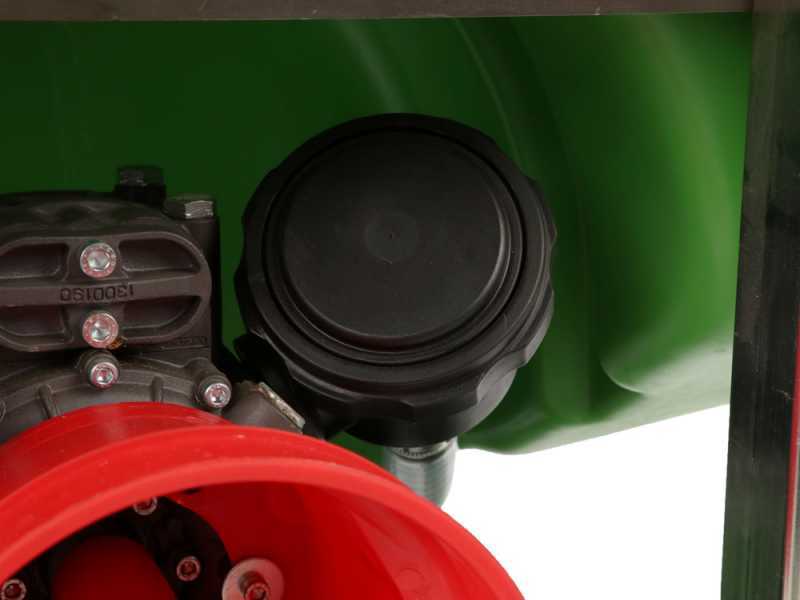

Annovi Reverberi AR 713 pump

AR 713 pump with three semi-hydraulic diaphragms, ideal for semi-professional agricultural applications. Suitable for medium pressure plant protection treatments in gardens, greenhouses, orchards and vineyards. The parts in contact with liquids are made of anodised aluminium and AISI 303/304 stainless steel, with NBR diaphragms and seals.

The crankcase is die-cast and equipped with oil-bath mechanics, with a transparent plastic tank for visual level control.

The pistons are equipped with segments to improve the efficiency of the 'oil cushion' system, which protects the diaphragm. The membrane locking system is newly developed, preventing contact tearing even under severe conditions of use. Valves with a spherical sector profile reduce liquid flow resistance, improving volumetric efficiency.

Performance

  • No. of membranes / pistons: 3
  • Scope: 76 l/min
  • Pressure: 40 bar
  • Power: 7.3 HP
  • RPM: 550
  • Weight: 11.5 Kg

It enables the operation of:

  • up to 7 hand lever (or knob) lances simultaneously
  • 3 MITRA lances simultaneously
  • 2 side spray poles with 5 butterfly jets each
  • Pair of cannons up to 4 jets each
  • 1 weeding bar up to 12 metres

Detail taken by force.

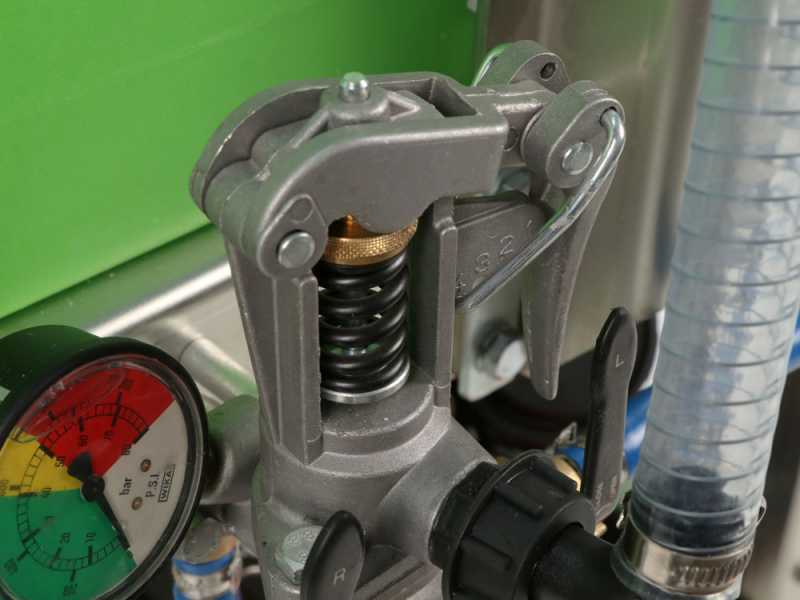

Annovi Reverberi GI 40 control unit

Annovi Rverberi GI 40 control unit is a three-way control system designed for use in conjunction with agricultural and industrial pumps manufactured by the Italian company Annovi Reverberi

Pressure adjustment knob.

The two side taps supply the right-hand sector of the fan and the left-hand sector respectively. Generally, the two horizontal outlets are used to connect e.g. a pair of spraying cannons for orchards/olive groves, or stainless steel booms for vineyards, etc

This means that you can also activate the spraying of the two sectors separately, e.g. activate only the jets on the right side or only on the left side (e.g. when dealing with the boundary of your plot).

Glycerine-bath pressure gauge with coloured dial.

Max. pressure 40 bar

Max. flow rate 80 L/min

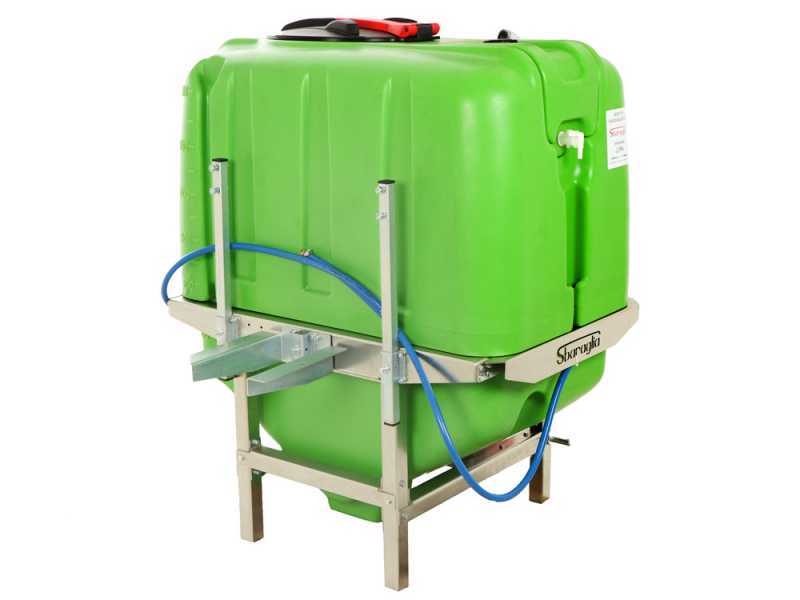

Hot-dip galvanised steel frame

Assembled kit moulded frame , cold-dip galvanised and powder-coated.

Designed for durability and strength, the assembled kit moulded frame is the ideal solution for agricultural and industrial spraying needs.

Manufactured from high quality steel, the frame undergoes a cold galvanisation process that provides optimal protection against corrosion, prolonging the product's service life even in harsh environmental conditions.

This weeding barrel is equipped with two vertical barsdesigned for the application of spraying devices, adjustable in height.

Included in the scope of delivery is a hose reel application header.

Three-point attack 1st category.

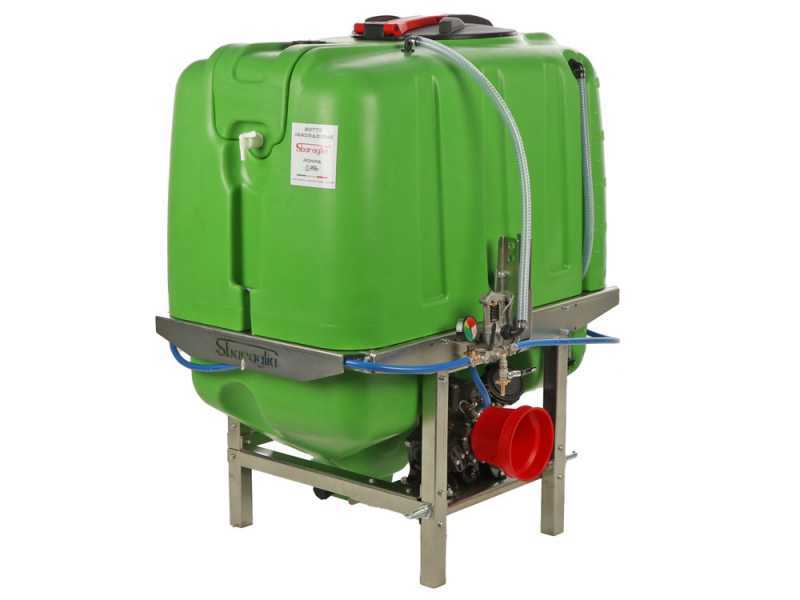

Other Features

Polyethylene tank with total emptying.

Additional tank for washing the operator's hands.

Detail of the external level with graduated scale for quick visualisation of the liquid level in the tank.

Internal filter that cleans the liquid of any residue or dirt when filling the tank.

Cap for total emptying of the tank.

Filter pump.

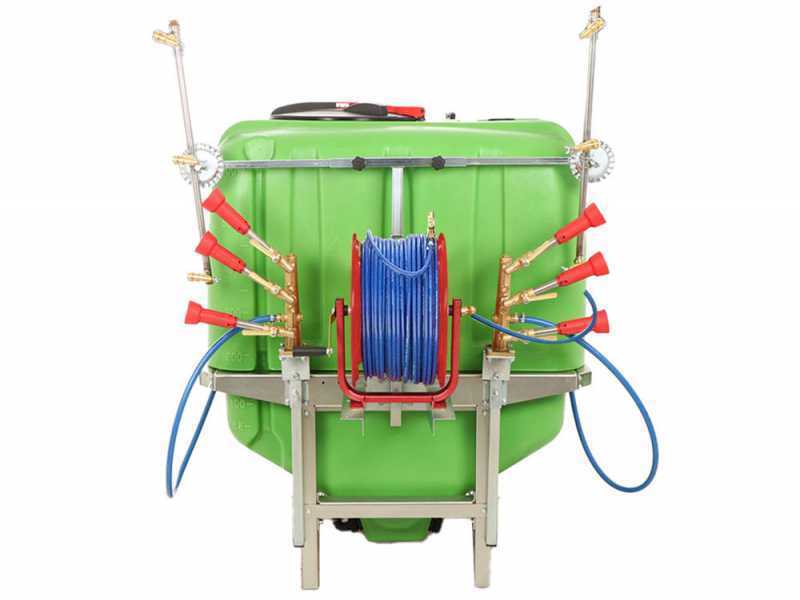

Tank Accessories Sold Separately

Here are some accessories that can be mounted on these barrels.

Here are some examples of individual mounting of accessories:

    • Steel hose reel. It is also possible to combine the steel hose reel with a 'miter' lance or a drum gun.
    • Stainless steel spraying rods with brass butterfly jets.
    • Spraying cannons

Extensive customisation possibilities:

  • Steel hose reels and spray cannons
  • Steel hose reel and stainless steel spraying rods with brass jets.
  • Pair: stainless steel spray rods with brass jets and spray cannons
  • There is enough to fit all available accessories so that they are always available

WARNING: Accessories ARE NOT INCLUDED IN THE PRICE, they can all be purchased separately via the RELATED PRODUCTS tab.
Free items & Standard equipment

Free Items Included

The barrel is shipped by pallet and carefully packed.

Included:

Hose reel brackets

Mounting screws
