Redback S22V-T6 - Self-propelled 4-stroke gasoline wheeled brush cutter

Questions & Answers (13)
ID: K606787

EAN: 6970601802362

MPN: S22V-T6 (01212)

Redback S22V-T6 - Self-propelled 4-stroke gasoline wheeled brush cutter
+300 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor type
4-stroke
Motor brand
Producer-manufactured
Motor Model
T6
Cubic capacity
146 cm³
Nominal power
5 HP
Self-propelling
Traction / self-propelled
Forward motion
Smooth wheels
Motor/blade drive
Intermediate belt drive
Line head accessoty
Included as standard
Recommended operating area
1100 s.q. m.
Product Features
Model:
S22V-T6
Forward motion:
Smooth wheels
Type:
Wheeled
Type:
Line head
Operating mode:
Spark ignition
Grip:
Standard
Self-propelling:
Traction / self-propelled
Recommended operating area:
1100 s.q. m.
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Redback
Motor Model:
T6
Motor type:
4-stroke
Cubic capacity:
146 cm³
No. of cylinders:
Single-cylinder
Nominal power:
5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Motor/blade drive:
Intermediate belt drive
Manufacturing country:
China
Transmission data
Gear shifting system:
Single speed
Operating mode:
Lever on the handlebar
Cutting data
Blade engagement:
Lever on the handle
Cutting width:
55.5 cm
Adjustable cutting height:
Yes
Equipment
Multifunctional:
No
Line head accessoty:
Included as standard
Primer pump :
Yes
Recoil start system (with rope):
Yes
Height-adjustable handle:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Automatic line head (Tap&Go):
No
Standard line head:
Yes
Multi-line head:
Steel
Rider plate and blade assembly tools:
No
Instructions manual:
Yes

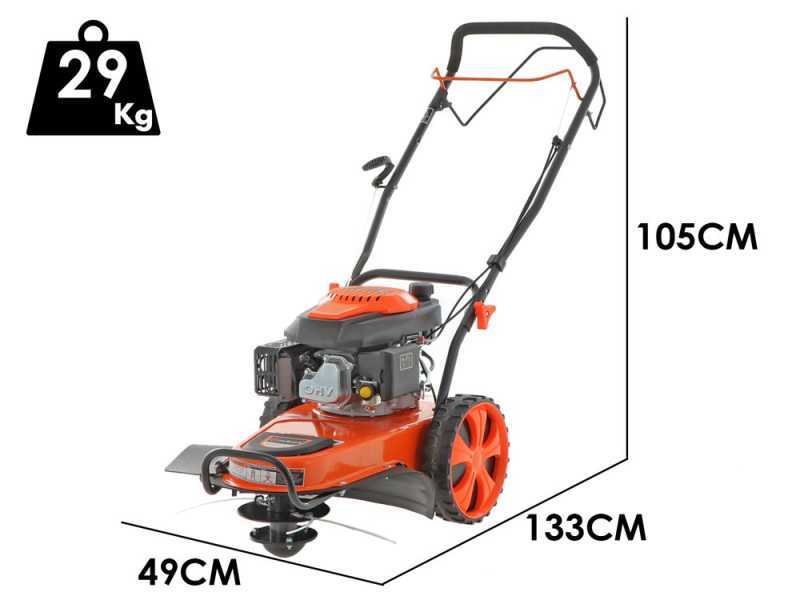

Dimensions and logistics
Product dimensions in cm (L x W x H):
133x49x105cm
Net weight:
29 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
85x58x53cm
Gross weight (packaging included) :
32 Kg
Assembly time:
15 minutes
Prompt Delivery
50 items in stock
Free Shipping
Estimated delivery: 30/05/2024 - 03/06/2024
€ 501,35
VAT Included

You're viewing:
Customers also viewed:
Description

Redback S22V-T6 Wheeled Petrol Brush Cutter

Redback S22V-T6 wheeled brush cutter is capable of destroying huge masses of weeds of any diameter, height and size, shredding them finely.
It shreds tall grass, brushwood and brambles, even on slopes, thanks to the large frontal inlet of the flat. It provides security and reliability.

The machine is equipped with traction drive and large wheels (28 cm). This results in optimal smoothness during operation.

This product is therefore suitable for cutting operations on overgrown weeds in orchards, vineyards, olive tree groves (especially for the grassing process) or for plant nurseries, green area maintenance operators and managing authorities who can use this tool to clear uncultivated areas. It mustn't be confused with a lawn mower, which is more suitable for lawns and gardens.

Powerful 146 cc engine, with a nominal power of 5 HP. This engine delivers sturdy power and reliable performance.

The Redback S22V-T6 wheeled brush cutter is equipped with a belt drive.

The machine allows the cutting height to be adjusted from a minimum of 60 mm to a maximum of 110 mm, providing the necessary flexibility to adapt to different terrain and grass cutting requirements.

Furthermore, the handle height can be adjusted into three different positions for greater ergonomics and comfort during use.

The use of the brush cutter is only recommended for flat or slightly sloping terrain.

ATTENTION:

This wheeled brush cutter does not include the installation of discs or blades. It is intended to be used exclusively with the wire head accessory provided.

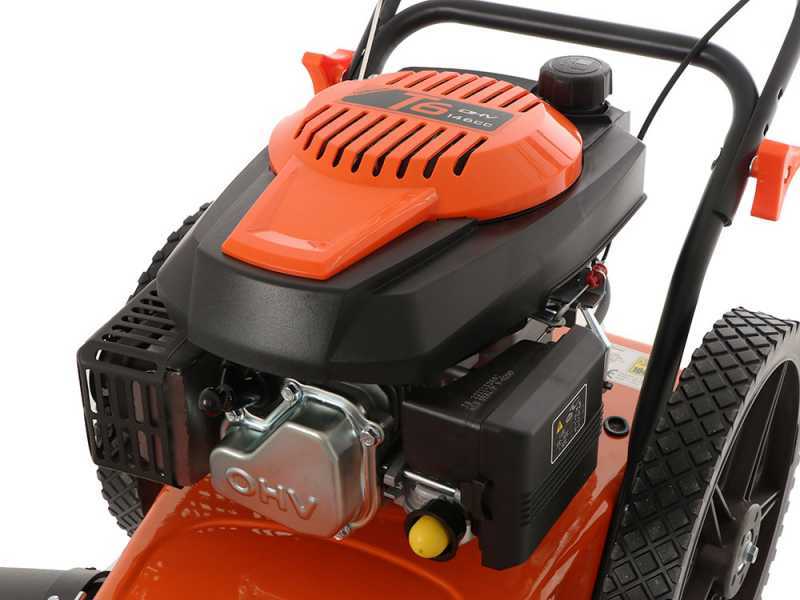

143 cc Engine

Powerful 146CC T6 engine and at an output speed of 3000rpm: this brush cutter offers reliable and quick performance

Features:

Engine type:
4-Stroke, single cylinder
Cylinder type:
Aluminium
Cubic capacity:
146 cc
Fuel:
Petrol
Engine cooling system
OVH (overhead valve)
The engine is easy to start thanks to its primer ignition and the handy recoil starter.

WARNING!
The engine is provided without oil. Check the oil level before the first starting.


Nominal Power: 5 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.49 HP (at 3000 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

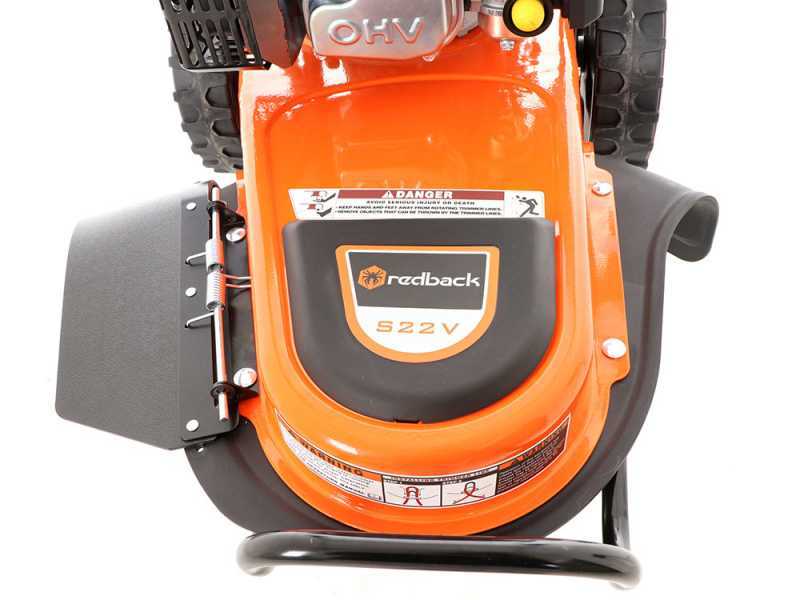

Line Head and Belt Transmission

The wheeled brush cutter is equipped with a high-quality wire head and a reliable belt drive.

The head is designed with a sturdy steel shaft, which ensures strength and durability overtime. This steel shaft is able to withstand the impacts of everyday use, ensuring reliable cutting performance.

55.5 cm working width, This working width allows you to cover a larger area in less time, making your garden care work more efficient and effective.

It is recommended to use a thick wire (4 mm diameter) for easy cutting of even the strongest weeds and to minimise wire consumption.

Recommended for grass up to 15cm and sparse bushes up to 10cm

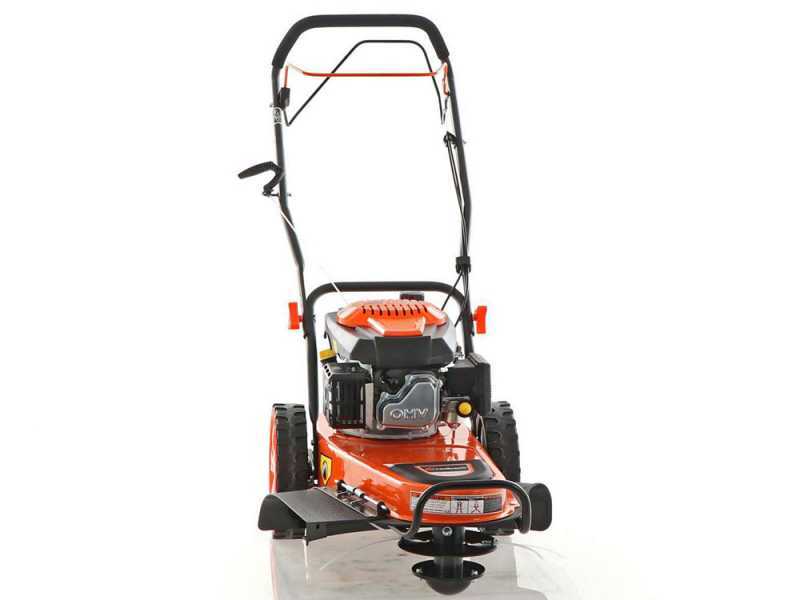

Controls and Handlebar

Redback S22V-T6 wheeled brush cutter with intuitive and easy-to-use handlebar-mounted controls.

With only two levers, one for feeding and one for operating the blade, you can easily manage all functions of the machine. The feed allows you to control the speed of movement, while the blade activation lever allows you to start or stop the cutting action quickly and easily.

Three different handlebar height adjustments, enabling you to adapt the ergonomics of the machine to your personal requirements and terrain needs, thereby reducing fatigue.

Ergonomic, rubber-coated handlebar allows you to hold the brush cutter while reducing hand fatigue.

0.9 m/s driving speed

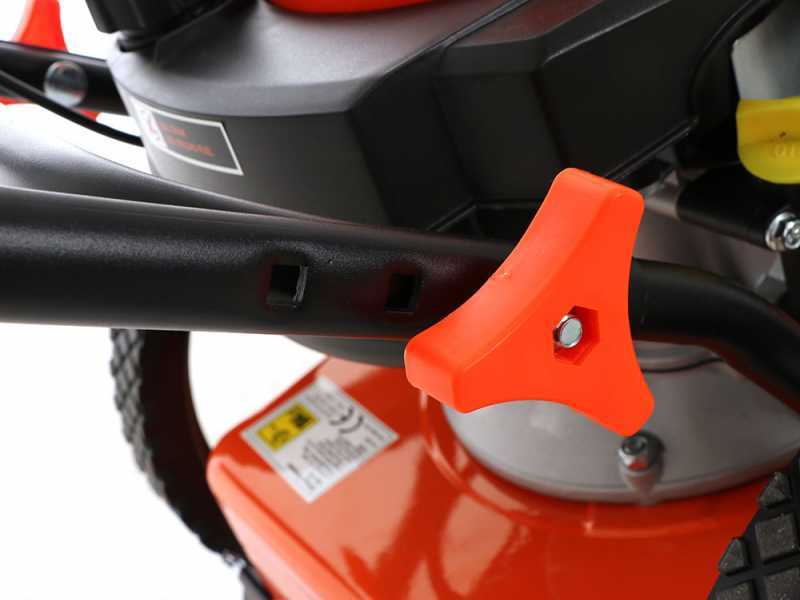

General Specifications

  • Sturdy 1.5 mm thick steel casing, ensuring long-lasting durability and strength. The casing provides reliable protection for internal components and ensures stable cutting performance
  • 11" (28cm) wheels allow easy manoeuvrability on different types of terrain. The wheels are designed to provide optimal traction and facilitate movement on uneven surfaces.
  • Front bullbar for additional safety and protection.
  • Line diameter: ⌀ 4 mm
Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

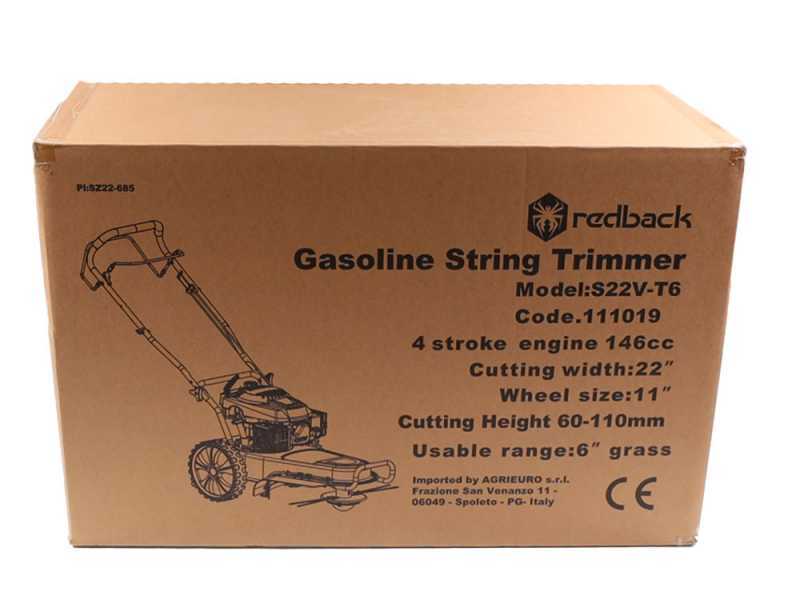

Free Items Included

The brush cutter is shipped in its original packaging.

  • Instructions manual included in the package.
  • 12 spare wires
