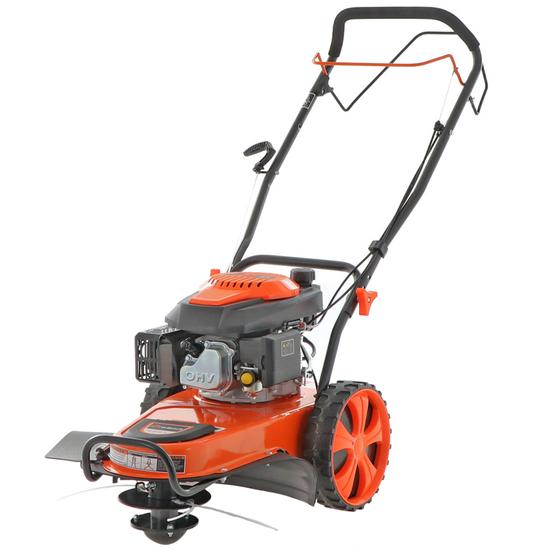

Redback S22-T6 - 4-stroke gasoline wheeled brush cutter

Questions & Answers (5)
ID: K606780

EAN: 6970601802355

MPN: S22-T6 (01212)

Redback S22-T6 - 4-stroke gasoline wheeled brush cutter
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor type
4-stroke
Motor brand
Producer-manufactured
Motor Model
T6
Cubic capacity
146 cm³
Nominal power
5 HP
Self-propelling
Hand push
Forward motion
Smooth wheels
Motor/blade drive
Intermediate belt drive
Line head accessoty
Included as standard
Recommended operating area
1000 s.q. m.
Product Features
Model:
S22-T6
Forward motion:
Smooth wheels
Type:
Wheeled
Type:
Line head
Operating mode:
Spark ignition
Grip:
Standard
Self-propelling:
Hand push
Recommended operating area:
1000 s.q. m.
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Redback
Motor Model:
T6
Motor type:
4-stroke
Cubic capacity:
146 cm³
No. of cylinders:
Single-cylinder
Nominal power:
5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Motor/blade drive:
Intermediate belt drive
Manufacturing country:
China
Transmission data
Operating mode:
Lever on the handlebar
Cutting data
Blade engagement:
Lever on the handle
Cutting width:
55.5 cm
Adjustable cutting height:
Yes
Equipment
Multifunctional:
No
Line head accessoty:
Included as standard
Primer pump :
Yes
Recoil start system (with rope):
Yes
Height-adjustable handle:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Standard line head:
Yes
Multi-line head:
Steel
Instructions manual:
Yes

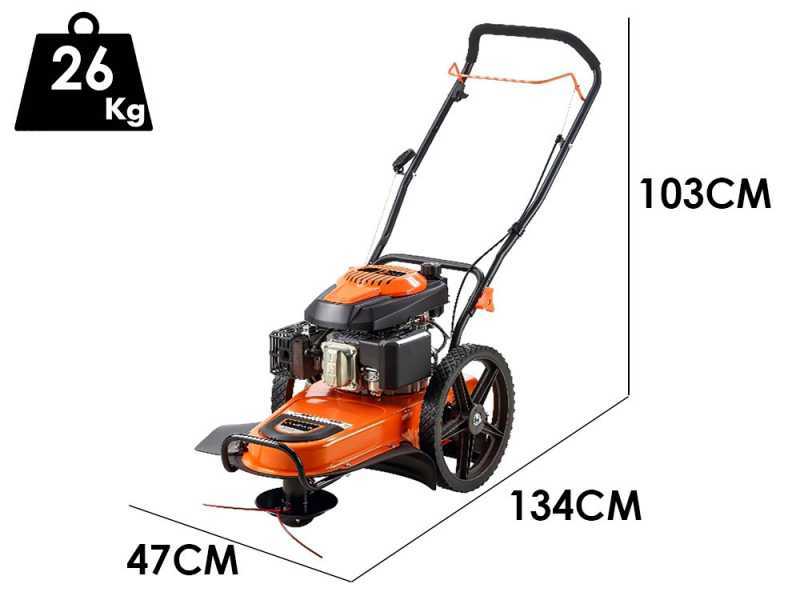

Dimensions and logistics
Product dimensions in cm (L x W x H):
134X47X103cm
Net weight:
26 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
84.5x58x54cm
Gross weight (packaging included) :
29 Kg
Assembly time:
15 minutes
Prompt Delivery
43 items in stock
Free Shipping
Estimated delivery: 05/06/2024 - 07/06/2024
€ 364,31
VAT Included

You're viewing:
Customers also viewed:
Description

Redback S22-T6 Wheeled Petrol Brush Cutter

The Redback S22-T6 petrol-powered wheeled brush cutter delivers without any effort a higher work output than a standard brush cutter, leaving a much cleaner and more homogeneous result and the grass is shredded more finely.

Perfect for those who want to achieve easily a higher work output than with an ordinary brush cutter. Thanks to its effectiveness, the work result is clean and even, with excellent shredding of the grass.

The machine is equipped with traction drive and large wheels (35.5 cm diameter).

This Redback S22-T6 wheeled brush cutter stands out for its belt-driven transmission between the engine and the blade.

The machine allows the cutting height to be adjusted from a minimum of 60 mm to a maximum of 110 mm, providing the necessary flexibility to adapt to different terrain and grass cutting requirements.

Handle height can also be adjusted in three different positions

ATTENTION:

This wheeled brush cutter does not include the installation of discs or blades. It is intended to be used exclusively with the wire head accessory provided.

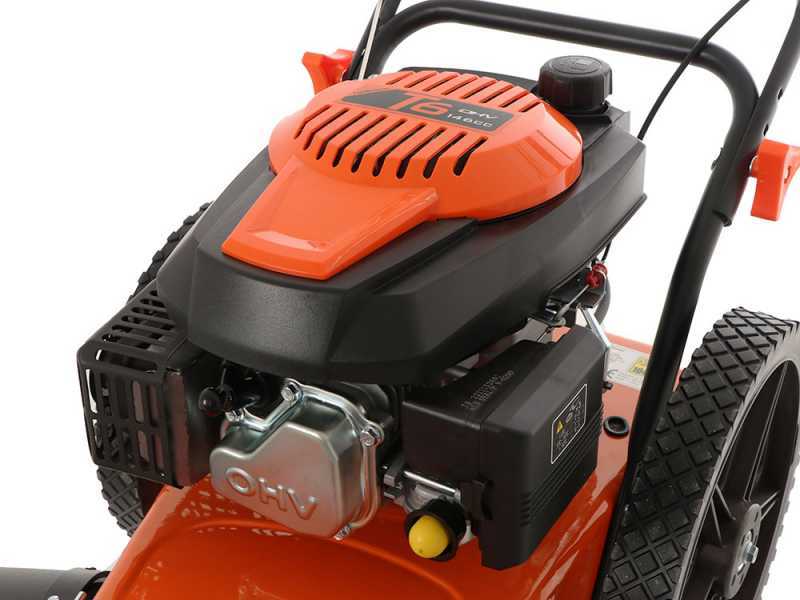

143 cc Engine

Powerful 146CC T6 engine and at an output speed of 3000rpm: this brush cutter offers reliable and quick performance

Features:

Engine type:
4-Stroke, single cylinder
Cylinder type:
Aluminium
Cubic capacity:
146 cc
Fuel:
Petrol
Engine cooling system
OVH (overhead valve)
The engine is easy to start thanks to its primer ignition and the handy recoil starter.

WARNING!
The engine is supplied without oil. Check the oil level before the first starting.


Nominal Power: 5 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.49 HP (at 3000 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

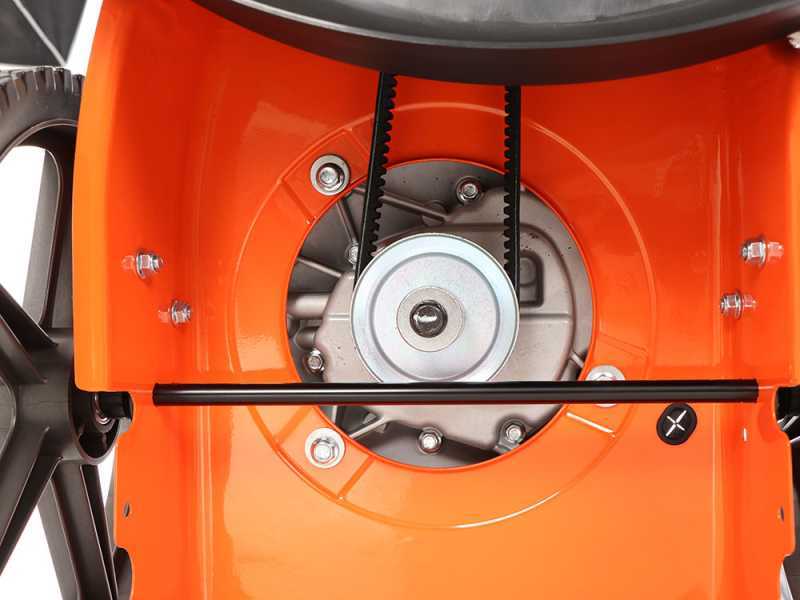

Line Head and Belt Transmission

The wheeled brush cutter stands out for its belt-driven transmission between the engine and the blade.

The wire head is assembled on a sturdy steel shaft, ensuring greater strength and durability.

The wire head, made entirely of high-strength steel, provides remarkable durability and strength against the strongest impacts. It can easily cut through different types of weeds, even the thickest ones, with little effort.

The working width of this brush cutter is an impressive 55.5 cm, allowing a large area to be covered in a single passage.

It is recommended to use a thick wire (4 mm diameter) for easy cutting of even the strongest weeds and to minimise wire consumption.

The replacement of the brush cutter line is very easy and requires only a few seconds.

Recommended for grass up to 15cm and sparse bushes up to 10cm

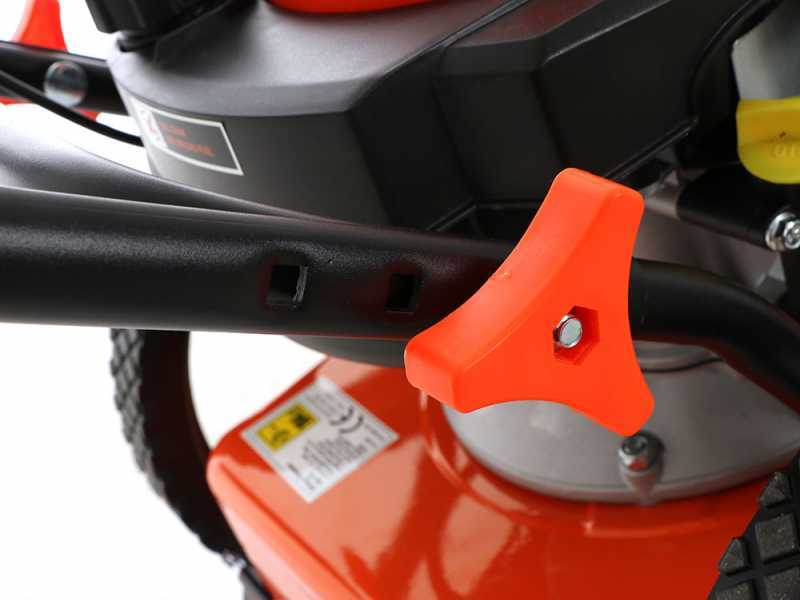

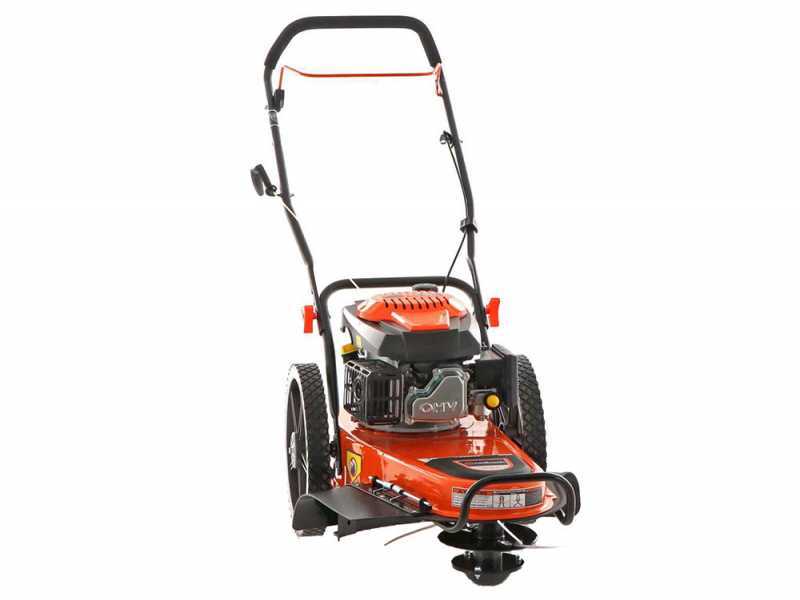

Controls and Handlebar

All the controls are placed on the handlebar. The handlebar is foldable with three different heights to choose from, depending on your preference.

Wire head activation and deactivation lever.
This innovative machine allows the wire head to be activated only where the work is to be done, and then deactivated whenever necessary.Accelerator handle.

The handle is rubberized in order to ensure optimal working comfort.

General Specifications

  • The housing is entirely built in enamelled steel. This gives to the machine great resistance to accidental impacts or small stones and obstacles during the cleaning operations.
  • 14" (35.5cm) wheels, providing greater stability and facilitating movement during use.
  • Front bullbar for additional safety and protection.

The shell thickness is 1.5 mm

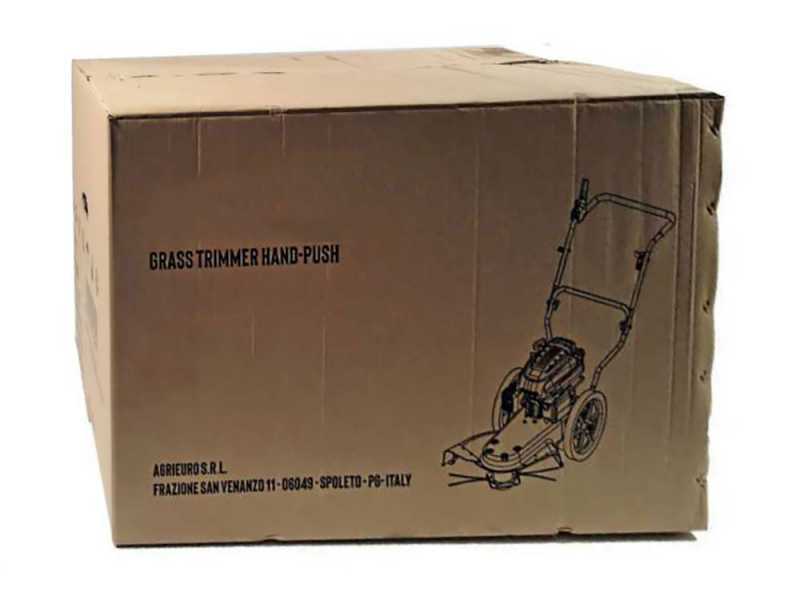

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free Items Included

The brush cutter is shipped in its original packaging.

  • Instructions manual included in the package.
  • 14 spare wires
