Nilfisk MH 3C Heavy-duty Single-phase Hot Water Pressure Washer

Add a question
ID: K606010

EAN: 5711145388957

MPN: 107146881

7,9/10
After-sales assistance & Spare parts
Nilfisk MH 3C Heavy-duty Single-phase Hot Water Pressure Washer
+20 sold
FREE
Free water supply connection kitFree water supply connection kit
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
600 L/h
Max. pressure
200 bar
Engine speed
2800 RPM
Engine
Induction
Delayed Total Stop
Yes
Operating mode
Single-phase 230 V
Thermostat
Yes
Wheeled
Type
Trolley
Hose reel
Detergent tank
Weight
116 Kg
Manufacturing country
Hungary
Product Features
Model:
MH 3C
Wheeled:
Type:
Trolley
Operating mode:
Single-phase 230 V
Operation mode:
Hot water
Max. outlet temperature:
150 °
Delta T - water temperature change:
40 °
Thermostat:
Yes
Detergent tank:
10
Detergent delivery:
Low-pressure
Diesel tank:
15 L
Fuel consumption:
2.4 kg/h
Anti-limestone tank:
Yes
Manufacturing country:
Hungary
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Motor speed:
2800 RPM
Max. power absorption:
3.7 Kw
Power supply:
220 V electric
Manufacturing country:
Denmark
Pump data
Pump type:
Inline-three cylinders
Heavy-duty linear pump:
Pistons material:
Stainless steel
Pump head material:
Brass
Brass pump head:
Engine speed:
2800 RPM
Flow rate:
10 lt/min. (600 lt/h.)
Max flow rate per minute:
10 L/min
Max. flow rate per hour:
600 L/h
Operating pressure:
145 bar
Max. pressure:
200 bar
Safety valve:
Yes
Manufacturing country:
Denmark
Equipment
Integrated detergent tank:
Yes
Detergent tank:
Type of attachment:
Quick coupling
Hose reel:
Delayed Total Stop:
Yes
Burner:
Yes
Stainless steel discharge pipe:
Yes
Analogue dashboard with indicator lights:
Yes
Tool holder:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Heavy-duty lance:
Yes
High-pressure hose for spray gun:
15m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
100x66x109cm
Net weight:
116 Kg
Packaging:
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H):
105x81x125
Gross weight (packaging included) :
130 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 18/11/2024 - 20/11/2024
€ 3.415,28
VAT Included
You're viewing:
Customers also viewed:
Description

Professional Single-phase Hot Water Pressure Washer

The MH 3C hot water high-pressure washer combines low running costs, high performance, ease of use, improved mobility and exceptional washing efficiency. The innovative design makes it easy to transport on all types of surfaces and the flow-activated control system contributes to even more comfortable machine use and ensures durability and reliability.

The EcoPower boiler with over 92% efficiency reduces fuel consumption and is the safest on the market, with a wide range of safety devices to reduce the risk of errors and reduce maintenance costs. In addition, the EcoMode at 60°C allows you to work with maximum burner efficiency.

It is ideal for daily washing of equipment and environments in sectors such as automotive, agriculture and craftsmen.

  • The highly efficient EcoPower boiler system
  • Optimal mobility
  • Possibility of storing accessories on the machine
  • Comfortable hose reel
  • Increased detergent tank capacity (10 L)
  • Optimum accessibility for both the operator and maintenance personnel

Suitable for a wide variety of uses, it is the ideal machine in agricultural environments, for cleaning and maintenance of machinery or in all professional tasks requiring deep cleaning. It is easily transportable thanks to the double handle on the back and the four wheels, which allow it to be moved easily and used wherever it is needed.

Brass head with 3 stainless steel pistons.

It is equipped with a vertical diesel-powered boiler that allows water to be heated up to 90°C degrees.

In addition to extreme practicality and high performance, it must be said that this hot water pressure washer is easy to handle, very comfortable to transport, and also features a very neat design. Simple and user-friendly controls.

Why choosing an hot water pressure washer The use of a hot water pressure washer is necessary when oily or particularly stubborn dirt needs to be broken down in the shortest possible time. The washing efficiency of hot water is considerably higher than that of cold water (up to 50% higher on certain types of residues), as the heat promotes the loosening of dirt, and the incidence of heat on the surface facilitates rapid drying. Main advantages deriving from the use of a hot water pressure washer: less washing time (for the same amount of dirt), better disintegration of non-water soluble dirt, less drying time and less detergent; in short, lower fixed cleaning costs.

Main Features

High-efficiency EcoPower boiler with an efficiency of over 92% that reduces fuel consumption, with eco mode it is possible to work at 60°C with maximum boiler efficiency: in fact, a temperature rise above 60°C increases fuel consumption.

The BURNER ADJUSTMENT THERMOSTAT: allows you to adjust the water outlet temperature

Possibility to choose the pressure at which the detergent is drawn from the tank (10 L). This is obtained by means of a knob on the dashboard

Large boiler discharge chuteis made of stainless steel.

Equipped with the innovative Delayed Total Stop system that stops the machine when the trigger is released on the gun to allow even greater energy savings and always maximum power when restarted than the traditional Total Stop System.

Low pressure detergent suction: The delivery of the chemical (which does not pass through the pump, but is sucked in with a Venturi system) takes place by reducing the operating pressure of the machine. It is therefore possible to distribute the product with a wide conical jet over surfaces close to the operator.

MOTOR: electric single-phase 4.9 hp (3.7 kW)

- Fuel tank: 15 L

- Cleaning impact: 2.6 kg/force

- Max. inlet temperature: 40°

- 2800 rpm

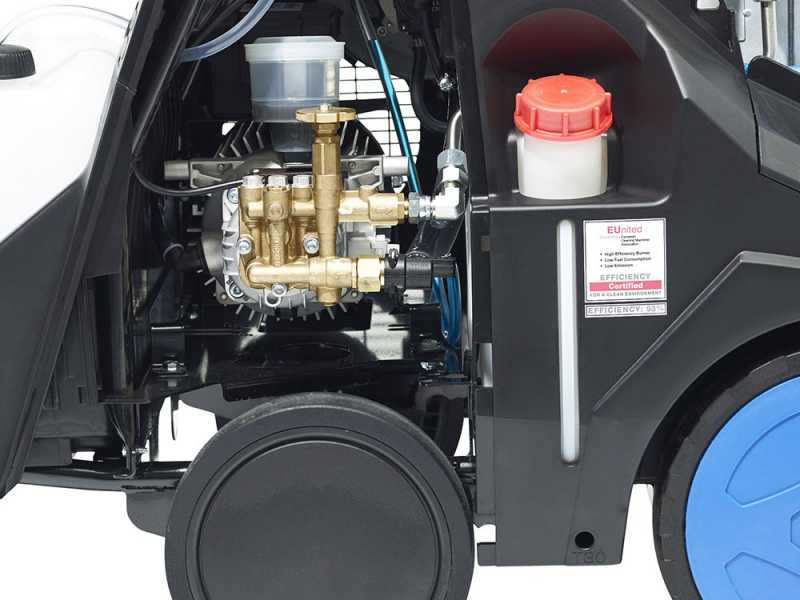

Pump Technical Specifications

MH 3C is equipped with pump with 3 in steel-coated in-line pistons and a high-efficiency 2800 rpm motor.

High-efficiency, low-consumption EcoPower boiler offers more efficient and faster cleaning.

FLOW RATE:

  • Max flow rate: 600 L/h (10 L/min) The flow rate is the most important technical data of a pressure washer, even before the pressure, as it identifies the real power of the unit.

OPERATING PRESSURE:

  • Max. 145 bar

Details:

  • Brass pump head
  • EcoPower boiler with Eco mode
  • Equipped with pump with 3 steel pistons
  • Indication light on the dashboard when the pump oil is about to run out.

Robust for prolonged applications. Ideal for large workshops, washing tractors and construction machinery, cleaning facades of large buildings.
Thanks to safety devices, downtimes can be minimised.

Additional Features

Easy and user-friendly controls which allow a rapid use of the unit.

Various indicator lights on the machine for optimum operation

Focus on the wide and comfortable handle

Focus on the gun and lance housing, which is present on both sides

Focus on the gun holder, present on both sides

Focus on the housing for storing the power cable, present on both sides

Focus on the brake

Focus on the 4 wheels

Focus on the storage tool compartment on top of the machine

Focus on the connection for easy transport

Focus on the water inlet

Focus on the fuel tank

Focus on the limestone inlet

Focus on the latch to open the motor bonnet for maintenance or other purpose

OVERALL SIZE: 100x66x109 cm

WEIGHT: 119 Kg

The machine is equipped with a tank with a float for water inlet, allowing the machine to have sufficient water reserve for operation (possibility of adding antifreeze liquid for winter storage)

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

Free Items Included

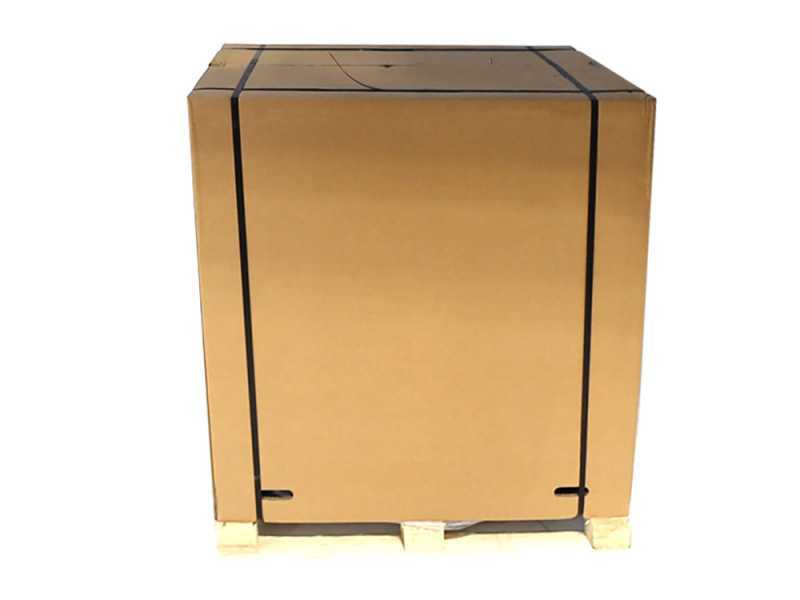

The Nilfisk hot water pressure washer is shipped in its original package. It comes fully assembled. You will just need to assemble the lance.

The packaging also includes:

- Professional hydro-gun

- UNIVERSAL PLUS 940 lance

- High-pressure hose

- Coupling for water hose connection

- Detergent
