Lavor XTR-R 1007 - Hot water high pressure washer - 135 bar - 420 l/h

Add a question
ID: K611779

EAN: 8013298029129

MPN: 36032-00057

8,0/10
After-sales assistance & Spare parts
Lavor XTR-R 1007 - Hot water high pressure washer - 135 bar - 420 l/h
Free gifts from AgriEuro
Gral detergent bottleGral detergent bottle
For Free: Oil & Smog Clean detergent bottleFor Free: Oil & Smog Clean detergent bottle
Mold & Moss Clean detergent bottleMold & Moss Clean detergent bottle
Free water supply connection kitFree water supply connection kit
Protection and storage tarp coverProtection and storage tarp cover
Out of stock
Free Shipping
€ 833,69
Vat included
Technical data
Heavy-duty axial pump
yes
Pump head material
Aluminium
Maximum hourly pump flow rate
420 L/h
Flow rate
7 L/min
Max. pressure
135 bar
Engine speed
2800 RPM
Engine
Induction
Operating mode
Single-phase 230 V
Wheeled
yes
Detergent tank
yes
Self-priming pump
yes
Weight
32 Kg
Hose length
8 m
Manufacturing country
Italy
Product Features
Model
XTR-R 1007
Wheeled
yes
Type
Wheeled
Operating mode
Single-phase 230 V
Operation mode
Hot water
Flow rate
7 L/min
Max. temperature
90 °
Delta T - water temperature change
50 °
Detergent delivery
Low-pressure
Diesel tank
8 L
Separated boiler ventilation unit
Yes
Manufacturing country
Italy
Motor data
Motor type
Electric single-phase
Engine
Induction
Motor speed
2800 RPM
Max. power absorption
1.6 Kw
Power supply
220 V electric
Manufacturing country
Italy
Pump data
Pump brand
Lavorwash
Pump type
3 axial cylinders
Heavy-duty axial pump
yes
Self-priming pump
yes
Pistons material
Steel
Pump head material
Aluminium
Aluminium pump head
yes
Engine speed
2800 RPM
Flow rate
7 L/min. (420L/h.)
Max flow rate per minute
7 L/min
Maximum hourly pump flow rate
420 L/h
Operating pressure
100 bar
Max. pressure
135 bar
Safety valve
Yes
Manufacturing country
Italy
Equipment
Integrated detergent tank
Yes
Detergent tank
yes
Type of attachment
M22 - Screw
Total Stop
Yes
Burner
Yes
Tool holder
Yes
Free gifts/extra features
Spray gun
Yes
Lance with adjustable nozzle
Yes
High-pressure hose for spray gun
8 mt
Hose length
8 m
Instructions manual
Yes
Dimensions and logistics

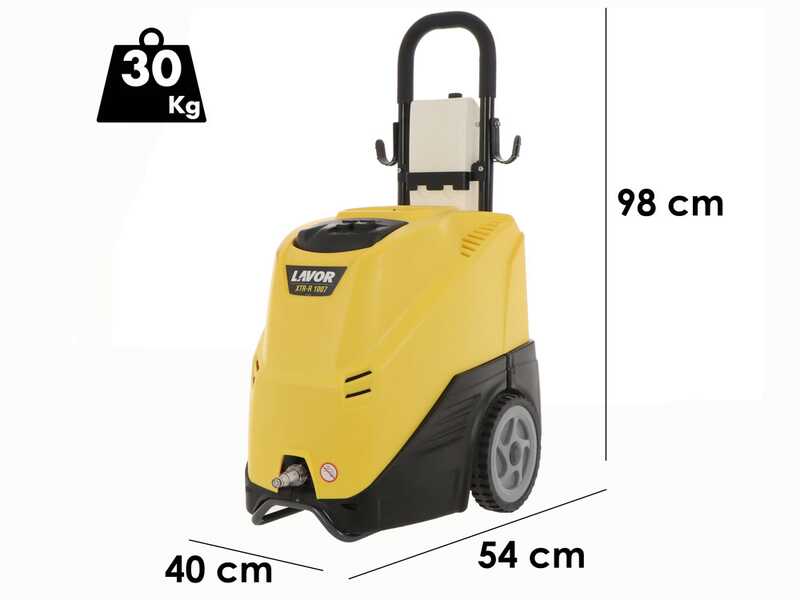

Product dimensions in cm (L x W x H)
63x42x64 cm
Net weight
32 Kg
Packaging
Original packaging
Weight including packaging
34.2 Kg
Assembly time
15 minutes

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Lavor XTR-R 1007 Hot Water Pressure Washer

The Lavor XTR 1007 single-phase hot water pressure washer is a machine for hobby use, designed for all those users who need to clean up different tools.

A very reliable product that is also extremely easy to use thanks to its intuitive controls.

The ergonomic handle is equipped with a practical toolholder.

Ideal for cleaning up vehicles, garden tools, floors and external walls. Also, suitable for sandblasting gates.

The model is capable of reaching a maximum temperature of 90 degrees. (Delta 50°)

FLOW RATE:

  • Max flow rate: 420 L/h The flow rate is the most important technical data of a pressure washer, even before the pressure, as it identifies the real power of the unit.

OPERATING PRESSURE:

  • 135 Max bar, among the highest pressure levels of its category.

The operating pressure is rated approx. at 100 bar


Why choosing a hot water pressure washer The use of a hot water pressure washer is necessary when oily or particularly stubborn dirt needs to be broken down in the shortest possible time. The washing efficiency of hot water is considerably higher than that of cold water (up to 50% higher on certain types of residues), as the heat promotes the loosening of dirt, and the incidence of heat on the surface facilitates rapid drying. Main advantages deriving from the use of a hot water pressure washer: less washing time (for the same amount of dirt), better disintegration of non-water soluble dirt, less drying time and less detergent; in short, lower fixed cleaning costs.

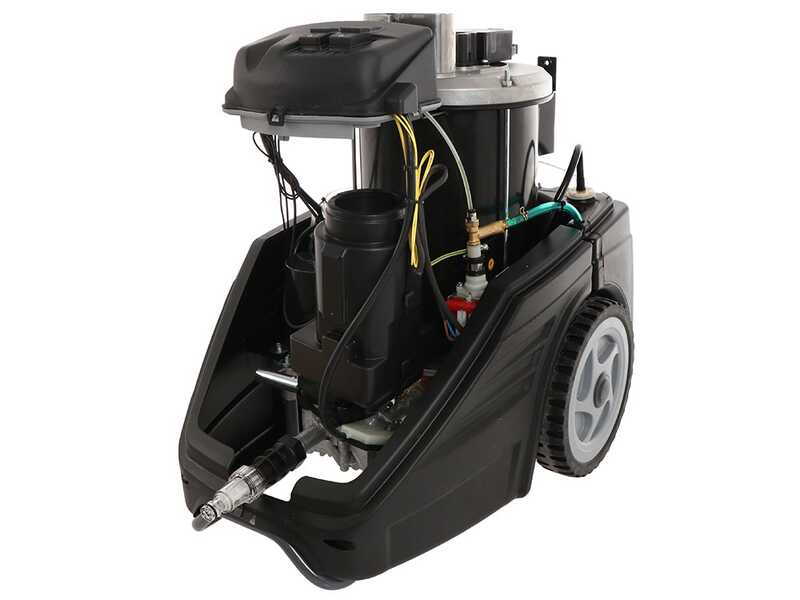

Main features

Vertical oil-fired boiler with high-efficiency steel coil.

Burner regulation - Optimised combustion Automatic temperature control selection

The large boiler discharge chute is made of stainless steel.

Auxiliary motor for boiler ventilation

Axial pump, The pistons run by means of the rotation of an inclined plate (forward motion) and springs (return). The longitudinal axis of the pistons (arranged at 120° to each other) is coaxial to the axis of rotation of the engine. Simple construction, there are few moving parts.

AUTOMATIC STOP SYSTEM, which allows activating or totally stop the machine by operating the gun lever.

Safety valve

Reinforced hose

MOTOR: Single-phase electric (220 V)

- Outer cleanser tank with low-pressure detergent suction with adjusting system. Equipped with special control, which is responsible for the cleanser dispensing at low pressure in place on the lance.

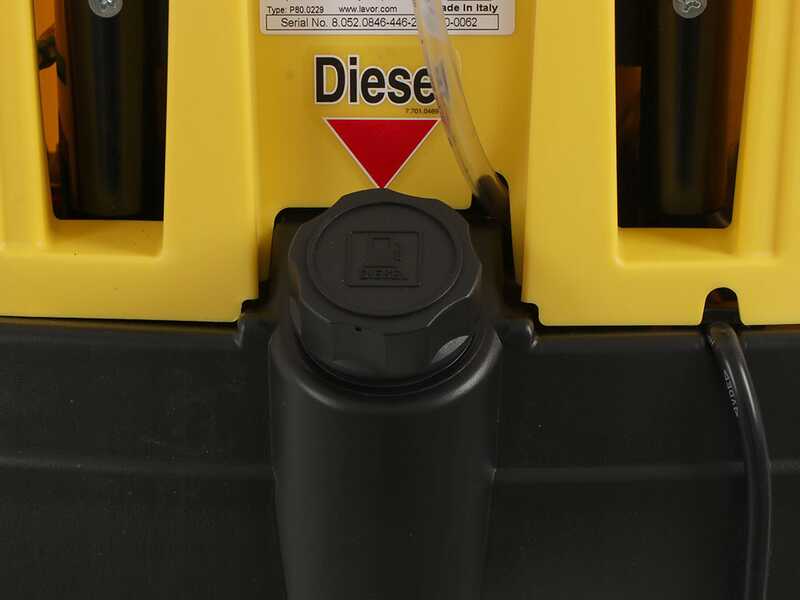

- Integrated fuel tank

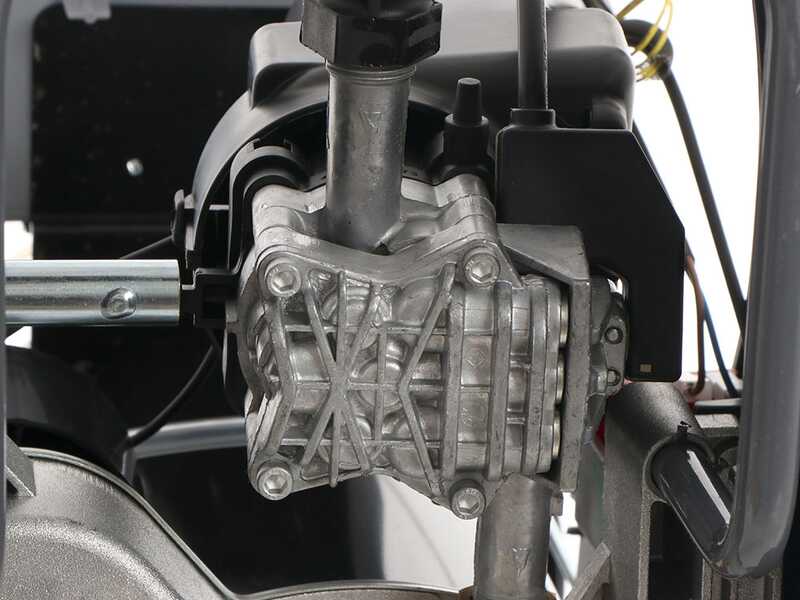

Pump

  • CHARACTERISTICS OF THE PUMP:

    • Pump with 3 axial pistons with aluminium head.
    • Motor rpm: 2800 RPM

    FLOW RATE:

    • 7.5 L/min The flow rate is the most important technical data of a pressure washer, even before the pressure, as it identifies the real power of the unit.

    OPERATING PRESSURE:

    • 100 bar, among the highest pressure levels of its category.

Additional specifications

Easy and user-friendly controls which allow a rapid use of the unit.

Focus on the large comfortable handle, which gives the possibility to hold all the standard-supplied tools as the gun and lance.

Focus on the wheels that allow to easily carry and transport the pressure washer.

Easy connection to your home water supply system

WEIGHT: 30 kg

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with ACQUASTOP (to be applied to the end of the irrigation pipe). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

COMPLIMENTARY: large protection and storage cover

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

It is easy to fold and store in its box without taking up space!

(The pictures are for illustrative purposes only)

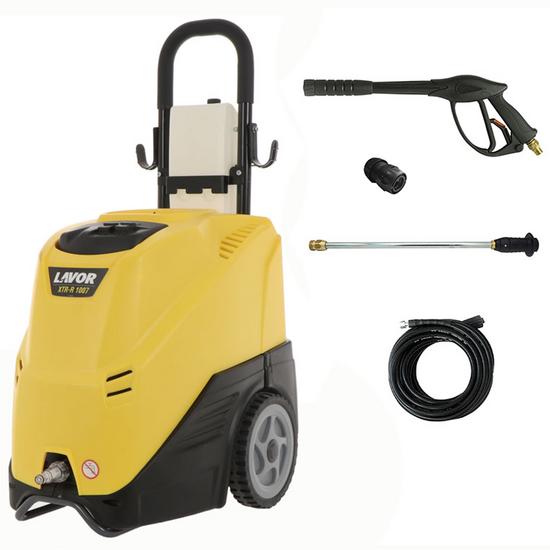

Free Items Included

The Lavor hot water pressure washer is shipped in its original packaging. It comes fully assembled. You will just need to assemble the lance.

The packaging also includes:

- Professional hydro-gun

- Professional adjustable lance (high or low pressure)

- 8m high pressure hose

- Hose clip with water stop

- Instruction manual
