Lavor Dakota-R 1713 GX Heavy-duty Three-phase Hot Water Pressure Washer

Add a question
ID: K502822

EAN: 8013298027798

MPN: 36081-00012

8,0/10
After-sales assistance & Spare parts
Lavor Dakota-R 1713 GX Heavy-duty Three-phase Hot Water Pressure Washer
+50 sold
FREE
Gral detergent bottleGral detergent bottle
For Free: Oil & Smog Clean detergent bottleFor Free: Oil & Smog Clean detergent bottle
Mold & Moss Clean detergent bottleMold & Moss Clean detergent bottle
Free water supply connection kitFree water supply connection kit
Protection and storage tarp coverProtection and storage tarp cover
Heavy-duty axial pump
Pump head material
Brass
Max. flow rate per hour
780 L/h
Max. pressure
170 bar
Engine speed
2800 RPM
Engine
Induction - 2 poles
Delayed Total Stop
Yes
Operating mode
Three-phase 400 V
Thermostat
Yes
Wheeled
Type
Trolley
Detergent tank
Self-priming pump
Weight
99 Kg
Manufacturing country
Italy
Product Features
Model:
Dakota-R 1713 GX
Wheeled:
Type:
Trolley
Operating mode:
Three-phase 400 V
Operation mode:
Hot water
Max. outlet temperature:
110 °
Delta T - water temperature change:
50 °
Thermostat:
Yes
Detergent tank:
4,2 lt
Detergent delivery:
Low-pressure
Diesel tank:
16 L
Separated boiler ventilation unit:
Yes
Manufacturing country:
Italy
Motor data
Motor type:
Electric three-phase
Engine:
Induction - 2 poles
Motor speed:
2800 RPM
Max. power absorption:
6.3 Kw
Power supply:
400 V electric
Manufacturing country:
Italy
Pump data
Pump brand:
Lavorwash
Model:
MPBX2
Pump type:
3 axial cylinders
Heavy-duty axial pump:
Self-priming pump:
Pistons material:
Ceramic
Pump head material:
Brass
Brass pump head:
Engine speed:
2800 RPM
Flow rate:
13 lt/min. (780 lt/h.)
Max flow rate per minute:
13 L/min
Max. flow rate per hour:
780 L/h
Operating pressure:
170 bar
Max. pressure:
170 bar
Safety valve:
Yes
Manufacturing country:
Italy
Equipment
Integrated detergent tank:
Yes
Detergent tank:
Type of attachment:
M22 - Screw
Delayed Total Stop:
Yes
Burner:
Yes
Stainless steel discharge pipe:
Yes
Tool holder:
Yes
Free gifts/extra features
Heavy-duty spray gun:
Yes
Heavy-duty lance:
Yes
High-pressure hose for spray gun:
8 mt
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
75x58x103 cm
Net weight:
99 Kg
Packaging:
On pallet
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 22/10/2024 - 24/10/2024
€ 1.865,61
VAT Included
You're viewing:
Customers also viewed:
Description

LAVOR PRO - Dakota-R 1713 XP T Professional Hot Water Pressure Washer

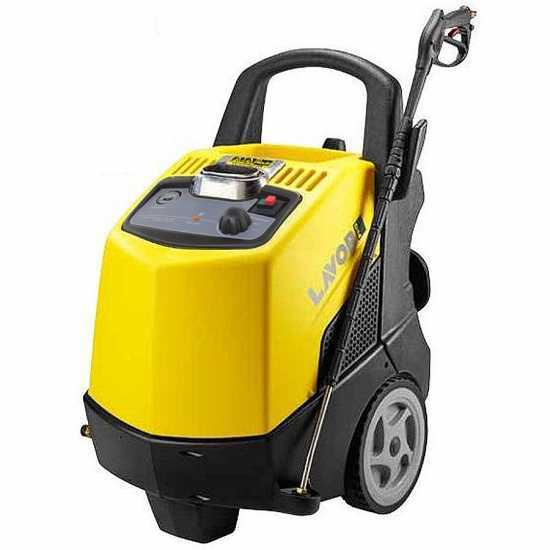

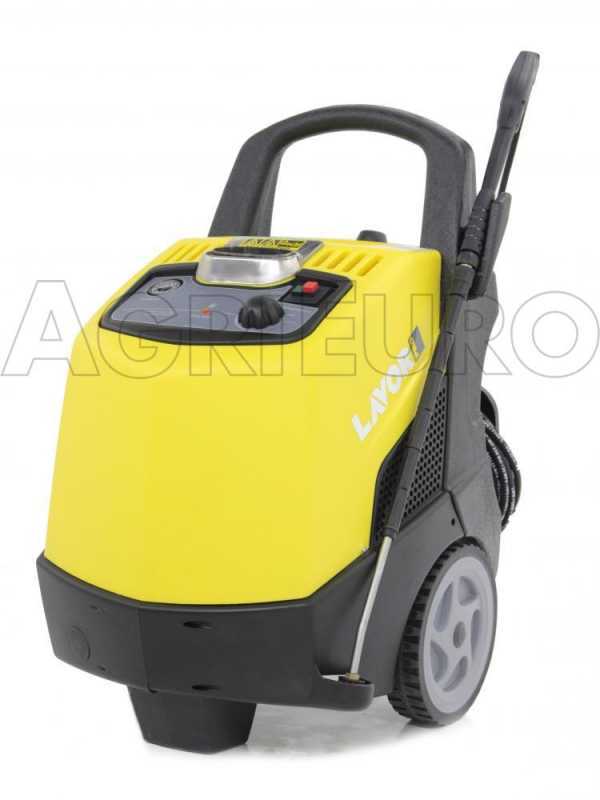

The Lavor Dakota-R 1713 GX three-phase hot water pressure washer is a heavy-duty machine, with high-quality pump, designed for professional users who need to remove greasy dirt or oil residues from engines and other equipment.

The excellent compactness of this pressure washer does not affect its performance at all. A really great power in a really small machine (even nowadays, machines of this power made by other manufacturers are very bulky)

Suitable for different uses, it is ideal in agriculture for cleaning and for maintenance of machinery, or for deep cleaning in all sectors.

The heavy-duty pump with brass head is made in Italy and it ensures excellent results, as well as durability and high performance.

EXCELLENT FLOW RATE:

  • 13 L/min (780 L/h) The flow rate is the most important technical data of a pressure washer, even more than pressure, as it indicates the real power of the machine

HIGH OPERATING PRESSURE:

  • 170 bar, among the highest of its category.

Made in Italy.

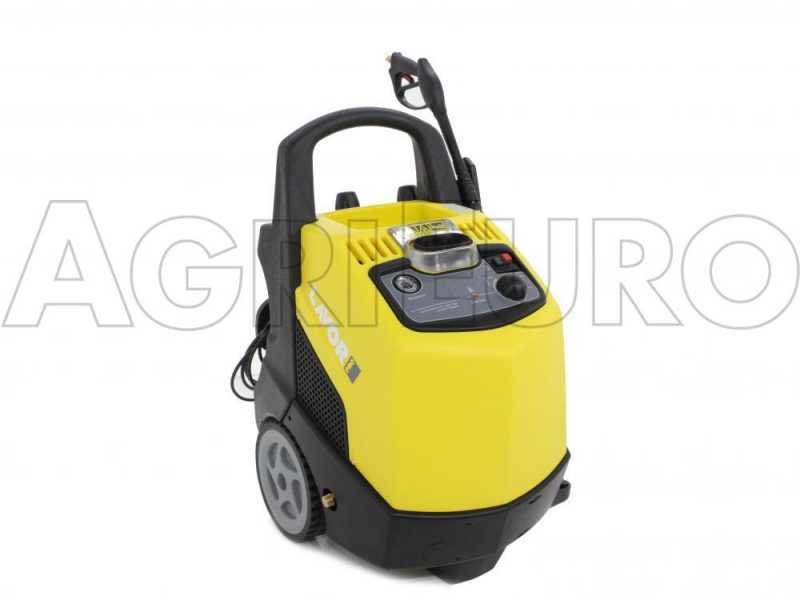

Main Features

Heavy-duty electric motor

The water-cooled electric motor provides the same number of revolutions to the pump. The low rpm of the components makes the machine really durable

Power consumption: 6000W only
Voltage: 400 V - 50 Hz

The lowest power consumption of its category, if we consider its incredible power
Equivalent machines of the best brands require a power consumption of around 7500W (1.5 kW more than this pressure washer)

Vertical boiler with steel coil:

  • Safety valve
  • Thermostat for temperature adjustment

The diesel tank capacity is 16 L 4.2 L detergent tank

Focus on the boiler outlet made of stainless steel.

HEAD PUMP: made of brass

This pressure washer features a LAVOR MPBX heavy-duty axial pump

FEATURES OF EXCELLENCE:

- axial pump: simple structure and performance of 13 L/min at 170 bar
- ceramic-coated pistons
- brass head
- integrated By-Pass valve

delayed low-pressure TOTAL STOP: automatic delayed motor switch-off when the gun is released

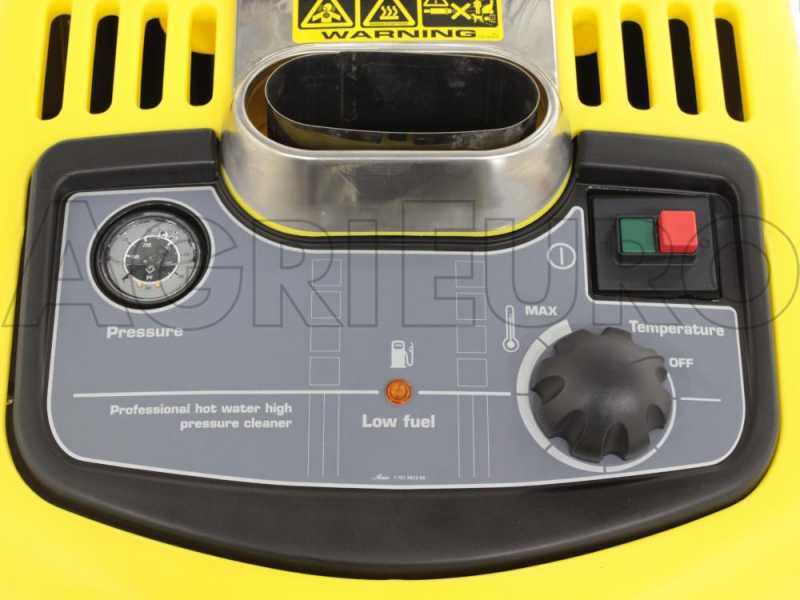

Control Panel and Professional Lance

User-friendly controls:

Power switch

Temperature regulator
Thermostat with adjustable temperature: 0 to 110°C

Pressure gauge

Low-fuel indicator

Focus on the professional lance with safety device

8 m high-pressure hose

Other Features

The 2 large rubber-coated wheels allow easy movement of the pressure washer despite its overall weight.

Brass connection fittings

Focus on the lance and hose holders.

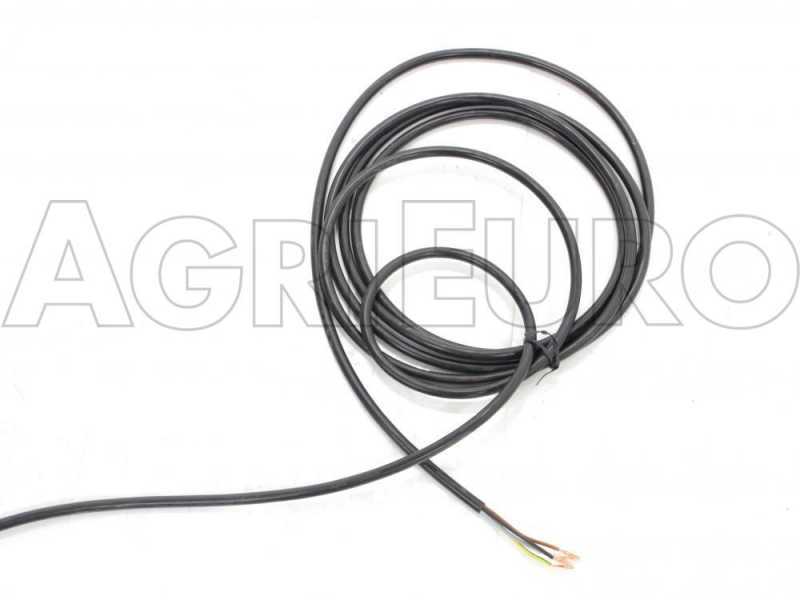

5 m three-phase power cable

DIMENSIONS: 63 x 100 x 90 cm

WEIGHT: 99 Kg

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

COMPLIMENTARY: large protection and storage cover

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

It is easy to fold and store in its box without taking up space!

(The pictures are for illustrative purposes only)

FOR FREE: AgriEuro Detergents Kit for Outdoor Cleaning - 3 Bottles 1 L

This AgriEuro Outdoor Detergents set includes three different 1 L bottles with different features that are essential for the cleaning of outdoor areas.

The set includes:

  • Gral: Gentle, highly effective antistatic cleaner for removing streaks and greasy dirt deposits from various types of surfaces: glass, ceramics, metal, lacquered wood, leather, plastic, etc.
  • Oil & Smog Clean: This alkaline detergent was designed for degreasing equipment, machinery, concrete and tiles effectively.
  • Recommended for removing smog from the front of houses, outdoor staircases and sidewalks.
  • Mold & Moss Clean: This chlorine acid detergent was designed to clean and sanitise at the same time. This product is essential when it comes to removing mold and moss from dark areas and environments where humidity is high. Particularly suitable for removing bad odours. Its high sanitising efficiency eliminates bacteria which cause unpleasant odour through fermentation.

Free Items Included

Lavor hot water pressure washer is shipped in its original packaging. You just need to assemble the lance.

The packaging also includes:

- professional hydro-gun

- 8 m high-pressure hose

- instructions manual
