Karcher Pro HD 5/13 EX Plus Classic - Professional Cold Water Pressure Washer - 170 bar max - 500 L/h

Add a question
ID: K610162

EAN: 4066529079886

MPN: 1.520-811.0

7,8/10
After-sales assistance & Spare parts
Karcher Pro HD 5/13 EX Plus Classic - Professional Cold Water Pressure Washer - 170 bar max - 500 L/h
Free gifts from AgriEuro
Free water supply connection kitFree water supply connection kit
Protection and storage tarp coverProtection and storage tarp cover
Heavy-duty axial pump
Pump head material
Brass
Max. flow rate per hour
500 L/h
Max. pressure
170 bar
Engine
Induction
Operating mode
Single-phase 230 V
Wheeled
Hose reel
Rotating nozzle
Nozzle only
Self-priming pump
Weight
23.3 Kg
Product Features
Model:
HD 5/13 EX Plus
Wheeled:
Type:
Wheeled
Operating mode:
Single-phase 230 V
Operation mode:
Cold water
Detergent delivery:
Low-pressure
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Max. power absorption:
2.4 Kw
Cooling:
With air
Manufacturing country:
China
Pump data
Pump brand:
Karcher
Pump type:
3 axial cylinders
Heavy-duty axial pump:
Self-priming pump:
No. of pump speeds:
1
Pistons material:
Ceramic-coated steel
Pump head material:
Brass
Brass pump head:
Max flow rate per minute:
8.4 L/min
Max. flow rate per hour:
500 L/h
Operating pressure:
130 bar
Max. pressure:
170 bar
Manufacturing country:
China
Equipment
Type of attachment:
Quick coupling
Hose reel:
Total Stop:
Yes
Easy Start:
Yes
Tool holder:
Yes
Power cable holder:
Yes
Free gifts/extra features
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Quick-connect nozzle lance:
Yes
Heavy-duty lance:
Yes
Rotating nozzle:
Nozzle only
Rotating nozzle:
Hose length:
8 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
36,6 x 33,4 x 95,4 cm
Net weight:
23.3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
78,5 x 39,5 x 50 cm
Weight including packaging:
28.5 Kg
Assembly time:
5 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 16/06/2025 - 18/06/2025
€ 818,30
Vat included
You're viewing:
Customers also viewed:
Description

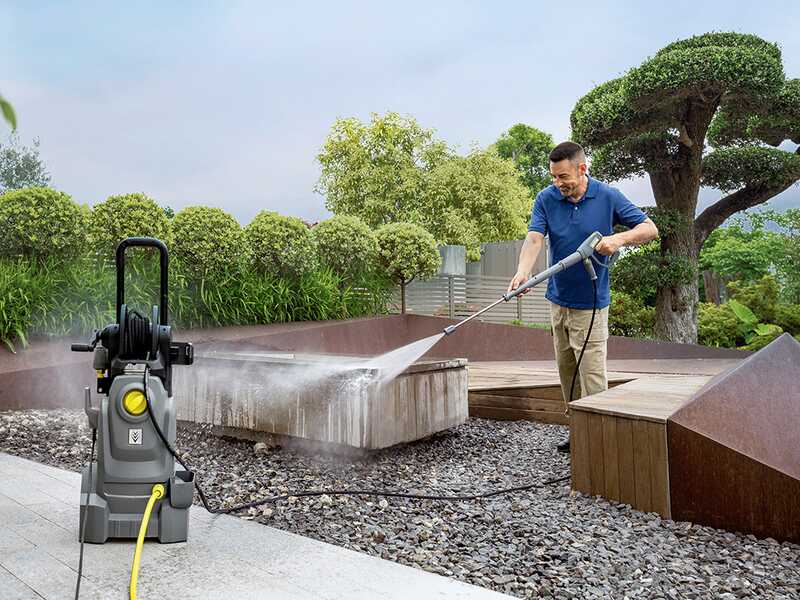

Karcher Pro HD 5/13 EX Plus Classic Pressure Washer

The Karcher HD 5/13 EX Plus Classic cold water pressure washer is a compact professional machine, designed to ensure high performance in construction, agriculture, and vehicle and machinery maintenance.

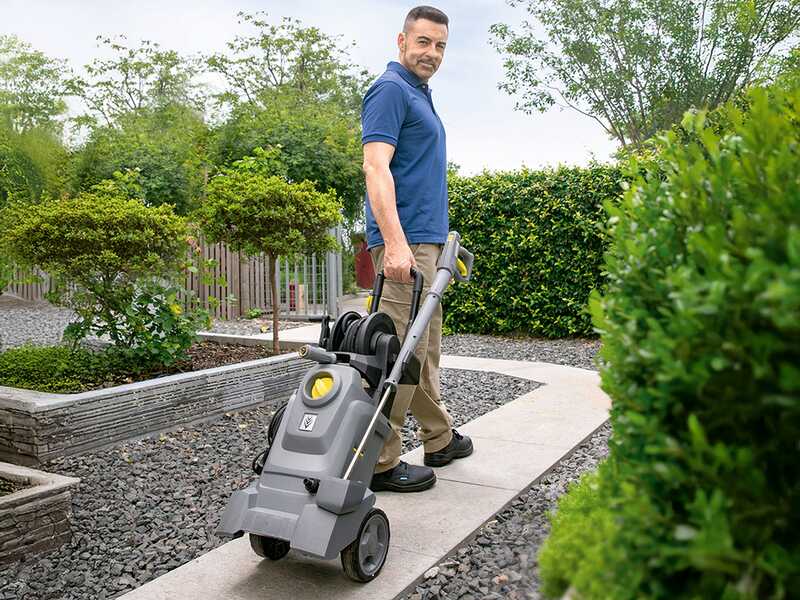

Thanks to its vertical structure with integrated trolley and large wheels, it is easily transportable on any type of surface, including construction sites with uneven pavements.

This pressure washer is equipped with a brass head, a three-piston axial pump in stainless steel coated with ceramic, and an automatic pressure reduction that preserves the internal components during standby phases. These elements ensure a long lifespan, reducing wear and ensuring reliability over time.

The 2.4 kW single-phase motor operates at a pressure of 130 bar and a maximum pressure of 170 bar, with a flow rate up to 500 l/h, making it suitable for stubborn dirt on hard and encrusted surfaces.

In terms of equipment, the pressure washer comes with a Power nozzle, a professional rotating nozzle, an 840 mm stainless steel lance, an 8 m high-pressure hose reinforced with steel mesh, and an integrated hose reel for practical management.

The professional high-pressure gun includes a stainless steel valve and an EASY!Lock system, allowing quick, stable, and durable connections, drastically reducing the assembly and disassembly times of the machine.

The modern and functional design integrates cable hooks and compartments to store all accessories.

Distinctive features:

  • Brass head with ceramic-coated stainless steel pistons: ensures durability, resistance to high pressures, and less wear.
  • Automatic pressure reduction: protects pump and fittings, increasing the pressure washer's lifespan.
  • EASY!Lock system: quick and secure connections, ideal for frequent interventions or intensive use.
  • High-pressure hose DN6 with steel reinforcement: ensures resistance up to 250 bar and long lifespan.
  • Ergonomic design and integrated accessories: compact structure with hose reel and dedicated compartments for each component.

The high-pressure washer Karcher HD 5/13 EX Plus Classic represents an efficient and durable solution for professional use, ensuring consistent performance and reliability even in the most challenging working conditions.

Pump and Motor

Axial pump with stainless steel pistons / brass head

An axial pump with a brass head for a pressure washer is a fundamental component that plays a crucial role in the water pressurization mechanism.

Here are some advantages of an axial pump with a brass head:

Construction and Materials Brass Head: The choice of brass for the pump head is significant. Brass, being corrosion-resistant and relatively soft, ensures a good seal and long lifespan.

Axial Pump: The axial design means that the pump shaft and the fluid movement axis are the same.

Pressure Mechanism Operation: Axial pumps increase water pressure by passing it through a series of pistons that move synchronously with the pump shaft. This movement is generated by the rotation of a shaft directly connected to the pressure washer's motor.

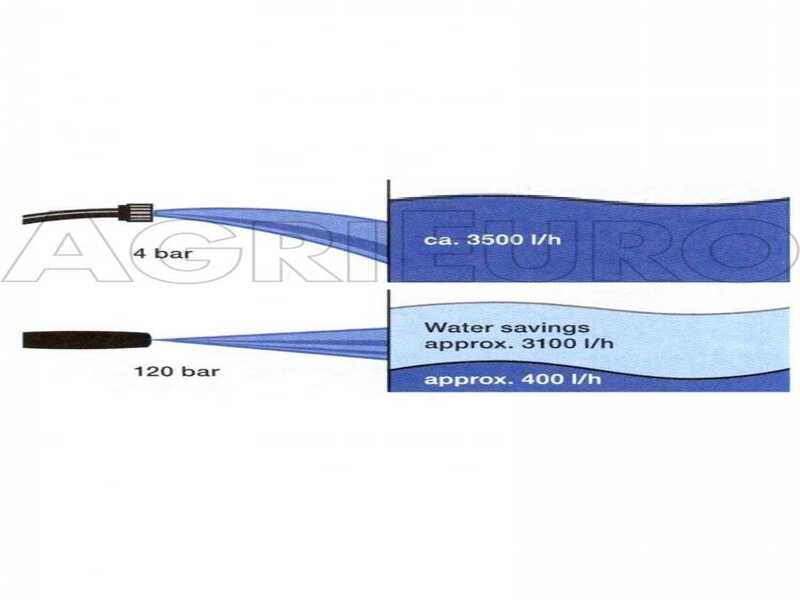

The pressure of a pressure washer is very important. Even more so is the flow rate: very often low-cost products have high pressure but very little flow rate, making these items ineffective. A minimum acceptable flow rate must be at least 350 lt/hour.

  • Working pressure: 130 bar
  • Max pressure: 170 bar
  • Flow rate: 500 l/h
  • Max inlet temperature: 60°C
  • Protection class: IPX5
  • Single-phase electric motor.
  • Electric cable: 5m
  • Motor absorption: 2.4 kW max

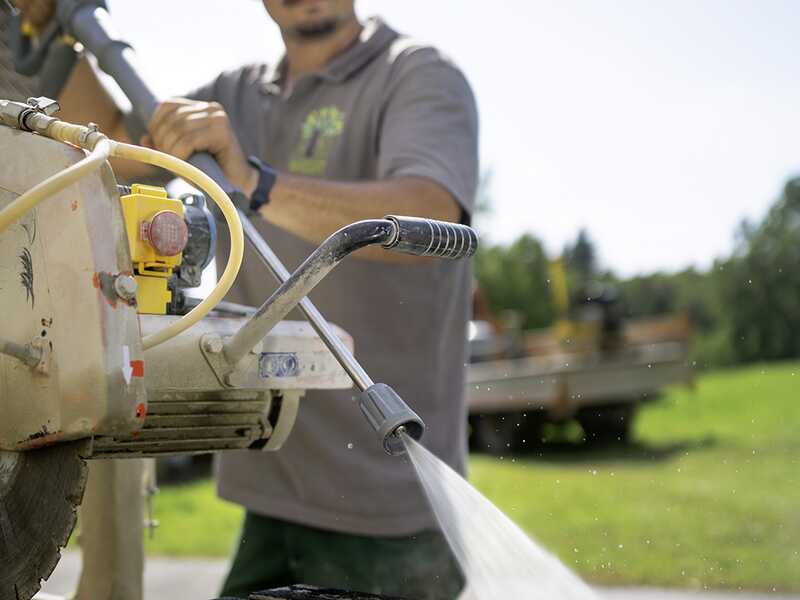

Karcher TR 155°C Gun and 840 mm Lance

Karcher TR 155°C Gun and 840 mm Lance for professional and advanced use.

The pressure washer is equipped with a dedicated housing for the gun and lance.

The lance is of professional type with quick coupling equipped with an extension and safety.

By exploiting the counter-pressure of the water, the operator's effort to keep the gun open is reduced to zero.

Nozzle size: 032

Water supply: 3/4″

Other Features

The automatic pressure relief system effectively protects the hydraulic components, thus ensuring a long lifespan and very low repair and maintenance costs.

Durable and resistant EASY!Lock quick connectors. Five times faster than conventional screw connectors.

Main details:

  • TR 155°C Gun and 840mm Lance
  • Hose reel with crank
  • Electric cable support
  • Simple and intuitive controls
  • Lance housing
  • Handle
  • Transport handle
  • Nozzle support
  • Connection for water supply network
  • High-pressure EASY!Lock connection
  • Integrated filter
  • Convenient wheels for movement
Free items & Standard equipment

Complimentary

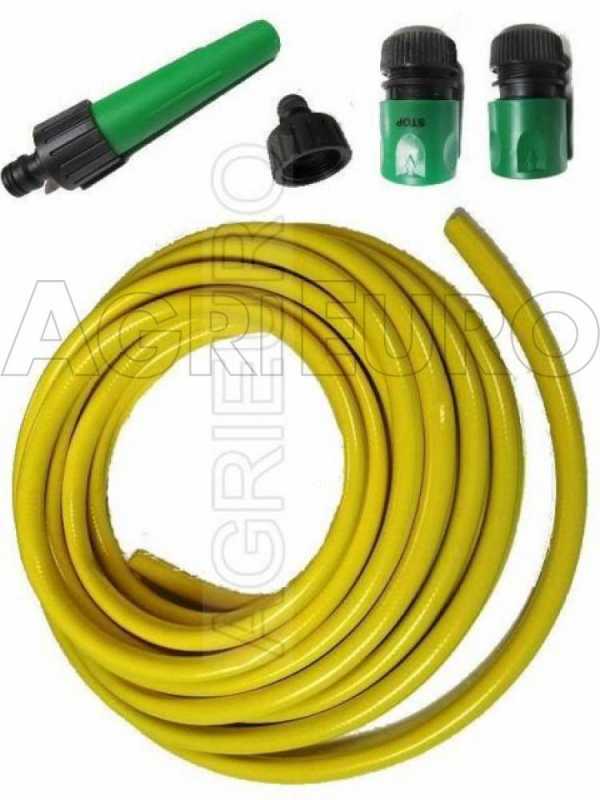

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

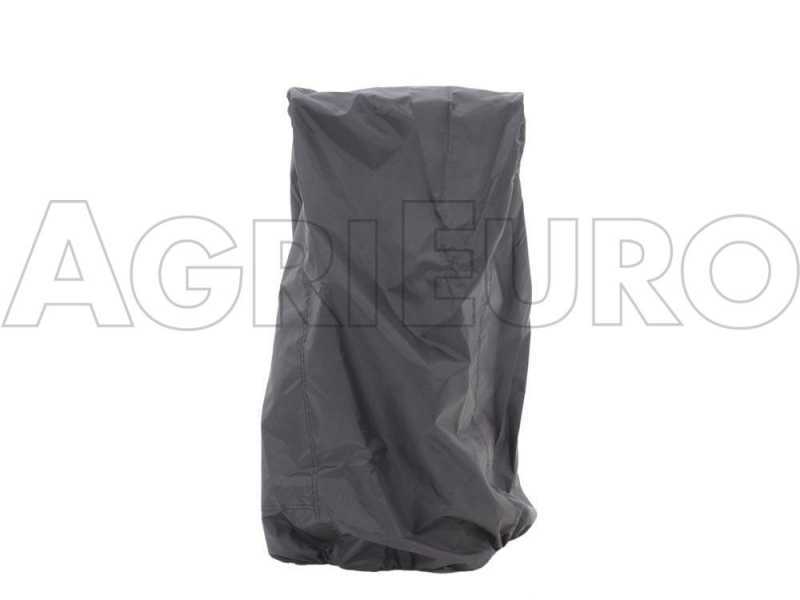

Protection and Storage Cover for Pressure Washers - Size: - Medium

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower border to perfectly fit to the shape of the machine.

Easy to fold and store in its box and space-saving!

Free Items Included

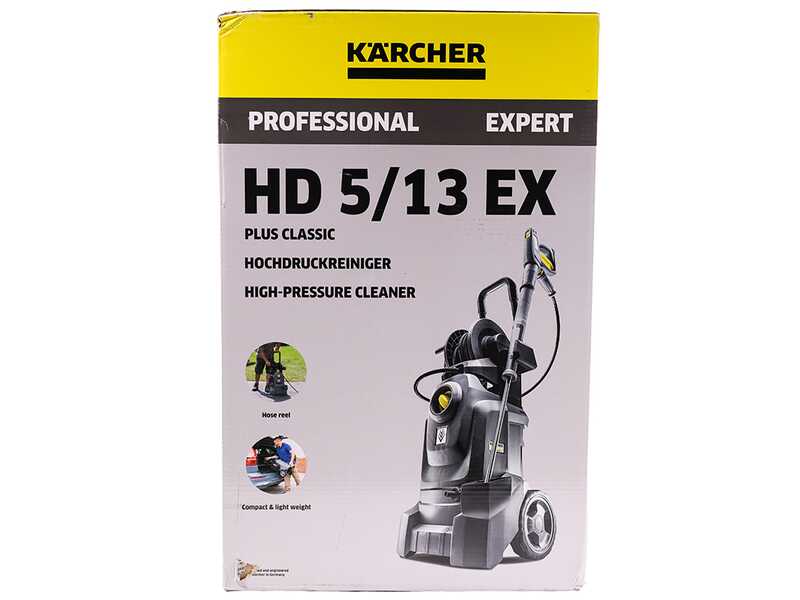

The pressure washer arrives in its original packaging.

Assembly instructions

  • TR 155°C Gun
  • High pressure hose 8 m TR DN6 250 bar
  • Lance 840 mm
  • Power nozzle
  • Rotating nozzle TR 035 Small
  • Screw connector
  • Water hose connector
