ITM - HOT STEEL 200/15 Heavy-duty Three-phase Hot Water Pressure Washer - INOX

Questions & Answers (8)
ID: K607583

EAN: 8023141045831

MPN: HOT STEEL 200/15

7,9/10
After-sales assistance & Spare parts
ITM - HOT STEEL 200/15 Heavy-duty Three-phase Hot Water Pressure Washer - INOX
+200 sold
FREE
Gral detergent bottleGral detergent bottle
For Free: Oil & Smog Clean detergent bottleFor Free: Oil & Smog Clean detergent bottle
Mold & Moss Clean detergent bottleMold & Moss Clean detergent bottle
Heavy-duty linear pump
Pump head material
Nickel-plated brass
Max. flow rate per hour
900 L/h
Max. pressure
200 bar
Engine speed
1450 RPM
Body material
Stainless steel
Engine
Induction
Operating mode
Three-phase 400 V
Thermostat
Yes
Pump brand
Annovi&Reverberi
Pump Model
RK 15.20
Wheeled
Type
Trolley
Detergent tank
Weight
120 Kg
Manufacturing country
Italy
Product Features
Model:
HOT STEEL 200/15
Wheeled:
Body material:
Stainless steel
Type:
Trolley
Operating mode:
Three-phase 400 V
Operation mode:
Hot water
Max. outlet temperature:
100 °
Delta T - water temperature change:
60 °
Thermostat:
Yes
Detergent tank:
2 L
Detergent delivery:
Low-pressure
Diesel tank:
18 L
Fuel consumption:
5.7 kg/h
Manufacturing country:
Italy
Motor data
Motor type:
Electric three-phase
Engine:
Induction
Motor speed:
1450 RPM
Max. power absorption:
5.7 Kw
Power supply:
400 V electric
Manufacturing country:
Italy
Pump data
Pump brand:
Annovi&Reverberi
Pump Model:
RK 15.20
Pump type:
Inline-three cylinders
Heavy-duty linear pump:
Pistons material:
Ceramic
Pump head material:
Nickel-plated brass
Brass pump head:
Engine speed:
1450 RPM
Flow rate:
15 L/min (900 L/h)
Max flow rate per minute:
15 L/min
Max. flow rate per hour:
900 L/h
Operating pressure:
200 bar
Max. pressure:
200 bar
Safety valve:
Yes
Manufacturing country:
Italy
Equipment
Detergent tank:
Yes
Detergent tank:
Type of attachment:
M22 - Screw
Burner:
Yes
Stainless steel discharge pipe:
Yes
Free gifts/extra features
Heavy-duty spray gun:
Yes
Lance with adjustable nozzle:
Yes
Heavy-duty lance:
Yes
High-pressure hose for spray gun:
10 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
110x70x90 cm
Net weight:
120 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
110x70x100 cm
Gross weight (packaging included) :
130 Kg
Assembly time:
Assembled
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 26/06/2024 - 28/06/2024
€ 2.908,78
VAT Included
You're viewing:
Customers also viewed:
Description

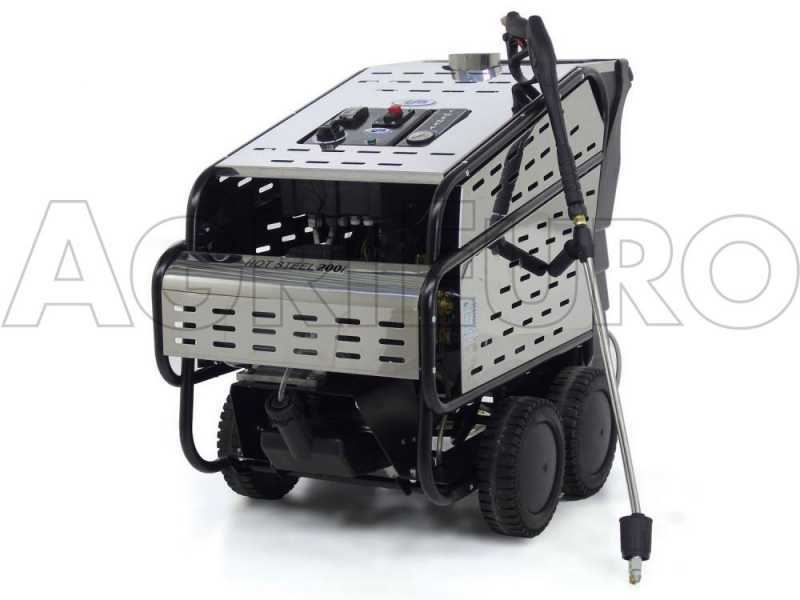

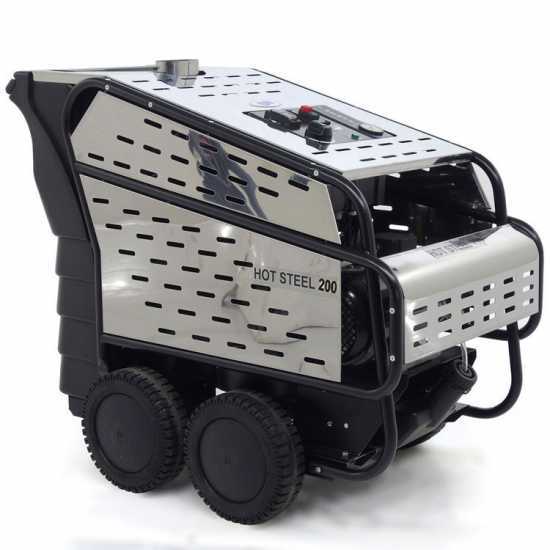

ITM - HOT STEEL 200/15 Heavy-duty Hot Water Pressure Washer

The ITM - HOT STEEL 200/15 three-phase hot water pressure washer is a heavy-duty machine featuring high-quality pump with low rotation speed (1450 rpm), designed for professional users who need to remove greasy dirt or oil residues from engines and other equipment.

ITM Italia pressure washers are machines entirely manufactured in Italy, focused on product reliability and robustness, using top quality components.

Great attention to the coating materials using a painted tubular frame and a casing made entirely of STAINLESS STEEL.

This hot water high-pressure cleaner is characterised by:

  • high reliability of the components;
  • sturdy structure;
  • attractive design;

The heavy-duty pump with brass head is made in Italy and it ensures excellent results, as well as durability and high performance.

ITM - HOT STEEL 200/15 hot water pressure washer features a positive displacement pump with brass head and low speed (1450 rpm).

EXCELLENT FLOW RATE:

  • 15 L/min (900 L/h) The flow rate is the most important technical data of a pressure washer, even more than pressure, as it indicates the real power of the machine

HIGH OPERATING PRESSURE:

  • 200 bar, among the highest of its category.

DO NOT ADJUST THE PRESSURE!


Made in Italy.

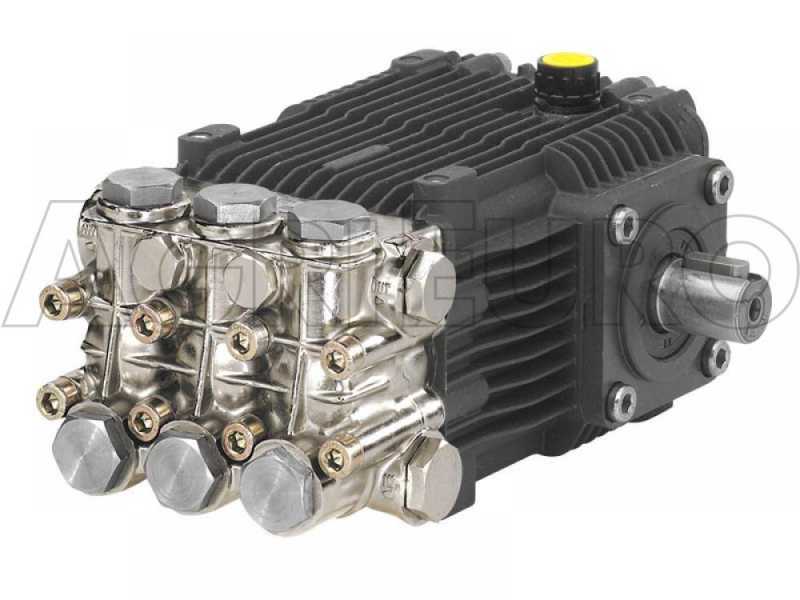

RK 15.20 Pump

The pump is the main component of a pressure washer, in this case ITM features a high-quality Annovi & Reverberi RK 15.20 pump, professional, with low rotation speed (1450 rpm).

The nickel-plated brass head makes the pump even more resistant, providing maximum reliability and performance.

The pump features:

  • Reciprocating 3-piston positive displacement pump
  • Pump body and covers in die-cast aluminium alloy
  • Piston movement via the connecting rod-crank system
  • Pump shaft made of pressed high-strength steel
  • Oversized bench bearings
  • Connecting rods made of special die-cast zinc-aluminium alloy with anti-friction properties
  • Ceramic pistons
  • Nickel-plated brass pump head
  • Double gasket sealing system
  • Valve caps on both suction and discharge side for improved maintenance

EXCELLENT FLOW RATE:

  • 15 L/min (900 L/h) The flow rate is the most important technical data of a pressure washer, even more than pressure, as it indicates the real power of the machine

HIGH OPERATING PRESSURE:

  • 200 bar, among the highest of its category.

The glycerin-filled pressure gauge is placed on the dashboard.

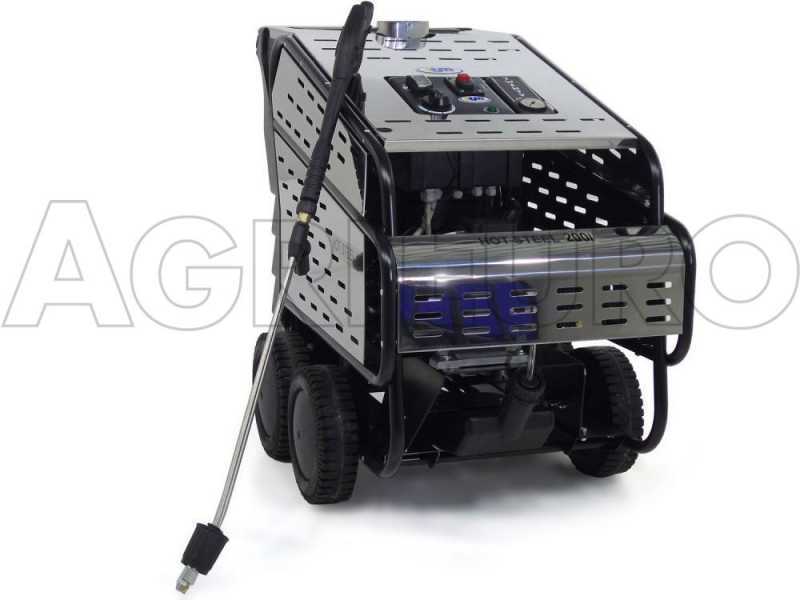

Main Features

MOTOR: 7.6 hp (5.7 kw) three-phase electric (400 V)

  • Thermal switch for motor protection
  • Thermostat for temperature adjustment

Boiler with diesel burner:

  • Vertical dry boiler with gear-driven oil pump and independent burner motor.

The diesel tank capacity is 18 L.

Focus on the boiler outlet made of stainless steel.

HEAD PUMP: made of nickel-plated brass

The great attention to detail and the technical and structural features make this product reliable and extremely performing.

  • NICKEL-PLATED BRASS HEAD
  • Ceramic pistons
  • Motor with thermal protection
  • Built-in control thermostat
  • External by-pass valve

HIGH OPERATING PRESSURE: 200 bar

Professional delayed TOTAL STOP: automatic motor shutdown when the gun is released with a 15-second delay, ensuring that work can be resumed immediately.

The 2 L detergent tank with low-pressure suction is placed in the lower part of the machine.

Double lance with high/low pressure device. With this lance you will have both the foam lance and high-pressure lance handy, simply use the crank on the lance to lower the pressure and enable the suction of the detergent.

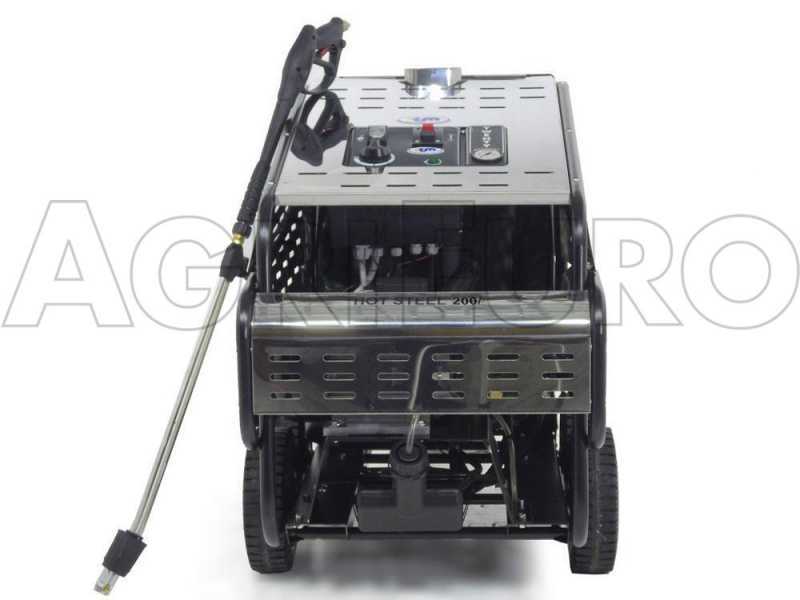

Other Features

Suitable for different uses, it is ideal in agriculture for cleaning and for maintenance of machinery, or for deep cleaning in all sectors.

Easy and user-friendly controls which allow a quick use of the machine:

  • Switch for machine voltage and pump start
  • Second switch for burner start
  • Knob for water outlet adjustment

The 4 large rubber-coated wheels allow easy movement of the pressure washer despite its overall weight.

The all-stainless steel casing offers superior resistance to corrosion and chemicals.

DIMENSIONS: 110 x 70 x 90 cm

WEIGHT: 120 kg

Free items & Standard equipment

FOR FREE: AgriEuro Detergents Kit for Outdoor Cleaning - 3 Bottles 1 L

This AgriEuro Outdoor Detergents set includes three different 1 L bottles with different features that are essential for the cleaning of outdoor areas.

The set includes:

  • Gral: Gentle, highly effective antistatic cleaner for removing streaks and greasy dirt deposits from various types of surfaces: glass, ceramics, metal, lacquered wood, leather, plastic, etc.
  • Oil & Smog Clean: This alkaline detergent was designed for degreasing equipment, machinery, concrete and tiles effectively.
  • Recommended for removing smog from the front of houses, outdoor staircases and sidewalks.
  • Mold & Moss Clean: This chlorine acid detergent was designed to clean and sanitise at the same time. This product is essential when it comes to removing mold and moss from dark areas and environments where humidity is high. Particularly suitable for removing bad odours. Its high sanitising efficiency eliminates bacteria which cause unpleasant odour through fermentation.



Free Items Included

ITM hot water pressure washer is shipped in its original packaging. You just need to assemble the lance.

The packaging also includes:

- professional hydro-gun

- double lance with foam and high-pressure nozzles

- 10 m high-pressure hose

- instructions manual
