Idromatic Mec 170.13 - Three-Phase Cold Water Pressure Washer - Brass Pump

Add a question
ID: K607073

EAN: 8053435095372

MPN: 10.20.A2300

7,5/10
After-sales assistance & Spare parts
Idromatic Mec 170.13 - Three-Phase Cold Water Pressure Washer - Brass Pump
FREE
Gral detergent bottleGral detergent bottle
For Free: Oil & Smog Clean detergent bottleFor Free: Oil & Smog Clean detergent bottle
Mold & Moss Clean detergent bottleMold & Moss Clean detergent bottle
Free water supply connection kitFree water supply connection kit
Protection and storage tarp coverProtection and storage tarp cover
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
780 L/h
Max. pressure
170 bar
Engine speed
1450 RPM
Body material
Stainless steel
Operating mode
Three-phase 400 V
Pump brand
Annovi&Reverberi
Wheeled
Self-priming pump
Weight
49 Kg
Manufacturing country
Italy
Product Features
Model:
mec 170.13
Wheeled:
Body material:
Stainless steel
Type:
Wheeled
Operating mode:
Three-phase 400 V
Operating mode:
Electric 400V
Operation mode:
Cold water
Detergent delivery:
Low-pressure
Manufacturing country:
Italy
Motor data
Motor type:
Electric single-phase
Motor speed:
1450 RPM
Cooling:
With air
Manufacturing country:
Italy
Pump data
Pump brand:
ANNOVI REVERBERI
Pump brand:
Annovi&Reverberi
Model:
RC 13.17
Pump type:
Inline-three cylinders
Heavy-duty linear pump:
Self-priming pump:
Pistons material:
Ceramic-coated steel
Pump head material:
Brass
Brass pump head:
Engine speed:
1450 RPM
Flow rate:
13 L/min
Max flow rate per minute:
13 L/min
Max. flow rate per hour:
780 L/h
Operating pressure:
150 bar
Max. pressure:
170 bar
Manufacturing country:
Italy
Equipment
External detergent suction hose:
Yes
Type of attachment:
M22 - Screw
On wheeled frame (with wheels and handles):
Yes
Rear wheels size:
255M
Wheel Type:
Rubber tyre tread
Free gifts/extra features
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Heavy-duty lance:
Yes
Hose length:
10 m
Fixed brush:
No
Rotating brush:
No
Instructions manual:
Yes
Dimensions and logistics

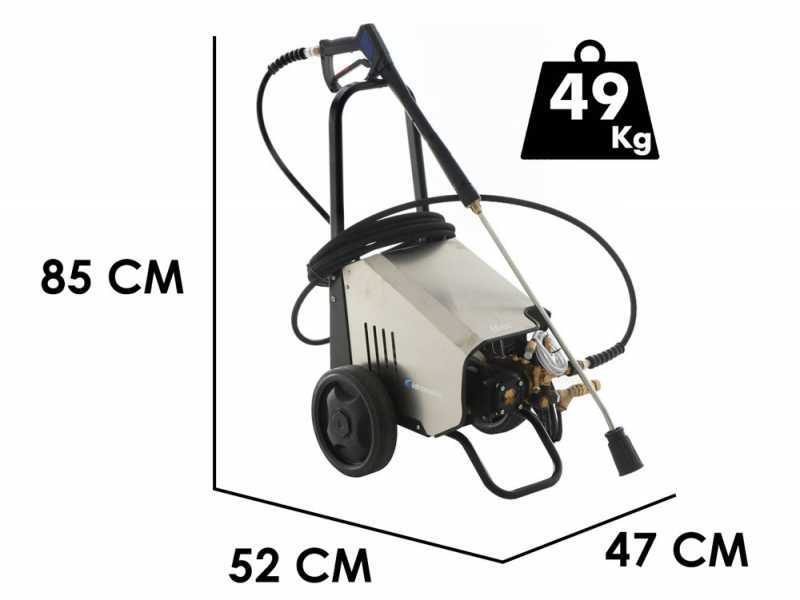

Product dimensions in cm (L x W x H):
85X47X52
Net weight:
49 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
60X50X78cm
Gross weight (packaging included) :
50 Kg
Assembly time:
15 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 05/08/2024 - 07/08/2024
€ 1.451,38
VAT Included

You're viewing:
Customers also viewed:
Description

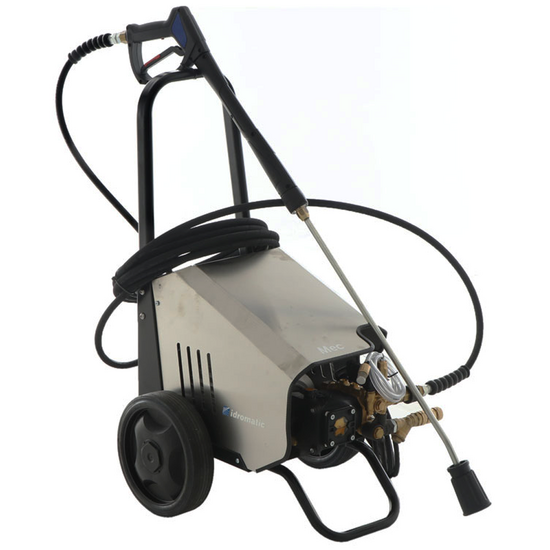

Idromatic mec 170.13 - Cold Water Pressure Washer

The Idromatic pico 170.13 cold water pressure washer is a professional three-phase machine suitable for constant and heavy-duty use; it can easily remove even the most stubborn dirt.

Perfect for use on medium and large areas.

The machine can suction in external detergent thanks to the external suction probe, thus enabling even high-level cleaning.

The pressure washer is also equipped with a pressure regulator.

The linear pump features a BRASS head and three high-strength ceramic pistons with built-in by-pass valve.

It is also equipped with a pressure regulator. It features an operating pressure of 170 bar and a flow rate of 13 L/min.

The machine is equipped with a three-phase electric induction motor able to deliver up to 5.5 HP and 1450 rpm.

Here are some of the accessories included:

  • High/Low pressure lance;
  • Spray gun;

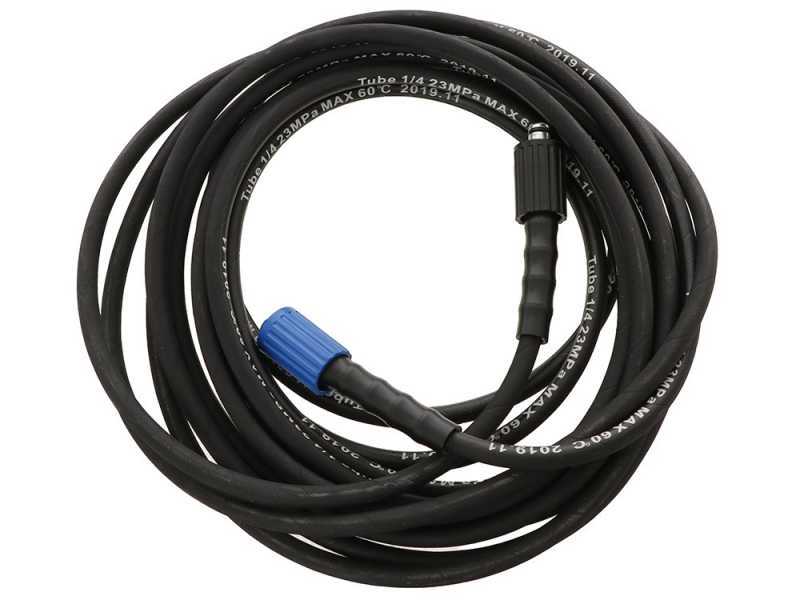

  • High pressure hose 10 m;

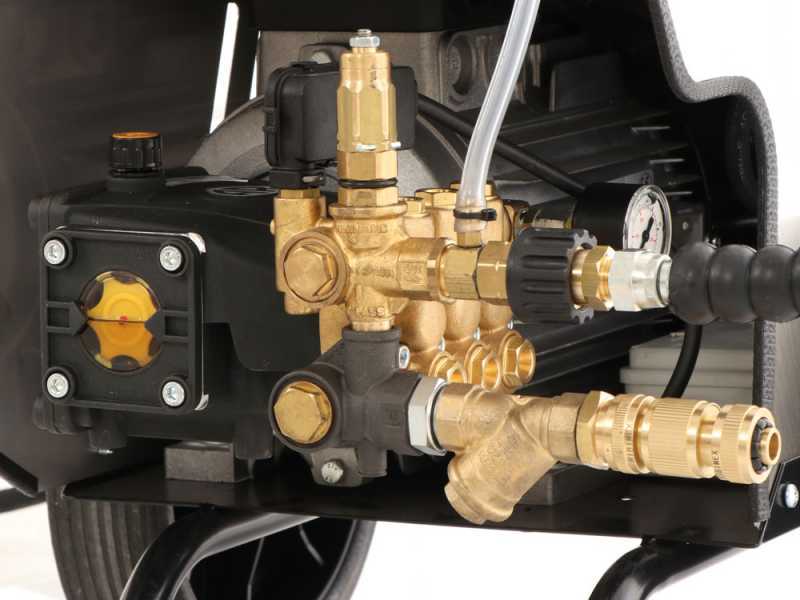

Pump Technical Features

Pump technical features:

  • Pump group: linear with brass head and built-in by-pass valve
  • Motor type: electric three-phase
  • Head pump: brass
  • Pistons: 3 ceramic-coated
  • Pressure: 170 bar
  • Flow rate: 780 l/h max (13 L/min)
  • Pressure regulator

The brass pump head with three high resistance ceramic pistons guarantees high efficiency and durability of the product.

Additional Features

Among this pressure washer’s characteristics it is possible to find:

  • Large wheels for easy transportation
  • Front foot

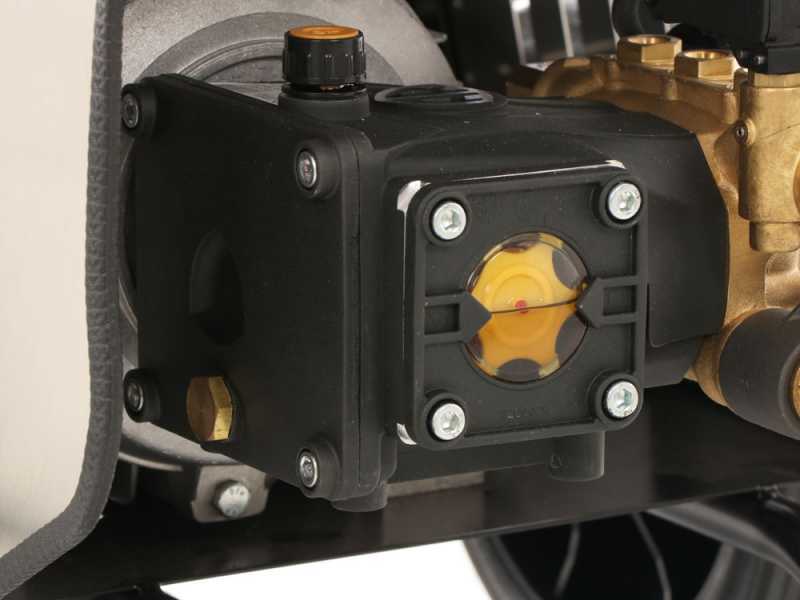

  • Porthole for checking the oil level
  • 10 m Hose
  • ON/OFF switch
  • Detergent suction hose
  • Brass quick coupling
  • Gun hose connection
  • Spay Gun
Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

COMPLIMENTARY: large protection and storage cover

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

It is easy to fold and store in its box without taking up space!

(The pictures are for illustrative purposes only)

FOR FREE: AgriEuro Detergents Kit for Outdoor Cleaning - 3 Bottles 1 L

This AgriEuro Outdoor Detergents set includes three different 1 L bottles with different features that are essential for the cleaning of outdoor areas.

The set includes:

  • Gral: Gentle, highly effective antistatic cleaner for removing streaks and greasy dirt deposits from various types of surfaces: glass, ceramics, metal, lacquered wood, leather, plastic, etc.
  • Oil & Smog Clean: This alkaline detergent was designed for degreasing equipment, machinery, concrete and tiles effectively.
  • Recommended for removing smog from the front of houses, outdoor staircases and sidewalks.
  • Mold & Moss Clean: This chlorine acid detergent was designed to clean and sanitise at the same time. This product is essential when it comes to removing mold and moss from dark areas and environments where humidity is high. Particularly suitable for removing bad odours. Its high sanitising efficiency eliminates bacteria which cause unpleasant odour through fermentation.



Free Items Included

The pressure washer is shipped in its original packaging.

Free items:

  • High/low pressure lance
  • Spray gun provided with swivel connection system
  • High pressure hose 10 m
  • Water inlet filter
