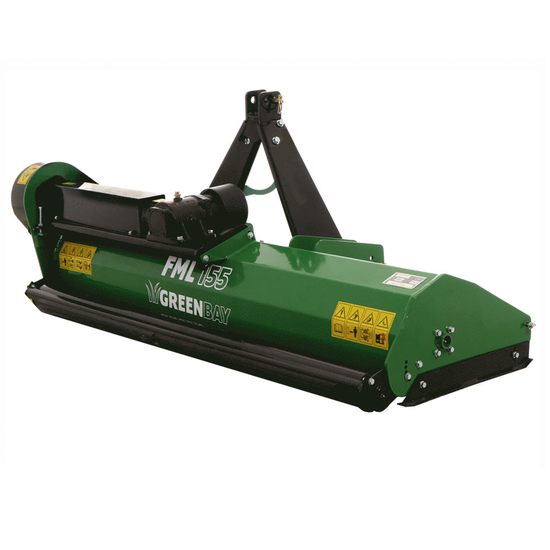

Greenbay FML 155 - Tractor-mounted flail mower - Light series

The tractor-mounted horizontal axis flail mower series FML 155 features a light and elastic body and is used for shredding twigs, grass and small shrubs.

It is an agricultural machine that uses a lightweight construction to ensure greater manoeuvrability and easier transport. This type of flail mower is ideal for owners of small properties or gardens, where it is necessary to own a machine that is easy to move and handle.

Lightweight series flail mower, suitable for hobby use.

Manual shift, 3 drive belts and rear roller.

The structure's shell consists of five sides, which guarantees strength and durability.

TECHNICAL DATA (brief view):

• Real working width: 153 cm
• Real width (side skids already assembled): 165 cm
• Weight: 182 kg
• 3-Point hitch
• 3-belt drive transmission
• wheelbase size 59 cm

ON STANDARD EQUIPMENT:

• Manual side shift (11cm)
• Hammer blades
• Rear supporting roller
• PTO

Warning: the machine is shipped ready for use with oils at level. Once mounted all the parts check the bolts tightening.
Please carefully read the instructions manual before starting the unit.

Machine for very light work, only on grass or at the very most on small twigs (max. diameter 2 cm). We recommend use with low-power tractors (as specified in the data sheet) and on well levelled and stone-free ground. When used on terrain which is not perfectly levelled and with stones, impacts of the cutting tools with bumps of soil or rocks can damage the machine (as it is a light series).

No. of hammers fitted on standard equipment: 24

9cm x 8cm size

These hammers are mounted on a sturdy 17 mm diameter hardened steel bolt. (90mm length)

Focus on the cutting hammers, mounted on the rotating roller.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Figurative image of the double-spiral rotor.

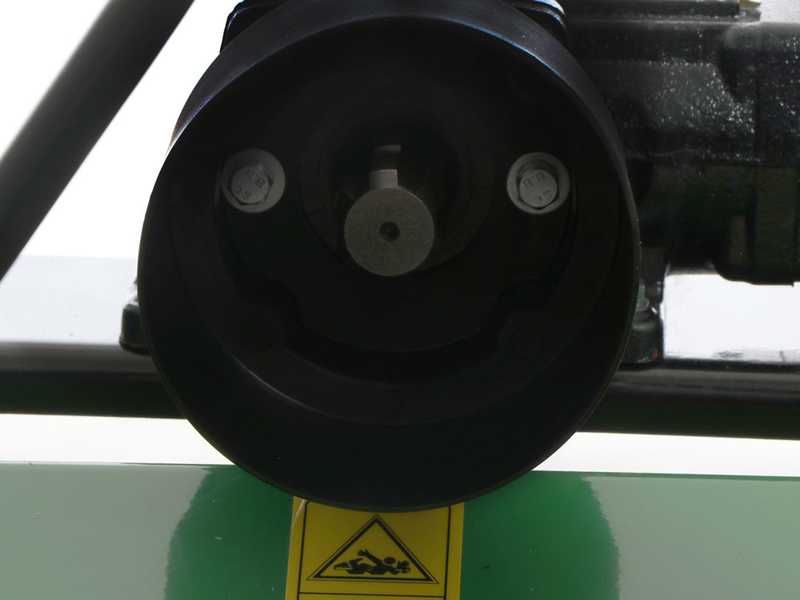

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

The hammers ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Universal standard PTO ( 1 3/8" Z6 )

Manual side shifting.

It is possible, by unscrewing the support bolts, to shift the flail mower sideways by 11cm

This allows working close to obstacles without the risk of hitting them with the tractor wheels.

Universal joints suitable for all tractors on the market.

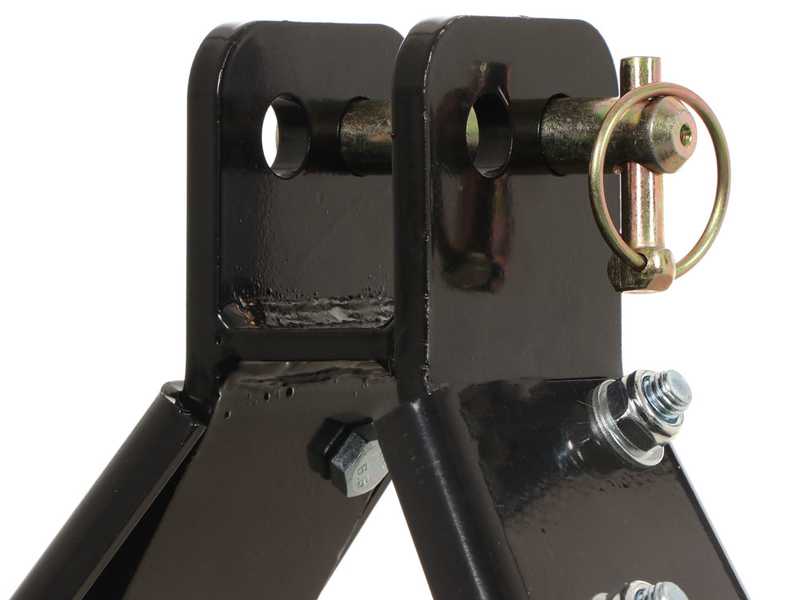

Focus on the sturdy 3-point hitch.

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

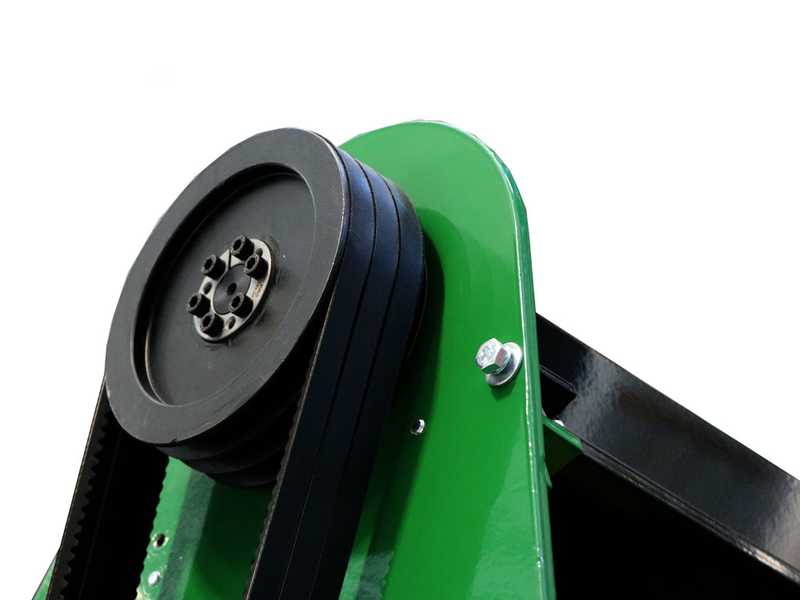

3-Belt side drive.

Opportunity to adjust the drive belt on 2 points.

Focus on the side belt protection guard.

Focus on the side grease nipple on the transmission side, laced in a convenient position, accessible through the proper opening.

WARNING!

The gearbox of this machine can contain no more than 5L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

5-Points height adjustable rear supporting roller provided on standard equipment.

Focus on the roller fastening bearing.

Focus on the roller support provided with holes for adjusting its height. It is height-adjustable in 5 different positions.

Standard side support skids, also adjustable in 4 different positions.

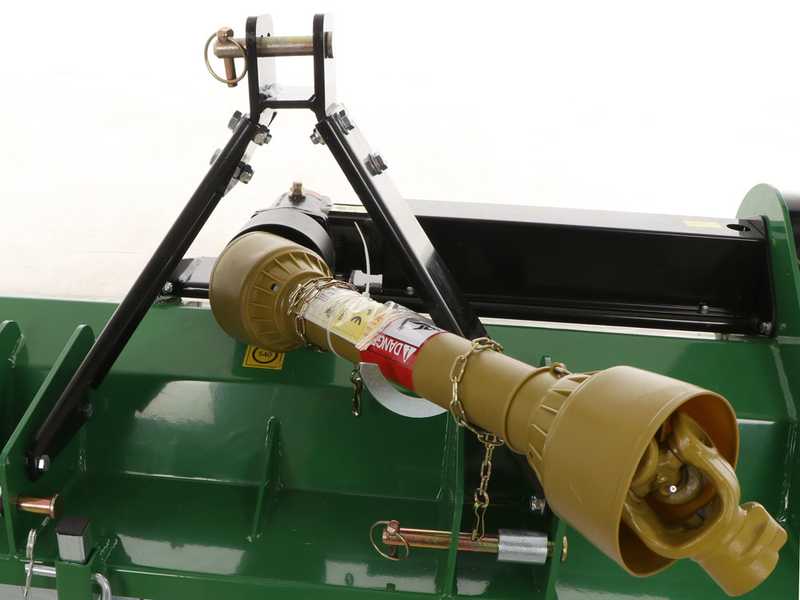

PTO shaft support

Sturdy set of front protection slaps made of shaped steel.

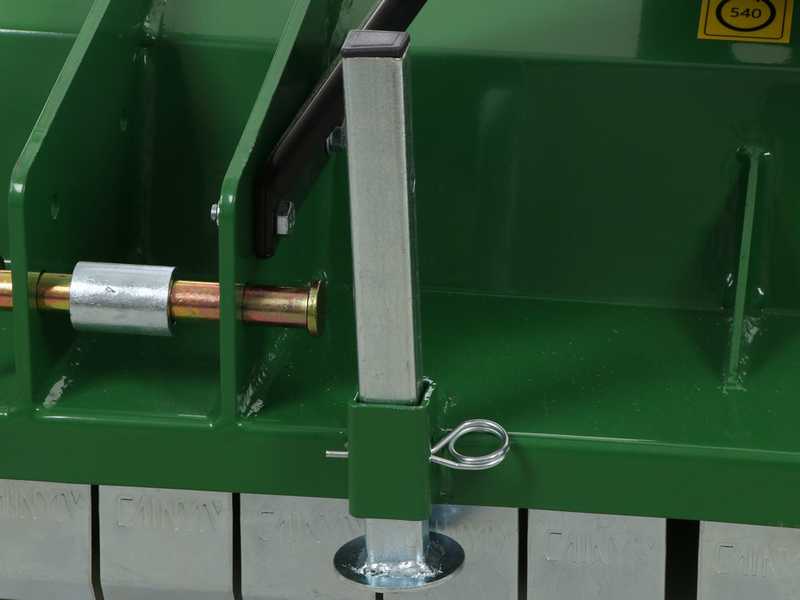

Support stand
