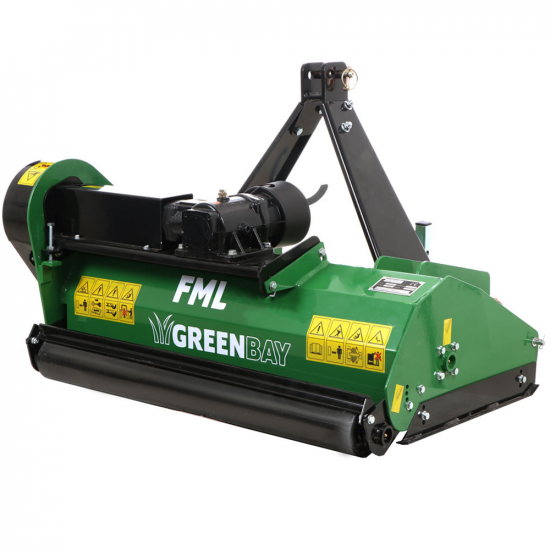

Greenbay FML 105 - Tractor mower - Lightweight series

The FML 105 series horizontal-axis tractor-mounted flail mower has a light and flexible construction and is used for shredding light prunings, grass and shrubs.

It is an agricultural machine that uses a lightweight construction to ensure greater manoeuvrability and easier transport. This type of flail mower is ideal for owners of small properties or gardens, where it is necessary to own a machine that is easy to move and handle.

Lightweight series flail mower, suitable for hobby use.

Manual shift, 2 drive belts and rear roller.

The structure's shell consists of five sides, which guarantees strength and durability.

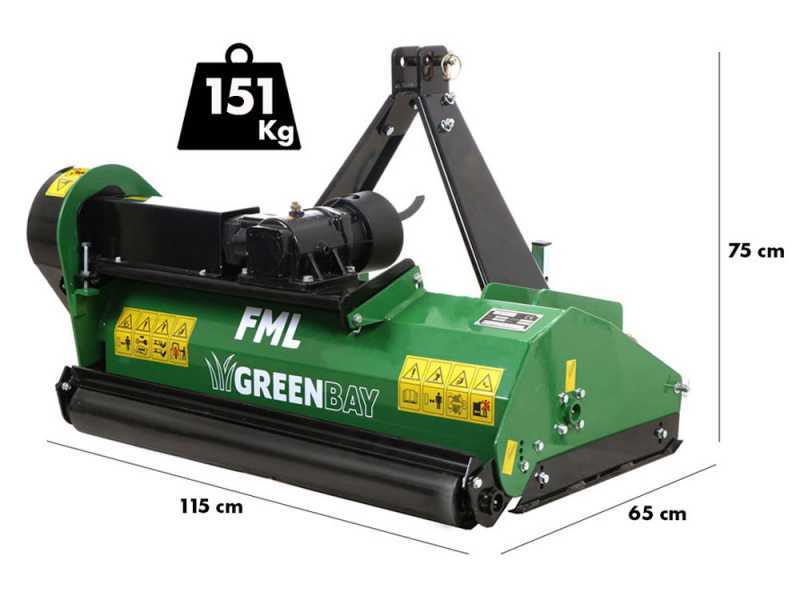

TECHNICAL DATA (brief overview):

• Actual working width: 103 cm
• Effective overall width (with side skids fitted): 115 cm
• Weight: 151 kg
• 3-Point hitch
• 2-belt drive transmission
• wheelbase size 59 cm

ON STANDARD EQUIPMENT:

• Manual side shift (11cm)
• Hammer blades
• Rear supporting roller
• PTO

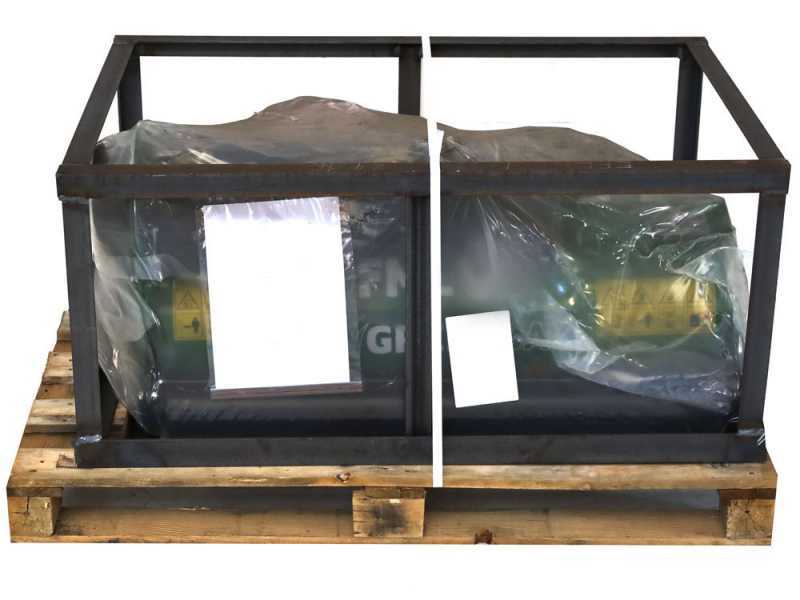

Warning: the machine is shipped ready for use with oils at level. Once mounted all the parts check the bolts tightening.
Please carefully read the instructions manual before starting the unit.

Machine for very light work, only on grass or at the very most on small twigs (max. diameter 2 cm). We recommend use with low-power tractors (as specified in the data sheet) and on well levelled and stone-free ground. When used on terrain which is not perfectly levelled and with stones, impacts of the cutting tools with bumps of soil or rocks can damage the machine (as it is a light series).

No. of hammers fitted on standard equipment: 18

9cm x 8cm size

These clubs are mounted on a robust hardened steel bolt with a diameter of 8 mm (length 90 mm).

Focus on the cutting hammers, mounted on the rotating roller.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high rotor speed and the high number of hammers (mallets), it reduces the wave effect of the turf and has an excellent shredding action.

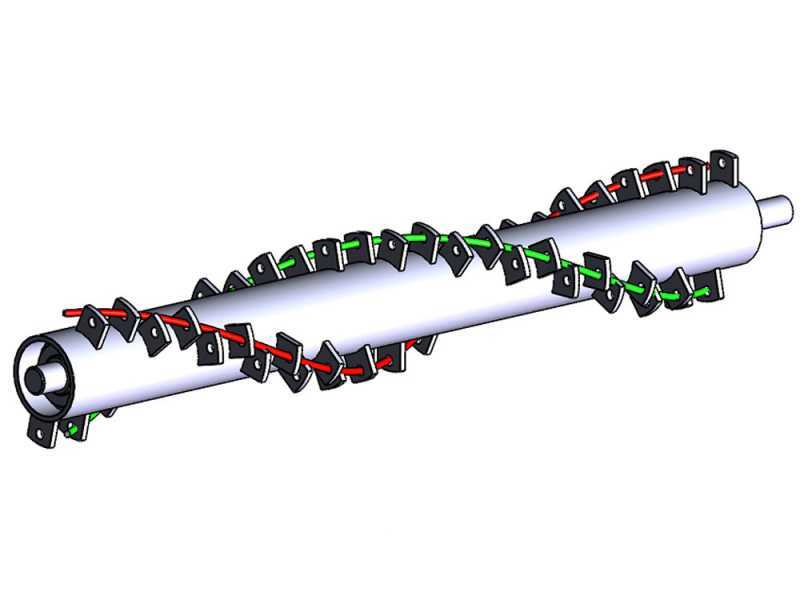

Picture of the double spiral rotor.

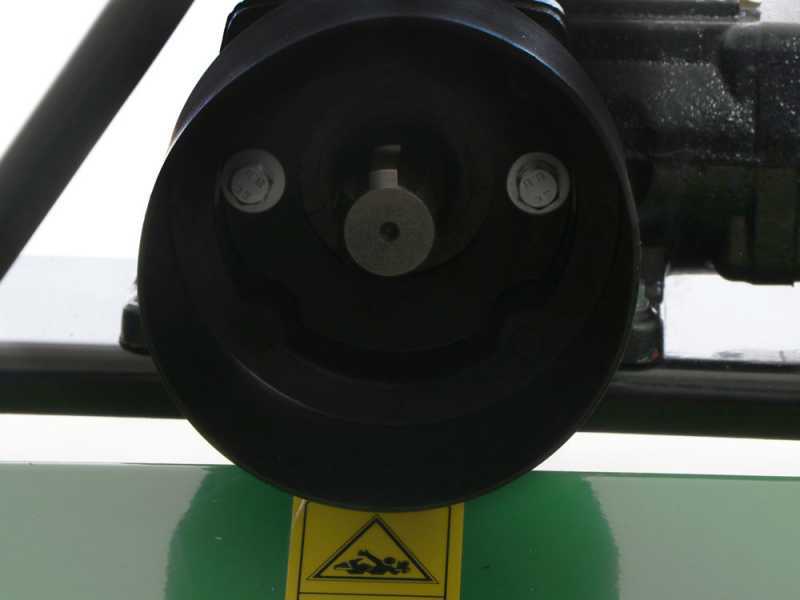

Detail of the side supporting device with hammer rotor internal locking bearing.

Detail of the external rotor, with central opening provided with greaser.

The hammers ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Universal standard PTO ( 1 3/8" Z6 )

Manual side shifting.

It is possible, by unscrewing the support bolts, to shift the flail mower sideways by 11cm

This allows working close to obstacles without the risk of hitting them with the tractor wheels.

Universal joints suitable for all tractors on the market.

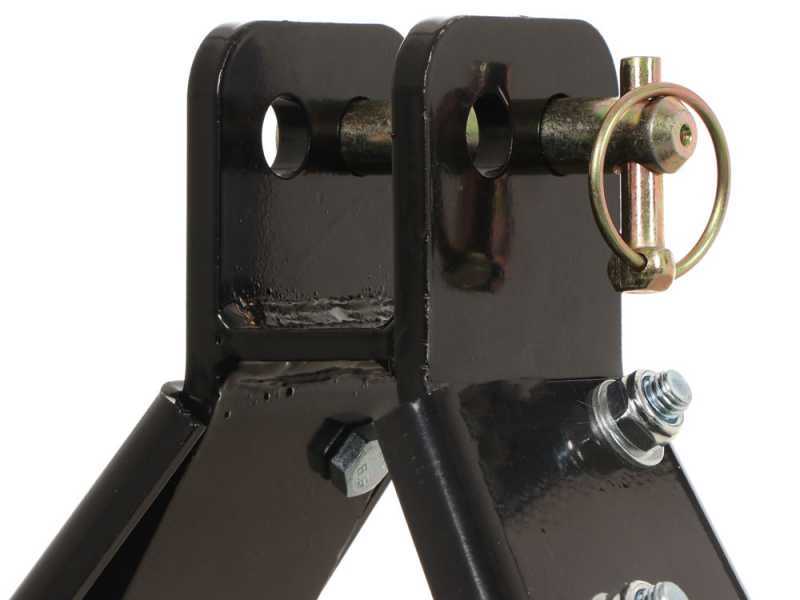

Focus on the sturdy 3-point hitch.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

2-Belt side drive.

Opportunity to adjust the drive belt on 2 points.

Focus on the side belt protection guard.

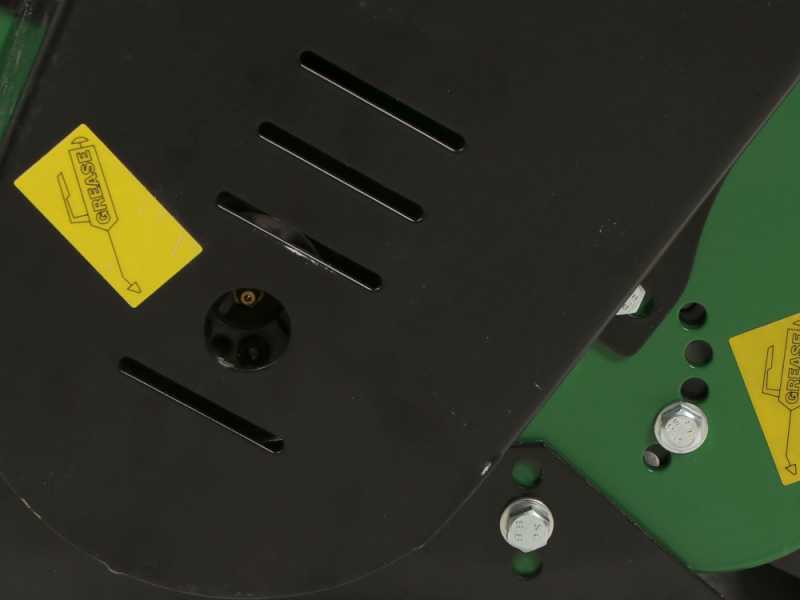

Focus on the side grease nipple on the transmission side, laced in a convenient position, accessible through the proper opening.

WARNING!

The gearbox of this machine can contain no more than 5L of lubricating oil.

Read the instruction manual carefully before starting it up.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

5-Points height adjustable rear supporting roller provided on standard equipment.

Focus on the roller fastening bearing.

Focus on the roller support, provided with holes for adjusting its height. It is height-adjustable in 5 different positions.Standard

side support skids, also adjustable in 4 different positions.

PTO shaft support

Sturdy set of front protection slaps made of shaped steel.

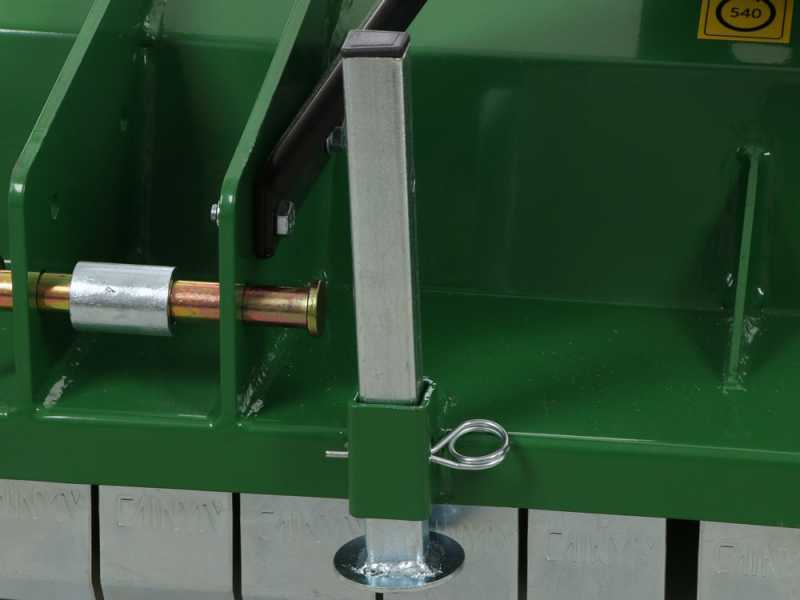

Support stand
