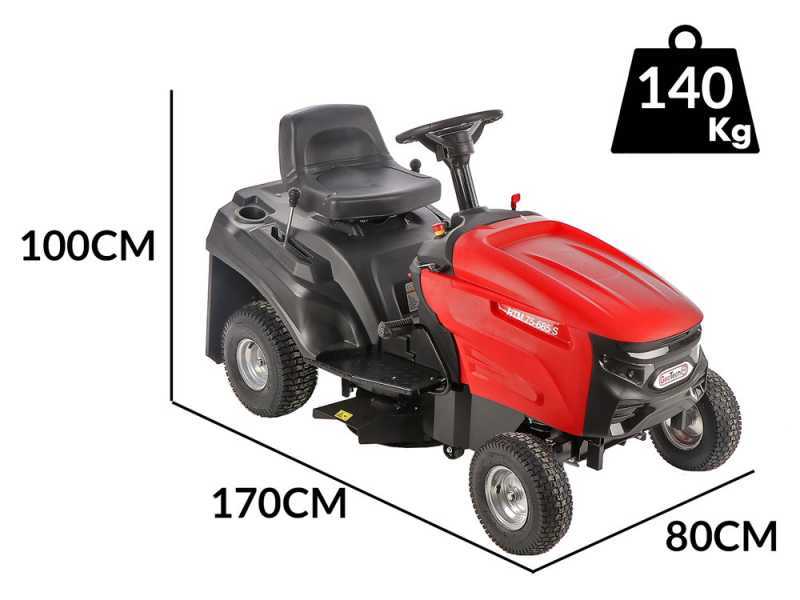

GeoTech-Pro RTM 75-685 S - Riding-on Mower - Mechanical Gearbox - Side Discharge

The GeoTech Pro RTM 75-685 S riding-on mower is a robust and versatile machine that is ideal for lawn care. This riding-on mower is designed to offer good performance and ease of use thanks to its technical features.

It is equipped with a side discharge, which allows efficient management of grass clippings without the need to collect them, making work quicker and less tiring.

The mechanical transmission ensures precise and reliable movement control, adapting perfectly to various types of soil.

GeoTech-Pro RTM 75-685 C is equipped with a 224cc, 4-stroke Loncin petrol engine that guarantees performance and good efficiency.

Thanks to the 68.5 cm double-bladed cutting deck, tending one's green area is easy.

The transmission system includes:

• 5 forward speeds
• Neutral (N)
• Reverse (R)

It is equipped with a 12V lead-acid battery for electric starting, included with a battery charger.

The riding-on mower offers high-performance, precise blades that can be activated at the touch of a button and can be adjusted to 5 different heights from 35 to 75 mm, to best suit grass conditions and your cutting needs.

Warning: never cross sideways on high slopes to avoid the machine overturning.

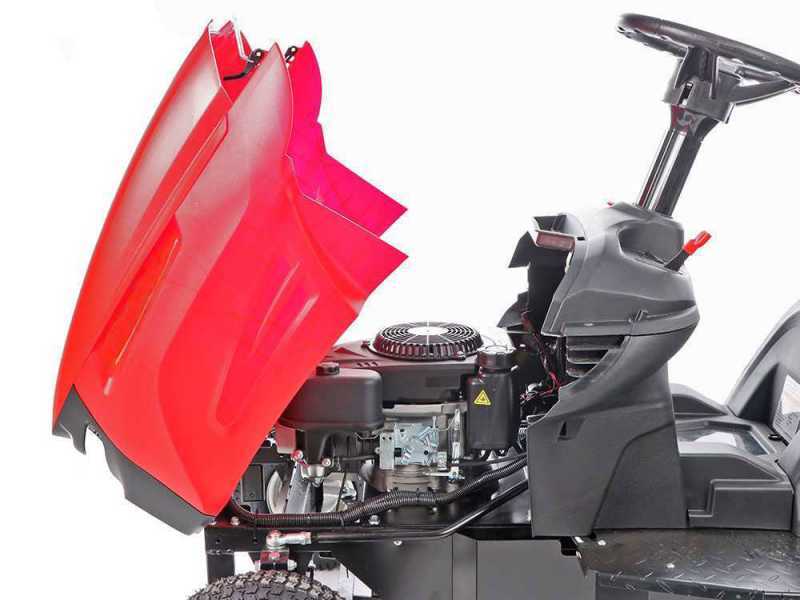

The Loncin LC1P75F engine is a 4-stroke, air-cooled petrol engine.

It is a 224 cc engine and develops good power (7.5 hp).

Machine equipped with electric starter.

ATTENTION!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 7.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 6.70 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This figure may vary for the same engine model, depending on the speed the manufacturer decided to have the engine applied.

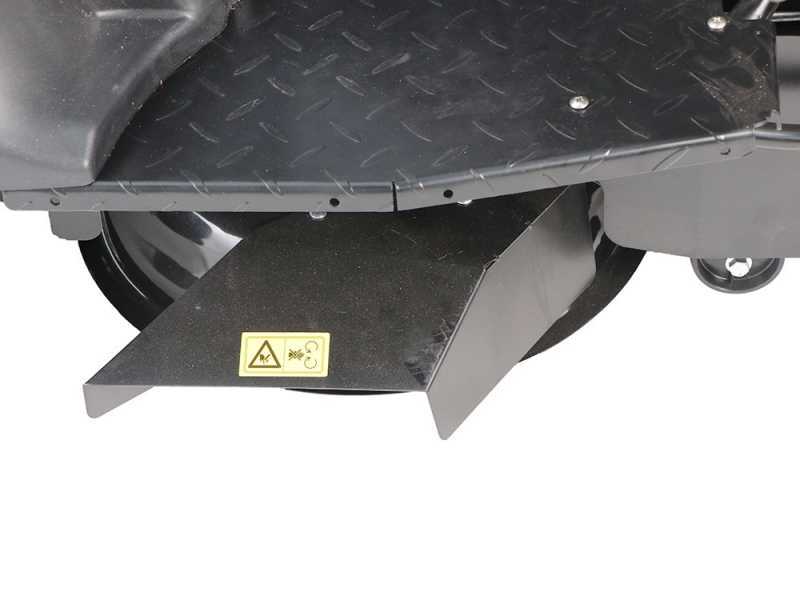

SIDE DISCHARGE (standard equipment): the most traditional, where the riding-on mower mows by discharging the grass sideways onto the lawn.

This system is recommended for: large extensions of land, for those who do not need to collect, for those who do not mow frequently and need to cut overgrown grass for which the collection system or mulching is no longer effective.

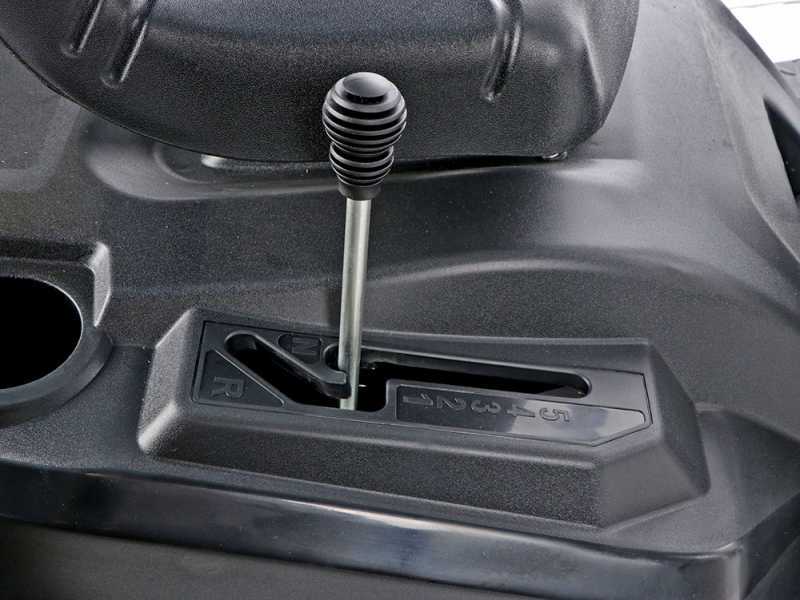

The GeoTech-Pro RTM 75-685 S riding-on mower features a selector switch that allows you to set between:

• Forward motion with 5 different driving speeds.
• Neutral (N)
• Reverse gear (R)

Once selected one of the 5 gears, you’ll get the possibility to adjust the speed (reducing it) by simply adjusting the pressure on the braking pedal (decelerating in the brake circuit).

Releasing the brake pedal, the riding-on mower will automatically return to the gear that has been previously selected.

Focus on the gear transmatic transmission.

GeoTech-Pro RTM 75-685 S cutting system features:

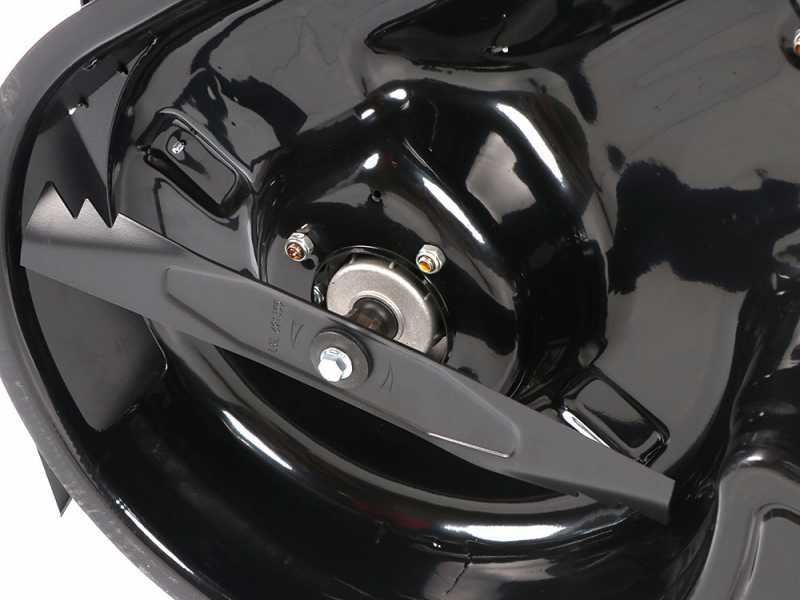

Robust twin-blade cutting deck: effective cutting width 68.5 cm.

The tractor is fitted with two universal blades as standard.

The cutting height is adjustable via the cutting lever in 5 different settings between 35 and 75 mm.

The rotation of the mower blades is set using a special button.

Easy and user-friendly controls.

After starting the engine, from the driver's seat it is possible to select the different forward gears, change the cutting height of the tractor, activate the blades even in reverse, change the engine speed, engage the parking brake or switch on the front lights.

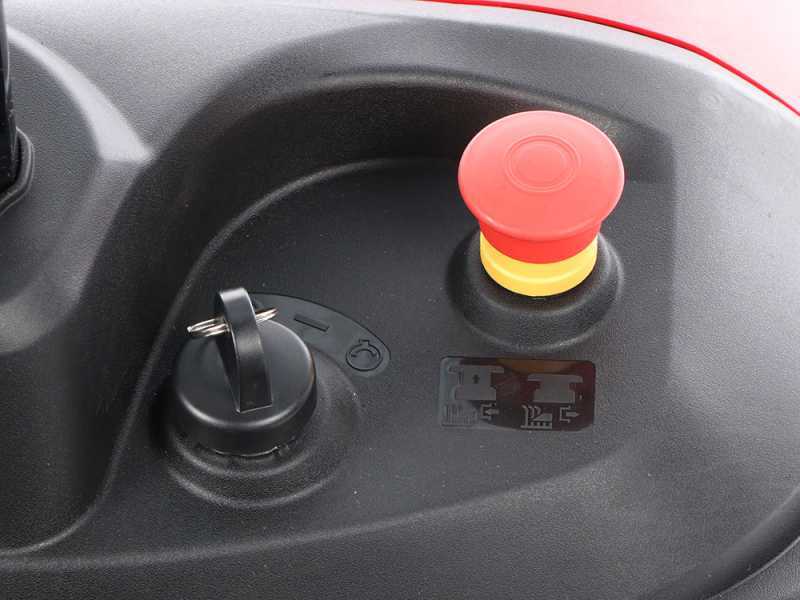

• Ignition lock with key: electric starting
• Electromagnetic blade coupling
• Braking pedal
• Engine rpm adjustment lever
• Cutting height adjustment lever in 5 different positions from 35 to 75 mm.
• Parking brake engagement lever
• Reverse blade and light activation
• Forward, reverse and neutral gear engagement.

GeoTech-Pro RTM 75-685 S riding-on mower additional features

• Large-sized tyres: they ensure higher care of the lawn and great adherence to the ground and traction on a riding-on mower. 13" front and 15" rear.
• Comfort Operator’s seat

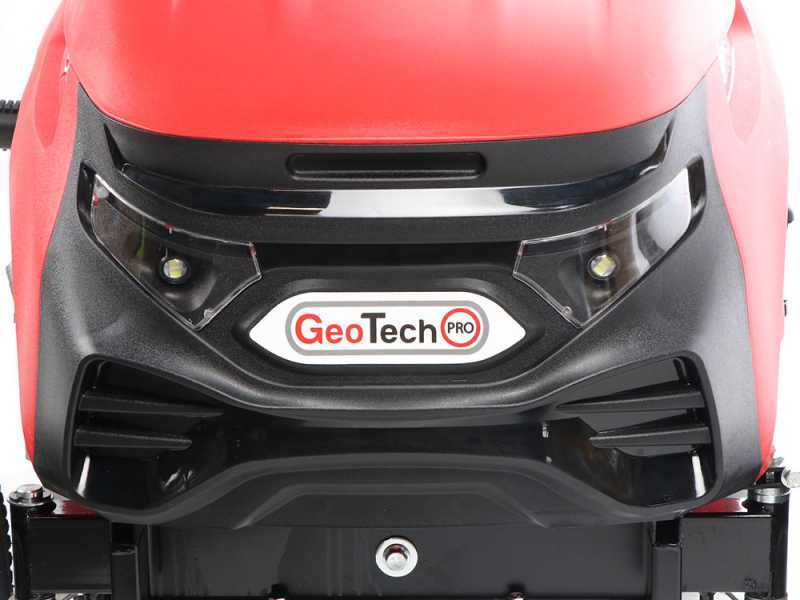

• Front lights
• Ergonomic steering wheel
• Cup storage compartment on both sides
• Electric start with 12 V lead-acid battery
• Plate washing connection, available on both sides
• Seat springs for increased comfort
