GeoTech-Pro RTM 170-960 S - Riding-on Mower - Mechanical Gearbox - Side Discharge

GeoTech-Pro RTM 170-960 S riding-on mower with side discharge and mechanical transmission, designed to handle speed and manoeuvres easily and comfortably.

The mower is equipped with a Loncin 1P92F-1 4-stroke 452cc petrol engine that provides high performance and good energy efficiency. The OHV technology helps reduce emissions and engine vibration.

The GeoTech-Pro RTM 170-960 S riding-on mower is an excellent machine for cutting and collecting grass in green areas, such as gardens and lawns, facilitating the trimming of grass near trees and flower beds.

Equipped with a sturdy 96 cm double-bladed cutting deck and five forward gears, the riding-on mower ensures optimal and even finishing of the lawn.

The transmission system includes:

• 5 forward speeds
• Neutral (N)
• Reverse (R)

It is equipped with a 12V lead-acid battery for electric starting, included with a battery charger.

The 96 cm double-bladed cutting deck and the two anti-skid wheels, together with the washing connection, make lawn maintenance extremely easy.

The blades, electromagnetically activated at the touch of a button and adjustable in five different heights from 35 to 75 mm, adapt perfectly to different lawn conditions and cutting requirements.

Warning: never cross sideways on high slopes to avoid the machine overturning.

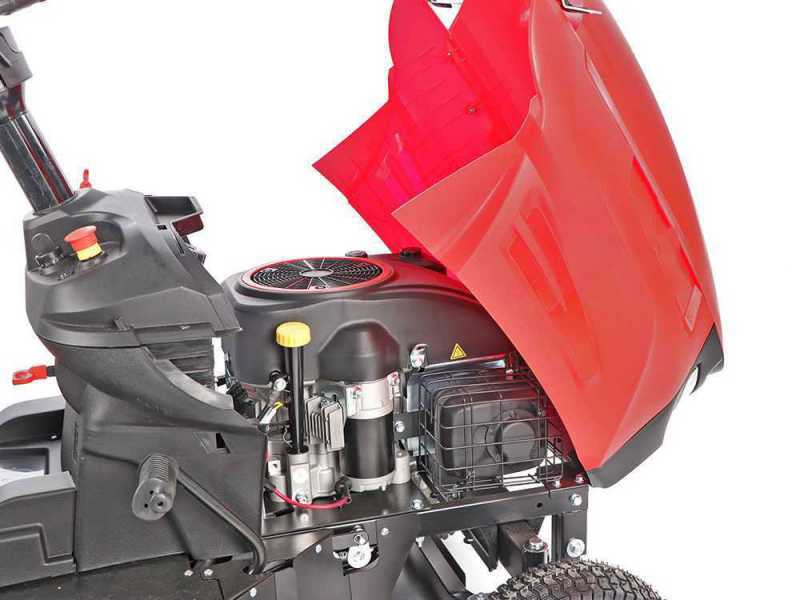

The Loncin 1P92F-1 is an air cooled 4-stroke petrol engine.

It features a 452 cc engine and develops 17 hp.

Equipped with electric start.

ATTENTION!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 17 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 10.72 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This figure may vary for the same engine model, depending on the speed the manufacturer decided to have the engine applied.

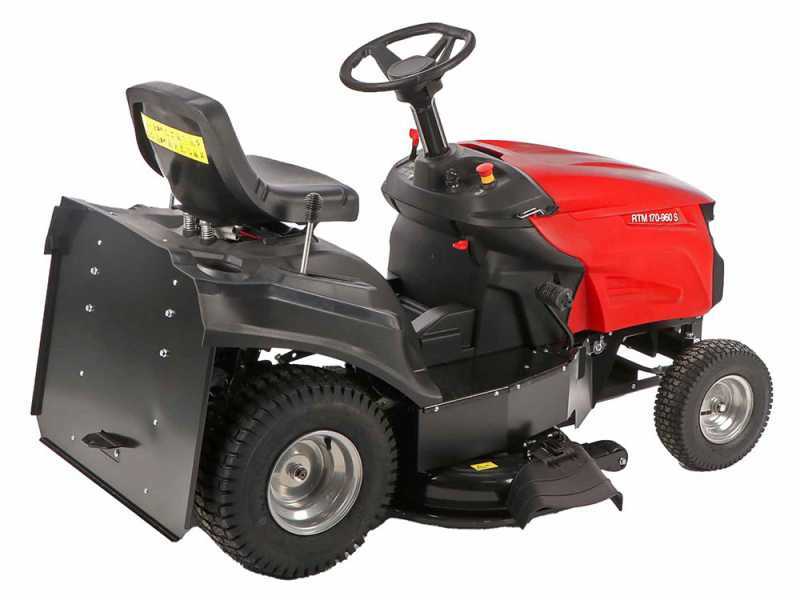

SIDE DISCHARGE (standard equipment): the most traditional, where the riding-on mower mows by discharging the grass sideways onto the lawn.

This system is recommended for: large extensions of land, for those who do not need to collect, for those who do not mow frequently and need to cut overgrown grass for which the collection system or mulching is no longer effective.

The GeoTech-Pro RTM 170-960 S riding-on mower features a selector switch that allows you to set between:

• Forward motion with 5 different driving speeds.
• Neutral (N)
• Reverse gear (R)

Once selected one of the 5 gears, you’ll get the possibility to adjust the speed (reducing it) by simply adjusting the pressure on the braking pedal (decelerating in the brake circuit).

Releasing the brake pedal, the riding-on mower will automatically return to the gear that has been previously selected.

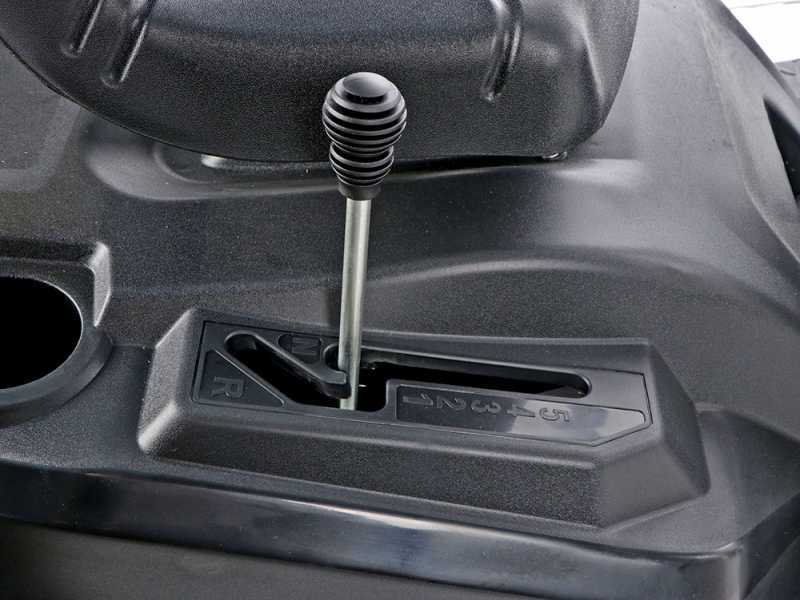

Detail of the gear transmatic transmission.

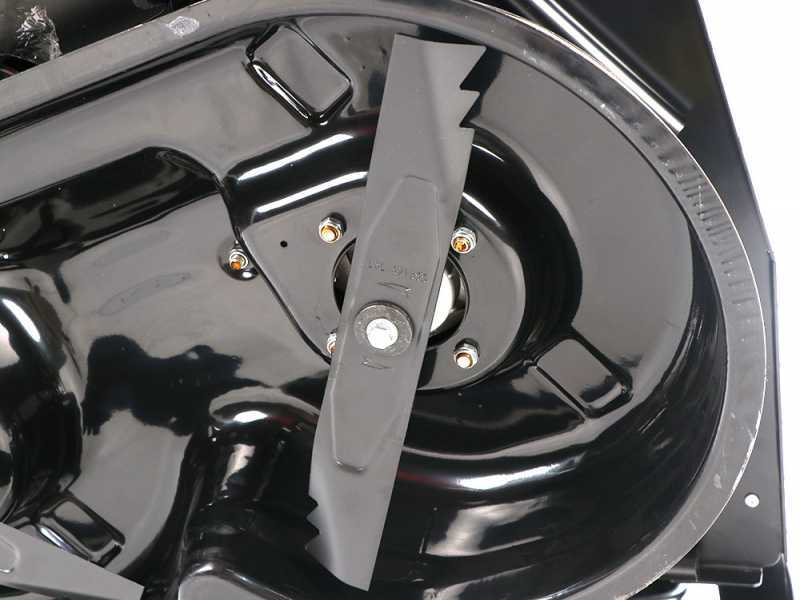

GeoTech-Pro RTM 170-960 S cutting system features:

Robust twin-blade cutting deck: effective cutting width of 96 cm.

The mower is fitted with two universal blades as standard.

Adjustable cutting height in 5 different positions between 35 mm and 75 mm via the proper lever.

The blade engagement is electromagnetic and operated via the red button on the right side of the steering wheel. This system avoids the manual engagement of the classic lever found on many types of ride-on mowers, and works thanks to an electromagnetic clutch that allows easy and fast engagement of the blades.

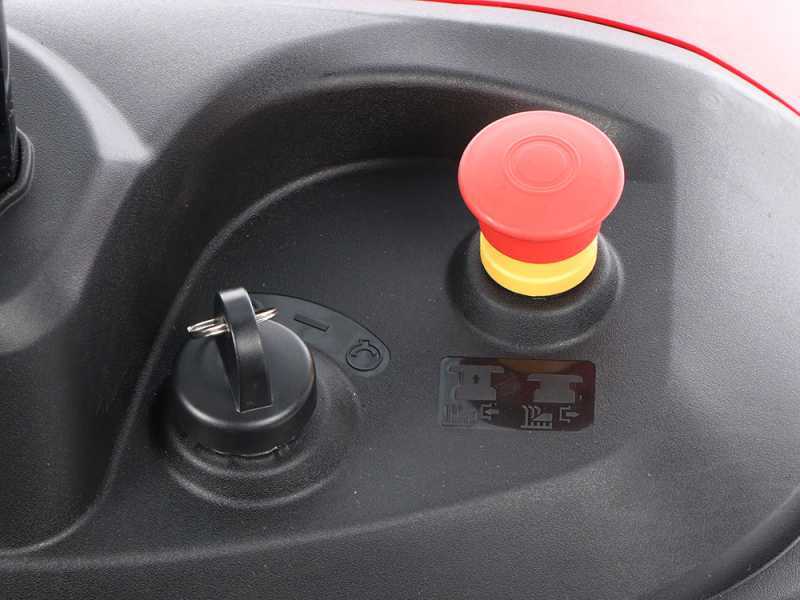

Easy and user-friendly controls.

After starting the engine, from the driver's seat it is possible to select the different forward gears, change the cutting height of the tractor, activate the blades even in reverse, change the engine speed, engage the parking brake or switch on the front lights.

• Ignition lock with key: electric starting
• Electromagnetic blade coupling
• Braking pedal
• Engine rpm adjustment lever
• Cutting height adjustment lever in 5 different positions from 35 to 75 mm.
• Parking brake engagement lever
• Reverse blade and light activation
• Forward, reverse and neutral gear engagement.

GeoTech-Pro RTM 170-960 S riding-on mower additional features

• Large-sized tyres: they ensure higher care of the lawn and great adherence to the ground and traction on a riding-on mower. 13" front and 17" rear.
• Comfort Operator’s seat

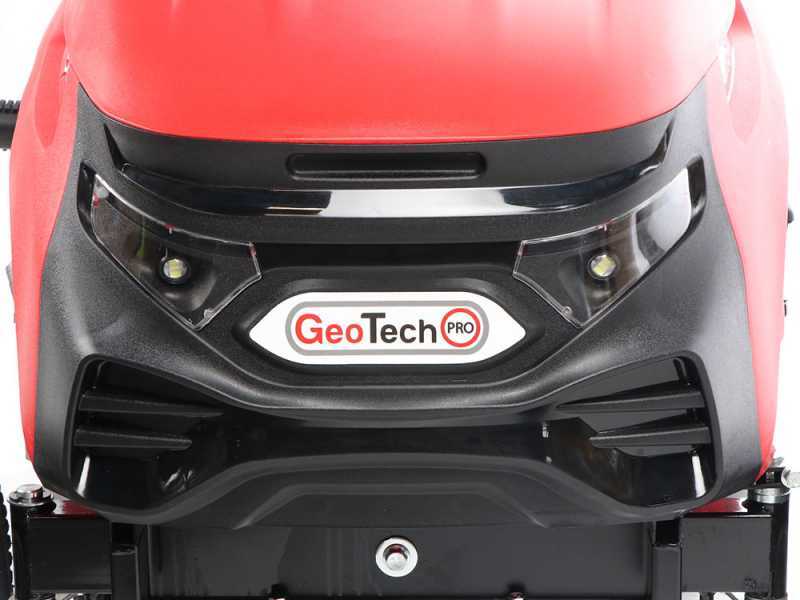

• Front lights
• Ergonomic steering wheel
• Cup storage compartment on both sides
• Electric start with 12 V lead-acid battery
• Plate washing connection, available on both sides
• Seat springs for increased comfort
