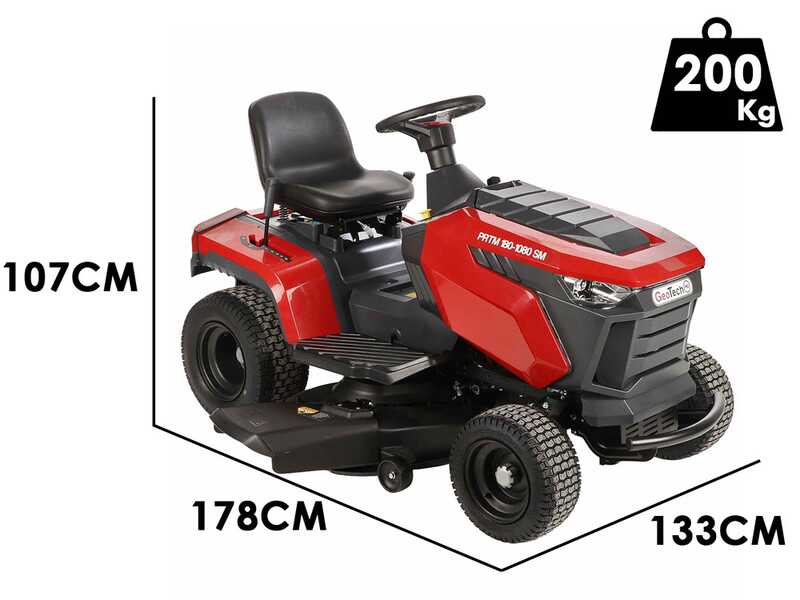

GeoTech-Pro PRTM 180-1080 SM - Ride-on Lawn Mower - Mechanical Transmission - Side Discharge and Mulching

The petrol ride-on mower GeoTech-Pro PRTM 180-1080 SM is a robust and functional machine designed for the maintenance of medium to large grassy areas. Equipped with a Loncin petrol engine with 17 hp and 452 cc, it ensures high power and reliability for continuous work.

The 108 cm twin-blade cutting system allows for covering large areas in a short time, improving operational efficiency.

Maintenance is simplified thanks to the wash connector, which allows easy cleaning of the cutting deck. The blades are electrically activated and height adjustable on 6 levels, from 30 to 90 mm, to suit any cutting requirement.

The mower supports two different cutting modes:

1. Side discharge, which allows efficient management of grass clippings without the need to collect them, making the work faster and less tiring.
2. Mulching function, easily activated thanks to the supplied plug.

The mechanical transmission with 5 forward gears, neutral and reverse allows precise speed control and facilitates manoeuvres even in tight spaces or uneven terrain.

The structure of the GeoTech-Pro PRTM 180-1080 SM is designed to ensure comfort during prolonged use, with a functional design and ergonomic controls. The side discharge system ensures quick distribution of the cut material, avoiding accumulation on the lawn and improving the final aesthetic result.

Moreover, the reverse cutting function allows easy manoeuvring in tight or hard-to-reach spaces, optimising the versatility of the machine.

The control panel, clear and intuitive, allows easy monitoring of the mower, providing useful information such as the battery charge level, engine RPM and hours of use.

To increase functionality, the PRTM 180-1080 SM is also equipped with a towing hitch, perfect for additional towing operations and a strip with front LED lights, for optimal work even in low light conditions.

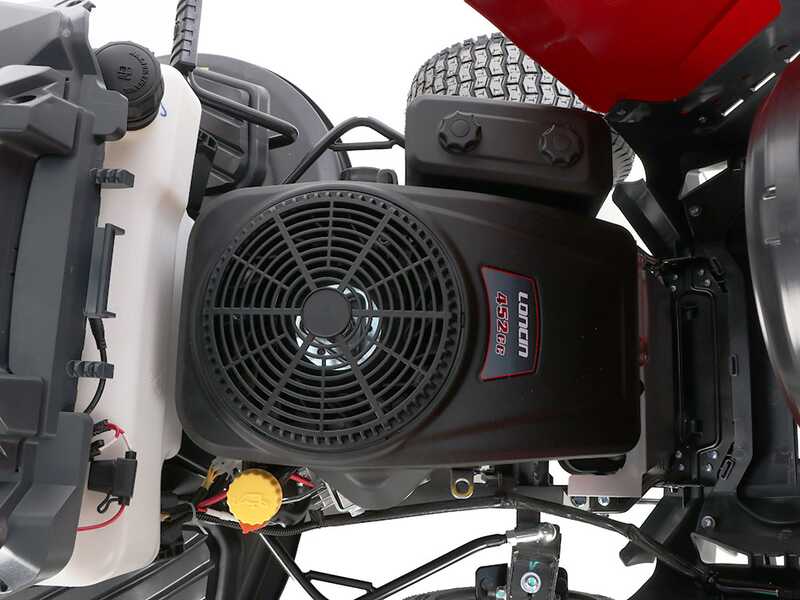

The Loncin LC1P92F-1 engine is a 4-stroke petrol engine, air-cooled.

It is an engine with a 452cc displacement and develops a power of 17hp.

Machine equipped with electric start.

WARNING!

The engine is SUPPLIED WITHOUT OIL.
Before starting it, carefully read the instruction manual.

Nominal Power: 17 HP
The more correct term would be “Commercial” Power, meaning the classic standard of power definition officially used until a few years ago by all the most renowned engine manufacturers.

* This data is still more widespread and advertised in the main commercial sales channels, although it is an increased figure compared to the actual power.

Effective Power: 12.33 HP (at a rotation speed of 2600 rpm)
Corresponds to the real power expressed at the crankshaft. It is the one indicated as official in the engine manufacturer's manual or technical data.

* This is data that can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

1 - SIDE DISCHARGE (standard): the most traditional, the mower discharges the grass laterally onto the lawn.

You just need to mount the side deflector and tighten the two specific screws.

Recommended system for: large areas of land, for those who do not need to collect, for those who do not cut frequently and find themselves having to cut excessively grown grass, for which the collection system or mulching are no longer effective.

2 - MULCHING (standard):

a cutting system that shreds the cut grass leaving it on the lawn, pulverising it to the point that it almost seems as if it has been collected. This eliminates the problem of its disposal (reducing effort and drastically shortening the time spent cutting) and furthermore, as it decomposes, it will subsequently transform into a nutrient for the lawn itself and into water (grass is made up of 80% water) thus ensuring a perfectly balanced biological cycle. However, it is useful to remember that, to ensure the absolute efficiency of the system, the lawn must still be irrigated, and the grass cut very often. The conversion from one system to the other is very easy.

Conversion: remove the side deflector and attach the mulching plug using the appropriate hooks.

The ride-on lawn mower GeoTech-Pro PRTM 180-1080 SM is equipped with a high-performance mechanical gear transmission, which ensures precise control and optimal management of cutting operations.

The selector allows you to choose between 5 different forward speeds, to adapt to the different needs of the terrain and the surface to be treated.

Equipped with a selector that allows setting between:

• Forward motion with 5 different speeds
• Neutral (N)
• Reverse motion (R)

One of the distinctive features of this transmission is the ability to finely adjust the speed in the selected gears, thanks to the deceleration function via the brake pedal. This allows reducing speed without having to change gear, making driving even smoother and more versatile.

Releasing the pedal, the mower automatically returns to the speed of the engaged gear.

The mechanical gear transmission is designed to offer optimal efficiency, reducing wear and ensuring long-lasting durability, with constant power and no interruptions. The system has been designed to offer maximum robustness and reliability, making it perfect for those looking for a powerful and durable tool.

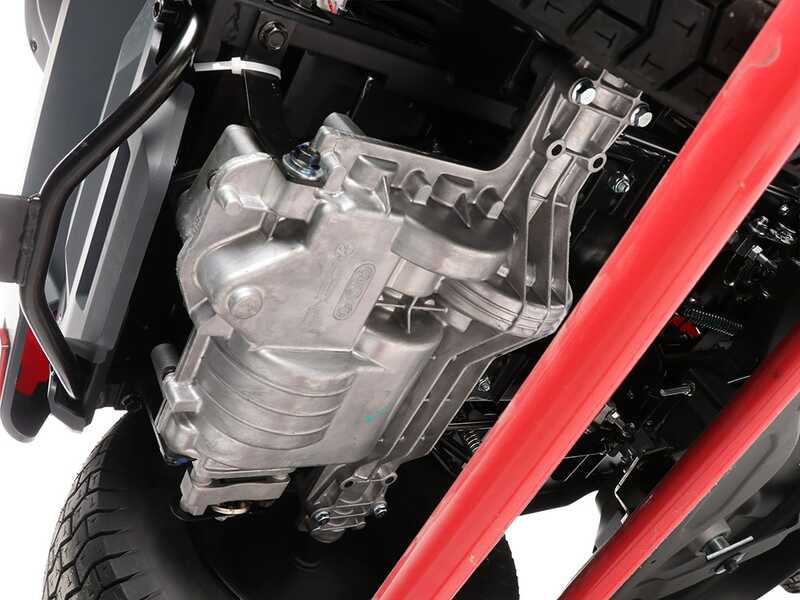

Detail of the mechanical gear transmission.

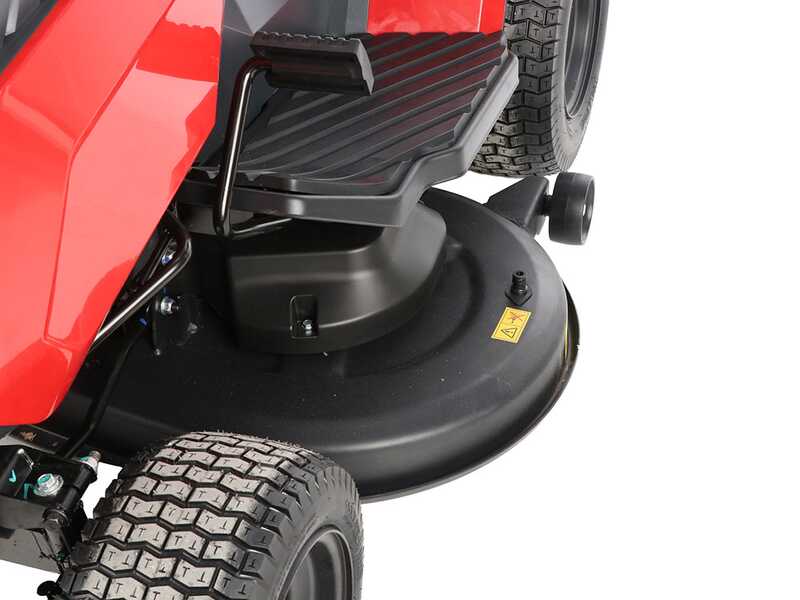

The ride-on lawn mower GeoTech-Pro PRTM 180-1080 SM is equipped with a 2-blade cutting deck with two anti-scalp wheels

• Robust twin-blade deck: effective cutting width 108 cm.

The mower comes standard with two universal blades.

The cutting height is adjustable, via the appropriate lever, in 6 different sizes between 30 and 90 mm.

The blade engagement is electromagnetic and is controlled via the yellow button to the right of the steering wheel. This system avoids manual engagement via the classic lever found on many types of mowers, and works thanks to an electromagnetic clutch that allows for easy and quick blade engagement.

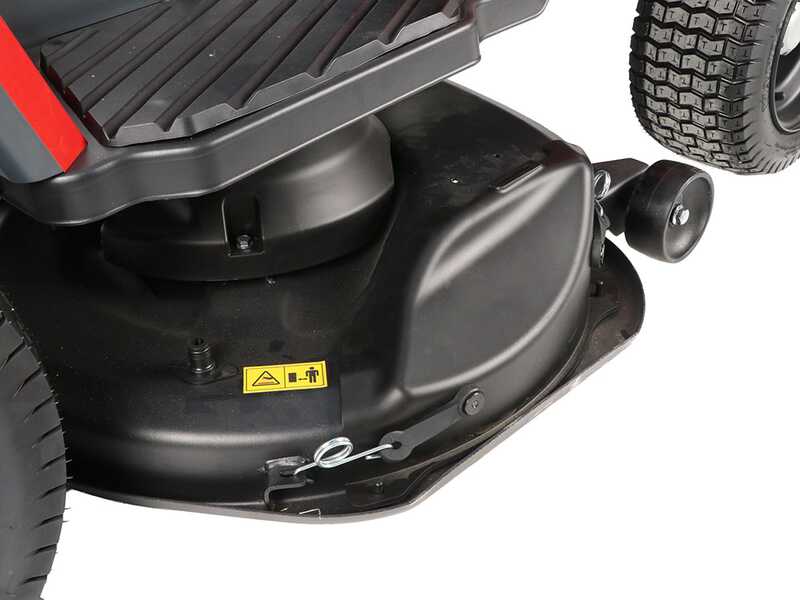

• Detail of the anti-scalp wheels
• Detail of the wash connector for the deck

Very simple and intuitive controls and adjustments.

After starting the engine, from the driver's seat, it is possible to change the forward gear, adjust the cutting height of the mower, activate the blades even in reverse, increase the engine speed, engage the parking brake, engage reverse or turn on the front lights, all visible on the innovative screen.

Detail of the digital dashboard: the innovative smart display provides useful information on the machine's status and your work session, also showing the battery charge, engine RPM and hours worked.

• Activation block with key: electric engine start.
• Electromagnetic blade engagement
• Foot brake

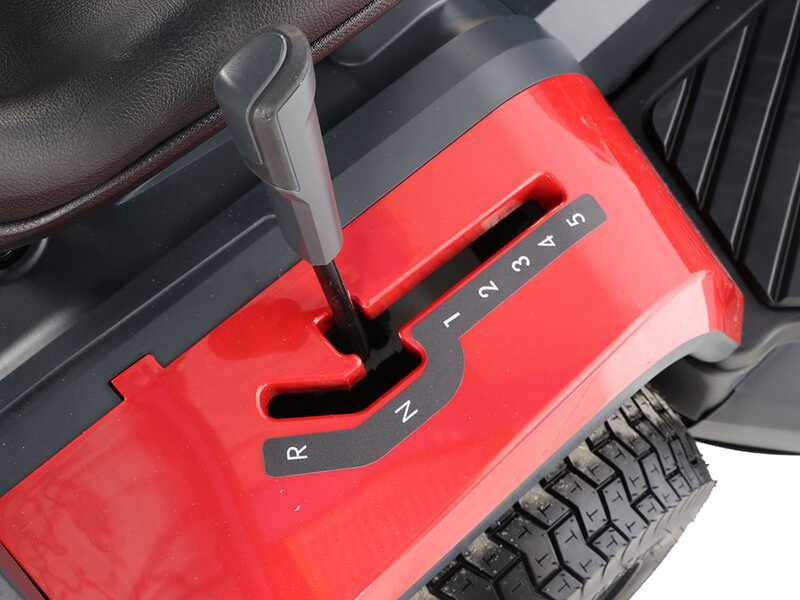

• Lever for selecting forward gears
• Gear selector, neutral or reverse
• Engine speed adjustment lever
• Cutting height adjustment lever with 6 different heights between 30 and 90mm
• Parking brake engagement
• Reverse blade activation and LED light activation

Other features of the GeoTech-Pro PRTM 180-1080 SM ride-on mower:

• Large format tyres: Ensure greater respect for the turf and the best possible traction on a ride-on mower.
• Comfort seat
• Powerful front lights with LED strip
• Towing hitch
• Robust front bullbar for greater protection against impacts
• Ergonomic steering wheel
• Cupholder and storage compartment on both sides
• Electric start, with a lead battery of 12V / 18Ah
• Wash connector for the deck, present on both sides

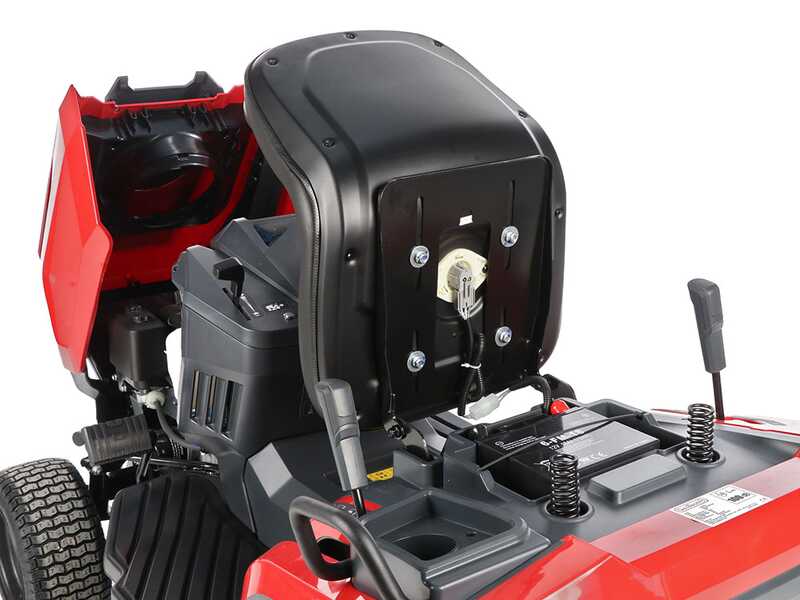

• Seat safety device
• Springs on which the seat rests, for greater comfort
