GeoTech Pro LFM95 - Tractor-mounted Flail Mower - Light Series

Questions & Answers (13)
ID: 100126

EAN: 8054141549005

MPN: 100126

8,9/10
After-sales assistance & Spare parts
GeoTech Pro LFM95 - Tractor-mounted Flail Mower - Light Series
+200 sold
Tractor power
Up to 20 HP
Sturdiness/Series
Light
Weight
145 Kg
Cutting width
93 cm
Standard cutting tools
Hammer flails
Internal gearbox
Hammer flail weight
0.4 Kg
Cardan shaft
Yes
Fixed hitch
Double spiral rotor
Product Features
Model:
LFM 95
Tractor power:
Up to 20 HP
Sturdiness/Series:
Light
Shift:
Fixed hitch
Fixed hitch:
Manual shift:
No
Hydraulic shift:
No
Double spiral rotor:
Operating mode:
Fixed 3-point hitch:
Yes
3-point hitch category:
First
Reversible three-point-hitch:
No
Internal gearbox:
Cardan shaft rotation:
Standard
Manufacturing country:
China
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
93 cm
Wood diameter:
Up to 20 mm
No. of blades:
14
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.4 Kg
Hammer flails:
Blades bolt diameter:
12 mm
Hammer width:
7.5 cm
Max. cutting height:
90 mm
Min. cutting height:
20 mm
Cutting width:
93 cm
Equipment
Counter-blade:
Single row
Side drive belts:
3
Hydraulic Piston for moving:
No
Pantograph arm:
No
Rear brush rakes (collection rods):
No
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics

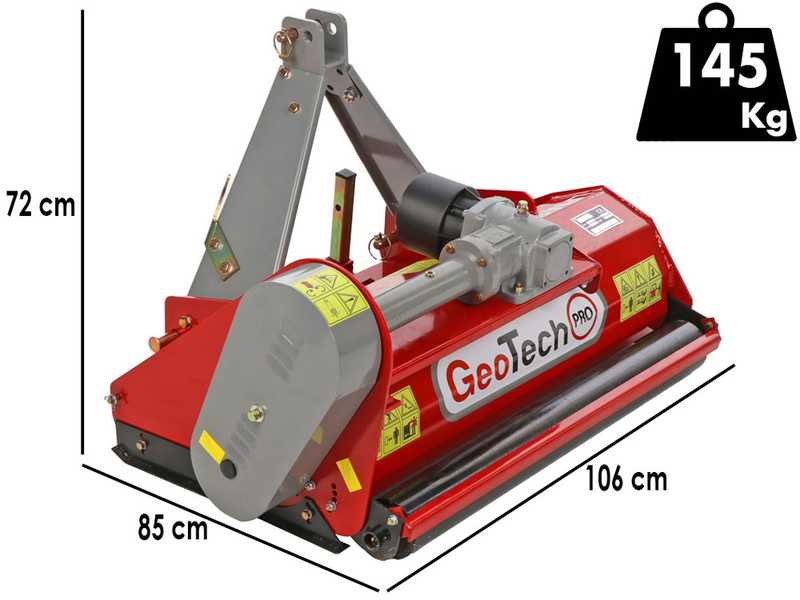

Product dimensions in cm (L x W x H):
106x85x72 cm
Net weight:
145 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
110x75x60 cm
Gross weight (packaging included) :
170 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 25/07/2024 - 29/07/2024
€ 1.085,68
VAT Included
You're viewing:
Customers also viewed:
Description

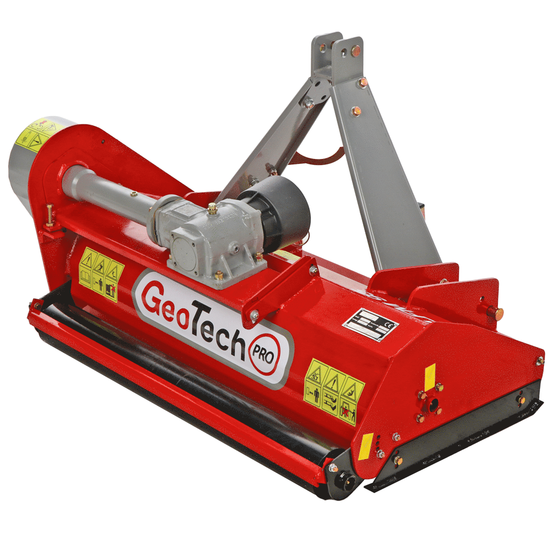

GeoTech LFM 95 tractor flail mower

The light size horizontal drum flail mower for tractor of LFM series is ideal for light runners, grass and small bushes.

Suggested for hobby purposes.

Fixed linkage, 3 drive belts and rear roller.

TECHNICAL DETAILS (in summary):

  • Real working width: 93 cm
  • Real width occupied (with side skids assembled): 106 cm
  • Weight: 145 kg
  • 1° category 3 point linkage
  • 3 belts transmission

STANDARD EQUIPMENT (in summary):

  • Manual side shift (11 cm)
  • Hammer flails
  • Lay rear roller
  • Cardan shaft

Attention: The machine is shipped ready for use and with the correct oil levels. Once all parts have been assembled, check the tightness of the bolts.
Read the instruction manual carefully before starting the machine.

Machine suitable for very light work, only on grass or on small branches (max. diameter 2 cm). It is recommended to use it with low power tractors (as indicated in the technical data sheet) and on well levelled and stone-free ground. If used on land that is not perfectly levelled and with stones, the impact of the cutting tools with bumps in the ground or with stones may damage the machine (as it belongs to a light range of machines).

Cutting tools: hammer flails

Nr. of hammer flails on standard equipment: 14

Flails are fixed by means of a sturdy 12 mm diameter 90 mm long bolt made of hardened steel.

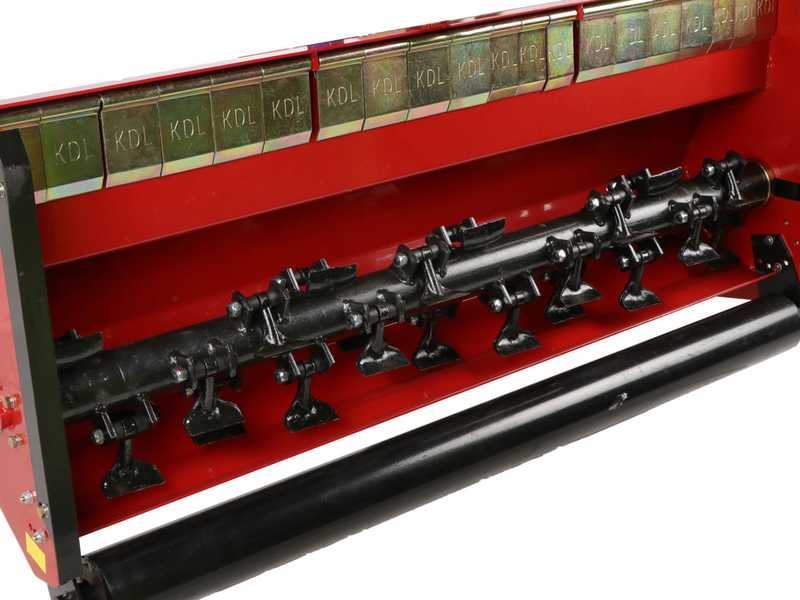

Focus on the drum's hammer flails.

It finely crushes grass and runners while rolling the lawn. Thanks to the high rotor's rotations and the high number of flails, it reduces the soil wave effect and have a perfect crushing function.

Figurative image of the double-spiral rotor.

Rotor and side bearings

Focus on the side flail support and of the side drum's bearing.

Focus on the outer rotor's anchoring, with central greaser hole.

Good cutting of gardens, lawns and urban areas thanks to the hammers. The flail mower is connectable to tractor is by 3 points linkage.

Universal 1 3/8" Z6 PTO.

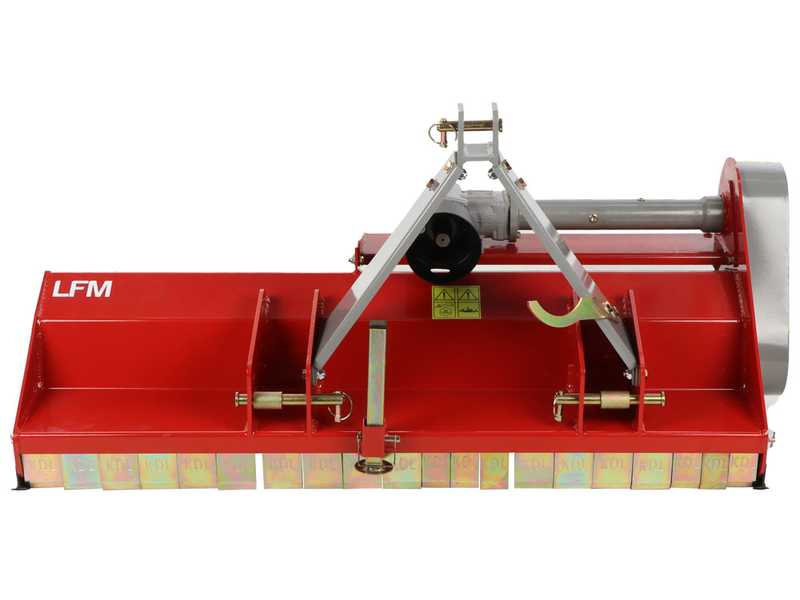

Side shift and 3 points hitch

Side shift in manually operated.

It works by unthreading the anchor bolt, move to the side the flail mower of about 11 cm.

This allows you to work near the obstacles avoding hitting them with the tractor's tyres.

Connections areuniversal type for all tractors on market.

Focus on the sturdy 3 points hitch.

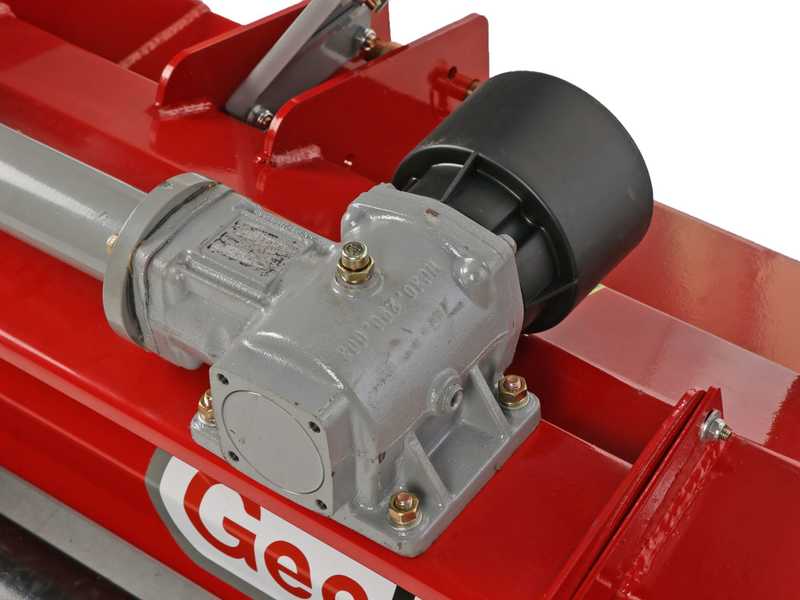

Side belt transmission and gearbox

Oil-bath gearbox. Monocoque shell, hardened steel inner gears. Equipped with lubricated extension.

Free wheel device (or overrunning clutch) integrated with the gearbox; this assures long life to all the machine's moving parts, avoiding recoil that would happen when going from 540 rpm to 0 rpm by allowing the rotor to freely turn until it naturally stops.

3 belts side transmission (the most part of the tractor flail mowers of this weight category are equipped with normal 2 belts transmission).

Focus on the belt protection sideshield.

Focus on the side greaser located on the same transmission's side, easy to reach by means of the proper window.


 ATTENTION!

Gearbox capacity is 0.5 L maximum.

Please carefully read the instructions manual before using this machine.

Standard 1 3/8" z6 power take-off PTO (suitable for each model of recently manufactured tractors): whether you are dealing with older tractors, it is recommended to previously check that they provide the same power take-off type featuring the standard right/clockwise rotation.

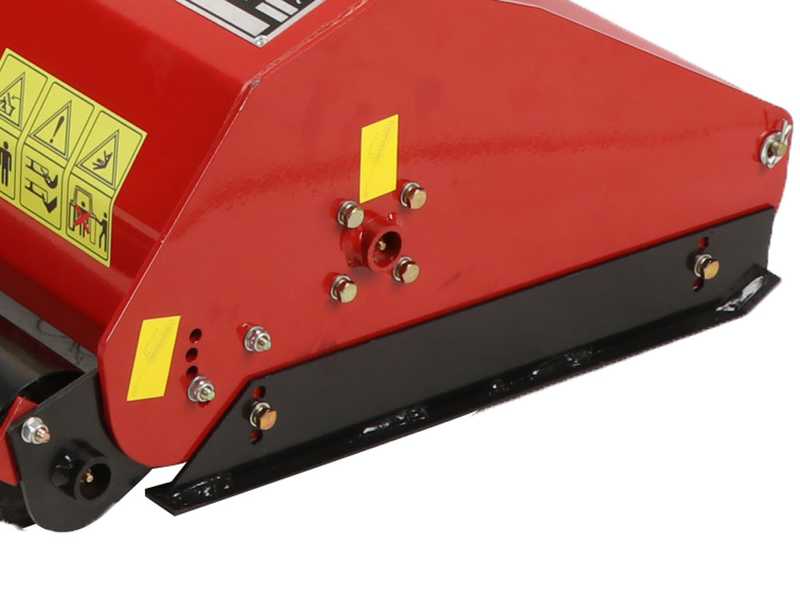

Stabilizing accessories - rear roller and side skids

Rear support height adjustable roller on standard equipment.

Bearing at the roller fixing particular.

Roller side supporting plate particular, with holes for the height adjustment. It is 5 positions adjustable.

Side adjustable supporting skids, supplied with standard equipment.

Sturdy protective front flaps made of steel.

Lay foot .

Free items & Standard equipment

Free gifts & Standard equipment

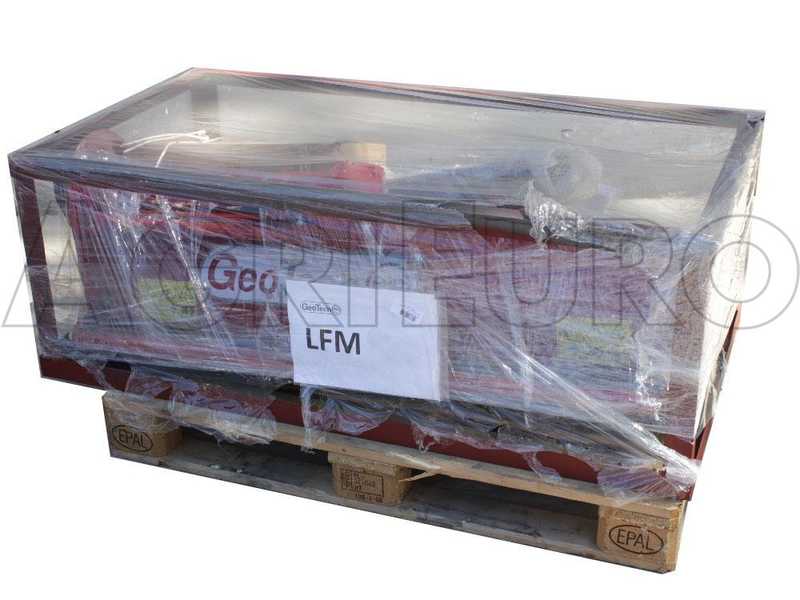

The flail mower is shipped on pallet. Only the three point hitch and few other particulars need to be assembled.

Cardan shaft included on package.

Assembly and Instructions Manual.
