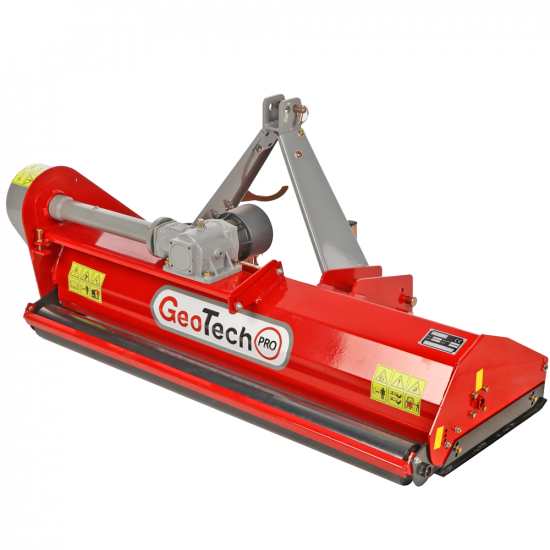

GeoTech Pro LFM125 - Tractor-mounted Flail Mower - Light Series

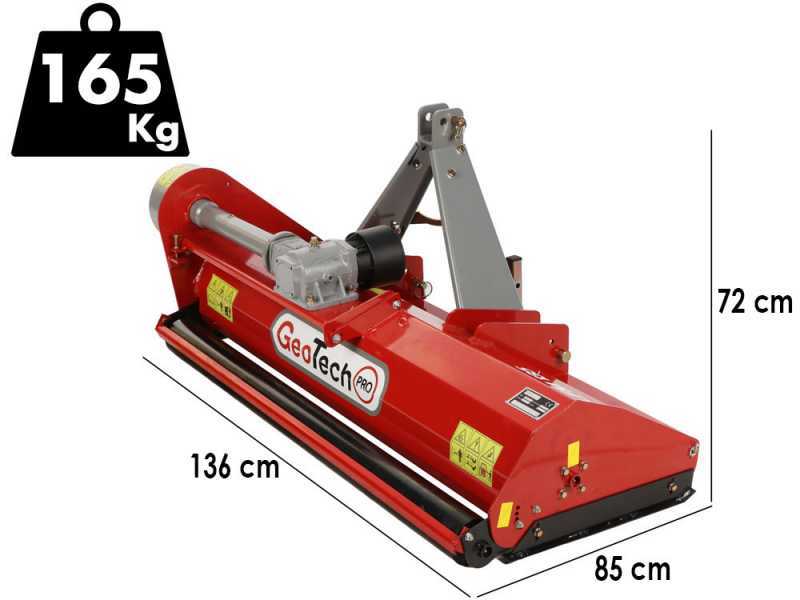

The GeoTech-Pro LFM 125 tractor-mounted flail mower is a horizontal axis flail mower ideal for hobby work on agricultural land and gardens. Its light and flexible construction allows it to precisely chop grass, light pruning and small shrubs. This model is designed to be mounted on low-power tractors thanks to its low weight of only 165 kg and its standard 3-point universal hitch.

The effective working width of 133 cm ensures good performance on small and medium-sized areas. The adjustable rear roller allows the cutting height to be adapted to the needs of the terrain, improving work uniformity. Manual movement facilitates alignment of the machine with respect to the tractor's trajectory, optimising coverage of the worked surface.

The 3-belt drive ensures high reliability and effective protection of the gearbox, preventing overloading during intensive use. The included side skids provide additional protection for the structure and facilitate sliding on the ground, keeping the forage harvester stable.

Distinctive features of the GeoTech-Pro LFM 125 flail mower:

• Lightweight construction: suitable for hobby work
• Working width: 123 cm, ideal for small and medium areas
• Low weight: 165 kg, perfect for low-power tractors
• 3-belt drive: robust and effective for protecting gears
• Manual displacement: simplifies alignment in relation to the tractor
• Adjustable rear roller: optimises cutting height
• 3-point hitch: compatible with most tractors

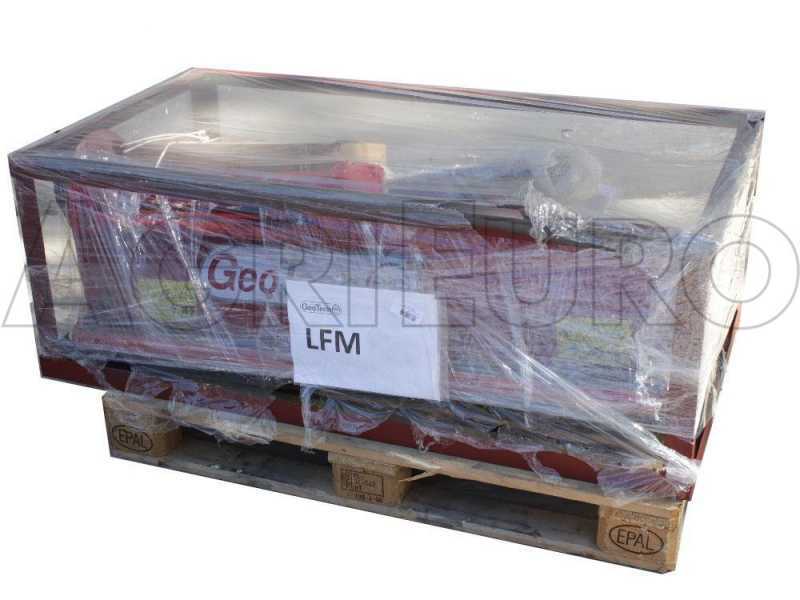

Attention: The machine is shipped ready for use and with the correct oil levels. Once all parts have been assembled, check the tightness of the bolts.
Read the instruction manual carefully before starting the machine.

Machine suitable for very light work, only on grass or on small branches (max. diameter 2 cm). It is recommended to use it with low power tractors (as indicated in the technical data sheet) and on well levelled and stone-free ground. If used on land that is not perfectly levelled and with stones, the impact of the cutting tools with bumps in the ground or with stones may damage the machine (as it belongs to a light range of machines).

Lateral displacement is manual.

It is possible, by unscrewing the support bolts, to move the mulcher sideways by 11 cm.

This makes it possible to work close to obstacles without the risk of hitting them with the tractor wheels.

The attachments are of a universal type and adaptable to all tractors on the market.

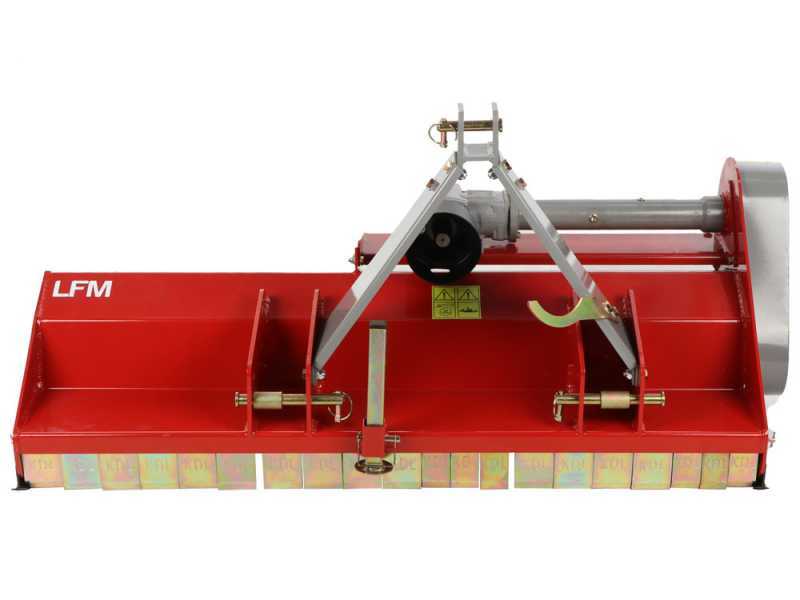

Details of the robust 3-point hitch.

Nr. of hammers fitted as standard: 18

These hammers are mounted on a robust 12 mm diameter hardened steel bolt (length 90 mm).

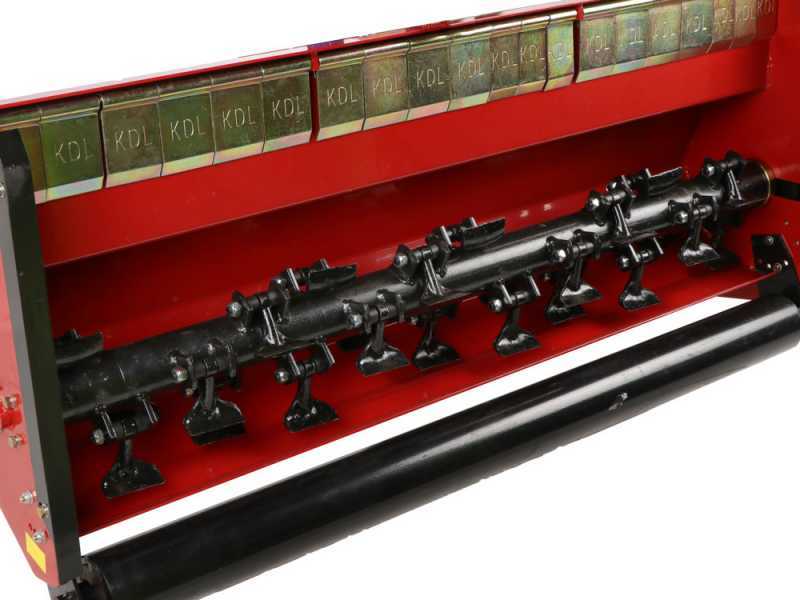

Close up of the cutting hammers, mounted on the rotor. They provide a good cut in gardens, lawns and urban areas.

Finely shreds grass and pruning, while simultaneously rolling the turf. Thanks to the high rotor speed and the large number of hammers (mallets), it reduces the wave effect of the turf and has an excellent shredding action.

Side Support with internal rotor fastening bearing to the hammers.

Detail of'the external rotor anchorage, with central grease cavity.

Illustration of the double spiral rotor.

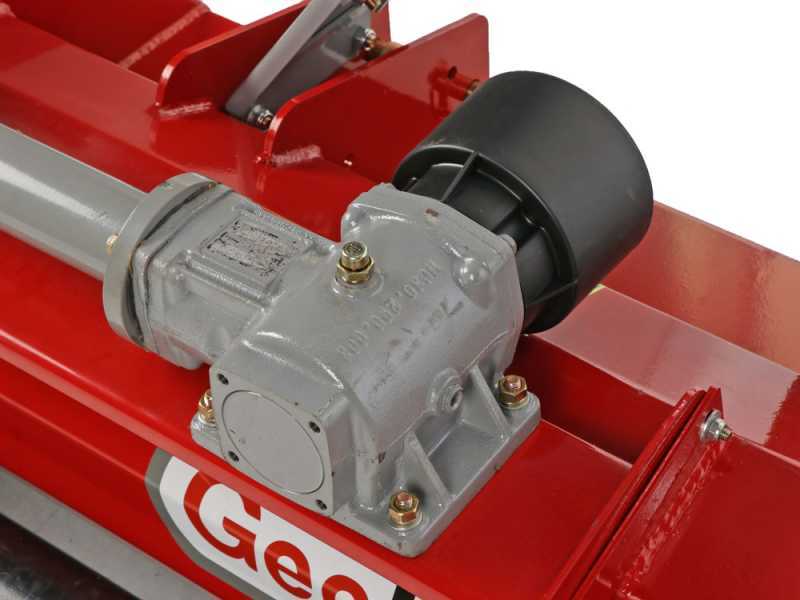

Oil-immersed gearbox housing. The housing is made of cast iron, the inner gears of hardened steel. Equipped with lubricated extension.

This machine is fitted with a free-wheel device (or overrun coupling) built into the gearbox; this ensures a long service life for all moving parts of the machine, avoiding the recoil that would occur when switching from motion (540 rpm) to 0 rpm and allowing the rotor to turn freely until it stops.

Side transmission with 3 belts.

Detail of the side belt guard.

Detail of the side grease nozzle on the transmission side, located in a convenient position, accessible through the dedicated window.

The gearbox of this machine can hold no more than 0.5L of oil.

Read the instruction manual carefully before use.

The power take-off is the standard 1 3/8’ z6 type (suitable for all current and recently manufactured tractors): If you have a very old tractor, check that it is equipped with the same power take-off and with normal clockwise (right-hand) rotation direction

Rear support roller, height adjustable to 5 positions. Roller bearings with grease nozzles.

Standard side support skids also adjustable.

Robust set of front protection strips made of moulded steel.

Support foot.
