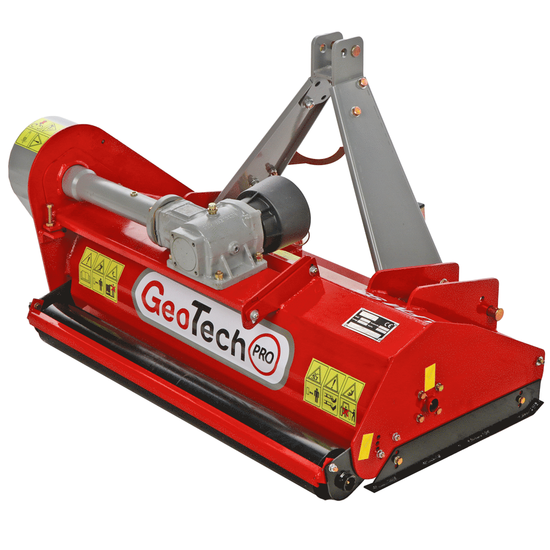

GeoTech Pro LFM 85 - Tractor-mounted flail mower - Light series

The GeoTech-Pro LFM 85 tractor-mounted flail mower is a horizontal axis flail mower ideal for hobbyist work on farmland and gardens. Its lightweight and elastic structure allows it to precisely shred grass, light prunings and small shrubs. This model is designed to be mounted on low-power tractors due to its low weight of only 138 kg and standard 3-point universal hitch.

The effective working width of 83 cm ensures good performance on small and medium-sized areas. The adjustable rear roller allows the cutting height to be adjusted according to the needs of the soil, improving the uniformity of work. Manual displacement facilitates the alignment of the machine with respect to the tractor's trajectory, optimizing the coverage of the worked area.

The 3-belt transmission ensures high reliability and effective gearbox protection, preventing overloading during heavy use. The included side skids provide additional protection for the frame and make it easier to slide on the ground, keeping the flail mower stable.

Distinctive features of the GeoTech-Pro LFM 85 flail mower:

• Lightweight structure : suitable for hobby work.
• Working width: 83 cm, ideal for small and medium areas.

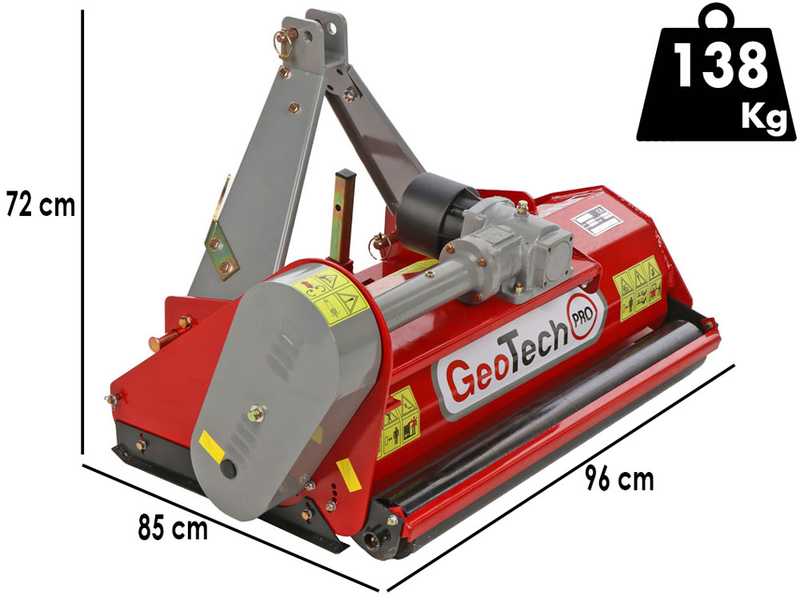

• Low weight: 138 kg, perfect for low-power tractors.
• 3-belt drive : robust and effective for protecting gears.
• Manual shifting : simplifies alignment with the tractor.
• Adjustable rear roller : optimizes the cutting height.
• 3-point linkage : compatible with most tractors.

Warning: the machine is shipped ready for use with oils at level. Once mounted all the parts check the bolts tightening.
Please carefully read the instructions manual before starting the unit.

Machine for very light work, only on grass or at the very most on small twigs (max. diameter 2 cm). We recommend use with low-power tractors (as specified in the data sheet) and on well levelled and stone-free ground. When used on terrain which is not perfectly levelled and with stones, impacts of the cutting tools with bumps of soil or rocks can damage the machine (as it is a light series).

Manual side shifting.

It is possible through unscrewing the support bolts to move the mower sideways by 11 cm.

This allows working close to obstacles without the risk of hitting them with the tractor wheels.

Universal joints suitable for all tractors on the market.

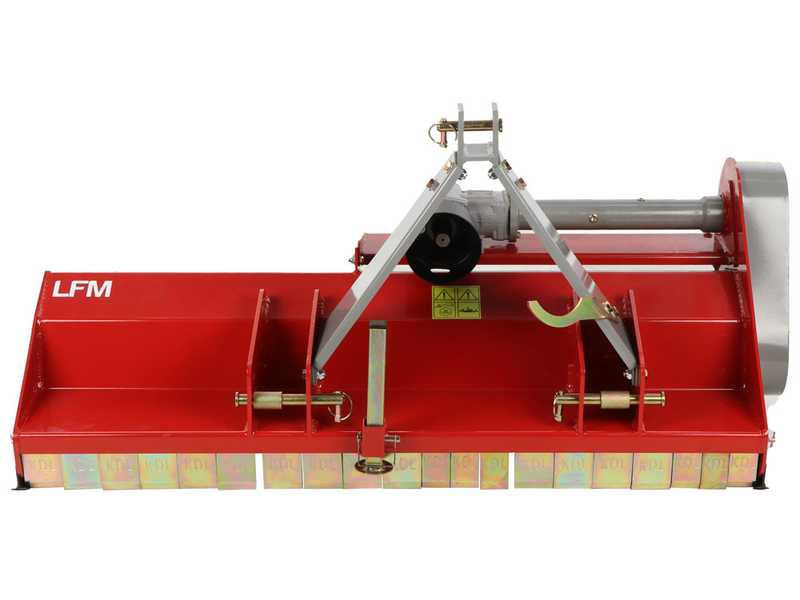

Detail of the sturdy 3-point attachment.

No. of hammers mounted as standard: 12

These hammers are mounted on a sturdy 12 mm diameter hardened steel bolt. (90mm length)

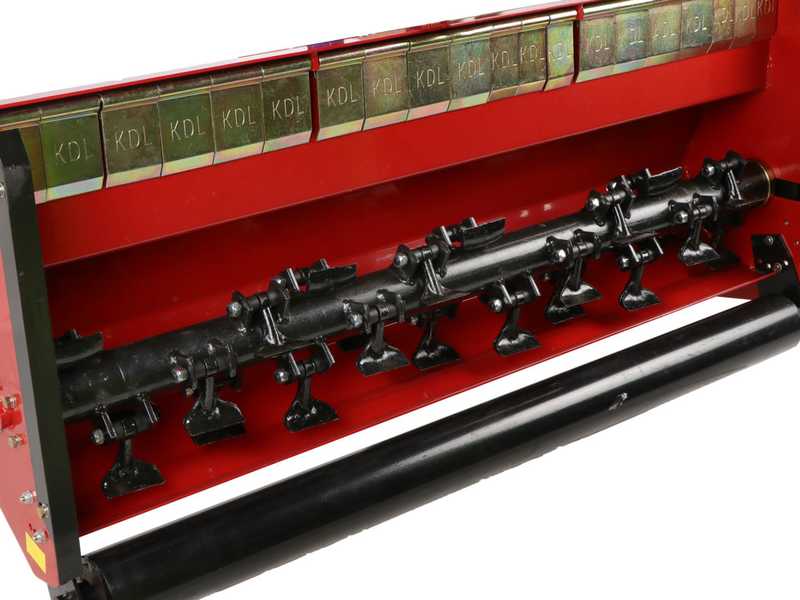

Close-up of the cutting clubs, mounted on the rotor. Thanks to the latter, a good cut is achieved on gardens, lawns and urban areas.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Side support with internal rotor attachment bearing to hammers.

Detail of the external rotor anchor with central cavity with grease nozzle.

Figurative image of the double-spiral rotor.

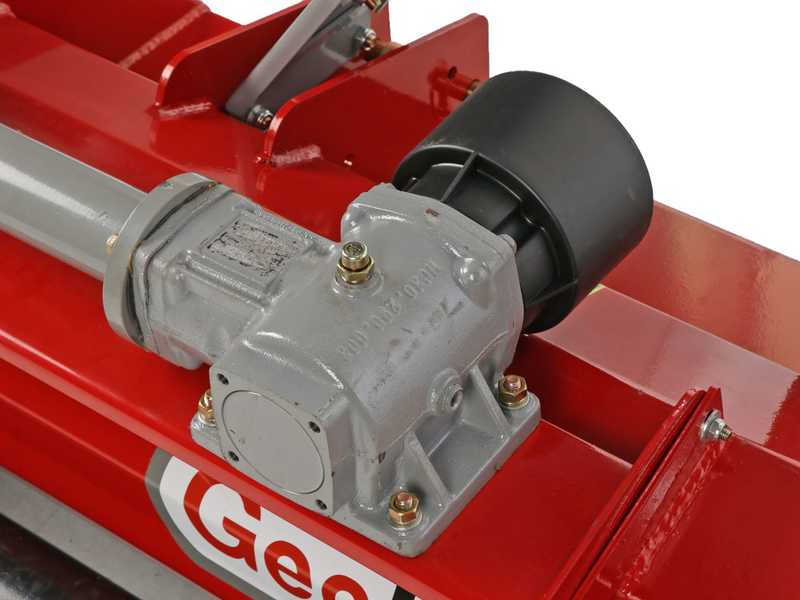

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

3-Belt side drive.

Detail of the side belt protection casing.

Focus on the side grease nipple on the transmission side, laced in a convenient position, accessible through the proper opening.

The gearbox of this machine can hold no more than 0.5L of oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

Rear support roller, adjustable in 5 positions. Roller bearings with grease nozzles.

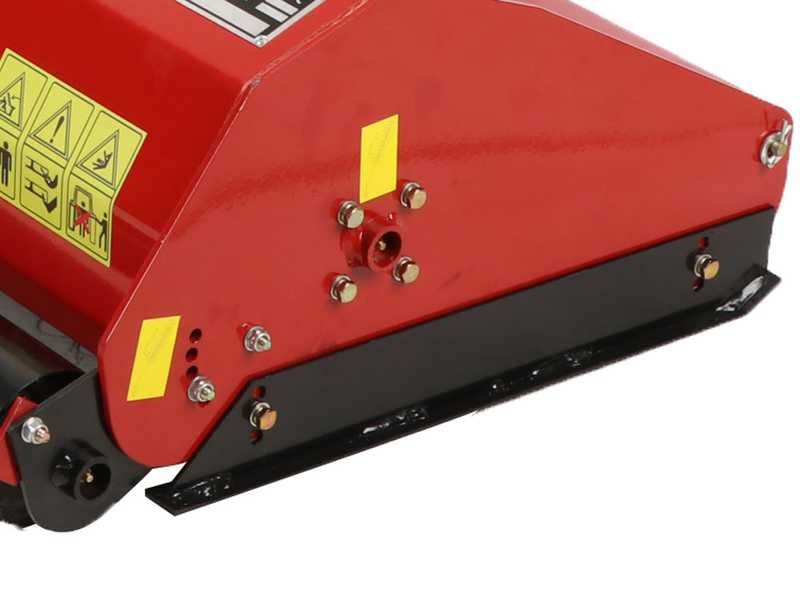

Side support slides as standard, also adjustable.

Sturdy set of front protection slaps made of shaped steel.

Support stand
