Description

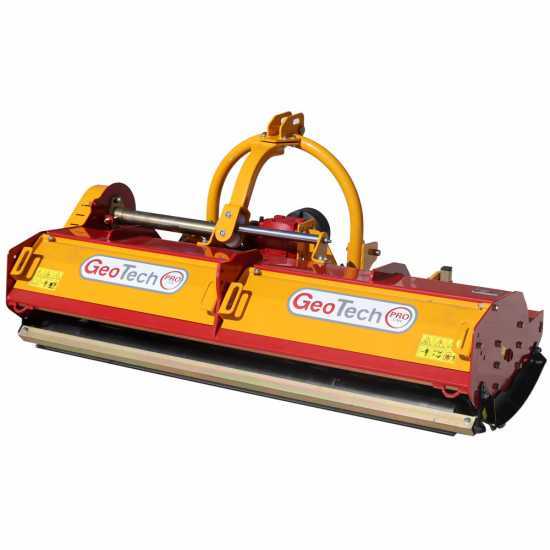

GeoTech HFM 220-H tractor flail mower

The horizontal flail mower for tractor of ESFM 220H series with hydraulic side shift was designed for the light runners crushing, grass and small bushes of lawns, woods, orchards and uncultivated soils.

Its use is simplified by the horizontal hyddaulic side shift that enables the machine to work off-axis and to reach the working areas effortlessly.

It is equipped with an engine hood with 2 openings for an easy maintenance.

Suggested for semi-professional purposes.

Hydraulic side shift, 4 drive belts and rear roller.

TECHNICAL DETAILS (in summary):

Real working width: 215 cm
Real width occupied (with side skids assembled): 240 cm
Weight: 549 kg
Hydraulic side shift
1°and 2° category 3 point linkage
4 belts transmission
Free wheel device

STANDARD EQUIPMENT (in summary):

Hammer flails
Adjustable lay rear roller
Adjustable skids
Standard-supplied cardan shaft

WARNING!

Attention: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.

ALWAYS CHECK THE OIL PRESENCE AND LEVEL BEFORE EACH USE

GeoTech Pro ESFM 220H - Tractor-mounted side verge flail mower with Arm - Medium-heavy series - Hydraulic shift

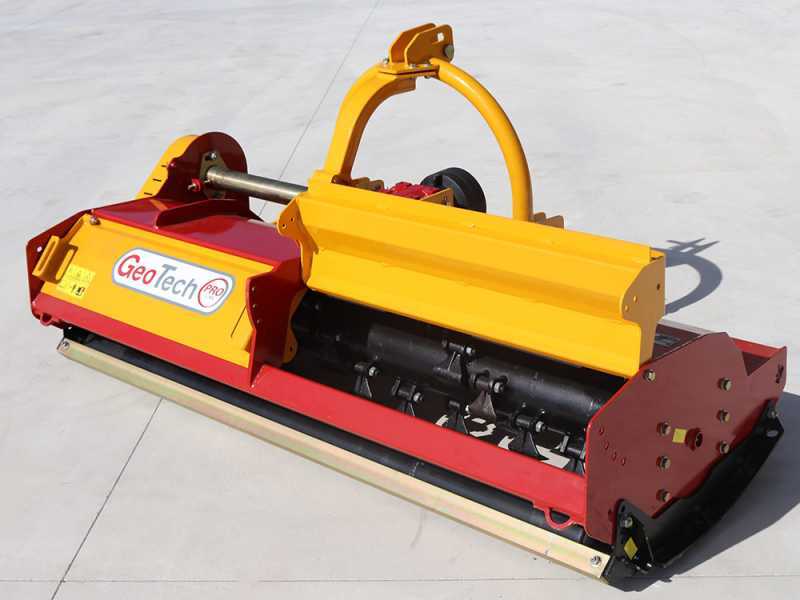

Double opening of the engine hood

The special feature of this tractor flail mower is its double adjustable opening of the engine hood.

It enables to adjust the rear unloading space by means of smoe screws and to simplify the maintenance operations.

The use of bolts enable to open the small doors individually or all at once.

Cutting tools: hammer flails

Nr. of hammer flails on standard equipment: 36

Flails are fixed by means of a sturdy 16 mm diameter bolt made of hardened steel.

Focus on the drum's hammer flails.

It finely crushes grass and runners while rolling the lawn. Thanks to the high rotor's rotations and the high number of flails, it reduces the soil wave effect and have a perfect crushing function.

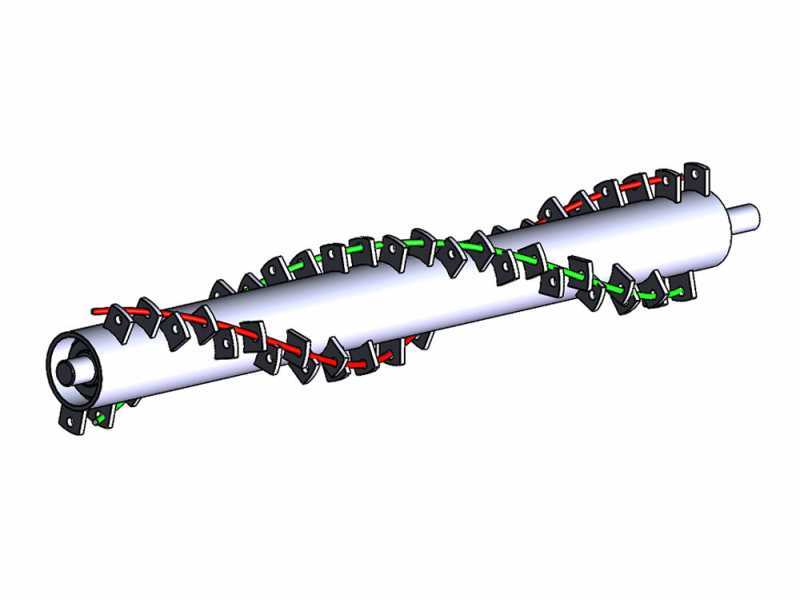

Figurative image of the double-spiral rotor.

Side belt transmission and gearbox

Oil-bath gearbox. Monocoque shell, hardened steel inner gears.

Free wheel device (or overrunning clutch) integrated with the gearbox; this assures long life to all the machine's moving parts, avoiding recoil that would happen when going from 540 rpm to 0 rpm by allowing the rotor to freely turn until it naturally stops.

Equipped with lubricated extension.

4 belts side transmission (the most part of the tractor flail mowers of this weight category are equipped with normal 3 belts transmission).

Focus on the belt protection sideshield.

Focus on the side greaser located on the same transmission's side, easy to reach by means of the proper window.

This machine's gearbox capacity is under 1 L oil.

Before using this product, please carefully read the instructions manual.

Hydraulic side shift and 3 points hitch

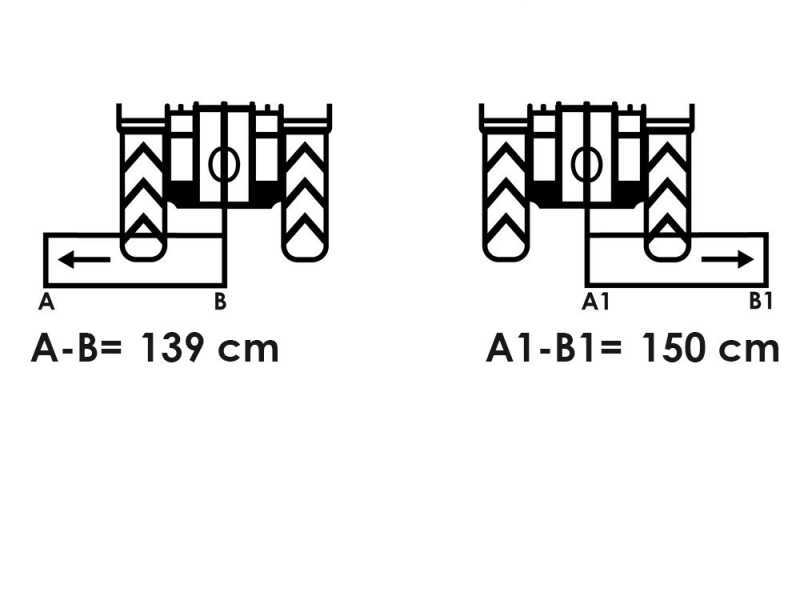

Equipped with hydraulic side shift.

The 3 point hitch is located on a very sturdy tubular going along the full structure.

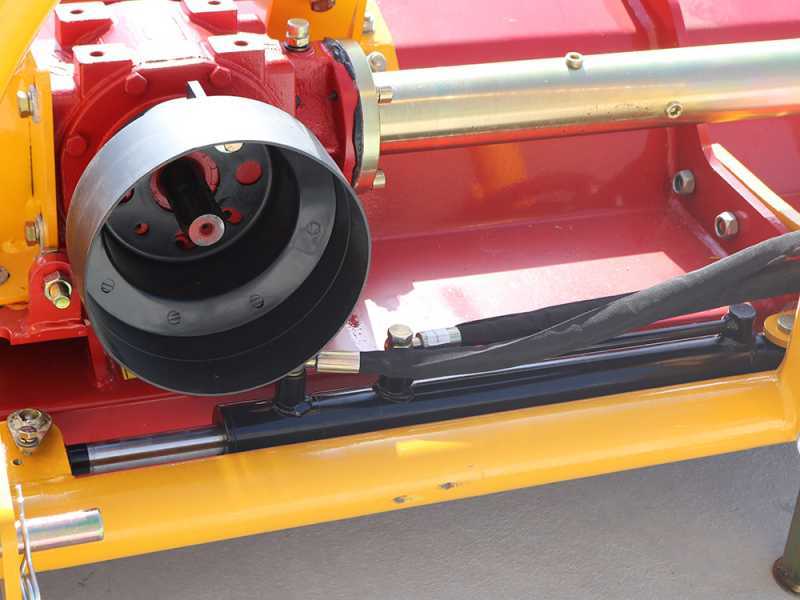

Focus on the side shft controller hydraulic cylinder.

Detail of the Self lubricated ABS holes.

Universal type PTO ( 1 3/8" Z6 )

Connections are universal type for all tractors on the market.

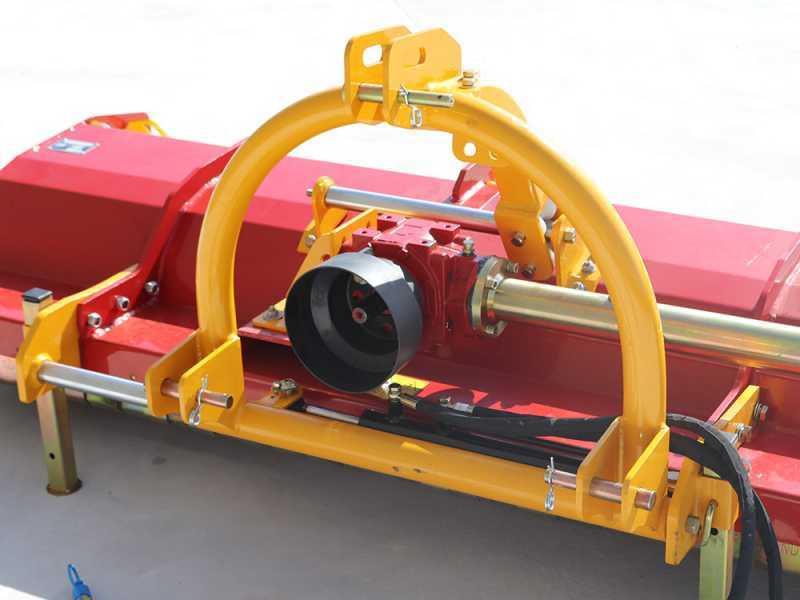

Focus on the 1° and 2° category sturdy 3 points hitch.

Rotor and side bearings

Focus on the side flail support and of the side drum's bearing.

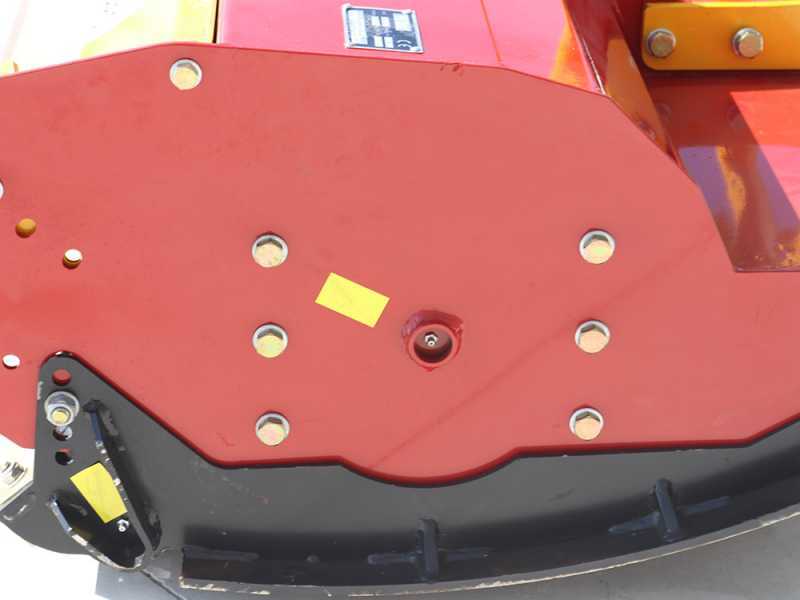

Focus on the outer rotor's anchoring, with central greaser hole.

Good cut on gardens, lawns and urban areas thanks to the hammers. The flail mower is connectable to tractor is by 3 points linkage.

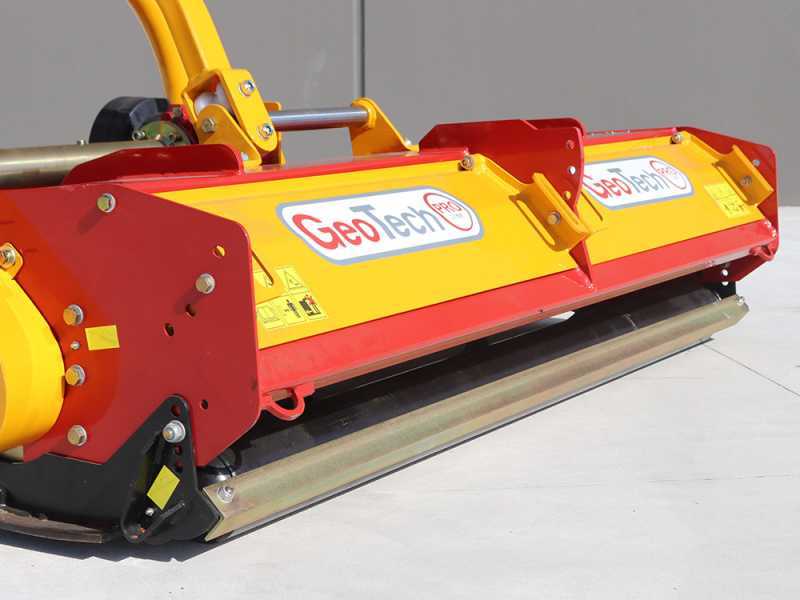

Stabilizer accessories - rear roller and side skids

Rear support height adjustable roller on standard equipment.

Roller scraper detail

Focus on the bearing at the roller fixing.

Focus on the roller side supporting plate, with holes for the height adjustment. It is 6 positions adjustable.

Side adjustable supporting skids, supplied with standard equipment.

Sturdy protective front flaps made of steel.

Lay foot for storage.
