Fiorentini Ecomini 430 Electric - 3-in-1 floor washer: wash, dry and vacuum

Questions & Answers (1)
ID: K600233

EAN: 9999237547161

MPN: ECOMINI430E

7,8/10
After-sales assistance & Spare parts
Fiorentini Ecomini 430 Electric - 3-in-1 floor washer: wash, dry and vacuum
+30 sold
Free gifts from AgriEuro
Protection and storage tarp coverProtection and storage tarp cover
Self-propelling
Hand push
Brush type
Disc
Brush width
43 cm
Pressure on the brush
26 Kg
Detergent tank capacity
17 L
Recovery tank capacity
22 L
Motor type
Electric
Nominal power (W)
500 W
Assisted steering system (power steering)
Yes
Manufacturing country
Italy
Product Features
Model:
Ecomini 430
Operation:
with squeegee
Body material:
PVC
Operating mode:
Electric 230 V
Self-propelling:
Hand push
Drying function:
Yes
Brush width:
43 cm
Brush type:
Disc
Hourly performance:
1720 m²/h
Squeegee width:
54 cm
Squeegee lifting:
Lever-operated
Brush hook:
Quick
Pressure on the brush:
26 Kg
Vacuum depression:
1300 mmH20
Number of tanks:
2
Assisted steering system (power steering):
Yes
Detergent tank capacity:
17 L
Recovery tank capacity:
22 L
Manufacturing country:
Italy
Motor data
Motor no.:
1
Motor brand:
Fiorentini
Motor type:
Electric
Nominal power (W):
500 W
Brush motor power:
370 W
Motor power (max.):
500 W
Noise level:
72 dB(A)
Equipment
Height-adjustable handle:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Analogue dashboard with indicator lights:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
70x50x107 cm
Net weight:
45 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
101x57x80 cm
Weight including packaging:
62 Kg
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 13/06/2025 - 17/06/2025
You're viewing:
Customers also viewed:
Description

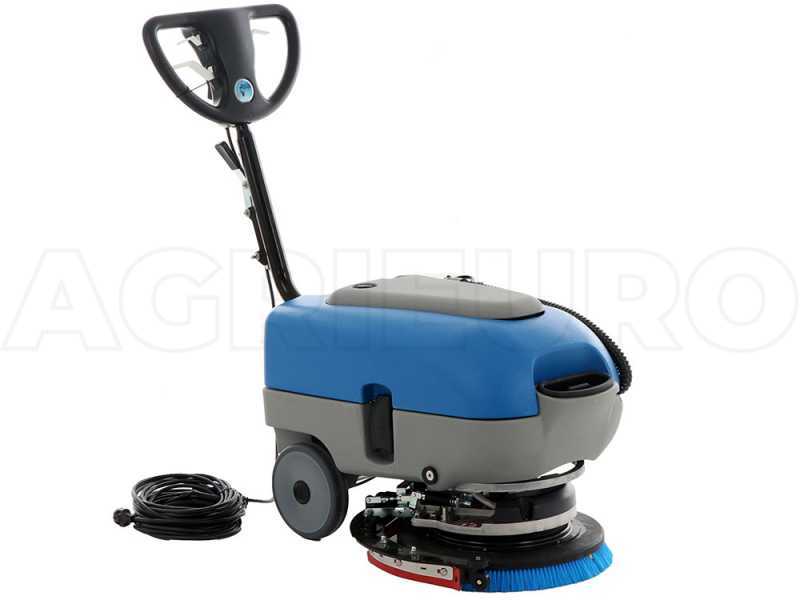

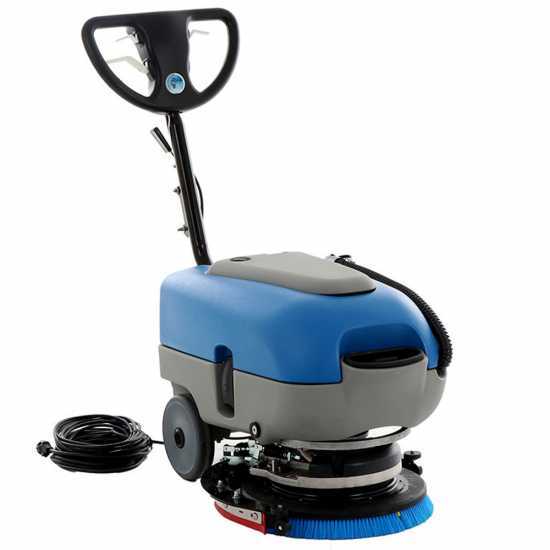

ECOMINI 430 electric floor scrubber drier - floor cleaner

The ECOMINI 430 floor scrubber drier has been designed for the treatment of flat surfaces by cleaning and subsequent drying process of the washing water.

The power supply system is provided by the current by means of a 10 m long cable that power all machine parts and electric components.

The machine is provided with a rotating brush that clean the surfaces by using water and detergent.

Once the machine moves forward, the rear brush (squeegee), in contact with the floor, collects water, suctions it and carries it to the recovery tank.

The main body of the machine is composed of a steel frame, so as to avoid problems of oxidation that could affect the machine reliability.

Suitable for the cleaning of up to 1720 m2 floors, especially where there are persons or furniture: wellness centers, clinics and medical environments in general, fitness centers, shops, workshops, stores in general. Easy maneuvers, the machine silence and the immediate drying enable to work in total safety even where there are persons during business hours.

Easily foldable for storage.

Why choose the disc brush?

  • extended mechanical action of the bristles on the surface, suitable for hard dirt;
  • the special tilting of the body enables the machine to have a dragging and balanced effect. Thus, it is very maneuverable
  • full cleaning also near the walls
  • cleaning group which is lower at the extremity to clean under the shelves

High cleaning efficacy thanks to the innovative rotating brush the removes dirt in depth without being aggressive and without leaving rings.

Technical features

Rapid release of the disc brush:

the exclusive system enables the automatic coupling of the disc brush when the machine is switched on and rapid release is made manually without using any tool.

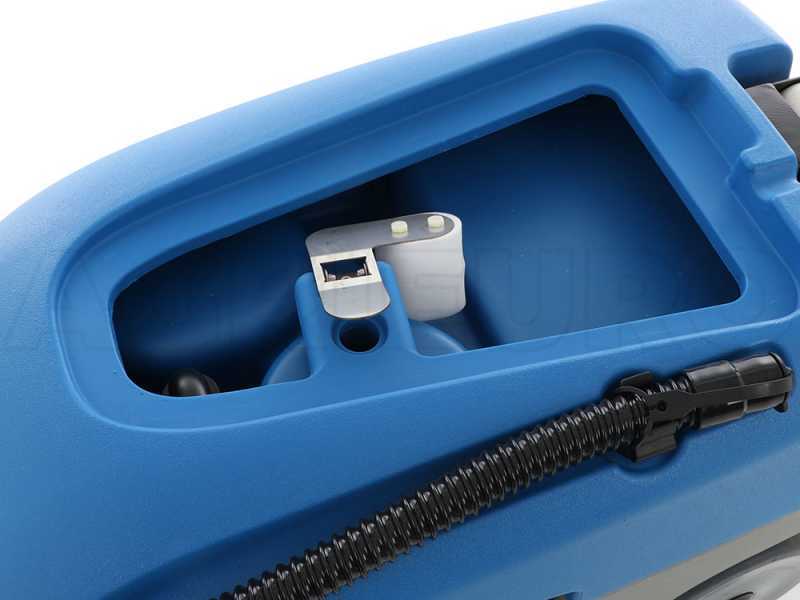

Quick access to the recovery tank, easily inspectable. Machine locking device thanks to the maintenance. High visibility and cleaning performance with both sides of the brush in the hard-to-reach corners. Wide rotation of the squeegee pin for a rapid replacement.

- Float for liquid level

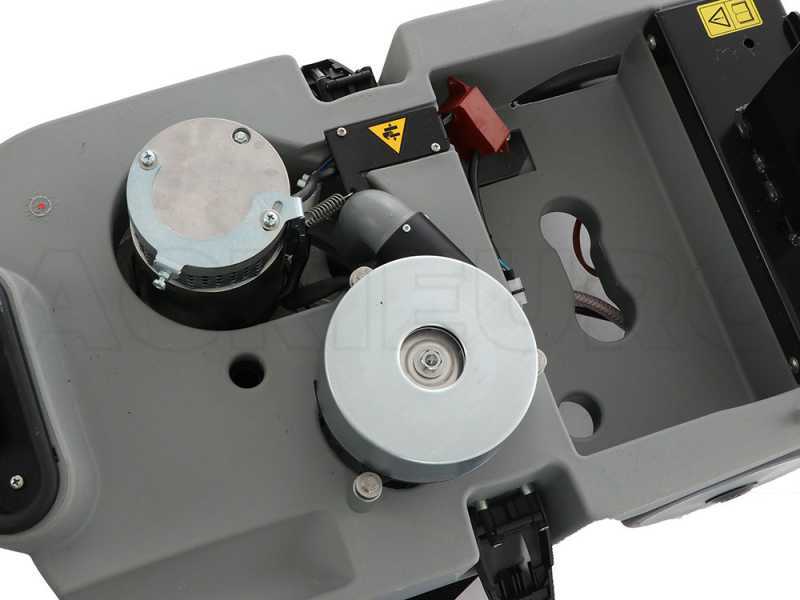

Brush and squee-gee

Very economic and ecologic: with just water cleaning results are quite good.

In case of hard dirt, it is necessary to add detergent to the solution (however, we suggest adding detergent to the solution to have really excellent performances). The detergent is added through this channel in the front part of the machine (black tap).

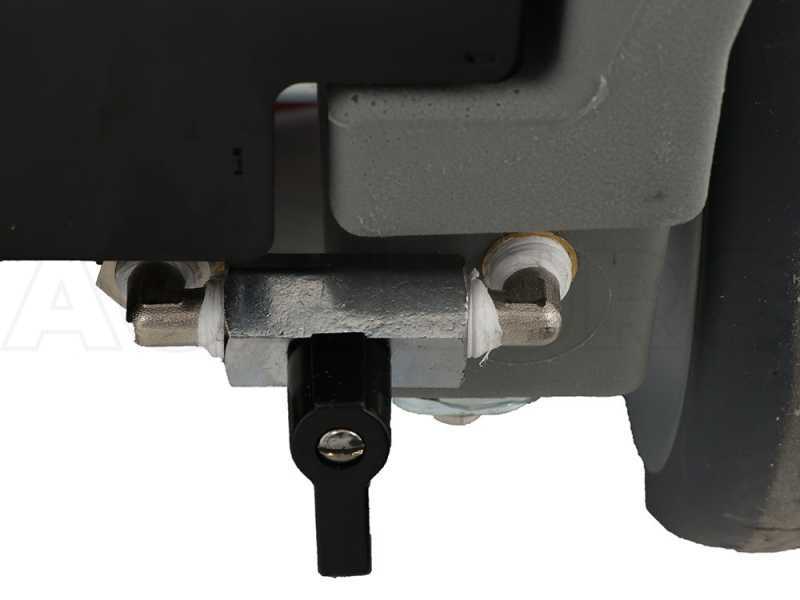

Squeegee lifting system with specific lever on the rear part.

Easy access to components

Tap for liquids to be unloaded

Large capacity of the 2 tanks (mix of water-detergent and dirty water) for a lung run time:

1- Blue tank => dirty water

2- Grey tank => clean water

Non-marking wheels

Controls

The control panel regulates all the functions of the machine, that are:

1 - Activation of the cleaning brush

2 - Activation of the suction engine

3 - Machine Switch on/off

4 - Opening of the water tap

5 - Lift or Lower the squeegee

CONTROLS:

Switches for the activation of the brush engine

Adjustable handle by means of small knobs.

Knob for squeegee activation.

Knobs for machine activation.

Valve to empty the tank

Technical features

Power: 230V

Working width / squeegee: 430 / 540 mm

Working capacity: 1720 m2/h

Detergent tank capacity: 17 l

Recovery tank capacity stop: 22 l

Brush pressure: 26 kg


Brush motor power: 370 W - 220 V

Suction motor power: 500 W - 220 V


Size: 70x50x104 cm

Standard accessories:

  • Brush
  • Rear Squeegee rubber
  • Power cable
Free items & Standard equipment

COMPLIMENTARY: large protection and storage cover

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

It is easy to fold and store in its box without taking up space!

(The pictures are for illustrative purposes only)

standard equipment

The floor scrubber drier is shipped in its original packaging. Instructions manual included.

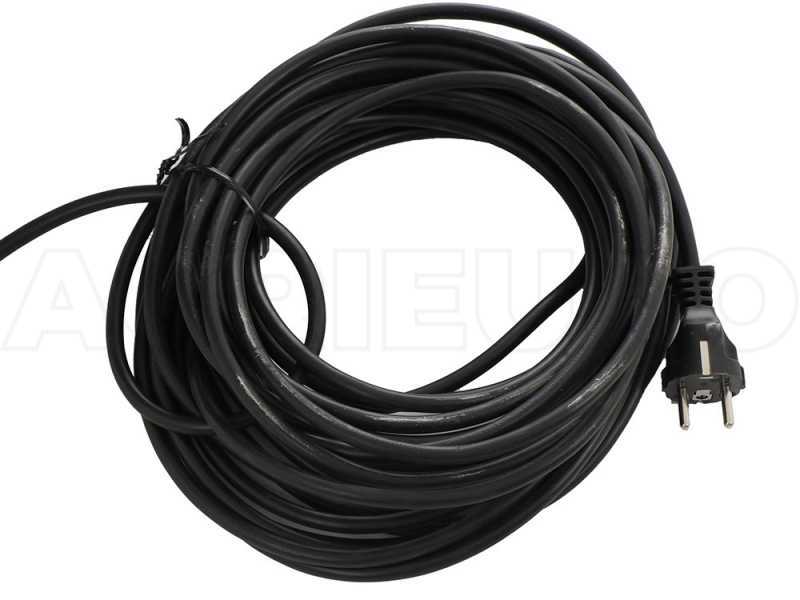

10 m power cable
