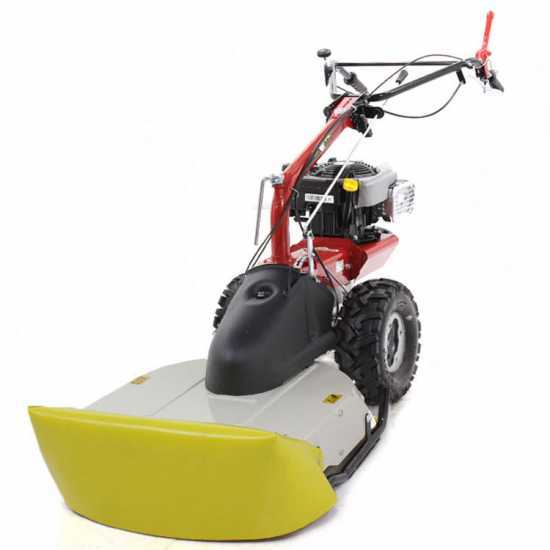

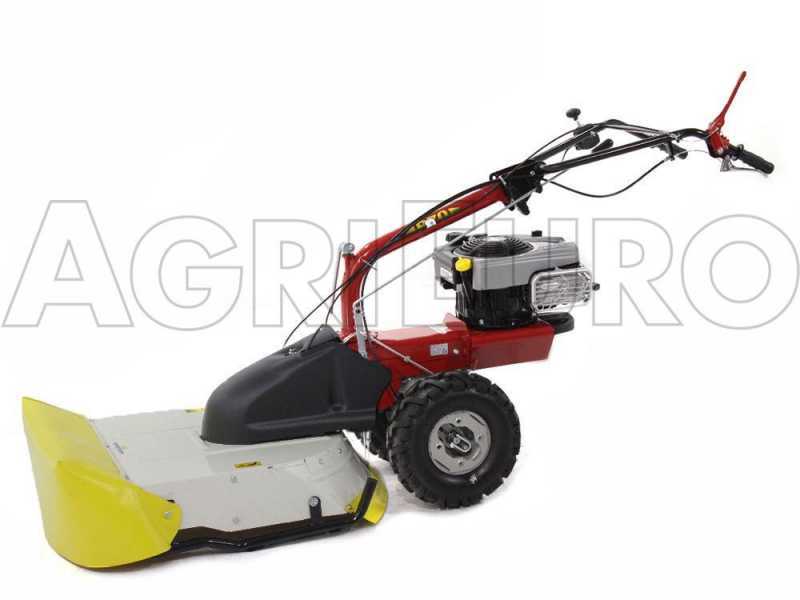

Eurosystems P70 EVO - Petrol Rough Cut Mower - Blade - B&S 850E I/C

Innovating self-propelled field mower featuring large tractor wheels. The drive wheels are connected to an oil-lubricated gear transmission featuring a 5 speeds gear shifting system (3 forward speeds + 2 reverse speeds).

The blade deck attachment is included in the price and it features a belt tranmission system which guarantees durability. This system protects the blade deck attachment.

Powerful self-propelled petrol brush mower featuring an US made petrol engine. Briggs & Stratton engines are popular thanks to their performance and quality levels.

Suitable for very tall grass and weeds on all kinds of surfaces, even on gentle slopes and uneven terrain.

It can destroy very tall weeds (over 1 meter tall). For this reason, the Eurosystems rough cut mower is one of the most effective self-propelled petrol field mowers on the market. We offer this great machine for a very competitive price.

Sweeper brush
for:
- yards
- all kinds of green areas
- roads
- squares

Snowplough attachment
for squares, small driveways, yards and so on.

Tiller / cultivator
for small parcels of soft terrain without rocks and stones.

Sickle bar / scythe mower
dual-action sickle bar for thick grass and overgrown weeds.

Leaf vacuum
for dry leaves on squares, driveways, yards and so on.

Snow blower
for large amounts of snow on roads, driveways, squares and so on.
Featuring a chute that drops the removed snow to the side.

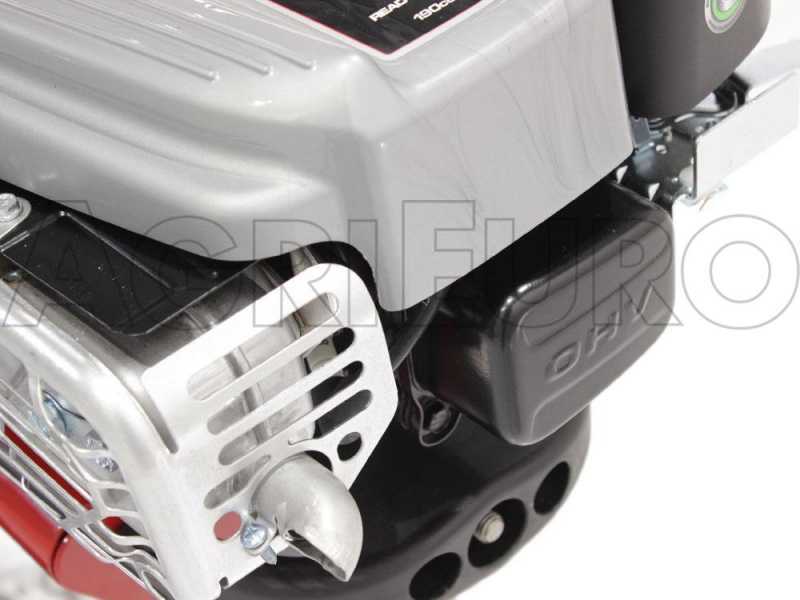

The Briggs & Stratton 850 E engine offers high-level performances, reliability and durability. Large engine capacity: 190cc

Specifications:

The 850 E engine series was designed for high-level perfomances and it is the best engine series for this kind of agriculture equipment.

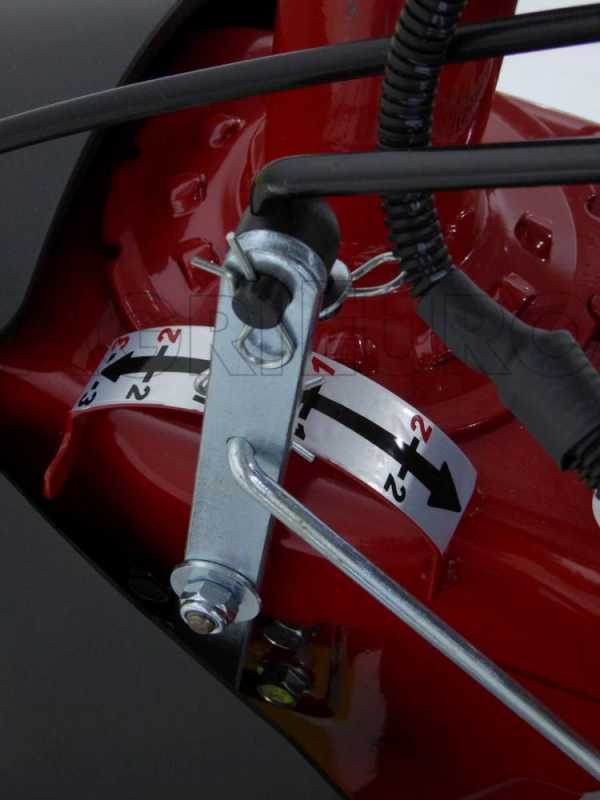

Featuring a 5 speeds gear shifting system:
- 3 forward speeds
- 2 reverse speeds

The operator can select the desired speed by pulling the lever below the handle bars.

Central transmission: aluminium case and oil-lubricated steel gears. Very sturdy and reliable.

Focus on a detail of the handle bars. All the main controls are placed in this area.

The lower black knob lever is the gear shifting stick.

The red lever engages or disengages the blade deck.

The silver lever engages and disengages forward or reverse motion, depending on the one the operator is using.

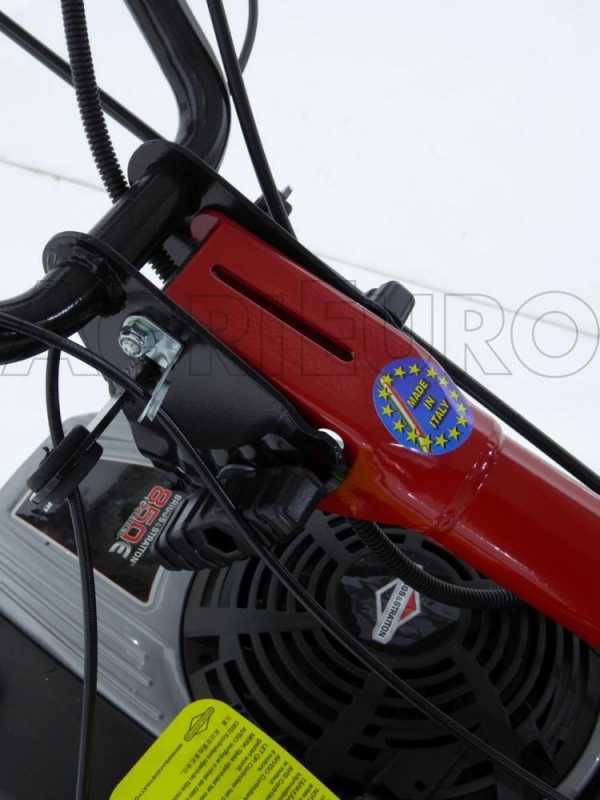

Focus on a detail of the handlebar height adjusting system.

The handlebars are reversible and the handlebar angle can also be adjusted.

Focus on a detail of the handle bars fixing and rotation system and lever.

Throttle control

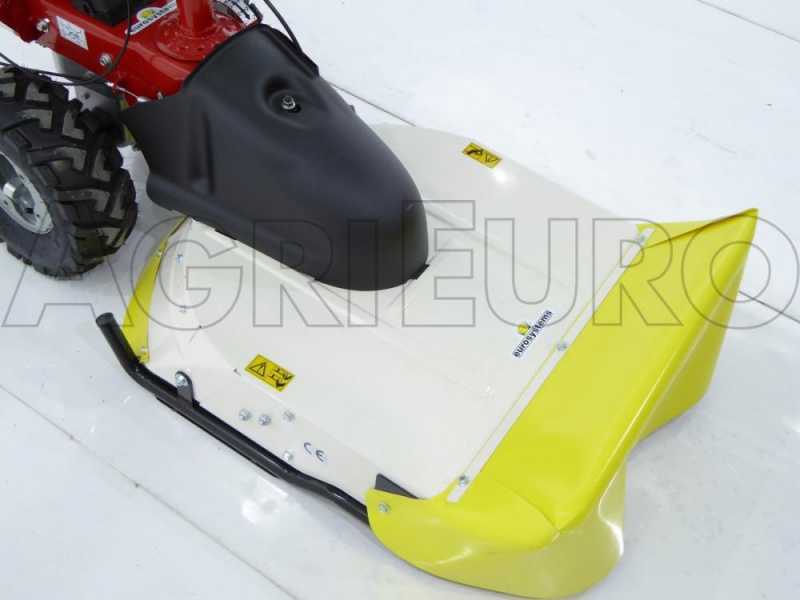

Innovating cutting blade deck:

- 2 blades placed crosswise at different heights

- 6 knives with swivelling ends

The two supporting blades are placed in a perpendicula configuration, but the most important aspect is that they are placed on two different levels (one is higher and one is lower). These blades, by cutting the grass and residues on various levels, allow for a truly excellent shredding, thus speeding up the breakdown process of the shredded grass.

The 6-knife blade deck chops grass, small twigs, reeds and other material very finely like no other brush mower on the market. The results are truly extraordinary. Maximum diameter of twigs and small shrubs: 1,5 / 2 cm.

The 6 knives are also placed on different levels and they chop everything they touch into very small bits. Moreover, the swivelling motion protects the knives against shocks (collision with stones, large diameter branches or uneven grounds). However, we recommend avoiding violent collisions.

Blade rotation speed: 2300 rpm.

Sturdy sliding frame with tubular runners. The runners height is adjustable. Adjustable cutting height from 50 mm to 80 mm.
The blade deck front opening is raised and wide so it can easily take in large amounts of grass. This part of the machine also features a thick PVC cover to block stones that might come flying from underneath the blade deck.

THIS BRUSH MOWER FEATURES A SPECIAL SWINGING BLADE DECK.

The blade deck rotates around its own axis, which connects it to the machine.
This makes it possible to operate on all kinds of terrains, uneven and challenging surfaces.

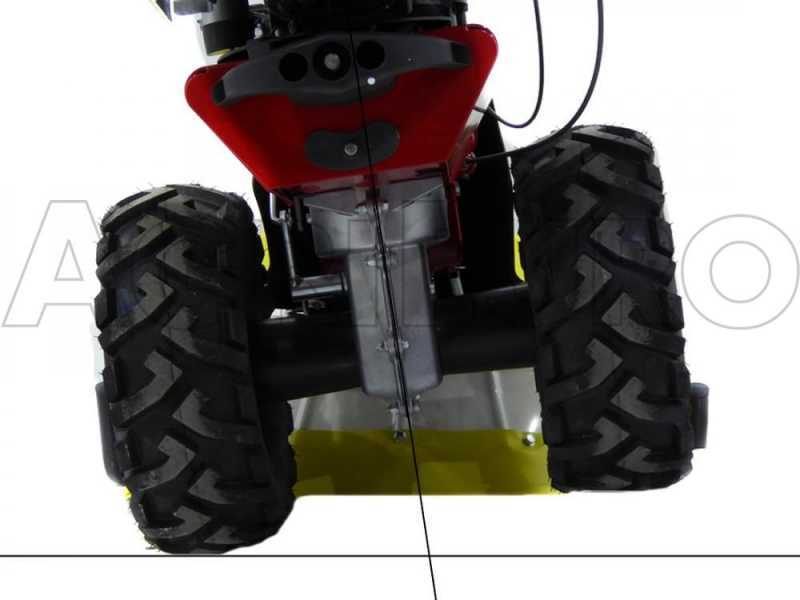

Belt drive between the blade deck and the machine body. The transmission unit is protected by the black shield you can see to the right.

This feature, along with the swivelling knives, reduces the blade deck wear process.

The belt can slip in case of shocks, thus preventing damage to the machine parts.

However, we recommend you avoid collision and working around large stones that are as high as the blades.

Because the machine is equipped with a belt drive transmission system, the blade features an engage/disengage lever.

If the blade were mounted directly below the engine (as is the case with other mowers), it wouldn't be possible to disengage it, so the blade would keep turning with the engine on. By contrast, this innovating machine allows engaging the blade only when necessary, so the blade can be disengaged when the operator doesn't need to use it. The machine can be moved around on its drive wheels while the blade is disengaged.

Large pneumatic wheels with tractor tread tyres: 15"x6.00-6

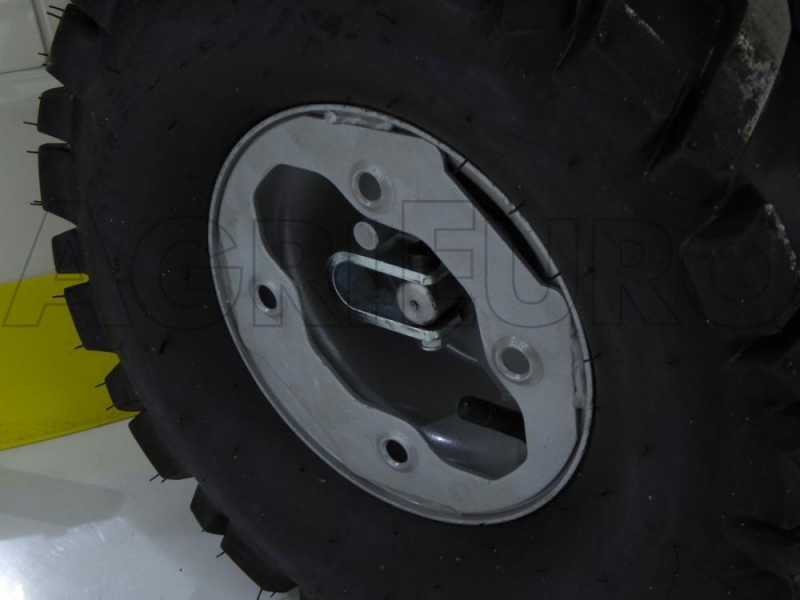

The wheels feature a blocking system that can be engaged or disengaged by releasing the fixing support. When blocking the wheels, they lose traction and go idle.
