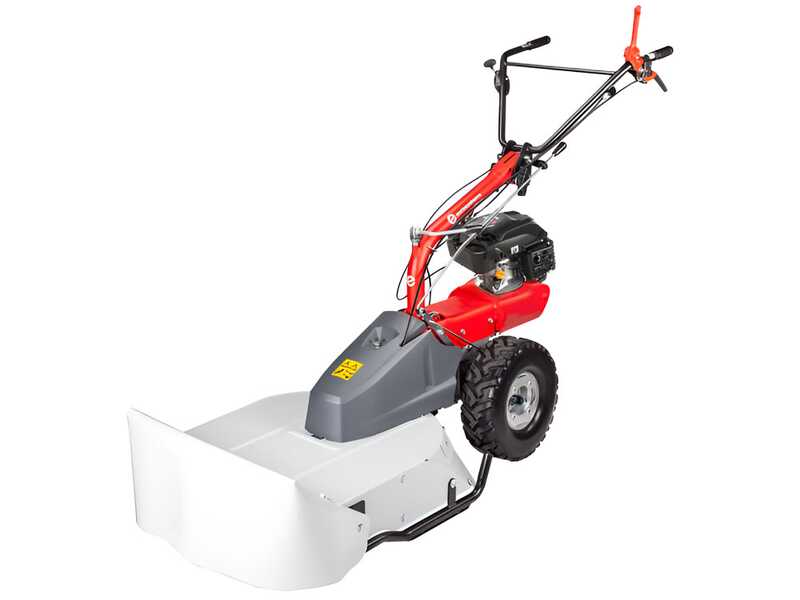

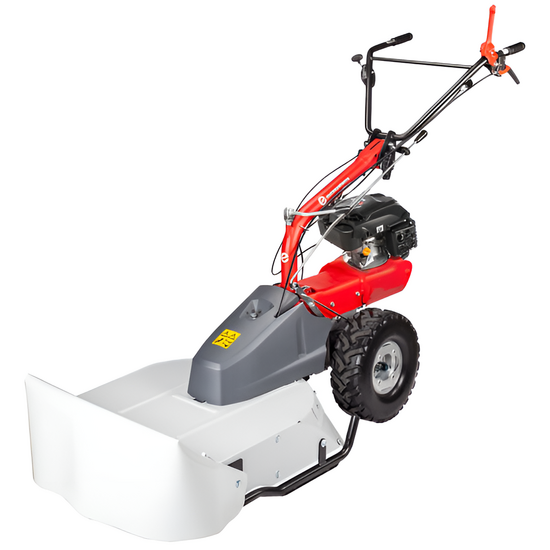

Eurosystems P70 EVO - Petrol Brush Cutter - Blade - Rato RV200

The petrol brush cutter Eurosystems P70 EVO is a self-propelled machine designed for intensive mowing and shredding of uncultivated vegetation, ideal for agricultural, forestry, and green area maintenance applications. Powered by a Rato RV200 200 cc petrol engine, this model offers a nominal power of 3.5 kW. The engine is fuelled by a 1-litre tank and equipped with a recoil start system. The compact yet robust frame and large sculpted wheels with mechanical traction make it suitable for uneven terrains and moderate slopes.

The traction system utilizes a gear transmission in an oil bath, a technical solution that ensures high durability and consistent performance even after many hours of work. The 5-speed gearbox (3 forward + 2 reverse) allows optimal speed management depending on the type of surface and the height of the vegetation. This makes the machine particularly versatile in tackling tall grass, weeds, and brambles.

The included brush cutter deck is operated via belt transmission, a technical choice that acts as a safety clutch. This mechanism extends the lifespan of the cutting apparatus, reducing damage from impacts and overloads. The tool can shred weeds and shrubs even over a meter high, making this brush cutter one of the most effective in its category.

The machine features a functional design with a painted steel structure, typical red and black colouring, and ergonomic handles for stable steering.

Distinctive features of the Eurosystems P70 EVO petrol brush cutter:

• 5-speed gearbox (3 forward + 2 reverse): allows precise speed control to adapt to different types of terrain.

• Oil bath transmission: ensures maximum wear resistance and reduced maintenance needs.

• Brush cutter deck with belt transmission: acts as a mechanical clutch to protect the cutting group from impacts and stones.

• Sculpted wheels with traction: offer excellent grip even on uneven or slightly inclined surfaces.

• Rato RV200 200 cc engine: powerful and efficient, designed to withstand continuous workloads.

Sweeper
for cleaning:
- courtyards
- green areas of all kinds
- roads
- squares

Snow blade
for clearing fallen snow in squares, small driveways, courtyards...

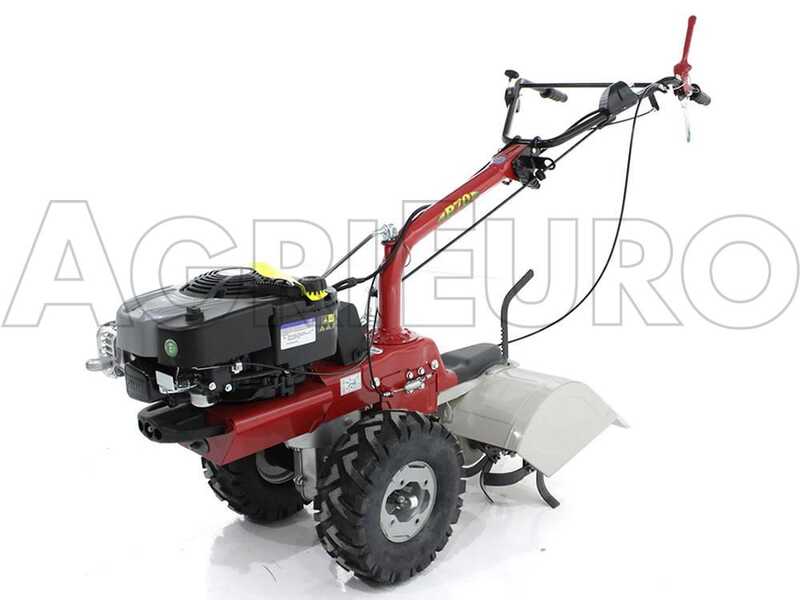

Rotary tiller
for treating small plots of soft, non-stony soil

Sickle bar
with double-blade movement for cleaning plots of land from wild or poorly maintained grass

Leaf vacuum
for quick collection of fallen dry leaves in squares, paths,
courtyards...

Snow blower
to clear roads, paths, squares from significant amounts of fallen snow
by depositing it to the sides thanks to the cannon it is equipped with.

The mower is driven by a 5-speed gearbox, 3 forward gears and 2 reverse gears.

These are selectable via the specific lever located under the handlebars.

Central transmission with aluminum casing and internal steel gears in an oil bath. Extremely robust and reliable.

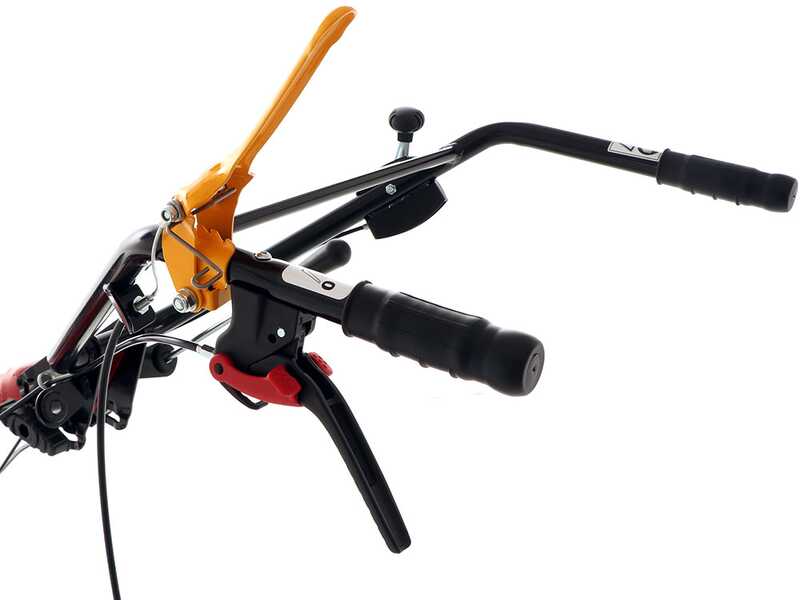

Detail of the handlebars, where all the main functions of the machine are gathered.

Lower lever with black knob: gear shift lever.

Orange lever: Cutter engagement/disengagement

Black lever: Forward or reverse drive engagement/disengagement (regardless of the gear set).

Detail of the handlebar height adjustment.

Reversible or laterally adjustable steering handles.

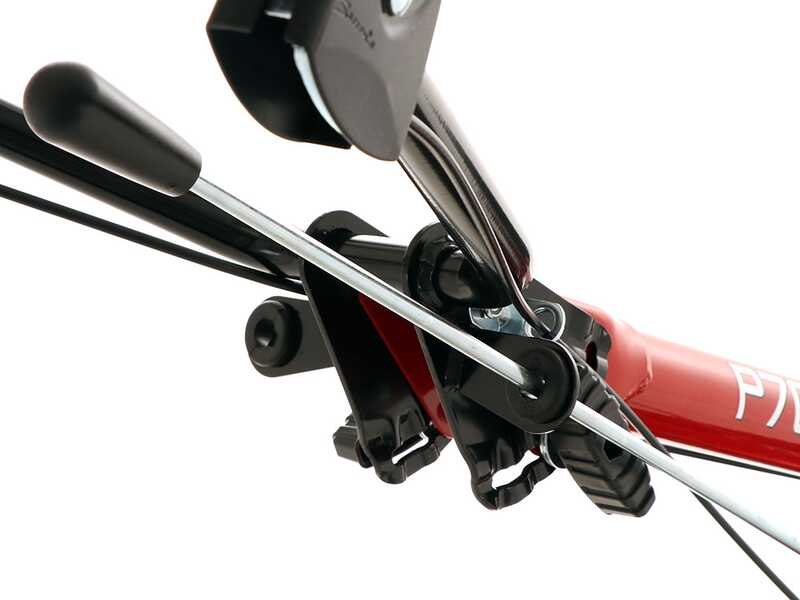

Detail of the handlebar trunk fixing and rotation system through the specific lever.

Throttle control

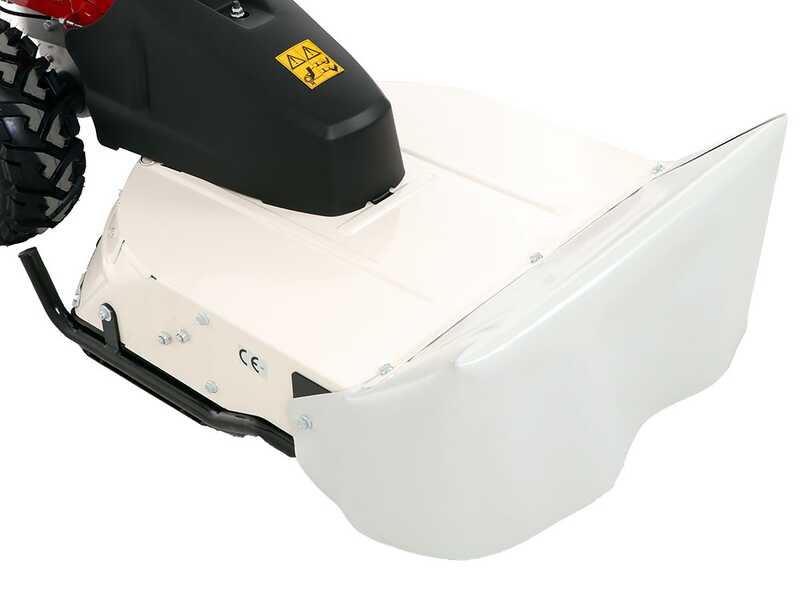

Innovative cutting deck composed of:

- NR. 02 blades arranged perpendicularly to each other (crosswise) and at different heights

- NR. 06 pivoting knives at the ends

The two supporting blades are placed in a cross position, but the most important aspect is that they are placed on two different levels (one is higher and one is lower). These blades, centrifuging the grass and residues at various levels, allow for truly excellent shredding, thus speeding up the decomposition process of the ground grass.

The 6-blade cutting deck finely shreds grass, small branches, reeds, and more, like no other machine on the market can do. A truly extraordinary result. The maximum cutting diameter in the case of twigs and small shrubs is 1.5 / 2 cm.

The cutting deck tends to pulverize particularly, also because it is equipped with 6 cutting knives. These knives, in turn, placed on multiple levels, finely shred everything they encounter in their path. The knives are also pivoting. This protects them from possible impacts (such as stones, large diameter branches, or ground irregularities). However, we recommend avoiding violent impacts if possible.

Blade rotation speed: 2300 rpm.

Robust black tubular skid, adjustable in height. Cutting height adjustable from 50 mm to 80 mm
Large capacity for high grass access in the raised and particularly wide front entry mouth. Also protected by a thick PVC sheet to prevent accidental stone throwing by the high-speed rotating knives

THE BRUSH CUTTER DECK IS ONE OF THE FEW ON THE MARKET TO BE PIVOTING.

It rotates around its own attachment axis to the machine body.
This allows it to work on any type of terrain, even quite uneven, being able to adapt to its irregularities.

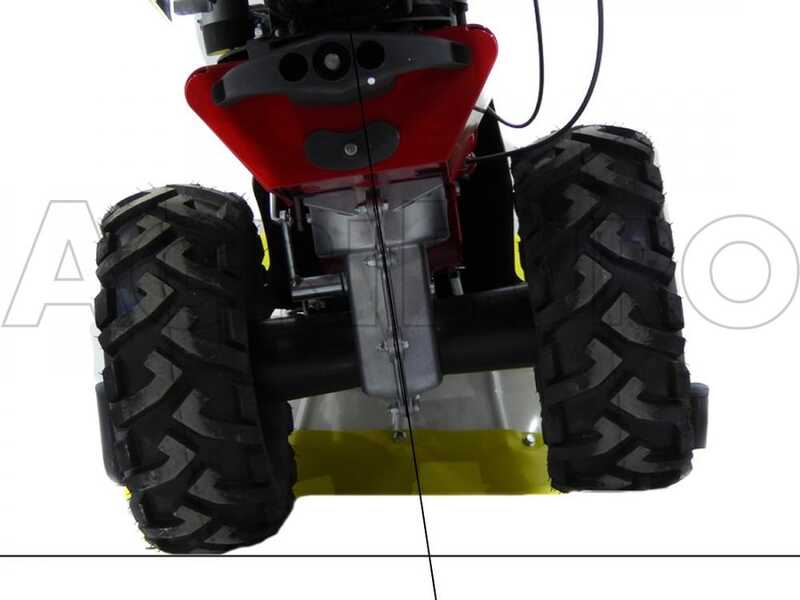

Final belt transmission between the cutting deck and the machine body (protected by the large black cover in the photo).

This allows (together with the pivoting knife system) to safeguard the deck's durability.

In fact, the belt performs a function similar to that of a clutch (it can slip in case of some impact by the blades, often preventing the various components from being damaged).

However, we advise against hitting the machine and working on terrains with many exposed stones and of such size as to reach the cutting level of the rotating blades.

Another great advantage connected to the presence of the belt transmission, is the blade engagement and disengagement lever.

Because in machines with the blade mounted directly under the engine, this is obviously not disconnectable, and as long as the engine is running, it will always rotate. This innovative machine instead allows it to be activated only when necessary, for example at the point where the work is to be done, to deactivate it whenever necessary. Or for example, it allows for movements using traction with the blade stopped.

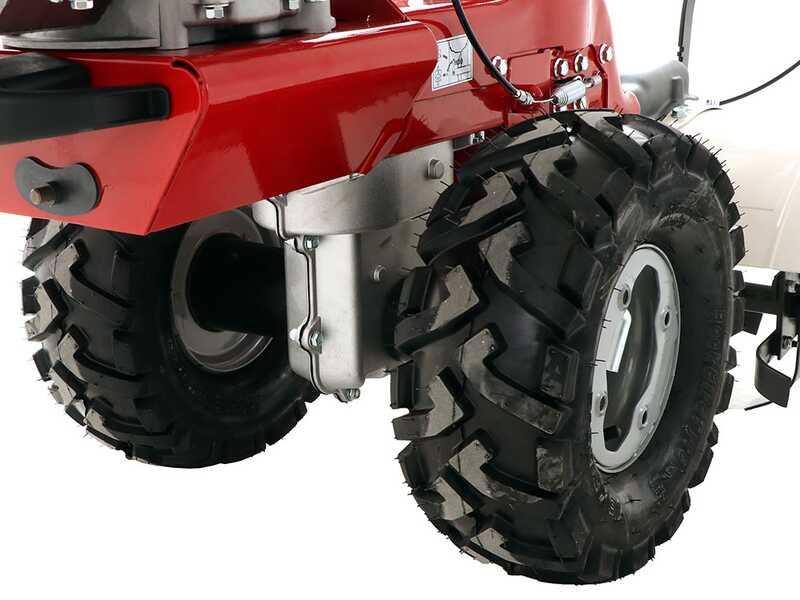

Professional large-size 15"x6.00-6 sculpted pneumatic drive wheels

Equipped with an activatable and deactivatable locking/unlocking system by opening the fixing support. In this way, the wheels go into neutral or regain traction.
