Eurosystems P55 - Petrol Rough Cut Mower - Blade - Honda GCVX 170 Engine

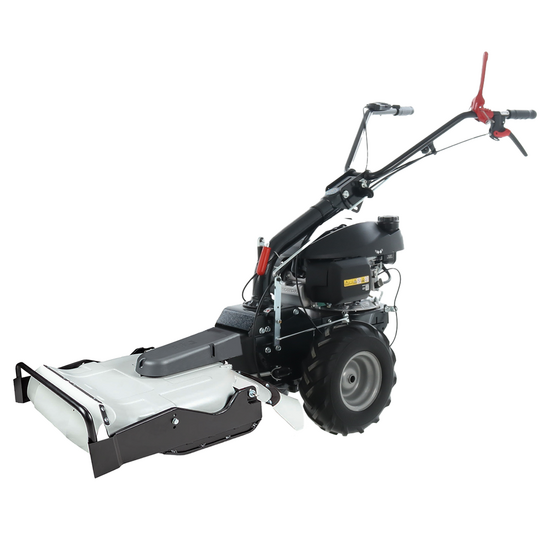

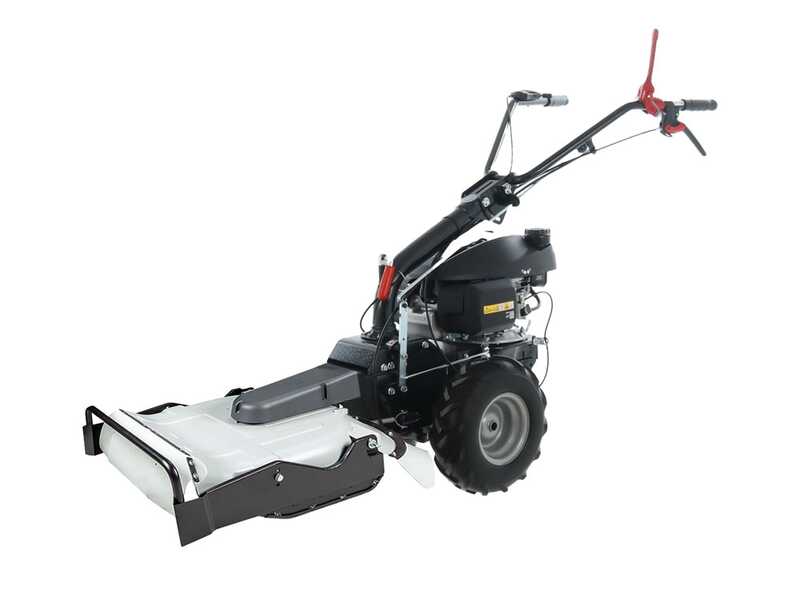

Rough cut mower powered by EUROSYSTEMS mod. petrol engine P55

HONDA - GCVx 170 engine

Suitable for tall and thick overgrown grass and weeds.

This machine particularly suitable to cut very tall grass, thick brushwood and reeds, ensuring ideal cleaning even in very difficult conditions. The cutting deck ensures great handling and absolute safety of use, making these machines particularly suitable for maintenance technicians and professionals. The large diameter pneumatic wheels ensure maximum grip even while working on slopes. This machine offers, WITHOUT EFFORT, an hourly yield equal to an average of 4/5 times a normal brush cutter, also leaving a much cleaner and smoother result, as well as more finely chopped grass.

The Eurosystems rough cut mowers are Made in Italy, which guarantees reliability, construction and material quality.

MULTIFUNCTIONAL: it can mount different accessories thanks to the quick release system and reversible handlebar.

The gearbox has 2 speeds: 1 forward + 1 reverse.

The rough cut mower is powered by a HONDA mod. engine Latest generation GCVX 170 4-stroke petrol engine (166cc displacement)

Pneumatic drive wheels: 13x5.00-6

Weight: 55 kg

THE PRICE ONLY INCLUDES THE CUTTING DECK ACCESSORY (picture on the side). All the other accessories are sold separately.

The assembly procedure is quite fast and easy as described in the instructions manual.

This reversible rough cut mower allows various functionalities of the machine.

Here are some examples of the accessories that can be fitted to the rough cut mower:

• 50 cm TILLER/CULTIVATOR
• CUTTING DECK (included in the price): STANDARD
• 87 cm SICKLE BAR
• RIDGER - FURROWER
• SNOW PLOUGH
• SCARIFIER
• POWER SWEEPER
• ROTARY SCYTHE
• PAIR OF SNOW CHAINS

WARNING!

The photos are only illustrative, they may differ from the main product.

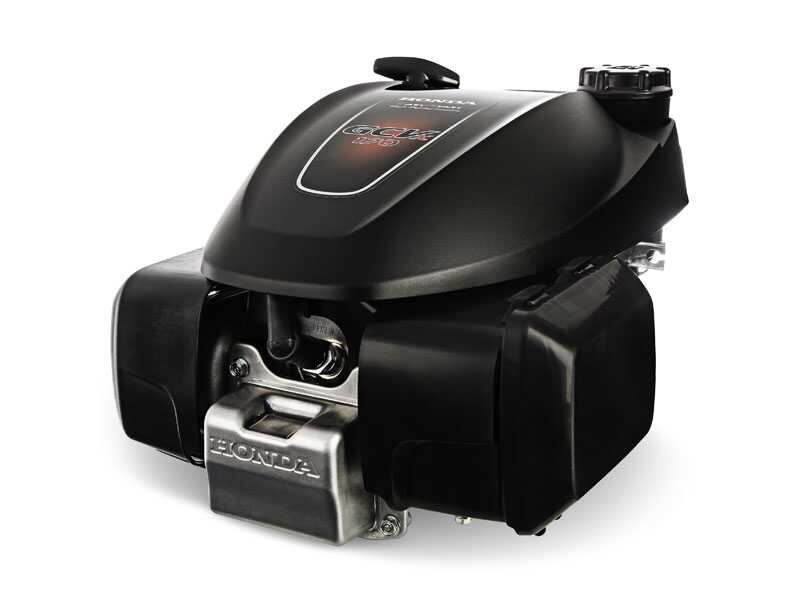

The Honda GCVX 170 engine guarantees high performance and it is suitable for works where high reliability and durability is required, thanks to its large displacement of 166 cc.

Features:

4-Stroke petrol engine of the latest generation (overhead valve shaft OHV - transistorised ignition - starter with automatic decompression, etc. .).
Designed for offering high reliability and performance, Honda GCVX series has established itself as one of the best engines for these machines.

Easy recoil start thanks to the automatic fuel priming system.

Focus on the air filter.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting.

Nominal Power: 5.5 HP
The correct term would be "Commercial” Power, meaning the classic definition standard of power officially used until a few years ago by all leading engine manufacturers.

* This figure is even more widespread and advertised in the leading commercial channels, although it is higher than the actual power.

Effective power: 4.8 HP (a rotation speed of 3000 rpm)
It corresponds to the real power expressed to the crankshaft. This is the power indicated as official in the manual or in the technical data of the motor manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

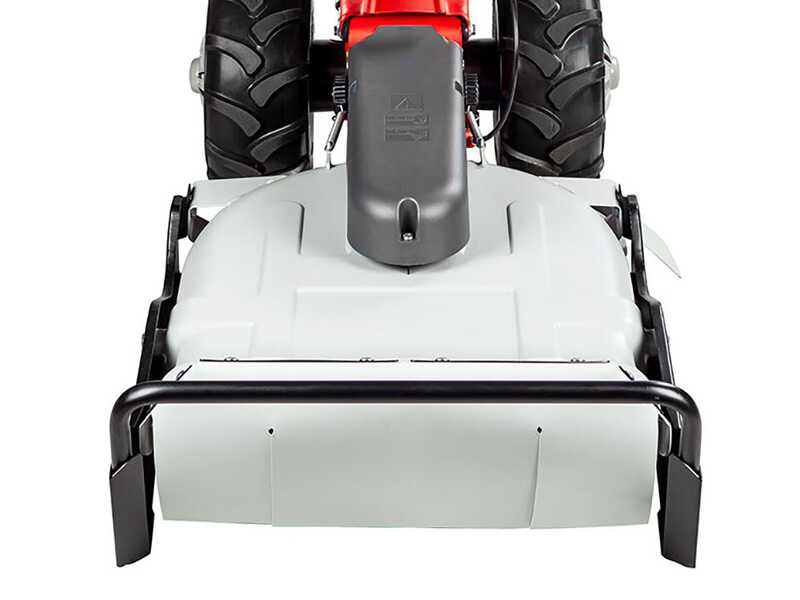

The cutting deck shreds grass, small branches, reeds and more extremely finely, as no other machine on the market can, with truly excellent results. The maximum cutting diameter for twigs and small shrubs is 1.5/2 cm.

Cutting width: 53 cm

The structure of the cutting deck is entirely made of steel.

The cutting deck is equipped with a rotating blade of exceptional thickness, fixed on a large blade holder also made of steel and particularly sturdy. Sturdy support slide made of black tubular, adjustable in height, which sets the cutting height from 50 mm to 80 mm. Protected by a PVC sheet to avoid accidental throwing of stones by the blade that rotates at high speed, the cutting deck is easily applied thanks to the quick couplings.

THE CUTTING DECK IS THE ONLY ONE TILTING YOU CAN FIND ON THE MARKET. In fact, it rotates around its own axis of attachment to the machine body. This allows it to work on any type of terrain, even quite bumpy, since it easily adapts to its unevenness

Final belt transmission between the cutting deck and the machine body protected under the plastic casing.

The stone guard colour may differ from the one in the photos.

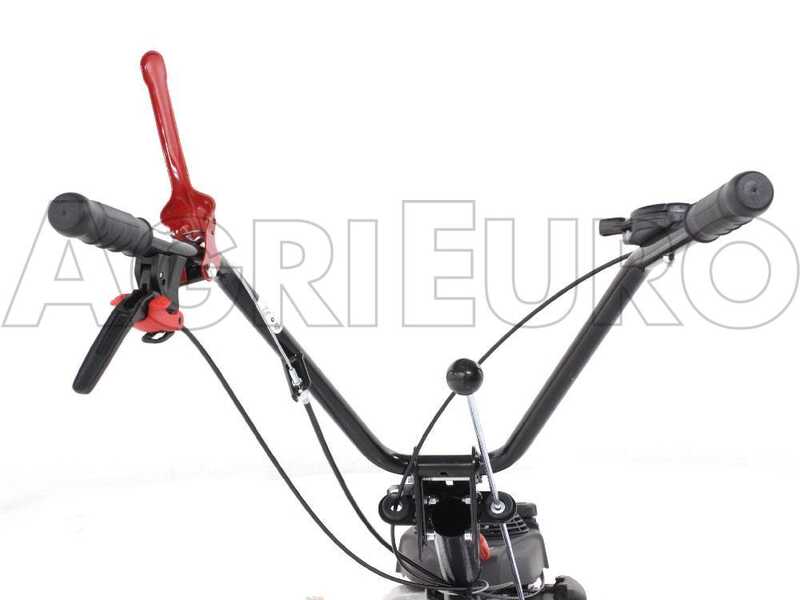

The steering handles are adjustable and reversible by 180°.

Adjustable height: different heights available thanks to the adjustments on the steering handles.

Focus on the adjusting system.

Side-adjusting system:

The steering bars can be set at various angles (sideways) thanks to the fixing lever. Thus, the user can operate the machine quite easily on smooth surfaces.

The handles are coated with soft rubber.

Reversible handlebars allow attaching many different accessories to the machine (sickle bar, brush mower blade deck and so on).

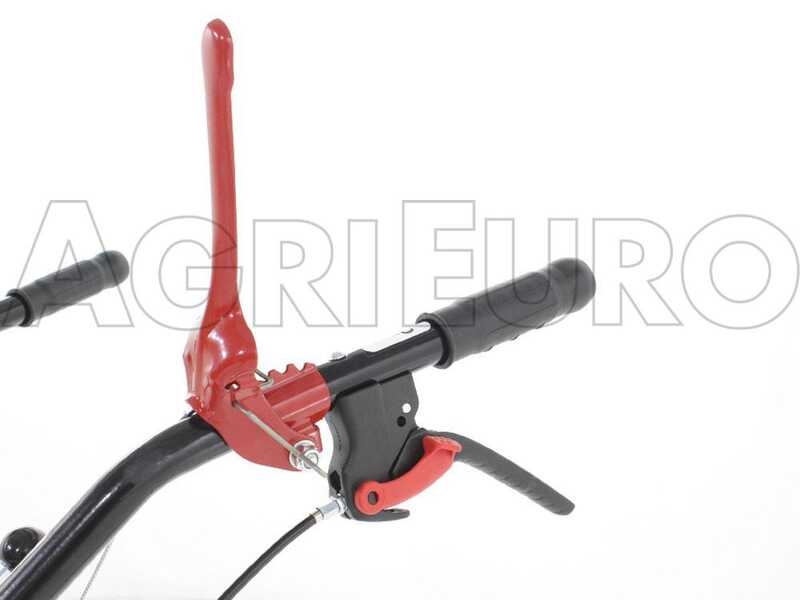

2 gears: 1 forward speed + 1 reverse speed

Gear shift lever control

Throttle lever.

Main specifications:

• Drive: Gear, worm screw in oil bath and belt
• Cut type: MULCHING
• 53cm cutting width
• Recoil start system with self-wrapping cord
• Blade engagement / disangamente lever on the steering bars
• Motion engagement lever on the steering bars
• Quick release for accessories
• Adjustable and reversible steering bars (the height and angle are adjustable)
• Pneumatic drive wheels: 13x5.00-6
• 166 cc displacement
• Weight: 55 kg
