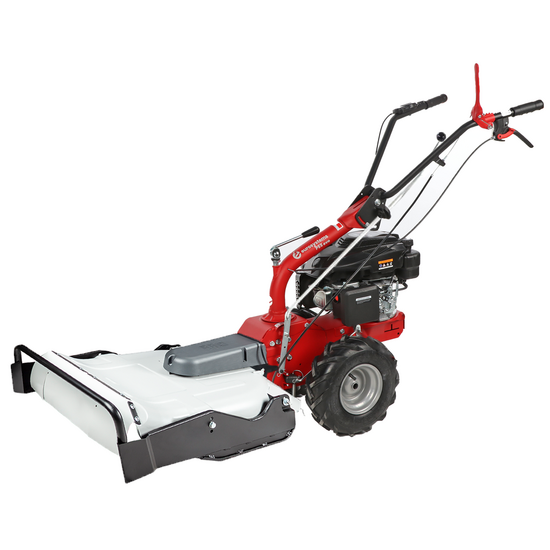

Eurosystems P55 - Petrol Brush Cutter - Rato RV200

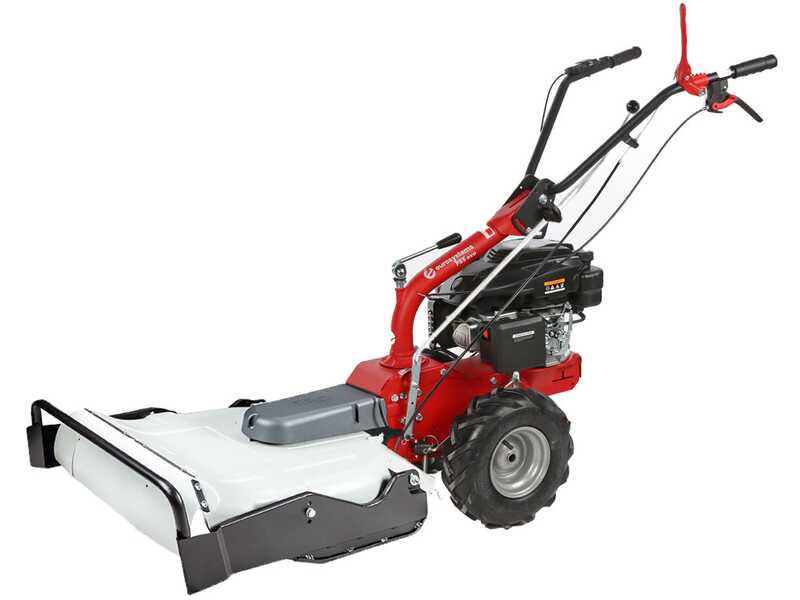

The petrol brush cutter Eurosystems P55 EVO is a self-propelled machine designed for intensive mowing and shredding of uncultivated vegetation, ideal for agricultural, forestry, and green area maintenance applications. Powered by a Rato RV200 200 cc petrol engine, this model offers a nominal power of 3.5 kW. The engine is fuelled by a 1-litre tank and equipped with a recoil start system. The compact yet robust frame and large sculpted wheels with mechanical traction make it suitable for uneven terrain and moderate slopes.

The traction system uses an oil-bath gear transmission, a technical solution that ensures high durability and consistent performance even after many hours of work. The 2-speed gearbox (1 forward + 1 reverse) allows optimal speed management depending on the type of surface and the height of the vegetation. This makes the machine particularly versatile in tackling tall grass, weeds, and brambles.

The included brush cutter deck is operated via belt transmission, a technical choice that acts as a safety clutch. This mechanism extends the lifespan of the cutting apparatus, reducing damage from impacts and overloads. The tool can shred weeds and shrubs even over a metre high, making this brush cutter one of the most effective in its category.

The machine features a functional design with a painted steel structure, typical red and black colouring, and ergonomic handles for stable steering.

Distinctive features of the Eurosystems P55 EVO petrol brush cutter:

• 2-speed gearbox (1 forward + 1 reverse): allows precise speed control to adapt to different types of terrain.

• Oil-bath transmission: ensures maximum wear resistance and reduced maintenance needs.

• Brush cutter deck with belt transmission: acts as a mechanical clutch to protect the cutting group from impacts and stones.

• Sculpted wheels with traction: offer excellent grip even on uneven or slightly inclined surfaces.

• Rato RV200 200 cc engine: powerful and efficient, designed to withstand continuous workloads.

Rotary Scythe: transforms this machine into a highly efficient self-propelled rotary mower, for cutting all kinds of grass (tall or short), allowing it to be collected for livestock feed.

Collector brush with basket: allows this machine to be transformed into a functional self-propelled sweeper for cleaning courtyards, all kinds of green areas, roads, squares

Double-blade sickle bar for cleaning plots of land from wild or poorly maintained grass

Snow blades for clearing fallen snow in squares, small driveways, courtyards... In combination with snow chains.

Fixed-wing furrow winder: allows small furrows to be made on already tilled land

Spring aerator: to remove old thatch from your lawn

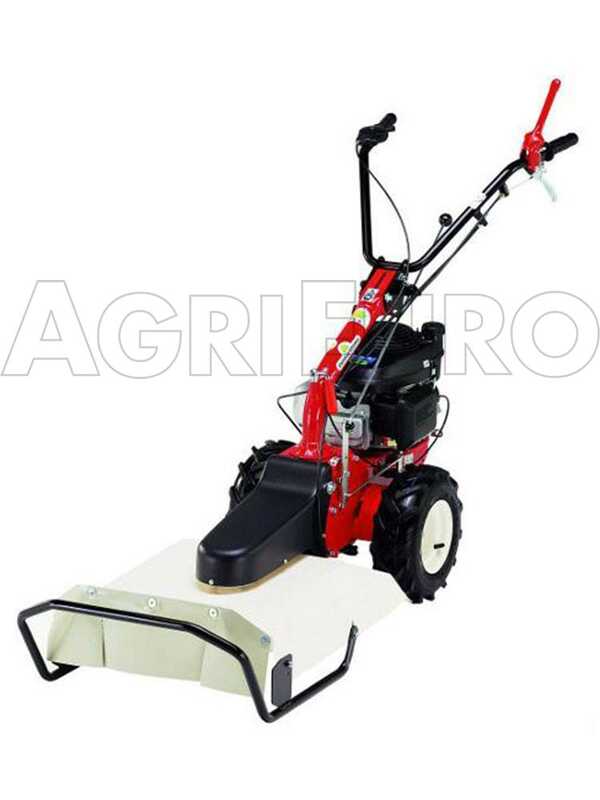

Brush cutter deck for cleaning plots of land from weeds or uncultivated grass.

Transport tub with wheels: allows loads up to 100 kg to be transported

50 cm tiller: allows the soil to be crumbled very finely

WARNING!

The photos are for illustrative purposes only, they may differ from the main product.

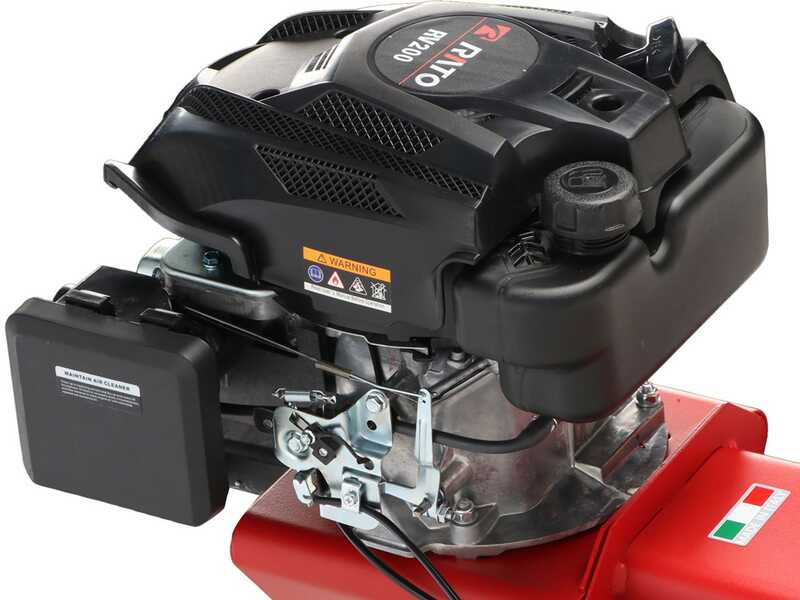

The cultivator Eurosystem P70 EVO comes with a powerful Rato RV200 engine.

Features:

• Engine type: Single-cylinder 4-stroke;
• Cylinder type: Aluminium;
• Displacement: 200cc;
• Starting: Manual, recoil;
• Fuel: Petrol;

WARNING!

The engine is supplied without oil. Bring the oil to level before the first start.

Nominal Power: 6.5 HP

Effective Power: 4.08 HP

WARNING!

*Also known as "Commercial Power", this refers to the classic power definition standard that was also officially used until a few years ago by all the most well-known engine manufacturers. This data is still the most widespread and advertised in the main commercial sales channels.

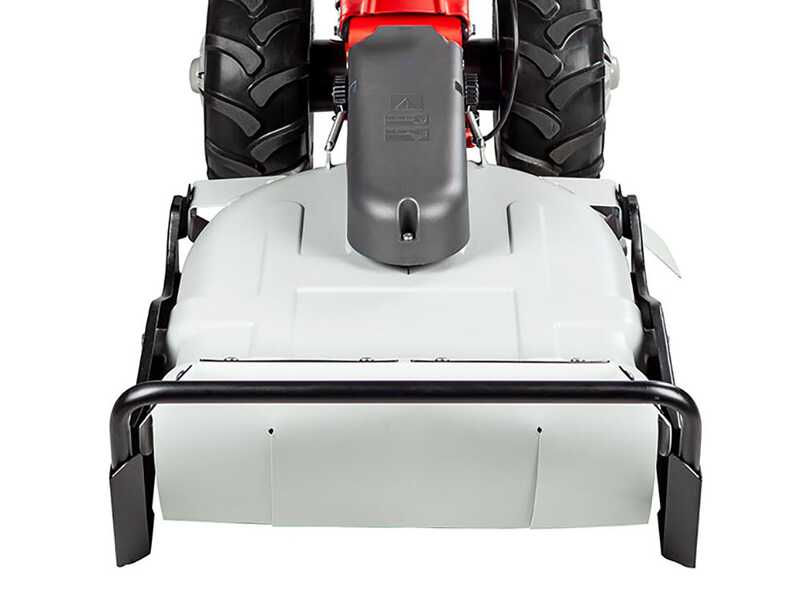

The all-purpose cutting deck shreds grass, small branches, reeds, and more very finely, like no other machine on the market can, with truly excellent results. The maximum cutting diameter for twigs and small shrubs is 1.5 / 2 cm.

The cutting width of the brush cutter is 53 cm

The structure of the cutting deck of this all-purpose mower is made entirely of steel.

The all-purpose mower deck is equipped with an exceptionally thick rotating blade, mounted on a large blade holder support also made of steel and particularly robust. Robust adjustable height skid support made of black tubular, which sets the cutting height: from 50 mm to 80 mm. Protected by a PVC cover to prevent accidental stone throwing by the high-speed rotating blade, the brush cutter deck is easily applied thanks to quick couplings.

THE BRUSH CUTTER DECK IS ONE OF THE FEW ON THE MARKET THAT IS PIVOTING. It rotates around its attachment axis to the machine body. This allows it to work on all types of terrain, even fairly uneven ones, being able to adapt to its irregularities

Final belt transmission between the all-purpose mower deck and the machine body protected under the plastic cover.

The stone guard may have different colours from the one in the photo.

The machine is equipped with a 2-speed gearbox divided into:
- 1 forward gear
- 1 reverse gear

They are selectable via the appropriate lever located under the handlebars.

Central gear transmission with internal steel gears in an oil bath. Extremely robust and reliable.

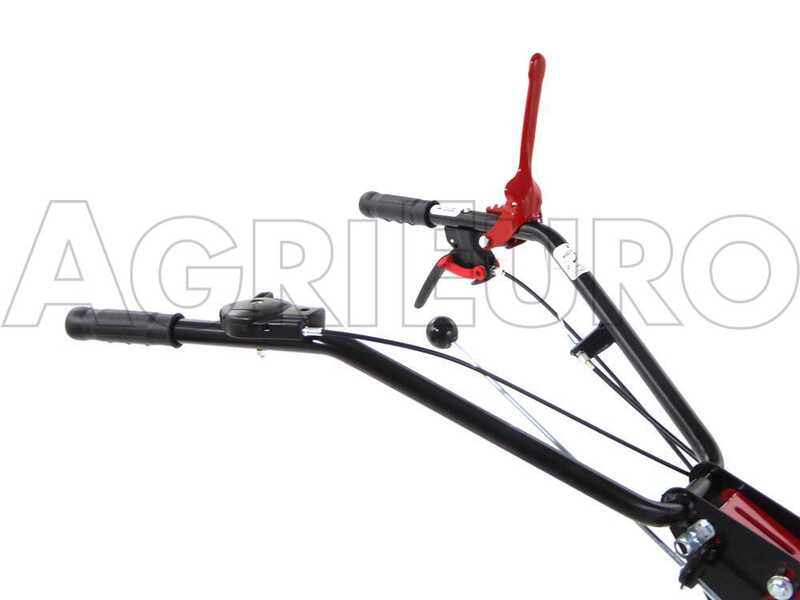

Detail of the handlebars, where all the main functions of the machine are gathered.

Lever with black knob: gear change lever.

Red lever: Engage/Disengage deck

Black lever: Engage/Disengage forward or reverse motion (i.e., whatever gear has been set).

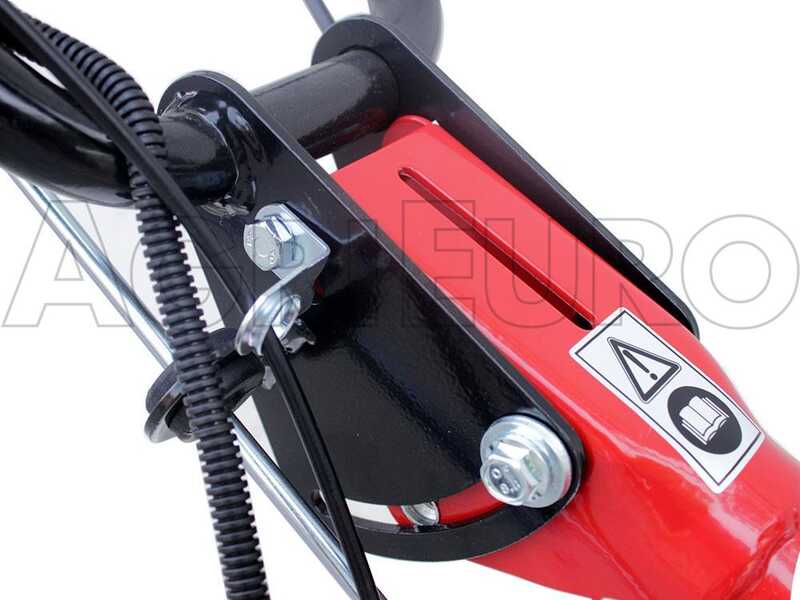

Detail of the handlebar height adjustment.

Reversible or laterally adjustable steering handles.

Detail of the handlebar trunk fixing and rotation system through the appropriate lever.

Throttle control

Note:

The red lever on the left side of the handlebar may arrive in yellow depending on the production batch.
