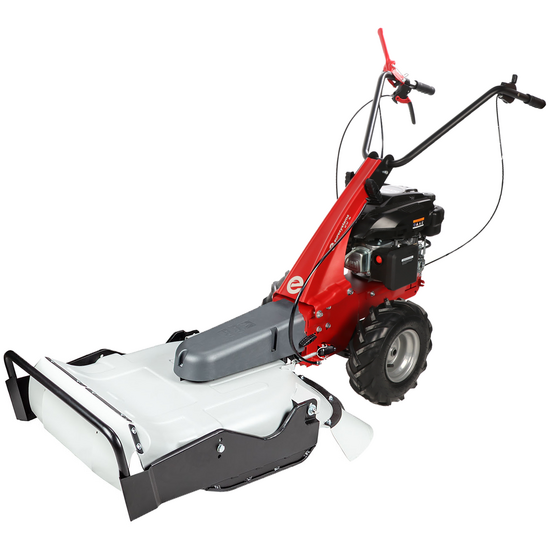

Eurosystems Minieffe - Petrol Brush Cutter - Blade - Rato RV200

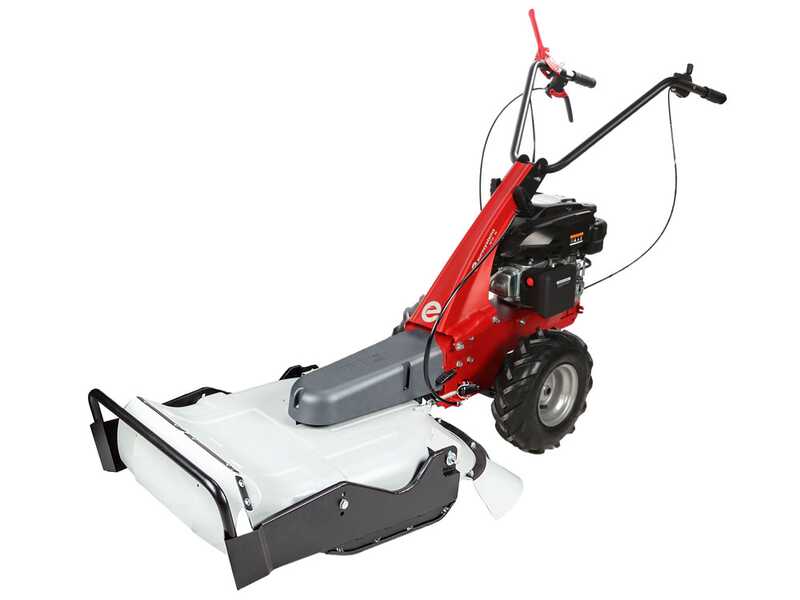

The Eurosystems Minieffe petrol brush cutter is a self-propelled machine equipped with a petrol engine, ideal for tackling shredding tasks even on uneven or sloping surfaces.

Equipped with sculpted pneumatic wheels and self-propelled traction, it ensures excellent grip on uneven terrain, providing stable and safe use.

The Minieffe is a multifunctional machine, which can be equipped with numerous accessories, including the all-purpose cutting deck, included as standard.

This deck is operated via a belt transmission, is very easy to attach thanks to quick couplings, and is distinguished by its versatility in shredding wild, uncultivated, and even very tall grass

Ideal on all types of surfaces, even in the presence of slopes and uneven terrain, the brush cutter is particularly effective in destroying tall weeds, positioning itself as one of the most high-performance petrol engine brush cutters for applications in challenging environments.

This model is equipped with a Rato RV200 engine with the following features:

• Fuel: petrol

• Starting: recoil

• Displacement: 200 cc

• Power: 3.5 kW

• Tank: 1 litre

WARNING:
these accessories are not included in the purchase price of the machine.

87 CM CUTTING BAR: ideal for mowing uncultivated grass.

COLLECTOR BRUSH WITH BASKET: allows you to transform this machine into a functional self-propelled sweeper

105 CM FRONT BRUSH

FRONT BLADE: suitable for small quantities of snow, sand, earth, etc...

PAIR OF SNOW CHAINS: suitable for combination with the FRONT BLADE accessory

WARNING!

The photos are for illustrative purposes only and may differ from the main product.

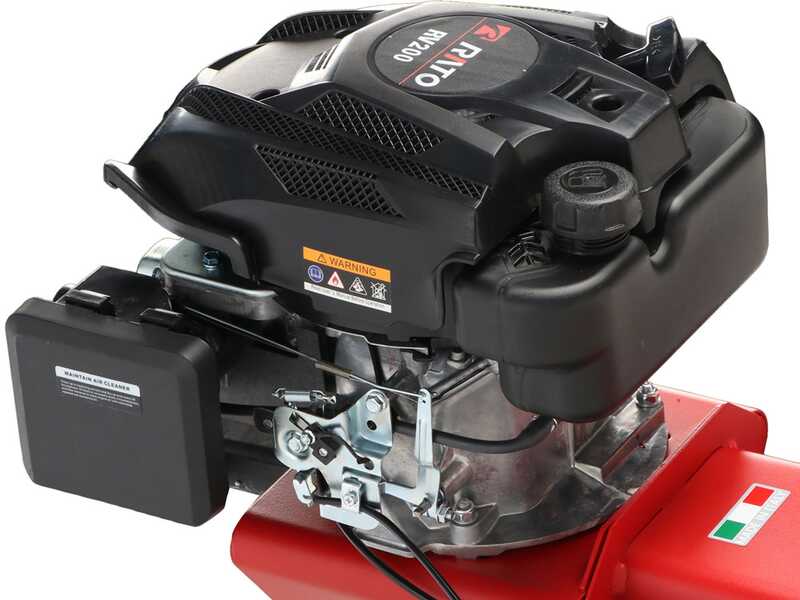

The machine is supplied with a powerful Rato RV200 engine.

Features:

• Engine type: Single-cylinder 4-stroke;
• Cylinder type: Aluminium;
• Displacement: 200cc;
• Starting: Manual, recoil;
• Fuel: Petrol;

WARNING!

The engine is supplied without oil. Fill the oil to the correct level before first use.

Nominal Power: 6.5 HP

Effective Power: 4.08 HP

WARNING!

*Also known as "Commercial Power", this refers to the standard definition of power that was officially used until a few years ago by all major engine manufacturers. This data is still the most widespread and advertised in the main sales channels.

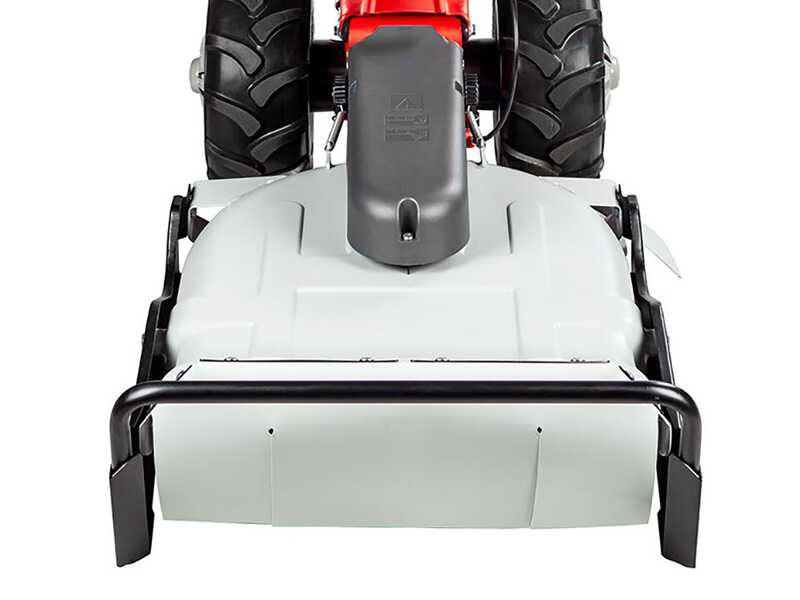

The all-purpose cutting deck shreds grass, small branches, reeds, and more very finely, like no other machine on the market, with truly excellent results. The maximum cutting diameter for twigs and small shrubs is 1.5 / 2 cm.

The cutting width of the brush cutter is 53 cm

The structure of the cutting deck of this all-purpose mower is made entirely of steel.

The all-purpose deck is equipped with a rotating blade of exceptional thickness, mounted on a large blade holder support also made of steel and particularly robust. Robust black tubular support skid, adjustable, which sets the cutting height: from 50 mm to 80 mm. Protected by a PVC cover to prevent accidental stone throwing by the high-speed rotating blade, the brush cutter deck is easily attached thanks to quick couplings.

THE BRUSH CUTTER DECK IS ONE OF THE FEW ON THE MARKET THAT IS PIVOTING. It rotates around its own attachment axis to the machine body. This allows it to work on all types of terrain, even quite uneven, being able to adapt to its irregularities

Final belt transmission between the all-purpose brush cutter deck and the machine body, protected under the plastic cover.

The stone guard may have different colours from the one in the photo.

The intermediate transmission is a worm gear in an oil bath.

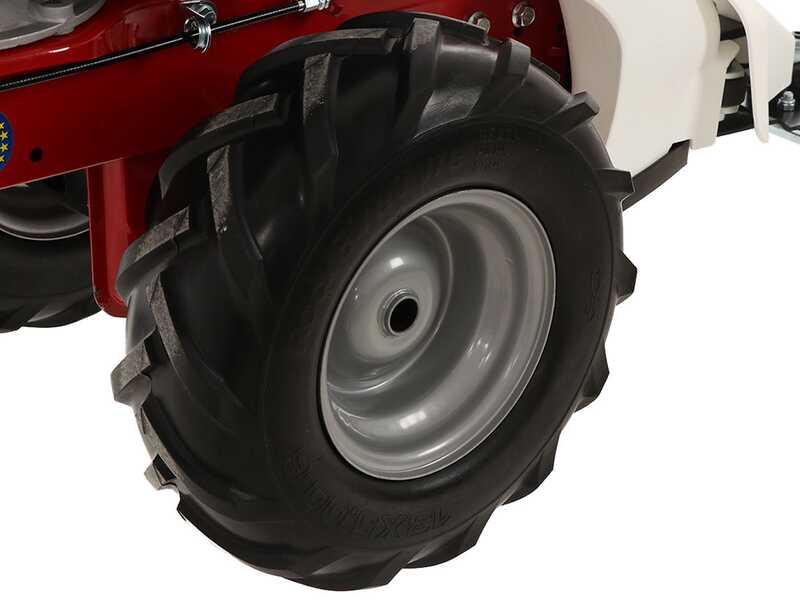

The wheels are of the tractor type with generous dimensions: 13x5.00 - 6

Their notable tread pattern allows the mower to advance even on the most difficult terrains while maintaining ideal grip.

Wheel disassembly screws.

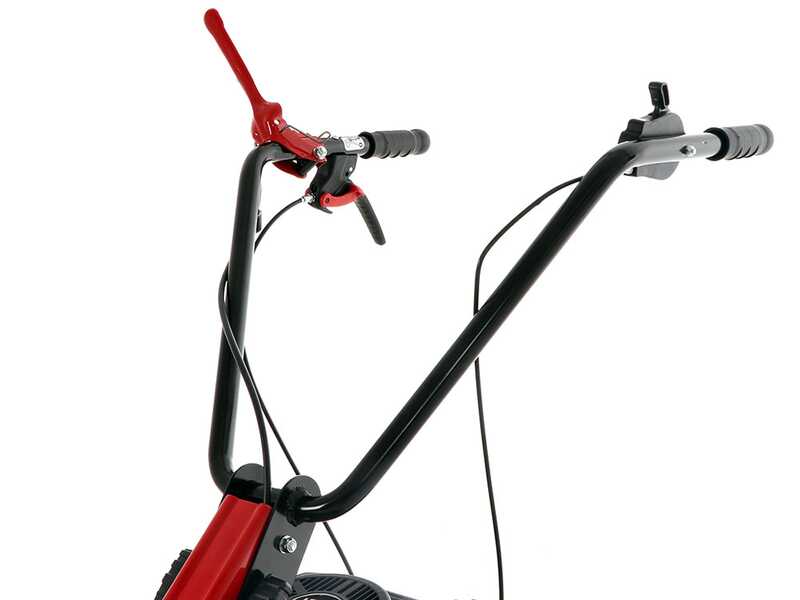

Upper red metal lever: Engage/Disengage all-purpose deck.

Lower black lever (right): activates forward gear

Throttle control.

The Minieffe series has introduced a new and effective anti-vibration system, between the handlebar and its connection to the machine there are that will absorb the vibrations coming from the engine and the accessory mounted on the machine, also the grips are anti-vibration with the rubber cover present on them.
