Docma SVG700 220 PLUS - Electric Log Splitter - Vertical

Add a question
ID: 112531

EAN: 8068020721505

MPN: 810041

Docma SVG700 220 PLUS - Electric Log Splitter - Vertical
Max. trunk diameter
30 cm
Log holder
Yes
Piston stroke
54 cm
Max. pressure
230 bar
Retractable piston for transport
Yes
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
10 t
Effective thrust power
7 t
Product Features
Model:
SVG700 220 PLUS
Type:
Vertical
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
10 t
Effective thrust power :
7 t
Piston stroke:
54 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
54 cm
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Nominal power :
2200 W
Motor speed:
2820 RPM
Power supply:
220 V electric
Oil tank capacity:
5 L
Pump data
Pump type:
Hydraulic
Max. pressure:
230 bar
Oil tank:
Yes
Hydraulic oil qty.:
5 Litres
Cutting data
Max. trunk length:
54 cm
Max. trunk diameter:
30 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Log holder:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

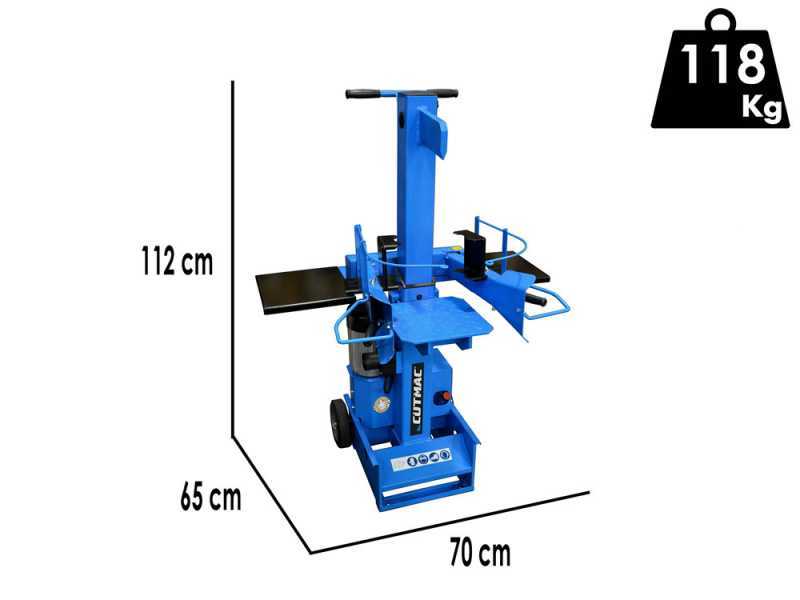

Product dimensions in cm (L x W x H):
70x65x112
Net weight:
118 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
101x61x125
Gross weight (packaging included) :
130 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
8 items in stock
Free Shipping
Estimated delivery: 28/05/2024 - 30/05/2024
€ 936,01
VAT Included
You're viewing:
Customers also viewed:
Description

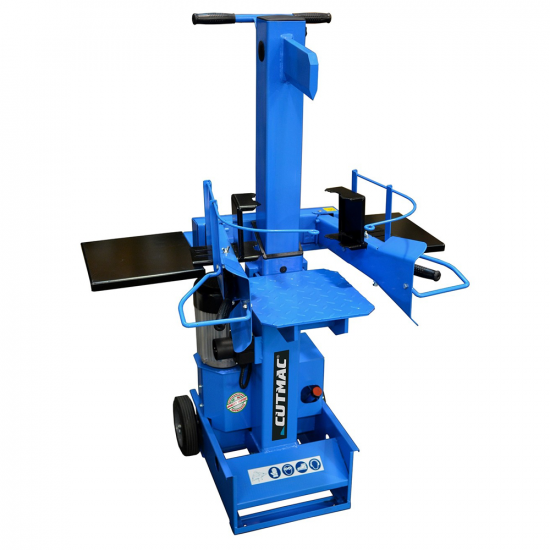

Docma SVG700 220 PLUS - Electric Log Splitter - Vertical

The Docma SVG700 220 PLUS log splitter has a structure designed for a demanding user and is recommended for timber quantities in excess of 50 q.

The removable plates allow the split log to be laid down and then picked up again.

SVG700 220 PLUS log-splitter: This machine is a high quality option. Thanks to its power and precision, this machine make it easy to split the pole the wood needed throughout the year, ensuring effective results without requiring excessive effort.

SVG700 220 PLUS (Vertical) Main Features:

  • Cylinder stroke: The SVG700 220 PLUS is equipped with a piston stroke of 50 cm, which allows logs of different sizes to be processed efficiently and smoothly.
  • Cutting height: With a cutting height of 54 cm, this log splitter is designed to tackle even the tallest logs, reducing minimising operator the need to cut wood into smaller pieces before splitting.
  • Quantity Oil: Equipped with a 5-litres tank, the SVG700 220 PLUS ensures fluid and continuous work.
  • Adjustable Column Stroke: This function allows optimum adaptability to the size of the log to be processed.
  • Weight: With a 118 Kg weight, the SVG700 220 PLUS is equipped right combination of stability and handling, allowing for easy transport when necessary.
  • Splitting force: 7 tons
  • Work top: Fixed

Electric motor

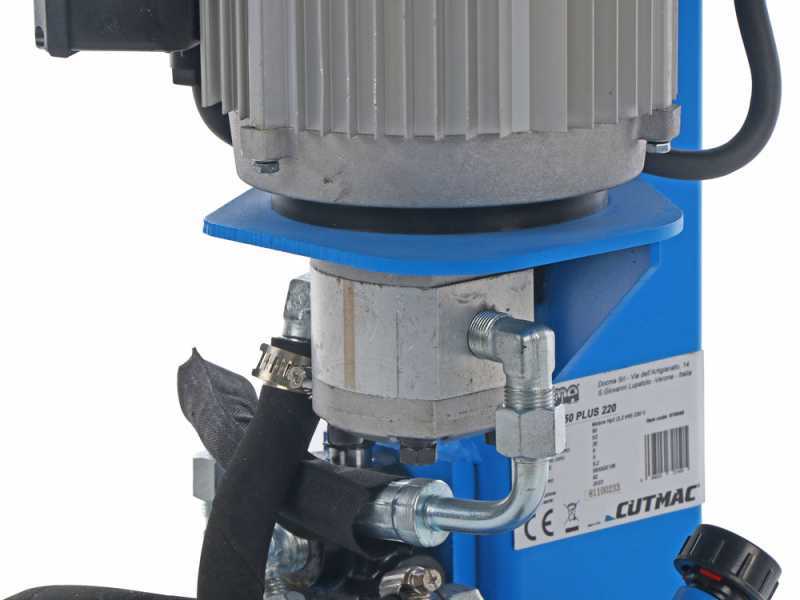

The innovative and high-performance SVG700 220 PLUS electric log splitter has been designed to simplify the splitting of wood. Thanks to its powerful 3 HP (2.2 Kw) motor and state-of-the-art features, this log splitter represents the perfect solution to met all your wood-working needs.

Main Features: This log splitter has been been designed to offer a easy and efficient user experience thanks to its distinct features:

  • Sturdy and Efficient Motor: Equipped with a 230 V and 3 HP (2.2 Kw) motor, this log splitter provides an exceptional power ensuring an effective and effortless split.

  • Frame with Integrated Tank: The log-splitter structure performs a double function, working both as support and hydraulic oil tank. This specific aspect not only simplifies the design, but also guarantees an efficient oil management.

  • Ergonomic and Functional Design: The special ergonomic and functional design of this log splitter ensures intuitive and comfortable operation, minimising fatigue during long splitting sessions.

Wedge, dual control levers and cutting plate

The powerful Docma SVG700 220 PLUS log splitter is a reliable tool for splitting logs of different sizes. With an thrust of 7 tons, this device has been designed to cope easily and precisely even the most demanding jobs.

Performance Features:

  • Thrust force: The SVG700 220 PLUS boasts a powerful force of 7 tons, allowing logs of different sizes to be split without unnecessary effort.
  • Splitting Size: Suitable for logs up to 54 cm in height and 30 cm in diameter, it provides great versatility in timber selection.

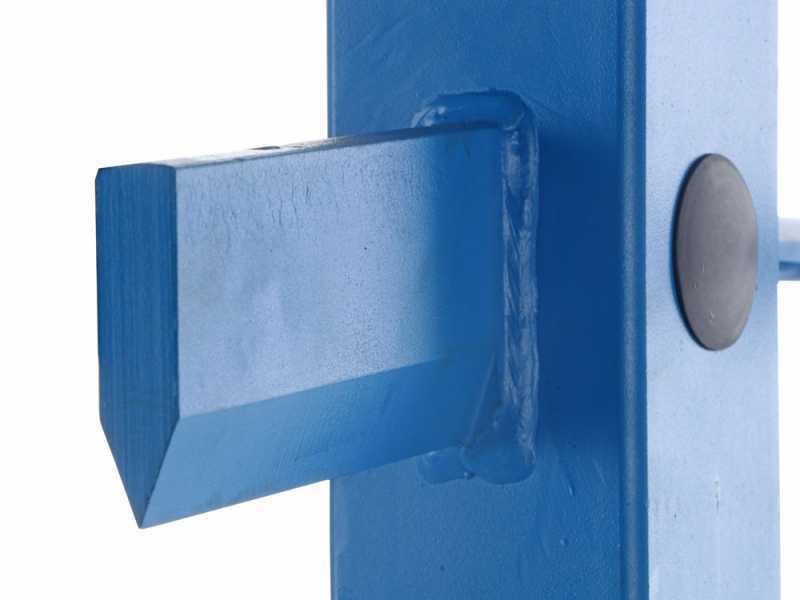

  • High-quality wedge: The log splitter wedge has been made of high-resistant steel, guaranteeing exceptional durability and consistent performance overtime.

Design and Functionality:

  • Wide Worktop: A large working surface facilitates the arrangement and organisation of logs for efficient splitting.
  • Easy and Ergonomic Control Panel: : The bimanual control levers make split management easy, adapting to various operational requirements.
  • Safety System: The couple of operating levers is equipped with proper hand guards and all safety devices to protect the Operator maximum protection for use.
  • Integrated Support for the Log: The side log support, integrated in the handle arms, ensures that the material to be split remains stable during the operation.
  • Limit Switch Control System: The limit switch control system is adjustable, allowing the user to customise the settings according to their preferences and work requirements.

Additional features

This product has been designed keeping durability and ease of use in mind, making it a reliable ally for all your splitting needs.

Sturdiness and Solidity: Made of high-quality materials, the log splitter is characterised by its sturdy and strength design. This ensures effective handling of even the most demanding operations, guaranteeing stable, quality performance at all times.

Practical and Convenient Design:

  • Equipped with integrated wheels, moving the log splitter is simple and intuitive, allowing you to arrange it according to your preferences.
  • Its precisely calibrated balance allows you to move the tool with agility, using the tilt handle.
  • The specific lifting attachment point increases convenience during transport or storage.
  • Innovative Patented Locking System: The SVG700 220 PLUS is equipped with an innovative, patented locking system, designed to keep the log secure and safe while splitting. This state-of-the-art mechanism minimises the risk of accidents by operating in full compliance with EN609-1-2017 safety standards .

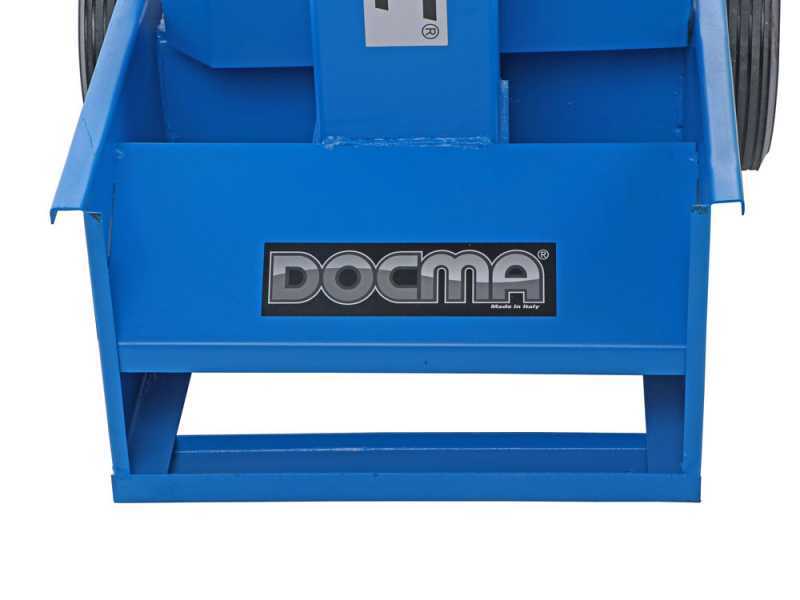

Stable Support Base: The design is enhanced by a solid base that ensures stability during the splitting operation, minimising the risk of unwanted movement.

High-Quality Components:

  • The special Cutmac series is a distinctive component that contributes to the high performance of this machine.
Free items & Standard equipment

Standard equipment

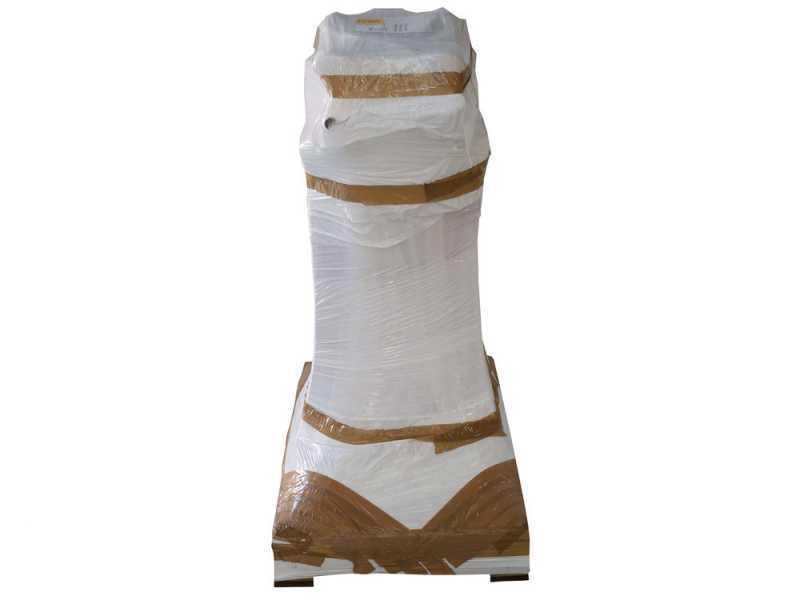

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
