Docma SVG650 220 PLUS - Electric Log Splitter - Vertical

Questions & Answers (1)
ID: 112530

EAN: 8068020721499

MPN: 810040

Docma SVG650 220 PLUS - Electric Log Splitter - Vertical
Max. trunk diameter
30 cm
Log holder
Yes
Piston stroke
50 cm
Max. pressure
230 bar
Retractable piston for transport
Yes
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
9.5 t
Effective thrust power
6.5 t
Product Features
Model:
SVG650 220 PLUS
Type:
Vertical
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
9.5 t
Effective thrust power :
6.5 t
Piston stroke:
50 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
54 cm
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Motor speed:
2820 RPM
Power supply:
220 V electric
Oil tank capacity:
5 L
Pump data
Pump type:
Hydraulic
Max. pressure:
230 bar
Oil tank:
Yes
Hydraulic oil qty.:
5 Litres
Cutting data
Max. trunk length:
54 cm
Max. trunk diameter:
30 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Log holder:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
70x64x112
Net weight:
94 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
101x61x125
Gross weight (packaging included) :
105 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 10/06/2024 - 12/06/2024
€ 830,00
VAT Included
You're viewing:
Customers also viewed:
Description

Docma SVG650 220 PLUS - Electric Log Splitter - Vertical

The Docma SVG650 220 PLUS log splitter is a perfect solution to meet the needs of anyone looking for an efficient and safe way to split wood for their needs.

A basic but excellent solution in terms of quality and performance.

SVG650 220 PLUS log-splitter: The SVG650 220 PLUS log-splitter stands out to be a high quality alternative. Thanks to its power and precision, this machine makes it easy to split the pole the wood needed throughout the year, ensuring effective results without requiring excessive effort.

SVG650 220 PLUS (Vertical) Main Features:

  • Cylinder stroke: The SVG650 220 PLUS provides a piston stroke of 50 cm, which allows logs of different sizes to be processed efficiently and smoothly.
  • Cutting height: With a cutting height of 54 cm, this log splitter is designed to tackle even the tallest logs, reducing minimising operator the need to cut wood into smaller pieces before splitting.
  • Quantity Oil: Equipped with a 5-litres tank, the SVG650 220 PLUS ensures fluid and continuous work.
  • Adjustable Column Stroke: This function allows optimum adaptability to the size of the log to be machined.
  • Weight: With a 94 Kg weight, the SVG650 220 PLUS ensures the right combination of stability and handling, allowing for easy transport when necessary.
  • Splitting force: 6.5 tons
  • Work top: Fixed

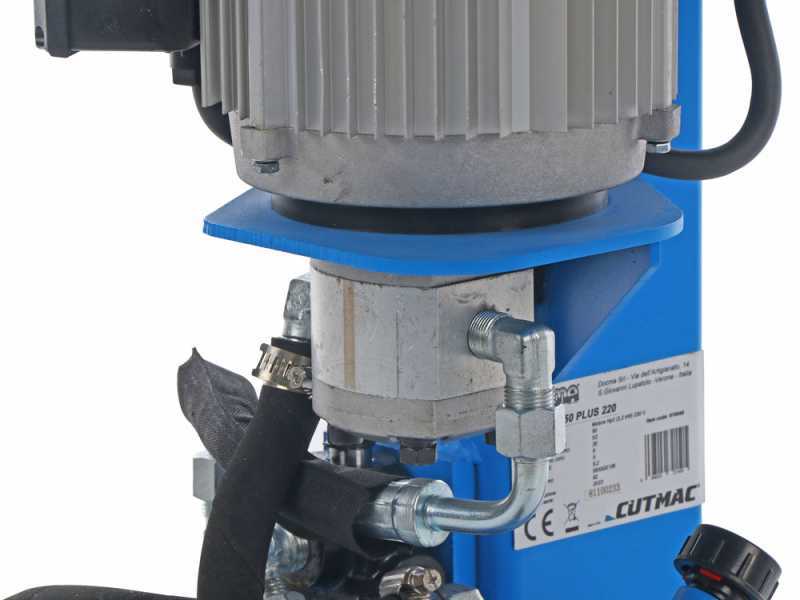

Electric motor

The innovative and high-performance SVG650 220 PLUS electric log splitter has been designed to simplify the splitting of wood. Thanks to its powerful 3 HP (2.2 Kw) motor and state-of-the-art features, represents the perfect solution to met all your wood-working needs.

Main Features: This log splitter has been been designed to offer a easy and efficient user experience thanks to its distinct features:

  • Sturdy and Efficient Motor: Equipped with a 230 V and 3 HP (2.2 Kw) motor, this log splitter provides an exceptional power ensuring an effective and effortless split.

  • Frame with Integrated Tank: The log-splitter structure performs a double function, working both as support and hydraulic oil tank. This specific aspect not only simplifies the design, but also guarantees an efficient oil management.

  • Ergonomic and Functional Design: The special ergonomic and functional design of this log splitter ensures intuitive and comfortable operation, minimising fatigue during long splitting sessions.

Wedge, dual control levers and cutting plate

The powerful Docma SVG650 220 PLUS log splitter is a reliable tool for splitting logs of different sizes. With an thrust of 6.5 tons, this device has been designed to cope easily and precisely even the most demanding jobs.

Performance Features:

  • Powerful 6.5 tons Thrust: The Docma SVG650 220 PLUS provides a 6.5 tons thrust, ensuring the ability to split logs of various sizes without excessive effort.
  • Splitting Size: This log splitter is able to work with logs up to 54 cm in heigh and 30 cm in diameter, thus providing incredible flexibility during the material choice.
  • High Resistance Steel Wedge: The log splitter wedge has been made of high-resistant steel, guaranteeing exceptional durability and consistent performance overtime.

Design and Functionality:

  • Wide Worktop: The spacious worktop provides a comfortable area for efficiently arranging and positioning logs.
  • Easy and Ergonomic Control Panel: Bimanual hydraulic valve control levers allow the user to easily manage splitting operations, adapting to different work needs.
  • Safety Systems: The couple of operating levers is equipped with proper hand guards and all safety devices to protect the Operator maximum protection for use.
  • Integrated Support for the Log: The side log support, integrated in the handle arms, ensures that the material to be split remains stable during the operation.
  • Limit Switch Control System: The limit switch control system is adjustable, allowing the user to customise the settings according to their preferences and work requirements.

Additional features

This device has been designed to ensure long lasting durability and easy of use, thus becoming a solid reference point for your log splitting.

Sturdiness and Solidity: Made from high-quality materials, the log splitter boasts a solid and durable construction. This ensures that it can handle even the heaviest operations on a continuous basis, providing consistent and trusted results.

Practical and Convenient Design:

  • Equipped with integrated wheels, this log splitter allows easy movement, enabling you to position it optimally according to your needs.
  • Thanks to the optimal balance, you can move it yourself with ease by using the handle to tilt the log splitter.
  • The specific lifting attachment point increases convenience during transport or storage.
  • Innovative Patented Locking System: The SVG650 220 PLUS is equipped with an innovative, patented locking system, designed to keep the log secure and safe while splitting. This state-of-the-art mechanism minimises the risk of accidents by operating in full compliance with EN609-1-2017 safety standards .

Stable Support Base: The design is enhanced by a solid base that ensures stability during the splitting operation, minimising the risk of unwanted movement.

High-Quality Components:

  • The special Cutmac series is a distinctive component that contributes to the high performance of this machine.
Free items & Standard equipment

Standard equipment

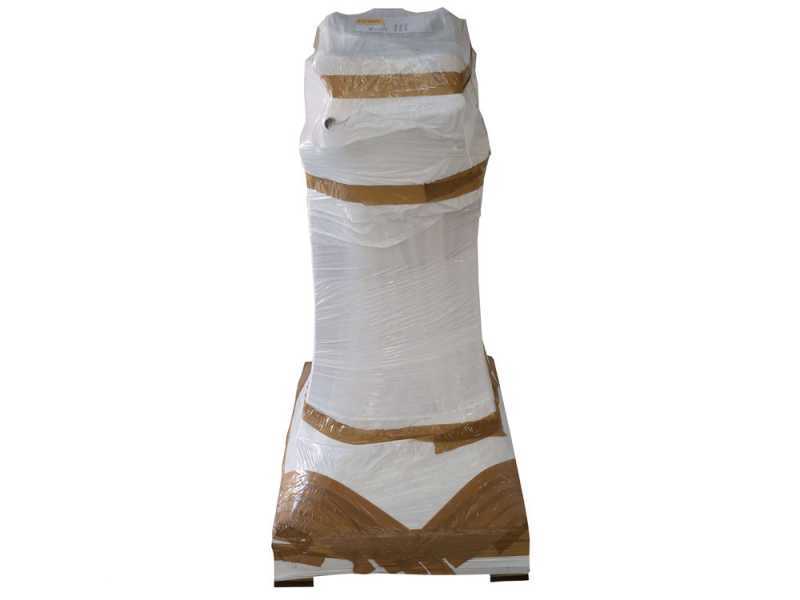

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
