Docma SVG1000 220 RAPID PLUS - Electric Log Splitter - Vertical

Questions & Answers (2)
ID: 112533

EAN: 8068020721451

MPN: 810043

Docma SVG1000 220 RAPID PLUS - Electric Log Splitter - Vertical
Max. trunk diameter
35 cm
Log holder
Yes
Piston stroke
54.5 cm
Max. pressure
190 bar
Retractable piston for transport
Yes
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
12 t
Effective thrust power
8.15 t
Pump type
Double hydraulic
Pump
Double
Product Features
Model:
SVG1000 220 RAPID PLUS
Type:
Vertical
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
12 t
Effective thrust power :
8.15 t
Piston stroke:
54.5 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
54.5 cm
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Nominal power :
2200 W
Motor speed:
2820 RPM
Power supply:
220 V electric
Oil tank capacity:
13 L
Pump data
Pump type:
Double hydraulic
Max. pressure:
190 bar
Oil tank:
Yes
Hydraulic oil qty.:
13 Litres
Cutting data
Max. trunk length:
54.5 cm
Max. trunk diameter:
35 cm
Equipment
Frame:
Standard
Pump:
Double
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Log holder:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

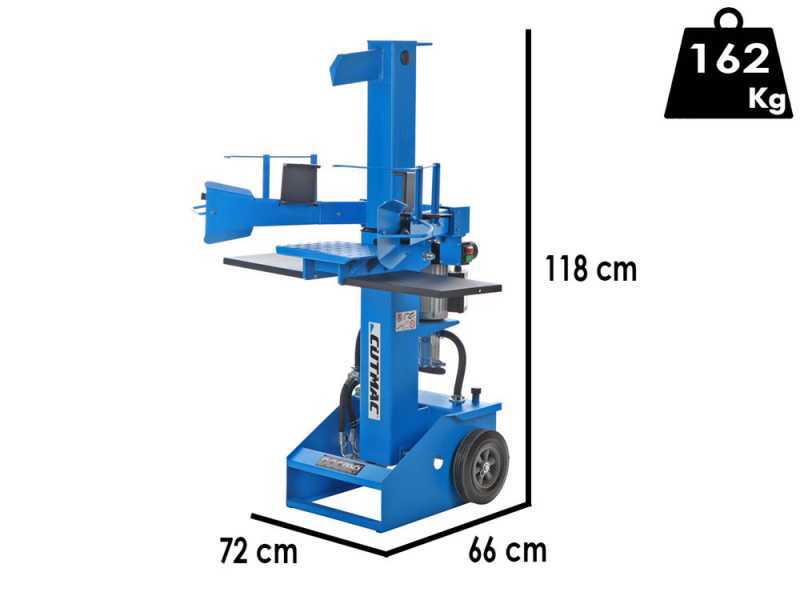

Product dimensions in cm (L x W x H):
72x66x118
Net weight:
162 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
101x61x138
Gross weight (packaging included) :
175 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 04/06/2024 - 06/06/2024
€ 1.506,98
VAT Included
You're viewing:
Customers also viewed:
Description

Docma SVG1000 220 RAPID PLUS - Electric Log Splitter - Vertical

The Docma SVG1000 220 RAPID PLUS is a professional log splitter, ideal for those who work with more than 100 q of wood each year.

Its sturdy design, high quality components and abundant hydraulic oil capacity place it at the top of the Cutmac range.

SVG1000 220 RAPID PLUS log-splitter: The SVG1000 220 RAPID PLUS log-splitter stands out to be a high quality alternative. With its remarkable power and precision, it splits the wood needed throughout the year with ease and effortlessness, guaranteeing flawless results.

SVG1000 220 RAPID PLUS (Vertical) Main Features:

  • Cylinder stroke: The SVG1000 220 RAPID PLUS provides a piston stroke of 50 cm, which allows logs of different sizes to be processed efficiently and smoothly.
  • Cutting height: With a cutting height of 54.5 cm, this log splitter is designed to tackle even the tallest logs, reducing minimising operator the need to cut wood into smaller pieces before splitting.
  • Tank capacity: Thanks to the 13-litre oil tank, smooth and constant operation is ensured, reducing pauses for topping up.
  • Adjustable Column Stroke: The adjustable column feature offers greater adaptability to different log sizes and your needs.
  • Weight: With a 162 Kg weight, the SVG1000 220 RAPID PLUS ensures the right combination of stability and handling, allowing for easy transport when necessary.
  • Splitting force: 8.15 tons

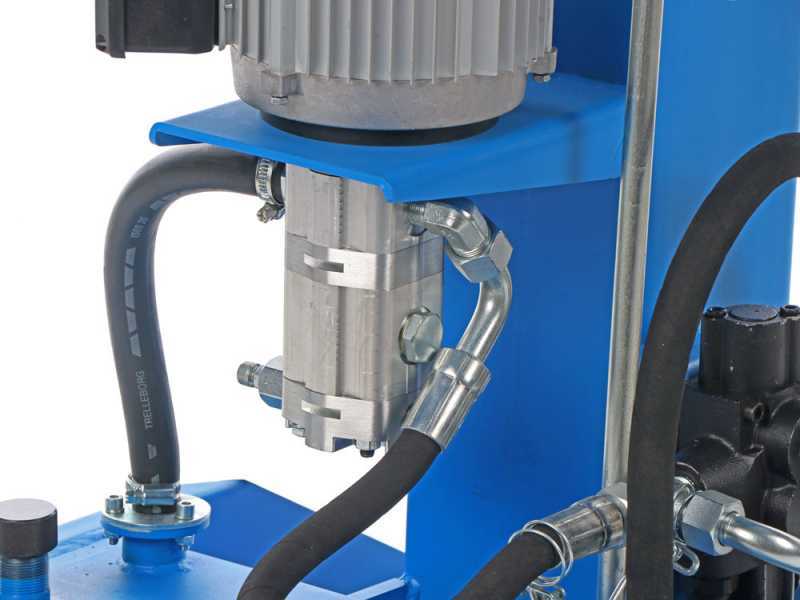

Electric motor

The SVG1000 220 RAPID PLUS electric log splitter combines innovation and high performance, making splitting wood a simple and efficient process. With its 3 HP (2.2 kW) motor and state-of-the-art features, it is a solid solution.

Main Features: :

  • Powerful motor: Equipped with a 230 V and 3 HP (2.2 Kw) motor, this log splitter provides an exceptional power ensuring an effective and effortless split.

  • Functional Design: Its structure integrates both the support function and the hydraulic oil reservoir. This efficient design facilitates oil management and makes the whole unit more compact.

  • Double Hydraulic Pump: The introduction of a double hydraulic pump guarantees a powerful pushing force and an astonishing splitting speed, allowing even strong logs to be worked with great agility.

  • Ergonomic and Functional Design: Its ergonomic design is intended to ensure a pleasant and less tiring user experience, even during prolonged sessions.

Focus on the Double Pump: The outstanding feature of this log splitter is undoubtedly its double hydraulic pump. This key component elevates performance, providing a powerful and constant thrust and increasing operating speed. Basically, the double pump acts as a force accelerator, facilitating fast and effective splitting of wood.

Wedge, dual control levers and cutting plate

The SVG1000 220 RAPID RAPID is a reliable and high-power log splitter is a superior machine for splitting logs of various sizes. With an extraordinary thrust of 8.15 tons, this device has been designed to cope easily and precisely even the most demanding jobs.

Performance Features:

  • Powerful 8.15 tons Thrust: The SVG1000 220 RAPID PLUS provides a 8.15 tons thrust, ensuring the ability to split logs of various sizes without excessive effort.
  • Splitting Size: : It can split logs up to 54.5 cm in height and 35 cm in diameter, providing considerable versatility in material handling.
  • High Resistance Steel Wedge: The log splitter wedge has been made of high-resistant steel, guaranteeing exceptional durability and consistent performance overtime.

Design and Functionality:

  • Wide working space: The spacious worktop provides a comfortable area for efficiently arranging and positioning logs.
  • Ergonomic Control System: Thanks to the bimanual control levers, the user can manage the split intuitively, adapting to different needs.
  • Safety Systems: Equipped with specially protected handles and other safety devices, it ensures optimal protection during use.
  • Integrated Support for the Log: The side log support, integrated in the handle arms, ensures that the material to be split remains stable during the operation.
  • Limit Switch Adjustment: Thanks to the adjustable system, users can customise operations according to their needs.

Additional features

This device is designed for long life and intuitive operation, and becomes the lifeline for all your wood splitting needs.

Sturdiness and Solidity: Made of high-quality materials, the log splitter is characterised by its sturdy and durable design. This ensures reliable performance even in the most intensive operations, guaranteeing stable and reliable results.

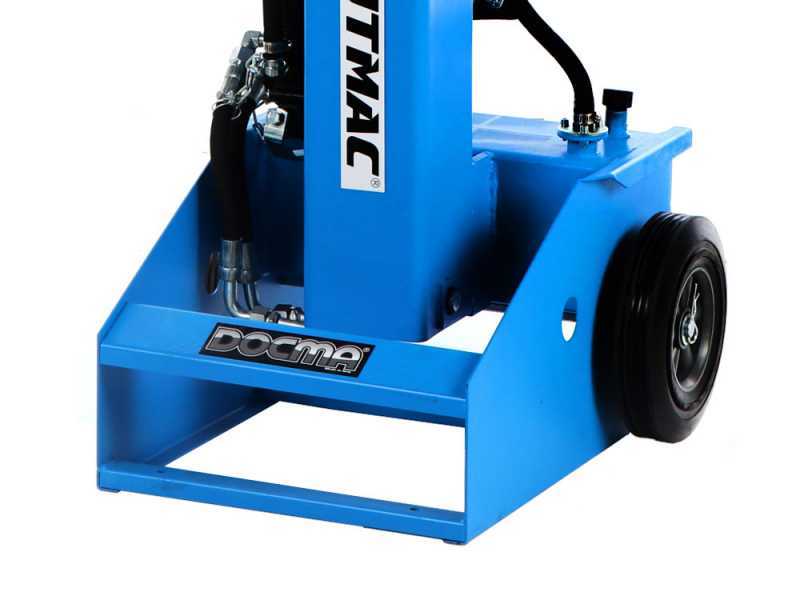

Functional and Effective Design:

  • Equipped with integrated wheels, this log splitter allows easy movement, enabling you to position it optimally according to your needs.
  • Thanks to the optimal balance, you can move it yourself with ease by using the handle to tilt the log splitter.
  • The specific lifting attachment point increases convenience during transport or storage.

High-Quality Components:

  • The hydraulic system of this log splitter is controlled by a hydraulic pump, which ensures a constant and controlled flow of oil for smooth and trouble-free splitting.
  • The special Cutmac series is a distinctive component that contributes to the high performance of this machine.
Free items & Standard equipment

Standard equipment

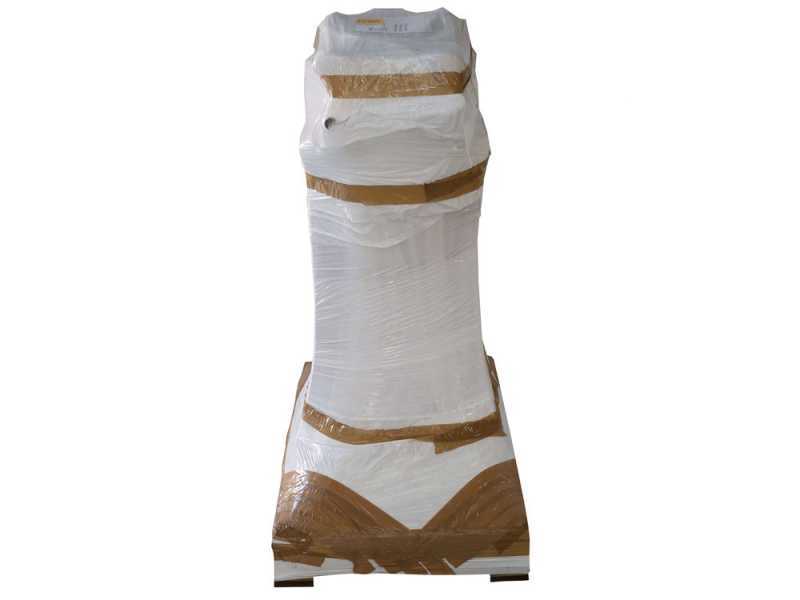

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
