Docma SVG1000 220 PLUS - Electric Log Splitter - Vertical

Add a question
ID: 112532

EAN: 8068020721512

MPN: 810042

Docma SVG1000 220 PLUS - Electric Log Splitter - Vertical
Max. trunk diameter
35 cm
Log holder
Yes
Piston stroke
54 cm
Max. pressure
190 bar
Retractable piston for transport
Yes
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
11 t
Effective thrust power
8 t
Product Features
Model:
SVG1000 220 PLUS
Type:
Vertical
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
11 t
Effective thrust power :
8 t
Piston stroke:
54 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
54 cm
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Nominal power :
2200 W
Motor speed:
2820 RPM
Power supply:
220 V electric
Oil tank capacity:
13 L
Pump data
Pump type:
Hydraulic
Max. pressure:
190 bar
Oil tank:
Yes
Hydraulic oil qty.:
13 Litres
Cutting data
Max. trunk length:
54 cm
Max. trunk diameter:
35 cm
Equipment
Frame:
Covered with front plate
Pump:
Standard
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Log holder:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
22.5
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

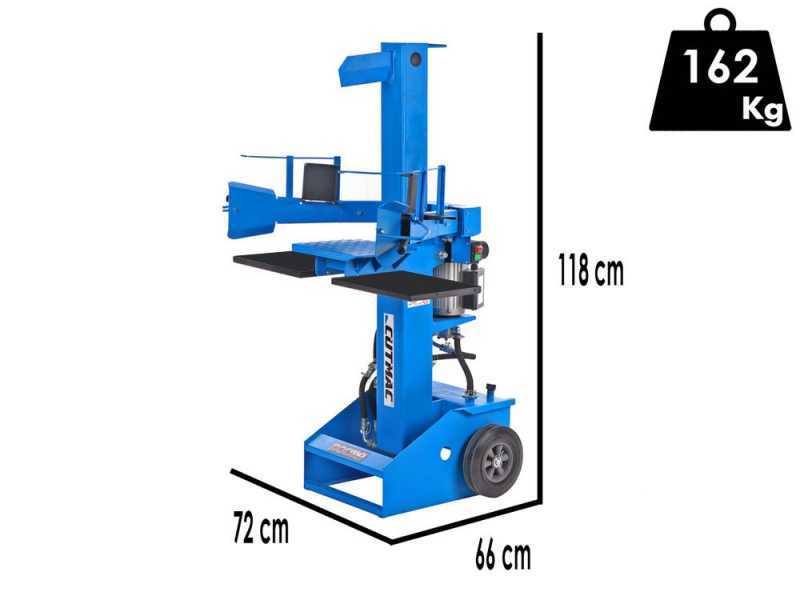

Product dimensions in cm (L x W x H):
72x66x118
Net weight:
162 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
100x60x136
Gross weight (packaging included) :
172 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 29/05/2024 - 31/05/2024
€ 1.223,78
VAT Included
You're viewing:
Customers also viewed:
Description

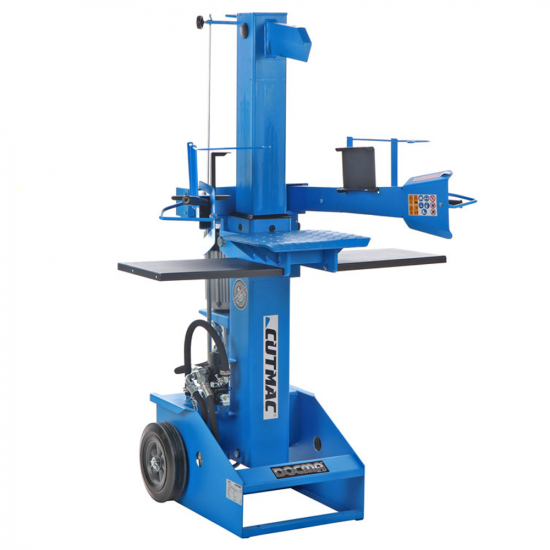

Docma SVG1000 220 PLUS - Electric Log Splitter - Vertical

The Docma SVG1000 220 PLUS log splitter is a professional proposal for those who split more than 100 q of wood per year.

The particularly sturdy construction, high quality components and large amount of hydraulic oil make this machine an outstanding member of the Cutmac line.

SVG1000 220 PLUS log-splitter: The SVG1000 220 PLUS log-splitter stands out to be a high quality alternative. Thanks to its power and precision, this machine makes it easy to split the wood needed throughout the year, ensuring effective results without requiring excessive effort.

SVG1000 220 PLUS (Vertical) Main Features:

  • Cylinder stroke: The SVG1000 220 PLUS provides a piston stroke of 53 cm, which allows logs of different sizes to be processed efficiently and smoothly.
  • Cutting height: With a cutting height of 54 cm, this log splitter is designed to tackle even the tallest logs, reducing minimising operator the need to cut wood into smaller pieces before splitting.
  • Quantity Oil: Equipped with a 13-litres tank, the SVG1000 220 PLUS ensures fluid and continuous work, minimising all interruptions due to oil refill.
  • Adjustable Column Stroke: The adjustable column stroke gives you the flexibility to adapt the machine to your preferences and the size of the logs you are treatment.
  • Weight: With a 162 Kg weight, the SVG1000 220 PLUS ensures the right combination of stability and handling, allowing for easy transport when necessary.
  • Splitting force: 8 tons

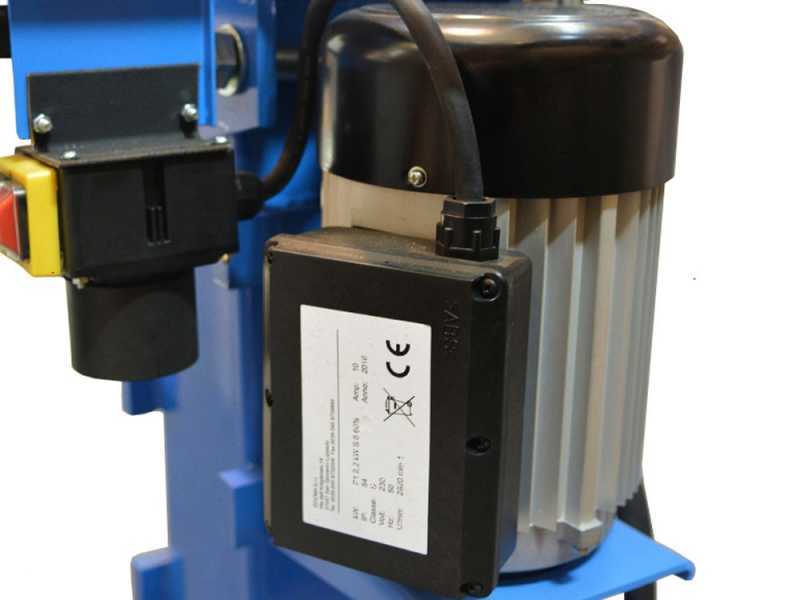

Electric motor

The innovative and high-performance SF1000 220 PLUS electric log splitter has been designed to simplify the splitting of wood. Thanks to its powerful 3 HP (2.2 Kw) motor and state-of-the-art features, this log splitter represents the perfect solution to met all your wood-working needs.

Main Features: This log splitter has been been designed to offer a easy and efficient user experience thanks to its distinct features:

  • Sturdy and Efficient Motor: Equipped with a 230 V and 3 HP (2.2 Kw) motor, this log splitter provides an exceptional power ensuring an effective and effortless split.

  • Frame with Integrated Tank: The log-splitter structure performs a double function, working both as support and hydraulic oil tank. This specific aspect not only simplifies the design, but also guarantees an efficient oil management.

  • Ergonomic and Functional Design: The special ergonomic and functional design of this log splitter ensures intuitive and comfortable operation, minimising fatigue during long splitting sessions.

Focus on the Double Hydraulic Pump: The distinctive feature of this log splitter is the double hydraulic pump, a key component that ensures superior performance. This innovative solution provides a constant and powerful thrust, as well as a working speed that increases overall productivity. The double hydraulic pump is a real powerhouse that allows you to split logs the efficiently and quickly.

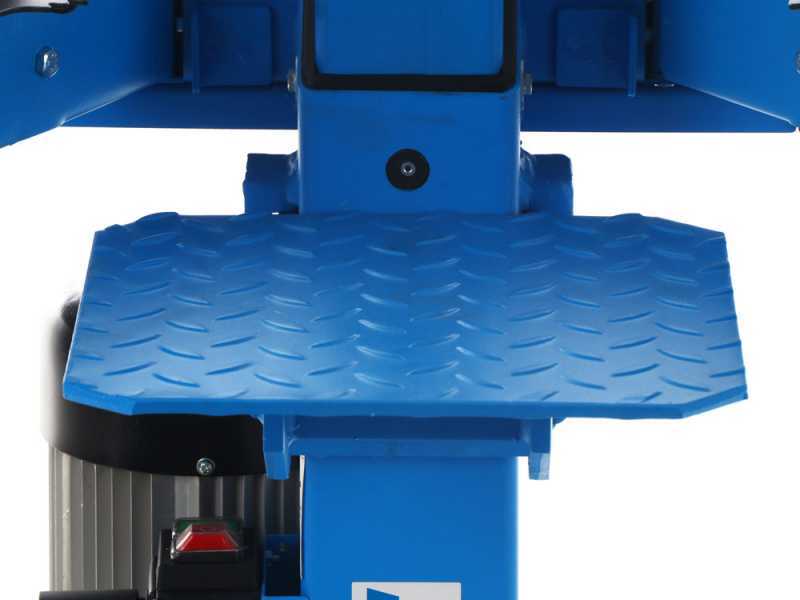

Wedge, dual control levers and cutting plate

The SVG1000 220 PLUS is a reliable and high-power log splitter is a superior machine for splitting logs of various sizes. With an extraordinary thrust of 8 tons, this device has been designed to cope easily and precisely even the most demanding jobs.

Performance Features:

  • Powerful 8 tons Thrust: The SVG1000 220 PLUS provides a 8 tons thrust, ensuring the capacity to split logs of various sizes without excessive effort.
  • Splitting Size: : It can logs up to 54.5 cm in height and 35 cm in diameter, providing considerable versatility material handling.
  • High Resistance Steel Wedge: The log splitter wedge has been made of high-resistant steel, guaranteeing exceptional durability and consistent performance overtime.

Design and Functionality:

  • Wide working space: The spacious worktop provides a comfortable area for efficiently arranging and positioning logs.
  • Ergonomic Control System: Thanks to the bimanual control levers, the user can manage the split intuitively, adapting to different needs.
  • Safety Systems: Equipped with specially protected handles and other safety devices, it ensures optimal protection during use.
  • Integrated Support for the Log: The side log support, integrated in the handle arms, ensures that the material to be split remains stable during the operation.
  • Limit Switch Adjustment: Thanks to the adjustable system, users can customise operations according to their needs.

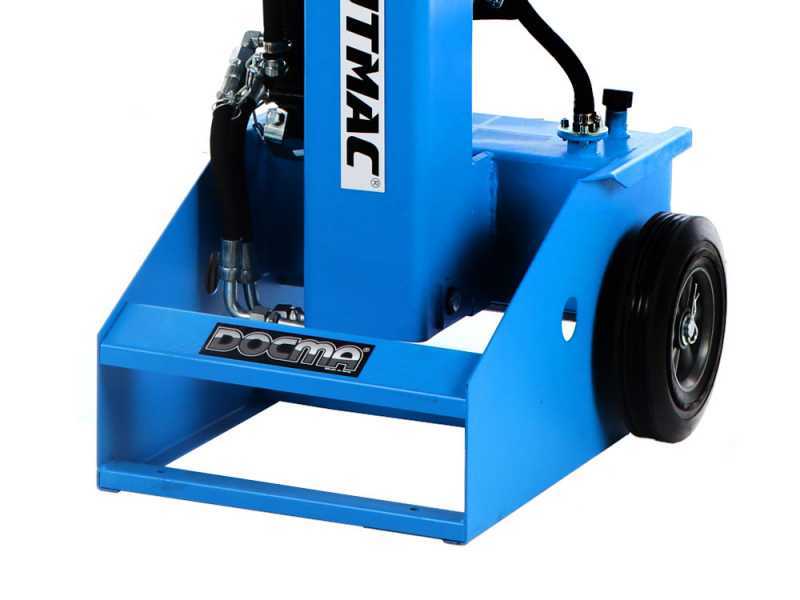

Additional features

Discover the revolutionary log splitter combines strength and functionality in a unique design. This device has been designed to ensure long lasting durability and easy of use, thus becoming a solid reference point for your log splitting.

Sturdiness and Solidity: Made from high-quality materials, the log splitter boasts a solid and durable construction. This ensures that it can handle even the heaviest operations on a continuous basis, providing consistent and trusted results.

Practical and Convenient Design:

  • Equipped with integrated wheels, this log splitter allows easy movement, enabling you to position it optimally according to your needs.
  • Thanks to the optimal balance, you can move it yourself with ease by using the handle to tilt the log splitter.
  • The specific lifting attachment point increases convenience during transport or storage.
Free items & Standard equipment

Standard equipment

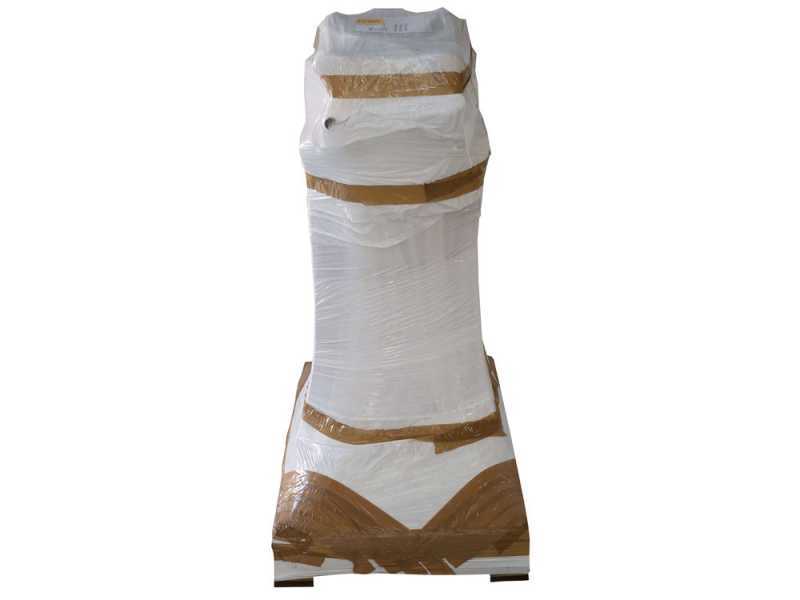

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
