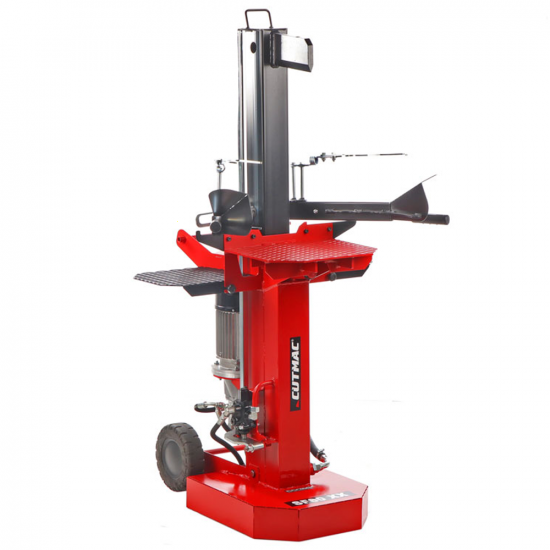

Docma SF80 Rapid 380/4 XX - Electric Log Splitter - Vertical - 400V

Add a question
ID: 112517

EAN: 8068020721871

MPN: 910071

Docma SF80 Rapid 380/4 XX - Electric Log Splitter - Vertical - 400V
Max. trunk diameter
50 cm
Log holder
Yes
Piston stroke
54.5 cm
Max. pressure
240 bar
Retractable piston for transport
Yes
Operating mode
Three-phase 400 V
Nominal power
4 HP
Engine
Induction
Nominal power (W)
3000 W
Nominal splitting force
11 t
Effective thrust power
8 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model:
SF80 Rapid 380/4 XX
Type:
Vertical
Double speed:
No
Operating mode:
Three-phase 400 V
Nominal splitting force:
11 t
Effective thrust power :
8 t
Piston stroke:
54.5 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
54.5 cm
Manufacturing country:
Italy
Motor data
Motor brand:
CIMA
Motor type:
Electric three-phase
Engine:
Induction
Nominal power:
4 HP
Nominal power (W):
3000 W
Nominal power :
3000 W
Motor speed:
3360 RPM
Power supply:
400 V electric
Oil tank capacity:
8 L
Pump data
Pump type:
Double hydraulic
Max. pressure:
240 bar
Oil tank:
Yes
Hydraulic oil qty.:
8 Litres
Cutting data
Max. trunk length:
54.5 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Standard
Pump:
Double
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Log holder:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
22.5
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

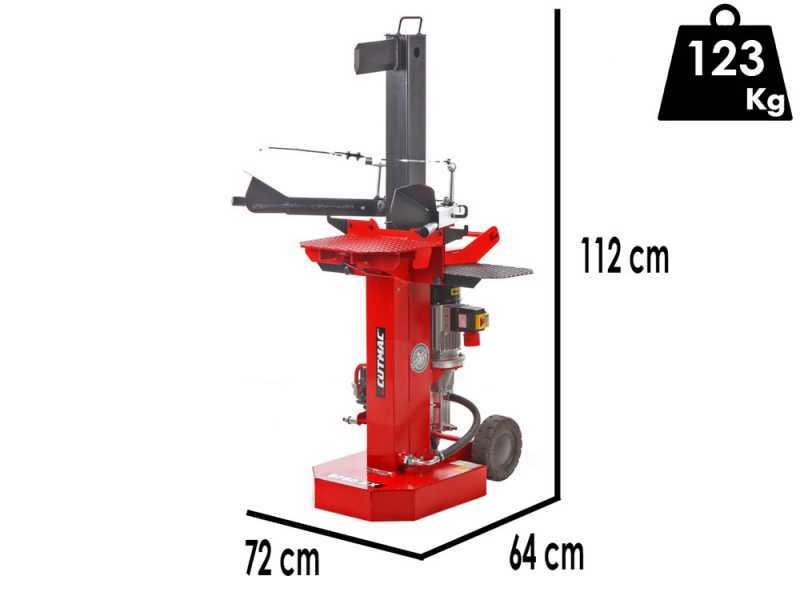

Product dimensions in cm (L x W x H):
72x64x112
Net weight:
123 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
105x65x135
Gross weight (packaging included) :
140 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 10/06/2024 - 12/06/2024
€ 1.818,92
VAT Included
You're viewing:
Customers also viewed:
Description

Docma SF80 Rapid 380/4 XX - Electric Log Splitter - Vertical

The Docma SF80 Rapid 380/4 XX is a high-quality solution for those who need an efficient and safe way of splitting wood, whether for domestic or professional purposes.

It stands out for its operational excellence. Designed for maximum precision and power, it makes splitting wood a simple and effective operation, eliminating the need for excessive operator effort.

Main Features of the SF80 Rapid 380/4 XX (Vertical):

  • Cylinder stroke: The SF80 Rapid 380/4 XX features a cylinder stroke of 50 cm, optimising the handling of logs of different sizes with high efficiency.
  • Cutting height: : With a cutting height of 54.5 cm, the tool can handle logs of considerable size, minimising the need to pre-cut timber into smaller sizes.
  • Oil tank capacity: A dedicated 8 litre oil tank ensures continuous and smooth operation, significantly reducing interruptions for frequent refills.
  • Adjustable Column Stroke: This feature allows the operator to customise the use of the log splitter according to the size of the log being processed, ensuring maximum efficiency at all times.
  • Weight: The 123 kg weight of the SF80 Rapid 380/4 XX ensures stability during operation, while remaining manoeuvrable enough to be transported when needed.
  • Splitting force: 8 tons
  • Support surface: Fixed

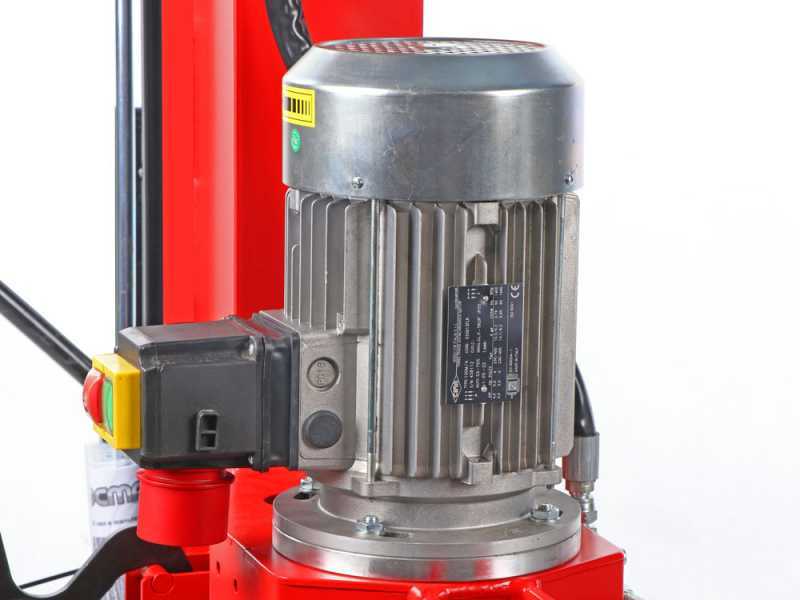

Electric Engine

The SF80 Rapid 380/4 XX electric log splitter model is an advanced device designed to improve efficiency in wood splitting. Featuring a 4 HP (3 Kw) engine and a series of avant-garde features, it is suitable for all operations related to wood treatment.

Technical Specifications:

  • Efficient engine: Equipped with a 4 Hp (3 Kw) 400 V engine, ensuring superior splitting performance, maximising efficiency and reducing operational effort.

  • Structure with integrated tank: The construction of the log splitter incorporates a reservoir for hydraulic oil, acting both as a structural support and as an oil reservoir. This feature not only makes the design cleaner, but also optimizes oil management.

  • Double Hydraulic Pump: A distinctive feature of this model is the presence of a double hydraulic pump. This component allows high reactivity and enhanced performance, ensuring effective division even with logs of considerable strength.

  • Ergonomic and Functional Design: The particular ergonomic and functional design of this log splitter ensures intuitive and comfortable use, minimising fatigue during long splitting sessions.

Detail of the Double Hydraulic Pump: The real added value of this device lies in its double hydraulic pump. This technological solution ensures a constant and vigorous hydraulic pressure, combined with a speed of operation that significantly increases productivity. In practice, this results in an ability to split wood more quickly and efficiently

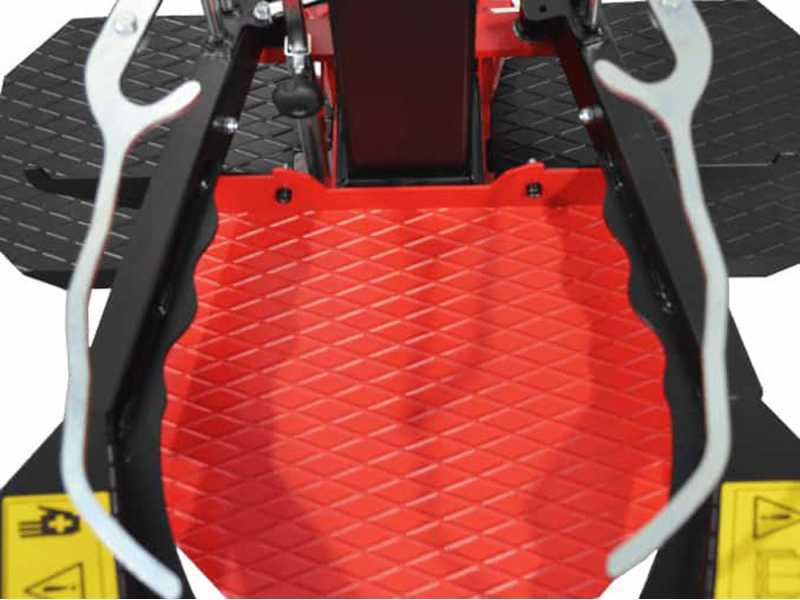

Wedge, dual control levers and cutting plate

The Docma SF80 Rapid 380/4 XX high-power log splitter is an essential tool in the division of woody logs. Thanks to a thrust force of 8 tons, it has been developed to effectively and accurately handle the most demanding splitting operations.

Performance characteristics:

  • Thrust Capacity: The SF80 Rapid 380/4 XX is characterised by a thrust force of 8 tons. This remarkable power allows you to process logs of various sizes, ensuring accurate and timely division.
  • Split Dimensions: With the ability to handle logs that reach 54.5 cm in height and 50 cm in diameter, the log splitter offers remarkable versatility, responding to different processing needs.
  • High resistance steel wedge: The log splitter is equipped with a high-strength steel wedge, which ensures long life and uniform performance over time.

Design and Functionality:

  • Working Surface: Its large working area, is designed to offer adequate space for the arrangement and handling of logs.
  • Easy and Ergonomic Control: The two-hand hydraulic valve control levers allow the user to easily manage splitting operations, adapting to different work needs.
  • Safety Guards: The pair of operating handles are equipped with standardised hand guards and safety devices to ensure maximum protection for the user.
  • Integrated Log Holder: A lateral support for the seal of the log, integrated in the arms of the handles, ensures that the material to be split remains in a stable position throughout the entire operating cycle.
  • Limit switch control system: The limit switch control system is adjustable, allowing the user to customize the settings according to their preferences and work needs.

The Docma SF80 Rapid 380/4 XX log splitter stands out as a technologically advanced solution for wood splitting. Combining power, ergonomics and safety features.

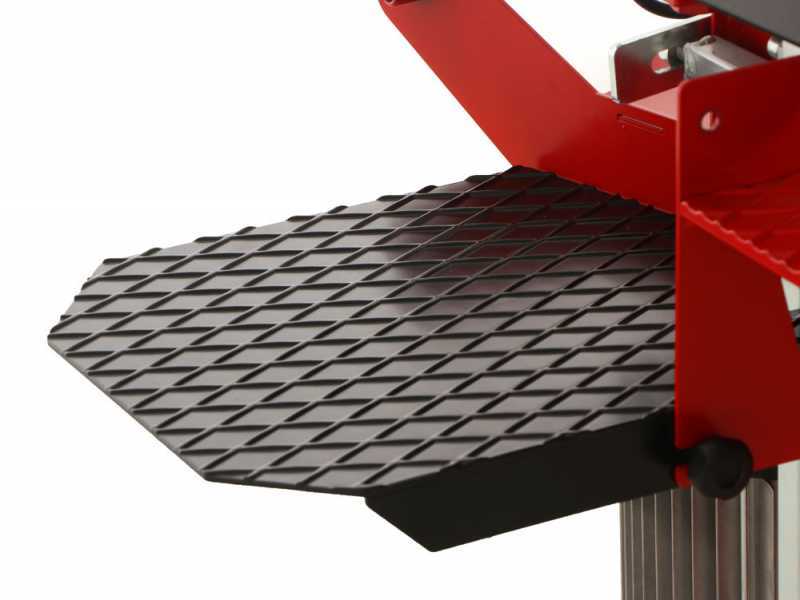

Additional features

The log splitter in question represents an advance in the field, combining strength and functionality in a sophisticated design. This tool is designed to offer longevity and ease of use, establishing itself as a reliable solution for splitting operations.

Robustness and Solidity: The use of premium materials gives the log splitter unquestionable structural solidity. This special care in the selection of materials guarantees flawless performance even under the most demanding operating conditions, ensuring reliability and safety.

Functional Design:

  • Mobility: Thanks to the integration of wheels, our log splitter ensures easy handling, allowing you to position it strategically according to your needs.

  • Manoeuvrability: Its balanced structure and dedicated handle make it easy to move the unit.

  • ATTACHMENT POINT: A special attachment point is provided to facilitate lifting and storage of the log splitter.

  • Innovative Patented Locking System: This log splitter is equipped with an innovative patented locking system, designed to keep the log tightly secure and safe during splitting. This mechanism, the result of cutting-edge technologies, minimizes the risks of accidents, operating in full compliance with EN609-1-2017 safety standards.

Stable Support Base: The design is completed by a solid support base that ensures stability during the splitting operation, minimising the risk of unwanted movements.

Quality Components:

  • The hydraulic system of this log splitter is managed by a double hydraulic pump that guarantees a constant and controlled flow of oil for a smooth and seamless split.
  • The particular Cutmac series represents a distinctive component that contributes to the high performance of this machine.
Free items & Standard equipment

Standard equipment

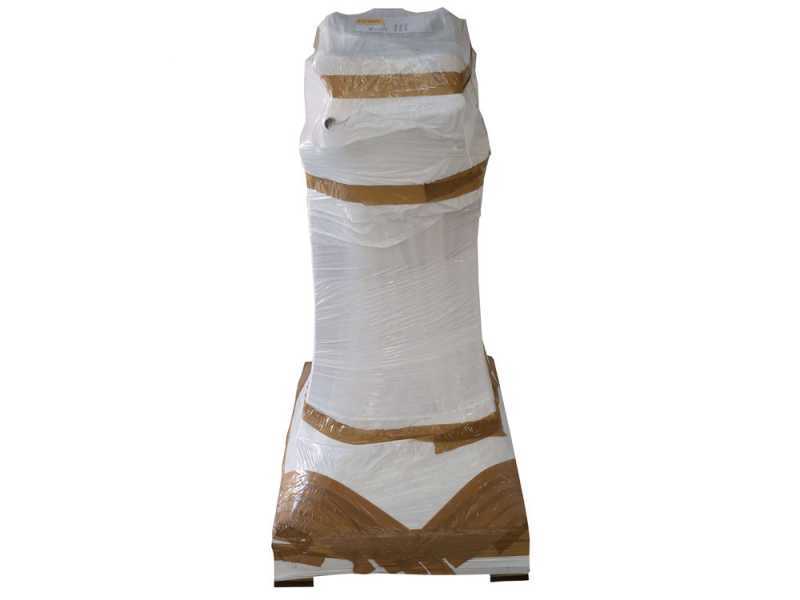

The log splitter is safely shipped in its original packaging and placed on a pallet.

The maintenance and operating instructions manual is included in the packaging.
